Part :DI3301
Category :PLC/ Machine Control
Subfield :PLC modules/racks

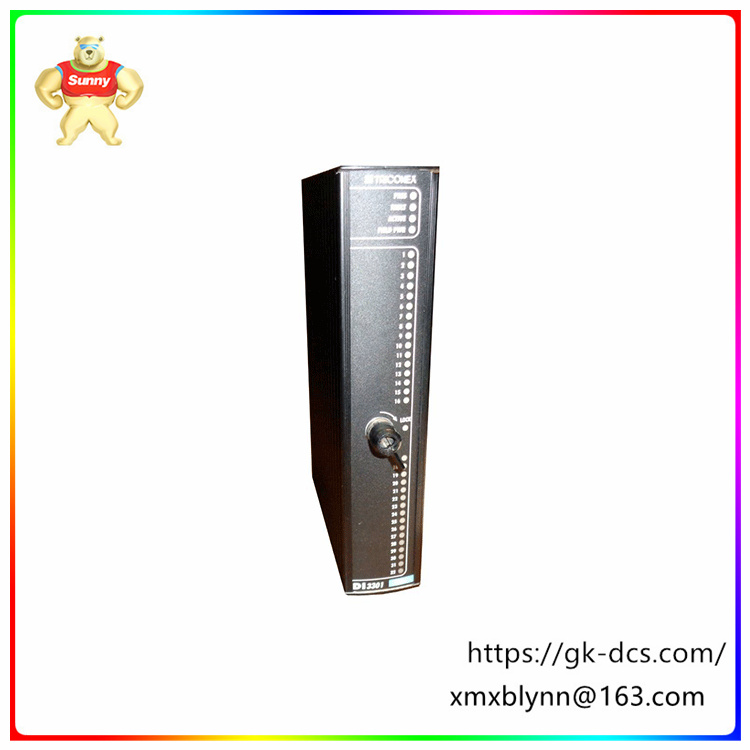

DI3301 is a digital input module manufactured by Triconex for Safety instrumentation systems (SIS) for industrial process control applications. Here is a breakdown of its main features and functions:
Features:
The DI3301 receives digital on/off signals from a variety of sensors and switches used in safety-critical processes. These sensors can monitor parameters such as pressure, temperature, flow or equipment status. The DI3301 processes these signals and transmits them to the Safety Instrumentation System (SIS) controller.
Features:
32 digital input channels: The DI3301 can accept digital signals from up to 32 different sensors simultaneously.
High reliability: Designed for safety-critical applications, the DI3301 prioritizes reliability and fault tolerance. It undergoes rigorous testing to ensure that it meets the Safety integrity Level (SIL) requirements.
Hot swap: Replacing modules when the system is online (hot swap) minimizes downtime during maintenance.
Isolation: Each input channel is isolated from other input channels and power sources to prevent electrical failure from spreading through the system.
Applications:
DI3301 is used in a variety of industries where safety is Paramount and the process can be dangerous. Here are some examples:
Oil and Gas industry: Monitor the pressure, level and flow rate of combustible liquids and gases in refineries and pipelines.
Chemical processing plants: Monitor the temperature, pressure and flow of hazardous chemicals in reactors and treatment units.
Power generation facilities: Monitor turbine speed, vibration, flame detection and other key parameters.
Other points to note:
Safety Certification: The DI3301 module shall be certified for safety-critical applications according to relevant safety standards such as IEC 61508.
Configuration and programming: Configuring the DI3301 and integrating it with SIS controllers requires specialized software and expertise in safety instrumentation systems.
