Product description.

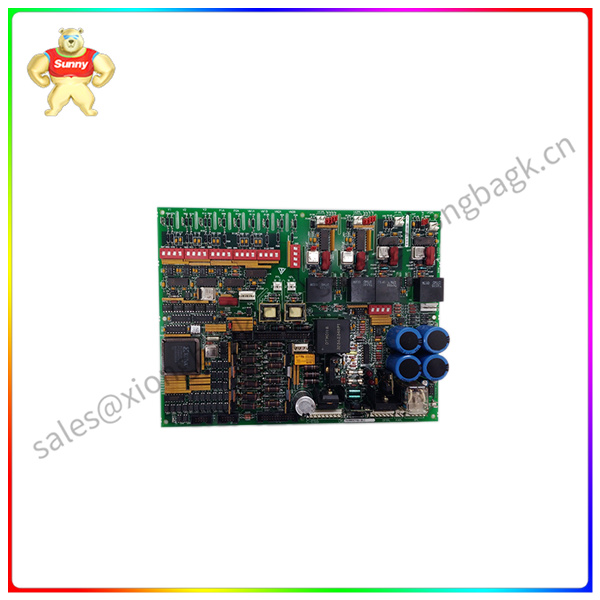

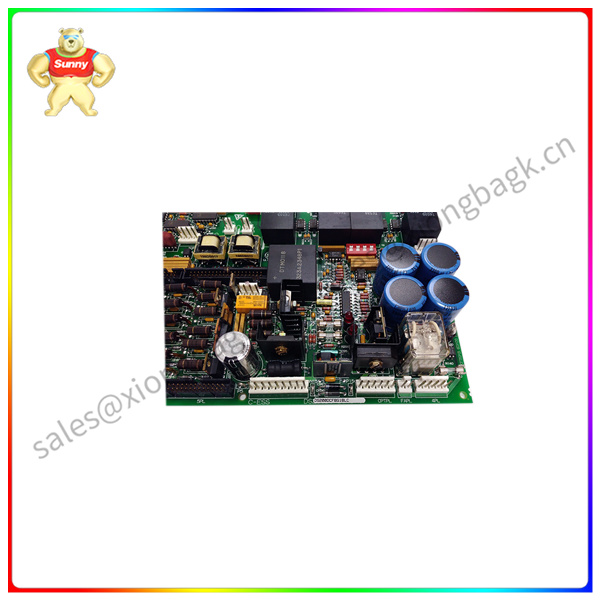

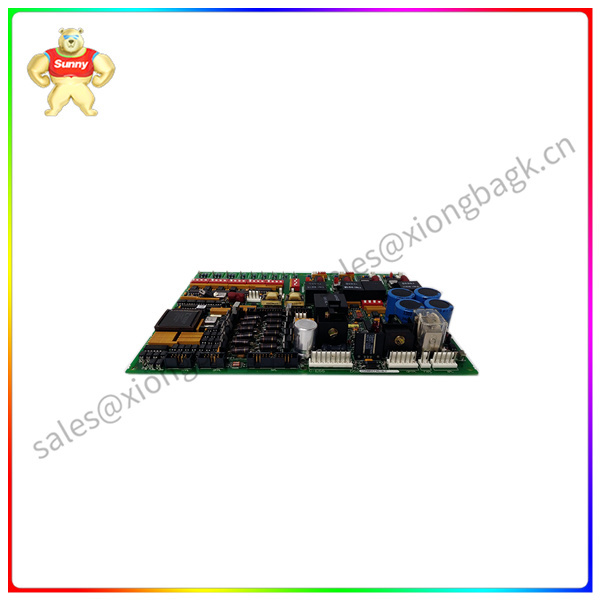

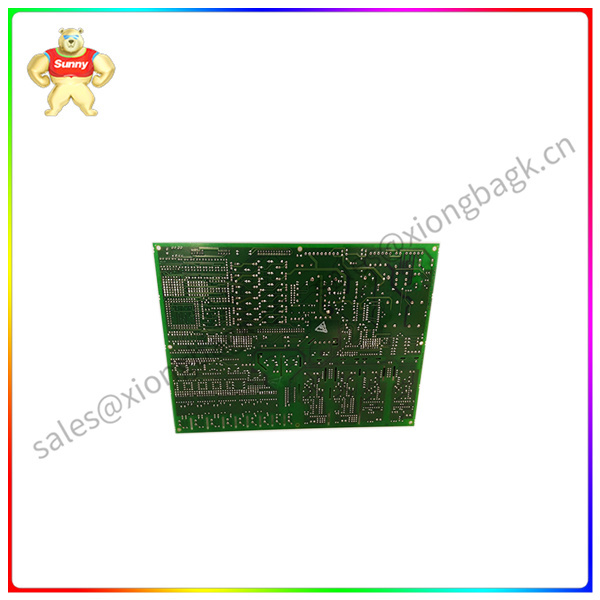

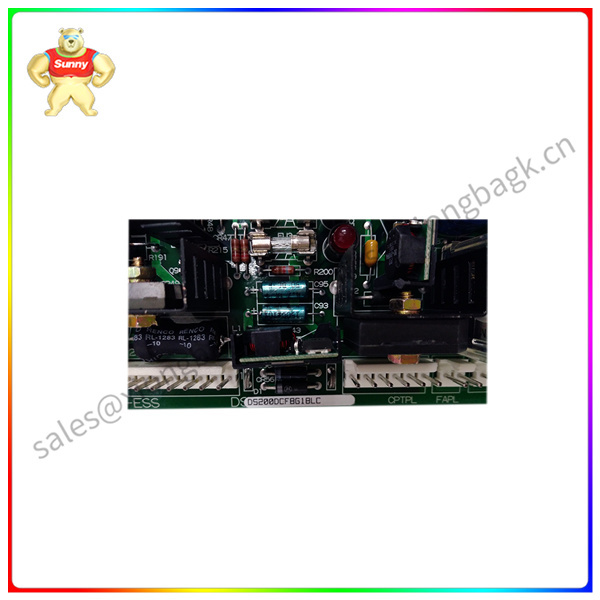

The DS200DCFBG1BLC is a power board designed by General Electric for the Mark V Series optional and replacement boards. Members of the family are cross-compatible with many GE branded exciters and drives. Be from
DC2000, AC2000, CB2000, ME2000 and FC2000 drives can accept this power supply board. This card provides system control level power to its mounted drive, and a fan to the cabinet
Power on. The AC input to this board can be rated from 38 to 115 volts AC. The frequency accompanying this vacuum can range from 0 to 500 KHZ depending on the strength of the input voltage.
The DS200DCFBG1BLC contains a number of complex circuit systems designed to power most of the drivers. The card includes AC and DC monitoring circuits, control level power supply circuits, motor magnetic field power supply circuits and
Drive circuit. The donkey can be configured with twelve jumpers and seven DIP switches to meet any external requirements. The status of the motherboard is communicated to the user via onboard indicators. The card has two built-in leds and a neon finger
An indicator that provides users with important diagnostic and status information. The board's 3 three fuses are protected to ensure that interruptions or surges do not interrupt the current. Be sure to use a set of five test points for regular monitoring voltage levels
Into the circuit board.
Installation parameters provided by DS200DCFBG1 BLC and inverter must be followed. These guidelines will ensure that the motherboard and the installed system function as expected. Refer to the series manuals for wiring and installation instructions
And device data sheet. Technical support for all motherboards in the Mark V series was initially provided by manufacturer General Electric.
DS200DCFBG1BLC is a GE power module commonly used in industrial control systems and power equipment to provide a stable and reliable power supply to the system. It has the following characteristics:
High efficiency and stability: The power module usually uses high efficiency power conversion technology, with high energy conversion efficiency and stability to ensure stable power output.
Multiple protection function: DS200DCFBG1BLC power module usually has multiple protection functions, such as overcurrent protection, overvoltage protection, undervoltage protection, etc., to ensure the safe and stable operation of the system.
Suitable for a variety of application scenarios: The power module can be used in a variety of industrial control systems and power equipment, such as motor control, power systems, automated production lines, etc.
Easy maintenance: The power module has a simple interface and operation mode, which is convenient for users to configure and maintain.
