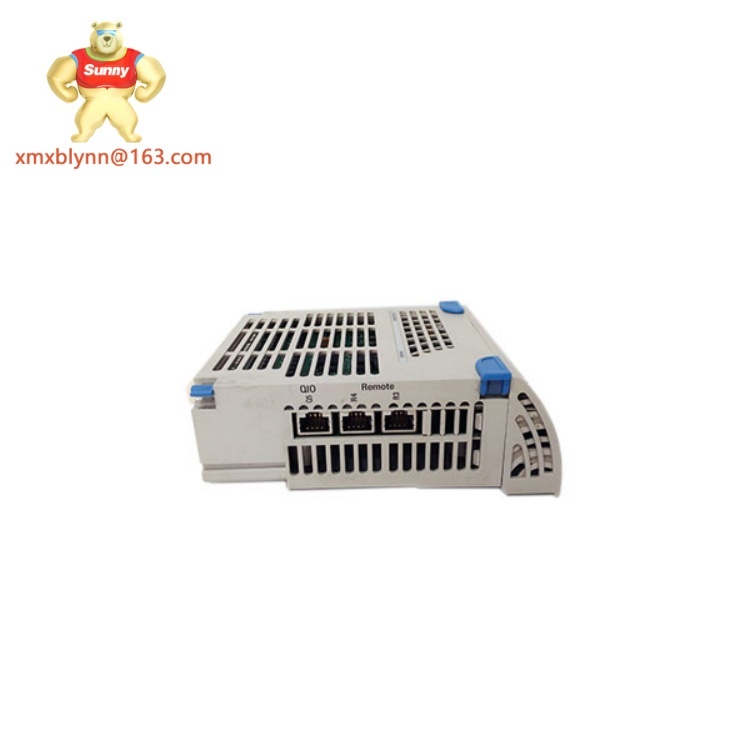

The Emerson 5X00226G02 is a robust I/O module, a key component of Emerson’s Ovation Distributed Control System (DCS), designed to serve as the critical interface between field devices and the central control system in industrial automation environments. Its core functionality revolves around acquiring, processing, and transmitting analog and digital signals from sensors, actuators, and other field equipment, ensuring seamless data flow for real-time monitoring and control.
As an integral part of the Ovation system, the Emerson 5X00226G02 plays a pivotal role in translating raw field data into actionable insights for operators, enabling precise regulation of industrial processes. Its design prioritizes reliability and compatibility, making it suitable for both new installations and system upgrades across diverse industries. What sets the Emerson 5X00226G02 apart is its ability to handle multiple signal types with high accuracy, even in harsh industrial conditions, ensuring consistent performance where process stability and data integrity are critical. Whether in power generation, chemical processing, or water treatment, the Emerson 5X00226G02 delivers the connectivity and robustness needed to maintain operational efficiency.
The Emerson 5X00226G02 offers exceptional versatility with its mixed analog and digital channels, eliminating the need for separate modules and simplifying system design. Its analog channels deliver ±0.1% full-scale accuracy, ensuring precise measurement of critical process variables like pressure, temperature, and flow—essential for maintaining product quality and process efficiency in industries such as chemical manufacturing.
Robust signal isolation (1500V AC) is a standout feature, protecting the module and connected systems from electrical noise and ground loops common in industrial environments. This isolation enhances data integrity and reduces the risk of system failures, a critical advantage in power plants or refineries where downtime is costly.
The module’s broad operating temperature range (-40°C to 70°C) ensures reliable performance in extreme conditions, from freezing outdoor installations to high-temperature factory floors. Integrated diagnostics, including channel-level fault detection and status LEDs, simplify troubleshooting, allowing technicians to quickly identify issues like sensor failures or wiring problems. Seamless integration with the Ovation DCS further enhances its value, enabling centralized configuration and monitoring without compatibility issues.
The Emerson 5X00226G02 is widely deployed in industries requiring precise process control and reliable data acquisition. In power generation facilities, it monitors boiler temperature, turbine pressure, and generator output, transmitting real-time data to the Ovation DCS to optimize combustion efficiency and ensure safe operation. Its accurate analog inputs are particularly valuable here, as they enable precise regulation of steam flow and fuel injection.
In chemical processing plants, the module connects to pH sensors, level transmitters, and control valves, facilitating automated batch processing. By converting sensor signals into actionable data, it helps maintain optimal reaction conditions, reducing waste and ensuring compliance with safety standards. The Emerson 5X00226G02’s digital outputs also control pumps and agitators, coordinating their operation to streamline production.
Water and wastewater treatment facilities rely on the module to monitor turbidity, chlorine levels, and pump status, enabling automated adjustment of filtration and disinfection processes. Its rugged design ensures consistent performance in humid, chemically exposed environments, supporting continuous operation with minimal manual intervention.
- Emerson 5X00226G01 – Previous generation I/O module with basic functionality, compatible with legacy Ovation systems using the Emerson 5X00226G02.
- Emerson 5X00226G03 – Enhanced variant with 16 analog inputs, expanding the Emerson 5X00226G02’s capacity for large-scale monitoring.
- Emerson 5X00241G01 – Digital-only I/O module, complementing the Emerson 5X00226G02 in applications requiring high digital channel counts.
- Emerson KJ2221X1-BA1 – Process control module that integrates with the Emerson 5X00226G02 to execute control algorithms.
- Emerson 5X00411G01 – Power supply module, providing stable 24V DC power to the Emerson 5X00226G02 and other Ovation components.
- Emerson 5X00300G02 – Communication adapter, enabling the Emerson 5X00226G02 to connect with third-party devices via Ethernet/IP.
Installing the Emerson 5X00226G02 requires mounting it in a compatible Ovation system rack, ensuring secure connection to the backplane for power and communication. The module should be positioned to allow 20mm of clearance on all sides for proper ventilation. A stable 24V DC power supply with proper grounding is essential to prevent electrical interference, which could affect signal accuracy. Before power-up, verify wiring polarity for analog/digital channels and confirm compatibility with connected field devices.
For maintenance, conduct quarterly inspections to check for loose connections or dust accumulation on terminals. Calibrate analog channels annually using certified test equipment to maintain ±0.1% accuracy. The Emerson 5X00226G02’s diagnostic LEDs provide immediate status feedback, with fault details accessible via the Ovation HMI. Replace aging wiring every 5–7 years to prevent signal degradation, ensuring the module remains reliable in critical applications.
