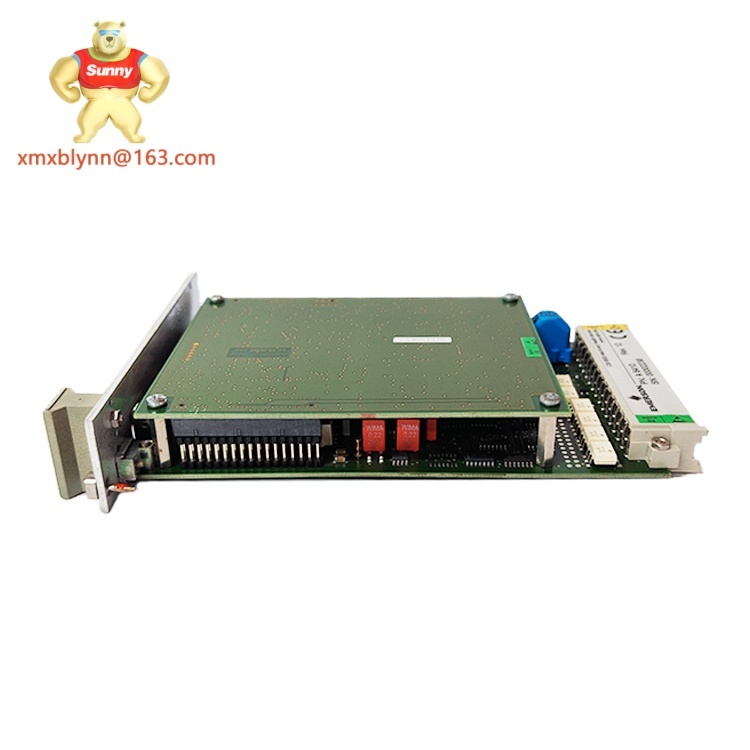

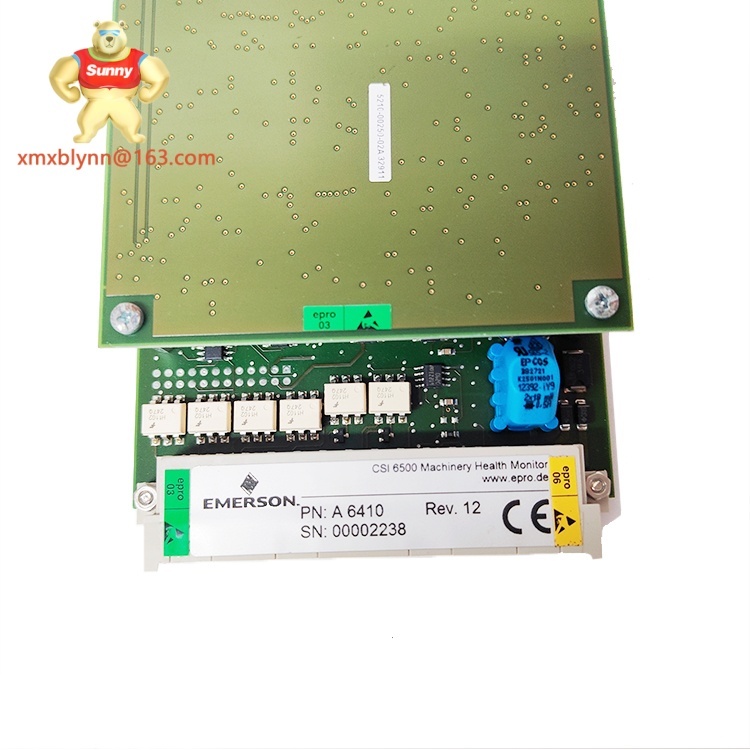

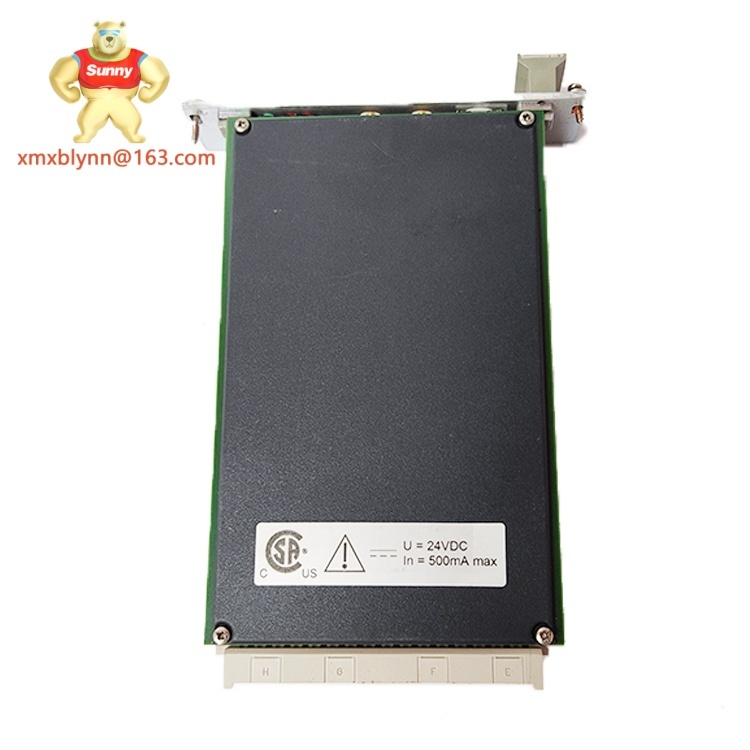

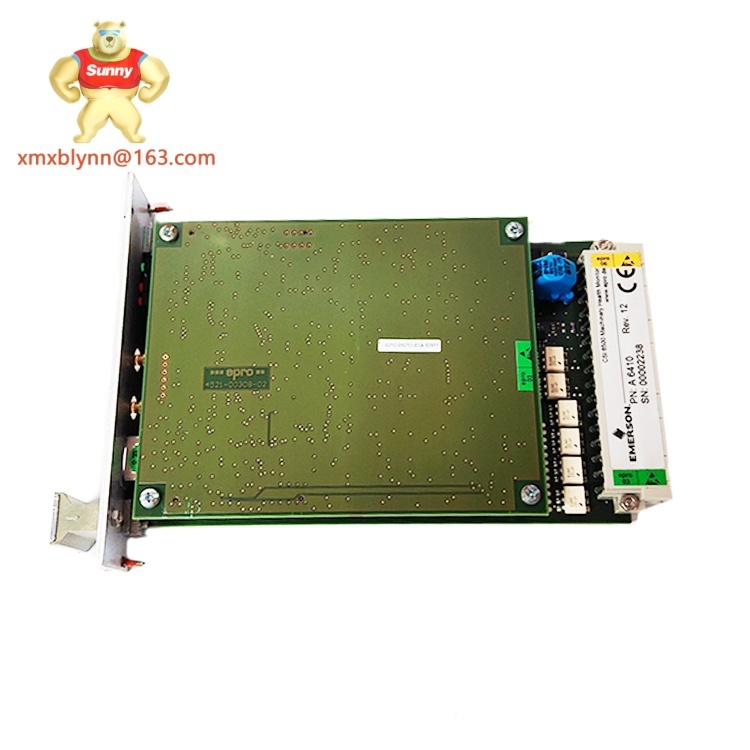

EMERSON A6410 Product Description

Product Overview

Technical Specifications

Parameter	Value
Product Model	EMERSON A6410
Manufacturer	Emerson
Product Type	Dual-channel valve and case expansion monitor
Sensor Compatibility	Inductive displacement sensors (LVDTs), compatible with PR 9350/XX
Input Voltage	24 VDC ±10% (supplied via AMS 6500 rack)
Outputs	2x 0/4–20 mA proportional outputs, 2x 0–10 V buffered outputs
Communication	Modbus RTU/TCP, RS485 (baud rate: 300–115,200 bps)
Accuracy	±0.1% of full scale (static measurements)
Environmental Ratings	IP65 (front panel), MIL-STD-810G (shock/vibration resistance)
Safety Certifications	API 670 compliant, CE, UL 508
Dimensions	144 mm × 144 mm × 127 mm (DIN rail/panel mount)
Warranty	12 months (global coverage)

Key Features and Benefits

1. Precision Monitoring

• Dual-Channel Design:
  Channel 1 measures static values (e.g., casing expansion) and dynamic quantities (e.g., displacement, force). Channel 2 tracks relative displacements compared to Channel 1, ensuring comprehensive analysis of thermal growth during turbine startups .
• High Sensitivity:
  Detects casing expansion rates as low as 0.01 mm, preventing "crabbing" (asymmetric bending) that could cause rotor-to-case collisions .

2. Rugged Reliability

• Self-Diagnostics:

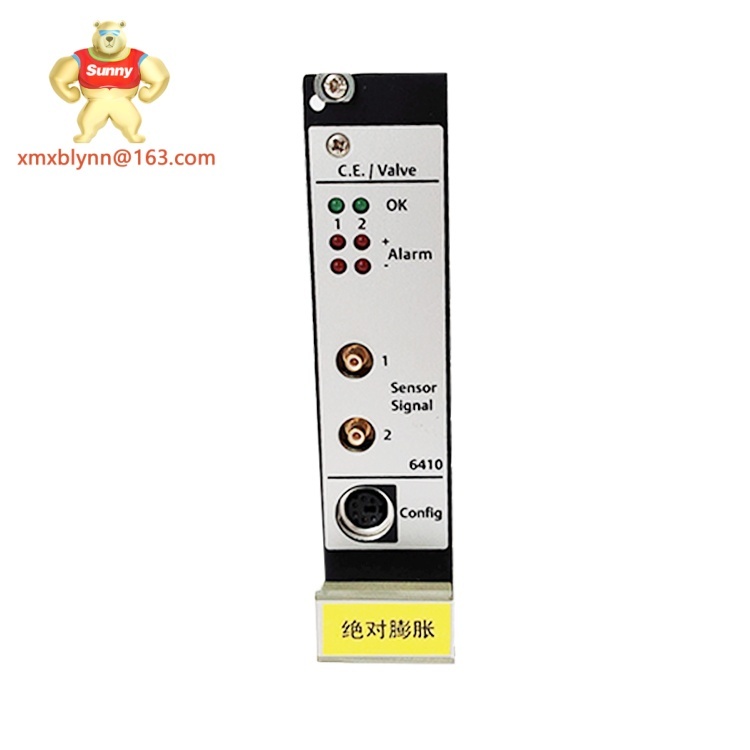

  Monitors hardware integrity, power input, and sensor/cable health. LED indicators provide real-time status updates for quick troubleshooting .
• Harsh Environment Resistance:
  IP65-rated enclosure and MIL-STD-810G compliance ensure operation in extreme temperatures (-40°C to +70°C) and high-vibration settings typical of power plants and refineries .

3. Integration and Flexibility

• PlantWeb® Compatibility:
  Seamlessly integrates with Emerson’s Ovation® and DeltaV™ process control systems, enabling unified monitoring of machinery health alongside process parameters .
• Modular Architecture:
  Works with other AMS 6500 modules (e.g., vibration monitors, speed probes) to build a complete API 670-compliant protection system .

4. User-Friendly Operation

• Password-Protected Configuration:
  Configurable via Emerson’s AMS Machinery Manager software, allowing secure adjustments of alarm setpoints and measurement ranges .
• Predictive Maintenance:
  AMS Suite analytics tools use historical data to predict component wear, reducing unplanned outages .

Application Scenarios

1. Power Generation

• Steam Turbines:
  Monitors casing expansion during startups to ensure uniform thermal growth, critical for preventing blade rubbing in power plant turbines .
• Gas Compressors:
  Tracks valve stem position in natural gas pipelines to maintain optimal flow rates and prevent overpressure events .

2. Petrochemical & Oil/Gas

• Refinery Furnaces:
  Ensures burner valves operate within safe limits, avoiding fuel leaks in high-temperature cracking units .
• Offshore Platforms:
  Withstands saltwater corrosion and high humidity while monitoring subsea pump casings for expansion-related stress .

3. Industrial Manufacturing

• Steel Mills:
  Monitors casing expansion in rolling mill drives to maintain alignment during hot rolling processes .
• Paper Mills:
  Protects steam turbine-driven generators from thermal stress during continuous paper production .

Related Models

• EMERSON A6220:
  Shaft eccentricity monitor for detecting rotor misalignment in turbomachinery .
• EMERSON A6110:
  Vibration monitor for analyzing bearing health in rotating equipment .
• EMERSON A6500-RC:
  16-channel relay output module for triggering shutdowns across multiple AMS 6500 monitors .

Installation and Maintenance

Setup

1. Mounting:
   Secure in an AMS 6500 rack using DIN rail or panel-mount brackets. Ensure proper grounding to minimize EMI interference.
2. Wiring:
   Connect LVDT sensors to Channels 1 and 2 using shielded cables. Route 24 VDC power and Modbus cables separately from high-voltage lines .
3. Configuration:
   Use AMS Machinery Manager to program alarm thresholds (e.g., 90% of casing expansion limit) and enable relay outputs .

Maintenance

• Monthly Checks:
  Inspect LED status indicators and verify sensor readings against DCS trends.
• Annual Calibration:
  Recalibrate LVDTs using a precision displacement gauge to ensure accuracy.
• Firmware Updates:
  Download updates from Emerson’s website to access new diagnostic features and compliance updates .
