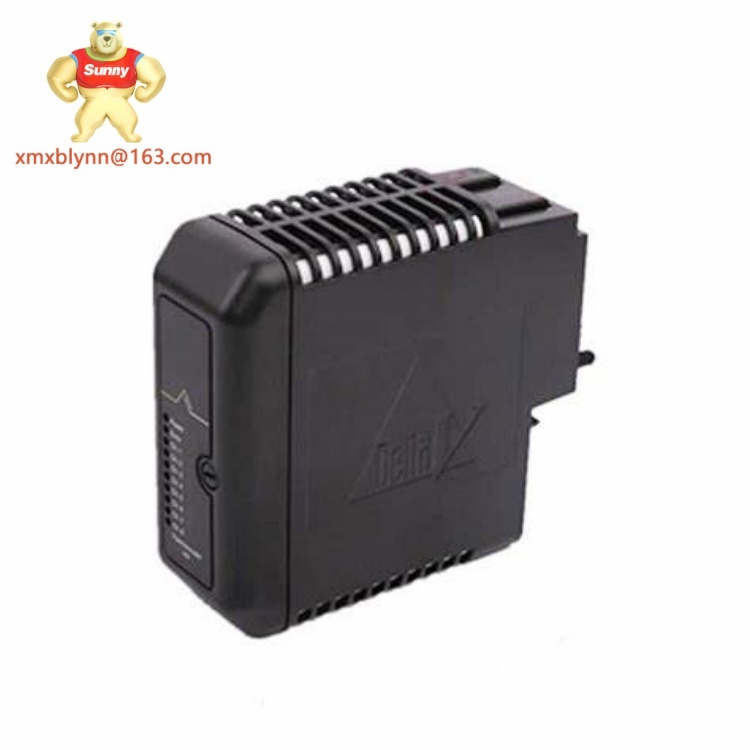

Product Overview
The EMERSON CE4003S6B1 is a compact, high-density I/O and signal-conditioning module engineered for use in DCS racks, MCC control cabinets, and retrofit substation panels. It combines precision analog inputs, isolated digital channels, and on-board diagnostics in a narrow DIN-rail package, making the EMERSON CE4003S6B1 a practical replacement or complement to ABB I/O modules when managing distributed control system parts across mixed-vendor plants. Field engineers commonly mount the EMERSON CE4003S6B1 in control cabinets adjacent to controller racks (for example alongside ABB DO810 and ABB AC 800M interface modules), so signal paths remain short and troubleshooting is simplified.
Because many industrial sites run both legacy and modern controllers, the EMERSON CE4003S6B1 was designed for brownfield compatibility: it accepts 4–20 mA, RTD, and thermocouple inputs while providing galvanic isolation and common-mode rejection to minimize nuisance trips. Illustrated by a short field example: in a municipal water treatment plant, technicians fitted a single EMERSON CE4003S6B1 into an existing cabinet to centralize turbidity and pump run-status signals, restoring continuous monitoring within one shift. For procurement teams sourcing industrial automation spare parts, this module reduces spare SKU proliferation and accelerates on-site fixes.
Technical Specifications (Markdown table)
| Parameter | Value |
|---|---|
| Product Model | EMERSON CE4003S6B1 |
| Manufacturer | Emerson |
| Product Type | High-density I/O & Signal Conditioning Module |
| Power | 24 VDC nominal, <2 W per active channel |
| Communication / Protocol | Analog 4–20 mA, RTD, TC; optional Modbus RTU gateway |
| Operating Temperature | -25°C to +70°C |
| Mounting | DIN-rail (35 mm) / panel adapter available |
| Protection / Ingress | IP20 (cabinet); optional conformal coating for harsh environments |
| Dimensions (HxWxD) | 110 × 22.5 × 95 mm (typical) |
| Weight | 0.16 kg (nominal) |
| Typical Interfaces | 4–20 mA inputs, RTD/TC inputs, relay/transistor outputs |
| Compliance | CE, RoHS, UL/cUL (model-specific) |
Key Features and Benefits
Reliability is central to the EMERSON CE4003S6B1: its galvanic isolation and surge-tolerant inputs protect upstream controllers and reduce false trips caused by ground loops or induced noise. Additionally, the module includes channel-level diagnostics — open-wire detection, input short alarms, and per-channel health flags — presented as local LEDs and via exportable event logs; this combination speeds fault isolation and reduces mean-time-to-repair. Performance-wise, the device uses 16-bit conversion on analog channels and supports configurable input ranges, so one module can replace several older SKUs and simplify spares management for teams buying distributed control system parts.
Integration is straightforward: the EMERSON CE4003S6B1 maps cleanly into existing control architectures and plays well with ABB I/O modules and ABB AC 800M controllers, letting engineers avoid extensive I/O rework during phased upgrades. Space efficiency matters too — with a slim profile and dense channel count, the module lets integrators pack more I/O into existing cabinets without sacrificing access for wiring and service. Finally, lifecycle costs fall because firmware supports non-intrusive logging and firmware rollback; in short, trending and diagnostics are available without taking loops offline, which helps operations plan repairs rather than react to failures.
Application Scenarios
In power plants, the EMERSON CE4003S6B1 can monitor generator thermocouples, excitation sensors, and auxiliary system statuses where isolation and fast diagnostics prevent spurious trips. In oil and gas skids, it fits compact control enclosures, providing loop power and TC support for temperature-critical processes. For municipal water and wastewater facilities, the module consolidates turbidity, flow, and pump-run signals into fewer modules, easing brownfield retrofits and enabling continuous SCADA visibility with minimal downtime — e.g., a municipal team brought a tertiary treatment basin back to automated control overnight by swapping legacy cards for a single EMERSON CE4003S6B1.
Mining and bulk-material plants use the module to reduce EMI-related alarms by isolating long cable runs, while discrete manufacturers deploy it for rapid changeovers where compact I/O and reliable diagnostics shorten changeover verification times. In HVAC and smart infrastructure, the EMERSON CE4003S6B1 provides precise sensor reads for energy optimization projects that integrate with higher-level controllers. Because it supports common industrial signals and offers clear diagnostics, this module eases brownfield retrofits where ABB DO810 or other ABB modules are already in use, allowing staged migration with minimal process disruption.
Related Models
EMERSON CE4003S6B0 — earlier revision with standard-temperature rating.
EMERSON CE4003E1 — Ethernet gateway variant for Modbus TCP integration.
EMERSON CE4003S6B1-HT — high-temperature variant for +85°C environments.
EMERSON B4-IOX — companion digital expansion card for discrete-heavy racks.
EMERSON S4-RACK — higher-density rack module for new-build control rooms.
EMERSON CE4003-CONF — conformal-coated option for marine/humid sites.
EMERSON GATE-RTU — fieldbus bridge for legacy protocol translation.
Installation and Maintenance
Begin installation by confirming cabinet ventilation and adequate clearance: the EMERSON CE4003S6B1 mounts on a standard 35 mm DIN rail and requires proper wiring separation (signal vs. power) to maintain signal integrity. Grounding is essential; connect the module chassis to a single-point functional earth on the cabinet ground bar to avoid ground loops. Mount the module so terminal labels face the service aisle and route field cables with ferrules and correct torque to avoid intermittent contact during vibration.
For maintenance, inspect LEDs and event logs weekly during initial commissioning, then monthly once stable. Keep a backup of module configuration and firmware in your maintenance repository; when swapping a EMERSON CE4003S6B1 unit, restore settings from the backup to shorten downtime. Use the module’s trend and alarm exports to detect gradual drift; replace modules showing persistent calibration shifts or repeated transient events. Finally, perform terminal re-torque after the first 50 hours of operation and during annual preventive maintenance to maintain electrical integrity.
Product Warranty
The EMERSON CE4003S6B1 is covered by a one-year warranty and free replacement service provided by Xiamen Xiongba E-commerce Co., Ltd. Branch (not the OEM). For warranty claims, customers should contact Xiamen Xiongba with the serial number, purchase invoice, and a brief failure description; Xiongba offers pre-shipment testing, datasheet verification, and serial-number traceability to validate claims and expedite replacements. Support staff will walk purchasers through troubleshooting steps, coordinate return authorization where required, and arrange expedited shipping for covered replacements.
Shipping and Returns (required text — do not alter wording)
Shipping Details:
Delivery within 7-28 business days via DHL/FedEx/UPS.
Ships from Xiamen, China.
Return Policy:
Returns accepted within 7 days of receipt.
Items must be unused and in original packaging.
Buyer pays return shipping unless the product is defective.
