Brand:EMERSON Model:PR6424/011-140 Product type:Eddy - Current Sensor Payment method: Wire transfer, Western Union Port of shipment for remittance: Xiamen, China Delivery time: 1-3 working days Condition: 100% original Warranty: 12 months

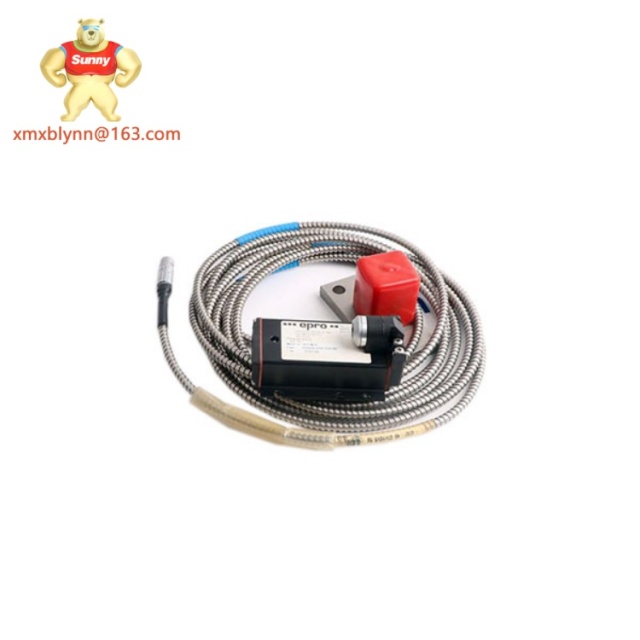

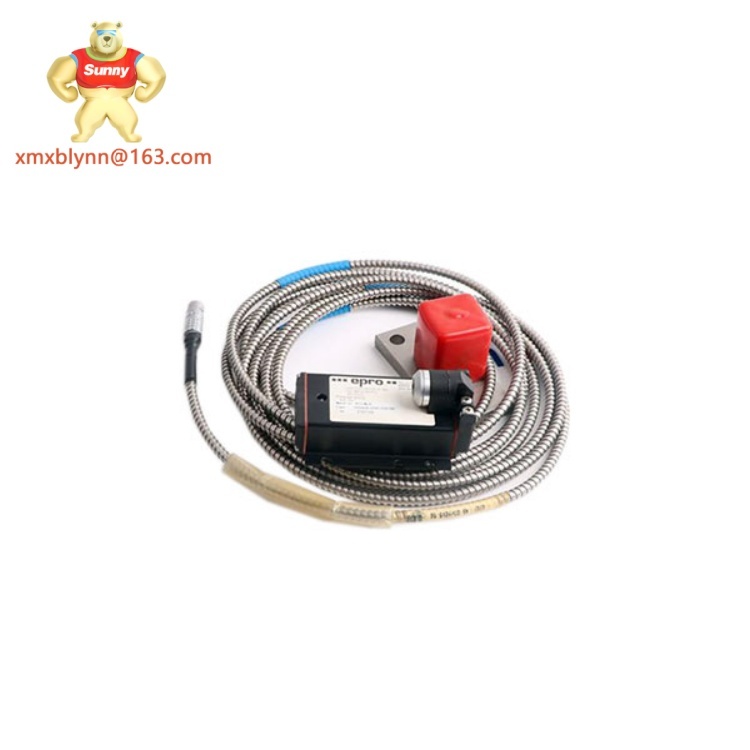

TheEMERSON PR6424/011-140is a high - performance eddy - current sensor, belonging to Emerson's EPRO series. Its core functionality is to accurately measure the vibration of rotating machinery, which is crucial for monitoring the operational status of equipment. In an automation setup, it typically plays a key role in the condition monitoring system, providing real - time vibration data to help engineers detect potential faults early and ensure the stable operation of machinery. This sensor is highly valued for its non - contact measurement feature, which avoids wear and tear, extending its service life. Additionally, its high - precision measurement capability and wide measurement range make it suitable for various rotating machinery, such as turbines, compressors, and pumps, enhancing its applicability in different industrial scenarios.
Technical Specifications
Parameter
Value
Product Model
EMERSON PR6424/011-140
Manufacturer
Emerson
Product Type
Eddy - Current Sensor
Measuring Range
Static: ±2.0 mm; Dynamic: 0 - 1000μm
Measuring Target
Ferromagnetic Steel
Maximum Surface Speed
2500 m/s
Operating Temperature Range
- 35℃ to 150℃
Operating Voltage
DC 9 to 30V (similar models, for reference)
Sensor Material
Stainless Steel (similar models, for reference)
Mounting Style
Standard M8 x 1.0 Thread (similar models, for reference)
Accuracy
±0.2% of Full Scale (similar models, for reference)
Protection Level
High
Power Consumption
Low (similar models, for reference)
Key Features and Benefits
TheEMERSON PR6424/011-140offers several notable features and benefits. Its non - contact measurement design is a significant advantage, as it eliminates the risk of wear caused by direct contact with the measured object, greatly extending the sensor's lifespan and reducing maintenance costs. The sensor provides high - precision vibration measurement data, with an accuracy of up to ±0.2% of full scale (similar models), which is essential for early fault detection of equipment, allowing engineers to take preventive measures in a timely manner.
It has a wide measuring range, capable of handling both static and dynamic measurements, making it suitable for different types of rotating machinery under various working conditions. The sensor is constructed with high - quality materials, likely stainless steel, which endows it with strong corrosion resistance and wear resistance, enabling it to work reliably in harsh industrial environments such as high - temperature, high - humidity, and high - vibration conditions.
Moreover, thePR6424/011-140supports multiple signal output interfaces, which facilitates its connection with other control and monitoring devices, improving the integration ability in the automation system. Its low - power consumption design ensures energy - saving operation without sacrificing performance, contributing to the overall energy efficiency of the system.
Application Scenarios
TheEMERSON PR6424/011-140is widely used in various industrial scenarios. In power plants, it is crucial for monitoring the vibration of turbines and pumps. Turbines operate at high speeds, and even a slight vibration anomaly may indicate potential faults. By continuously measuring the vibration, the sensor helps ensure the safe and stable operation of turbines, preventing serious accidents.
In the oil & gas and petrochemical industries, the sensor is applied to compressors and pumps. These devices are the core of the production process, and their stable operation is essential for the normal operation of the entire plant. ThePR6424/011-140can detect the vibration changes of these devices in time, helping to optimize the operation parameters and avoid production interruptions caused by equipment failures.
In the metallurgical industry, it is used to monitor the vibration of large - scale rotating equipment. The harsh environment of metallurgy, with high temperature and dust, poses a great challenge to the performance of the sensor. However, due to its excellent corrosion - resistance and high - temperature - resistance, thePR6424/011-140can still provide reliable measurement data, ensuring the normal operation of equipment and improving production efficiency.
Related Models
PR6424/010-140: Similar model, may have some differences in specific parameters or installation methods.
PR6424/002-120: Another model in the same series, possibly with a different measuring range or target application.
PR6423/010-100: Related eddy - current sensor, may be suitable for different types of machinery or have different performance characteristics.
CON011: Usually used in combination with PR6424 series sensors, it is a signal converter that can process the signals output by the sensor.
PR6426/003-031: Belongs to the same family of vibration sensors, may have enhanced features or different protection levels.
PR9266/520-030: Related product, which may be used for auxiliary measurement or in a complementary monitoring system.
PR6422/002-030: Similar eddy - current sensor, with possible differences in measurement accuracy or response speed.
PR9270/000-031: Can be used in conjunction withPR6424/011-140in some cases, providing additional measurement or control functions.
PR6425/010-100: A related model, which may be optimized for specific industrial applications.
Installation and Maintenance
Installation preparation: TheEMERSON PR6424/011-140is designed for easy installation. It features a standard M8 x 1.0 thread mounting style, so it only requires a corresponding threaded hole on the installation surface. Before installation, ensure that the installation location is clean and free of debris, and the physical space is sufficient to avoid interference with other components. Grounding is not specifically mentioned to be particularly complex, but it is recommended to follow the general grounding requirements of industrial sensors to ensure stable operation. The operating temperature range is - 35℃ to 150℃, so the installation environment should be within this range.
Maintenance recommendations: Regularly check the sensor's connection to ensure that the M8 x 1.0 thread connection is tight to prevent signal transmission failures. Periodically calibrate the sensor according to the actual usage frequency and industrial environment, usually once a year or as required by the factory. Although the sensor has strong corrosion - resistance and wear - resistance, if it is used in a particularly harsh environment, visually inspect the sensor for any signs of damage or corrosion, such as surface rust or deformation, and replace it in time if necessary. Pay attention to the power supply voltage to ensure that it is within the specified range to avoid affecting the sensor's performance.
Product Warranty
TheEMERSON PR6424/011-140comes with a one - year warranty. During this period, if there are any quality problems caused by non - human factors, the manufacturer will provide free repair or replacement services. Xiamen Xiongba E - commerce Co., Ltd. Branch, which specializes in industrial automation spare parts, also supports this warranty policy. With over a decade of industry experience, the company is committed to providing high - quality products and services. Global support is available, ensuring that customers can get timely help and solutions no matter where they are. This warranty not only reflects the confidence in the product quality ofPR6424/011-140but also demonstrates the commitment to customer satisfaction, allowing customers to use the product with more peace of mind.
