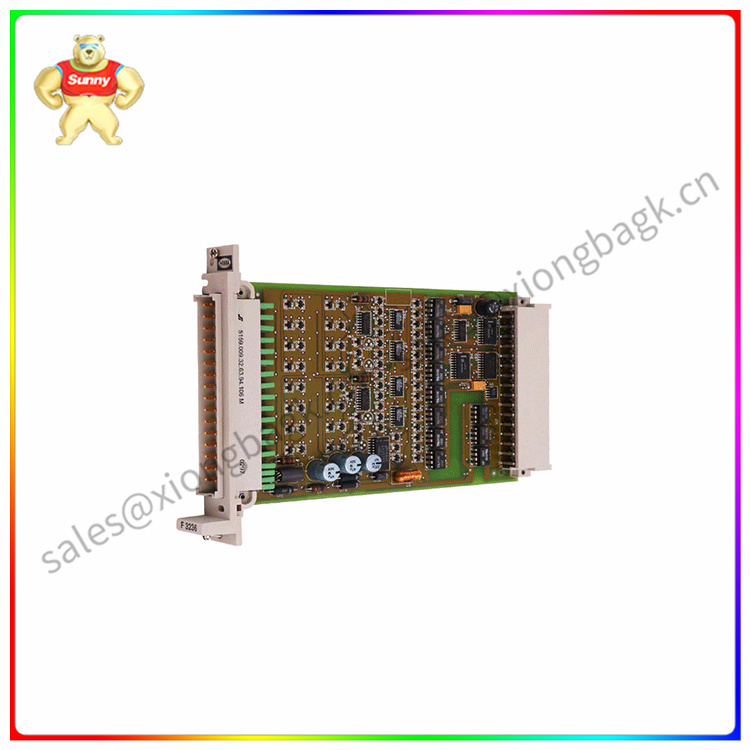

The F3236 is a 16-channel digital input module manufactured by HIMA for safety instrument control systems. The following is a detailed analysis of the F3236:
Functions and features:
Digital input: The module has 16 digital input channels and can accept signals from various sensors.
Safety-related: The F3236 is designed for applications with high safety requirements, such as automated control systems in the chemical, oil, and gas industries.
Flexible configuration: Inputs can be configured as 6mA or 24V mechanical contacts to meet the needs of different sensors.
Fast switching: The module has a typical switching time of 8ms, which means that it can quickly respond to changes in the input signal.
Space requirements: The module has a space requirement of 4TE and is suitable for a variety of compact control system layouts.
Power options: The F3236 can be powered by 5V DC or 24V DC, providing greater flexibility.
Comprehensive testing: Modules are automatically fully tested during operation to ensure that they are functioning correctly. The test functions include the crosstalk between input and zero, the function of filter capacitor and the function of module.
Compatibility:
The F3236 is compatible with HIMA's various PLCS, including C300, C500, and more.
HIMA's H41q/H51q system is a QMR-Quadruple Modular Redundant (QMR-Quadruple Modular Redundant), which means that the central control unit of the system has four microprocessors, each of which is integrated on a CU module, and the central control unit is formed by two identical CU modules. This structure enables HIMA's products to meet high safety standards such as AK6/SIL3.
Application field:
The F3236 is suitable for industrial automation control systems requiring high safety and reliability, such as chemical, oil, gas, power, water treatment and other industries.
Due to its safety-relevant design and comprehensive testing capabilities, it is particularly suitable for applications where equipment failure or misoperation can have serious consequences.
In summary, the F3236 is a powerful, flexible and highly secure digital input module suitable for a variety of industrial automation control systems requiring high security and reliability.
The F3236 is a 16-channel digital input module designed for safety instrument control systems with the following benefits:
Advantages:
High security: The F3236 meets high security standards such as AK6/SIL3 and is suitable for applications with high security requirements.
Configuration flexibility: Inputs can be configured as 6mA or mechanical contacts as 24V, making the module compatible with many different types of sensors.
Fast response: The typical switching time value is 8ms, which can quickly respond to changes in the input signal.
Comprehensive self-test function: The module will automatically conduct a comprehensive test during operation, including the input and zero crosstalk, the function of the filter capacitor and the function of the module, to ensure the reliability and stability of the system.
Extensive compatibility: Compatible with HIMA's various PLCS, such as C300, C500, etc., for easy integration and expansion in existing systems.
Cons:
High cost: Due to its high level of security and complex features, the F3236 may cost more than other ordinary input modules.
Professional training required: Due to its high specialization and security requirements, users may need to receive specialized training to properly configure and operate the module.
Space requirements: Although its space requirements are 4TE, it may still need to be considered in a compact control system layout.
Limited power options: Although the F3236 can be powered by 5V DC or 24V DC, some specific application scenarios may require other voltage options.
Overall, the F3236 is a high-performance digital input module specifically designed for safety instrument control systems for applications where safety is critical. In the selection and use, users need to evaluate according to their actual needs and application scenarios, and consider factors such as cost, training needs and space constraints.
