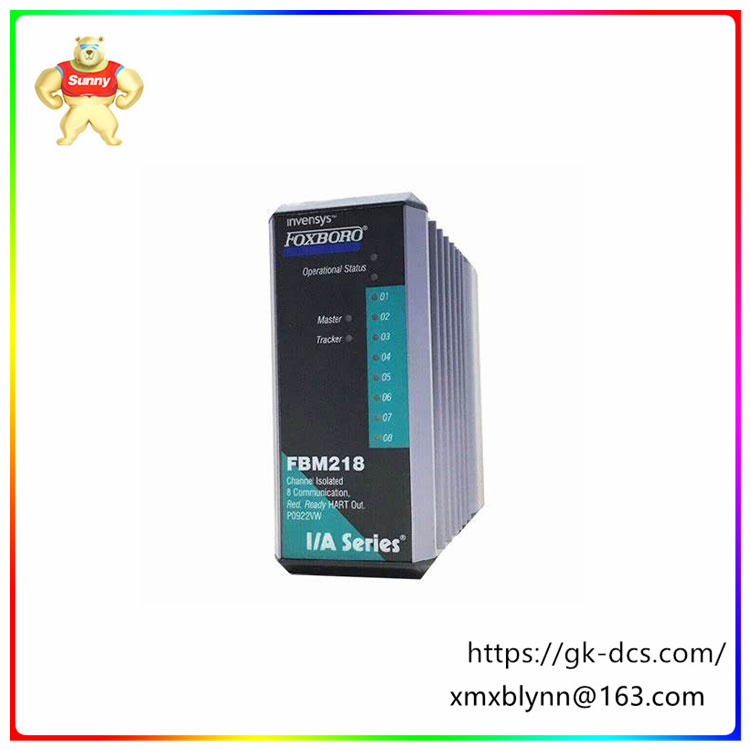

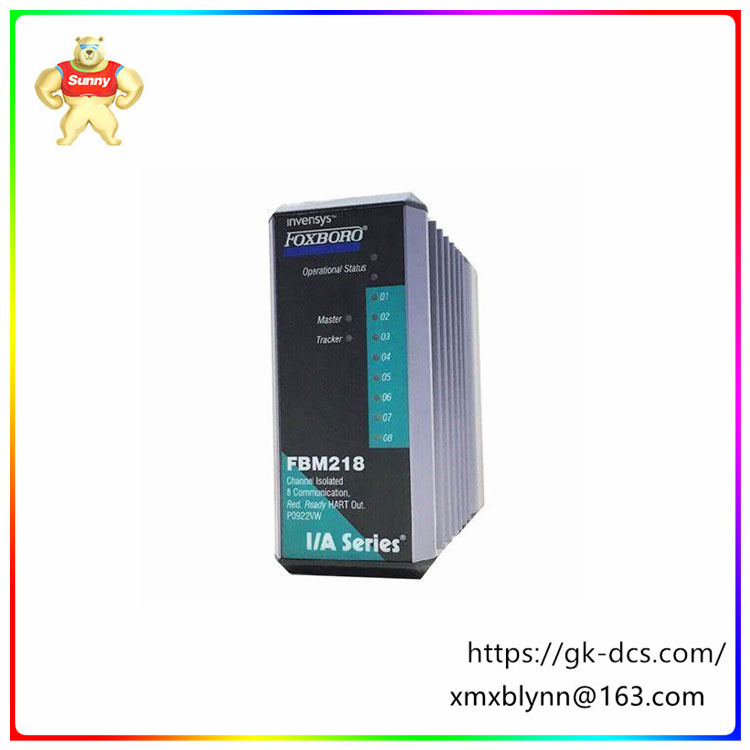

The FBM218-RH922VW may refer to a specific model of HART (Highway Addressable Remote Transducer) communication redundant output interface module manufactured by Foxboro (Schneider Electric). This module is designed to support HART instruments that comply with version 5, 6, or 7 of the Hart specification.
HART (Highway Addressable Remote Transducer) is a communication protocol for process automation that allows devices to communicate digitally over 4-20mA analog signal lines. HART protocol is widely used in the automation system of petroleum, chemical, electric power and other industries.
The FBM218-RH922VW module has eight isolated output channels that are currently isolated (by optical and transformer isolation) from each other and from the ground and module logic. The isolation design improves the anti-interference ability and reliability of the module. After applying a 600V AC voltage between the isolated channel and the ground (ground) for one minute, the module can withstand it without damage.
In addition, The FBM218-RH922VW Module supports its associated Field Communication Module (FCM) or Field (FCP) via a redundant 2 Mbps HDLC (High-Level Data Link Control) fieldbus Control Processor) to communicate. This redundant design improves the reliability and stability of the system, so that if one communication line fails, another line can take over the communication task.
The FBM218-RH922VW module operates from -20 to +70°C and is suitable for a wide range of industrial environments.
The FBM218-RH922VW module is a HART communication redundant output interface module manufactured by Foxboro (Schneider Electric), designed specifically for industrial automation applications. This module is suitable for the following applications:
Process control: The FBM218-RH922VW module is suitable for applications requiring high precision and reliability process control. It can communicate with HART equipment in the field through HART protocol to realize remote monitoring and control.
Petrochemical industry: In the petrochemical industry, the FBM218-RH922VW module can be used to monitor and control various process parameters such as temperature, pressure, flow, etc. Due to its high anti-interference capability and reliability, it is particularly suitable for harsh industrial environments.
Power industry: In power systems, the FBM218-RH922VW module can be used to monitor and control various devices in the generation, transmission and distribution process. It can communicate with intelligent instruments, sensors and actuators through HART protocol to realize remote monitoring and control.
Environmental monitoring: The FBM218-RH922VW module can also be used in environmental monitoring systems to monitor air quality, water quality, soil quality and other parameters. By communicating with various sensors through HART protocol, real-time monitoring and data analysis of environmental parameters can be realized.
Redundant communication systems: This module is particularly suitable for communication systems that require high availability and redundancy. Through its built-in redundancy design, when one communication line fails, it can automatically switch to another line, ensuring the continuity and stability of communication.
In short, the FBM218-RH922VW module is suitable for industrial automation applications requiring high precision, high reliability and high anti-interference ability, especially in petrochemical, electric power, environmental monitoring and other industries with a wide range of application prospects.
