Product description
Foxboro (Schneider Electric

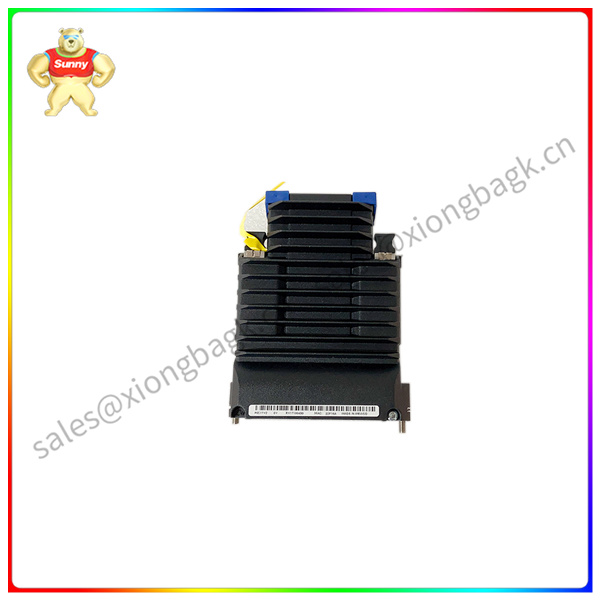

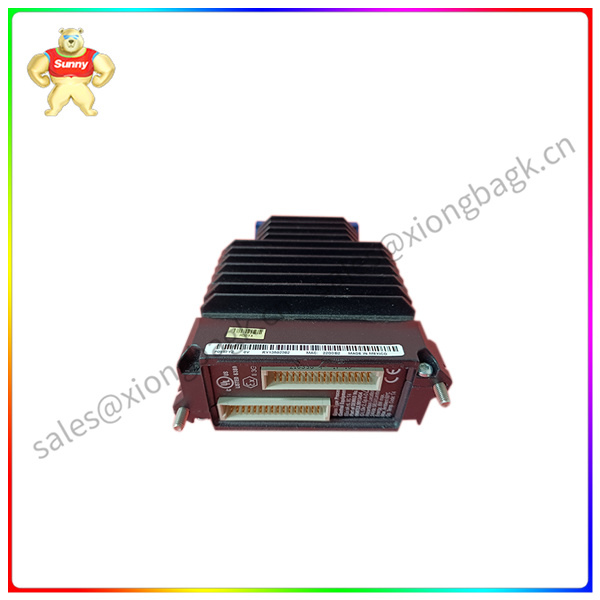

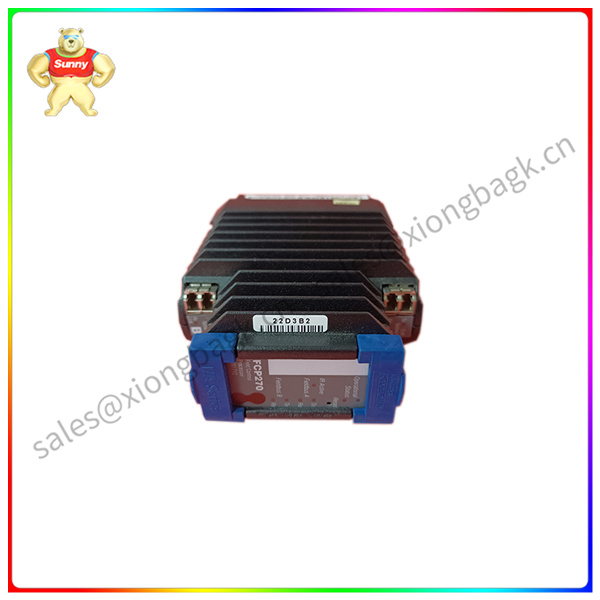

Product Number :P0917YZ
Product Type: FCP270 (Field Control Processor)
Memory size :16 MB SDRAM 32 MB flash memory
Input voltage (redundant voltage):24 V DC typical value
Power consumption (per non-fault-tolerant module) : Max. 8.5W
Operating temperature :0 to + 60 degrees Celsius (+ 32 to + 140 degrees Fahrenheit)
Configuration: Single processor module. The fault-tolerant type consists of two processor modules with an interconnected fault-tolerant connector integrated on the substrate.
Dimensions (L x W x H): 14.7cm x 5.15cm x 11.4cm
Weight :0.6 kg
Shipping weight :1.5 kg
peculiarity
Migrating from proprietary DCS to state-of-the-art open I/ a series systems
Advanced I/A series control and single point configuration
More direct control performance than any gateway device can provide
0 Total system replacement costs are saved by retaining existing process interfaces and wiring and minimizing process downtime
0 Single - Vendor service and supply.
summarize
The I/A Series system DCS Fieldbus Module (fbm) was used for the migration of APACS+T "automation systems manufactured by West 1] Sub Energy & Automation and Moore Products. The fbm plugs directly into the existing electron nest
In order to replace process input and output modules.
I/A Series Systems The DCS FBM family provides A migration path component from APACS + process /0 to the /A Series display and monitoring capabilities. No additional communication equipment required. No multi-dealer communication software
A piece requires permission.
I/A Series System DCS FBM family replaces APACS+ I/O modules. Once integrated, the process is completely controlled by A set of advanced I/A series algorithms.
I/A Series System DCS FBM products include connectors that enable integration of raw process signals to the /A series system while maintaining field interfaces and wiring. It provides access to all process signals connected to
The APACS + system provides connectivity between Field Terminal Components (fta) and I/A series systems. All process signals are fully integrated into the /A Series system by using process data display, history, alarm and control
Make.
Operator functions and engineering configurations are performed as follows by I/A Series systems /A Series operator workstations. Because all process values become part of the I/A series system the configuration data is maintained by the system native /A series
Configure.
This migration path provides power and flexibility for all plant operating I/A series systems.
