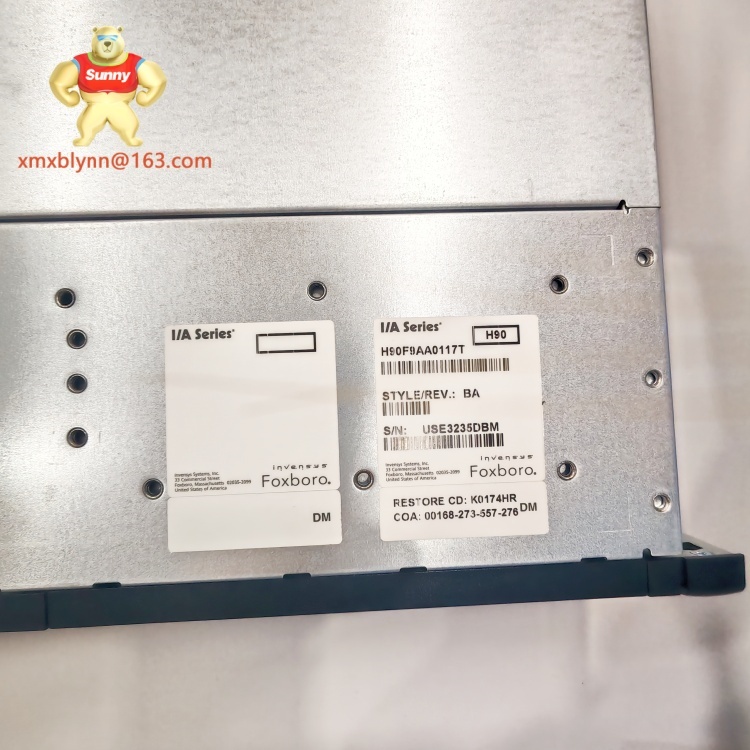

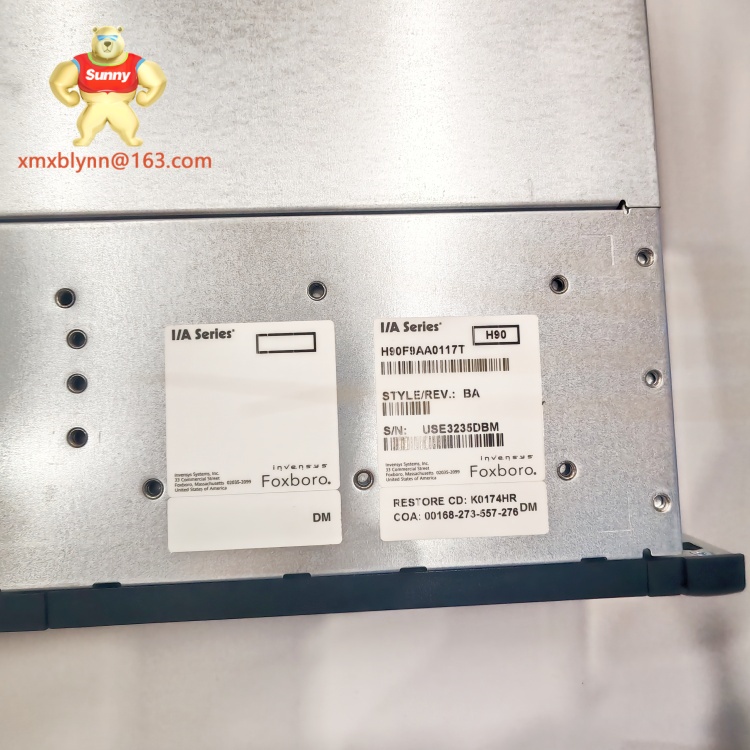

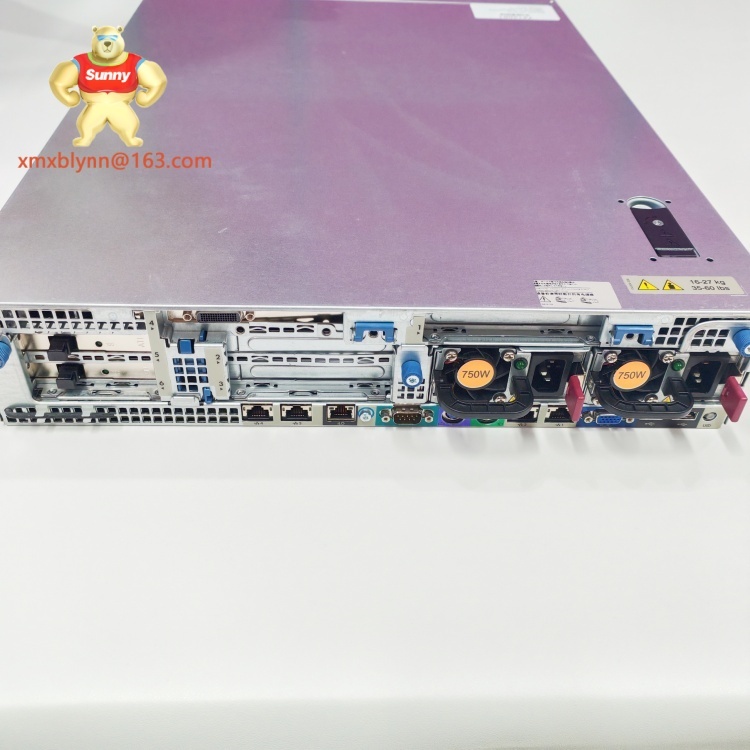

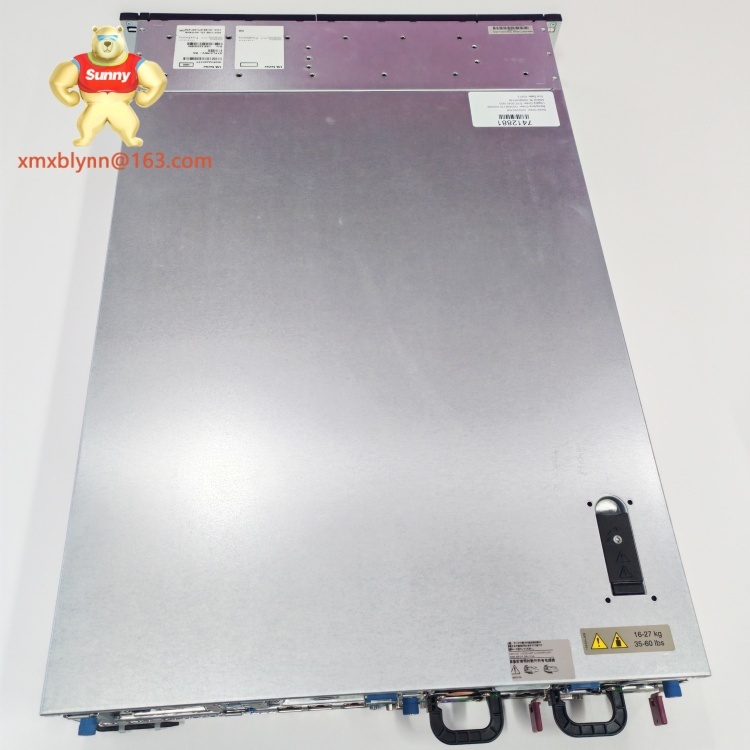

Brand:FOXBORO Model:H90 H90C9AA0117S Product type:Server Payment method: Wire transfer, Western Union Port of shipment for remittance: Xiamen, China Delivery time: 1-3 working days Condition: 100% original Warranty: 12 months
TheFOXBORO H90 H90C9AA0117Sis a high - performance server designed for industrial automation systems. It is a key component in Foxboro's control system portfolio, typically serving as an application platform and human - interface station in an automation setup. This server is tailored for Windows operating systems, ensuring wide compatibility with various industrial and enterprise environments. Its core functionality is to act as a bridge, enabling seamless integration between Foxboro control systems and other enterprise systems, such as SCADA, Historian, and MES systems. It facilitates real - time data exchange, allowing for the continuous access of critical process data, which is invaluable for process monitoring, control, and optimization in industrial automation.
Technical Specifications
Parameter
Value
Product Model
H90 H90C9AA0117S
Manufacturer
FOXBORO
Product Type
Server
Processor Type
Intel Xeon (Typical for H90 series)
Memory
16 GB DDR4 registered memory (Common in some models)
Storage
Up to eight optional internal expansion disk drives, one internal system disk drive
Dimensions
Height: 35 mm (1.4 in), Width: 445 mm (17.5 in), Depth: 150 mm (5.9 in)
Weight
1.8 kg (4.0 lbs)
Supported Operating Systems
Windows Server 2012 R2, 2016, 2019, 2022 (Common for H90 series)
Supported Databases
SQL Server, Oracle
Communication Protocols
OPC UA, Modbus, proprietary protocols (e.g., HART, Foundation Fieldbus)
Mounting Method
Rack - mounted (Typical for H90 series)
Power Supply
Redundant hot - swap power supplies (Common in some models)
Key Features and Benefits
TheFOXBORO H90 H90C9AA0117Soffers several notable features and benefits. Firstly, its real - time data access capability is a major advantage. It can continuously retrieve process variables, alarms, events, and historical data from Foxboro control systems, providing operators with up - to - date information for timely decision - making.
Secondly, the server provides excellent data connectivity. With support for protocols like OPC UA and Modbus, it can easily interface with various enterprise systems, enabling seamless integration into complex industrial automation architectures. This integration helps in optimizing production processes and improving overall operational efficiency.
In terms of reliability, the H90 server is designed for industrial use. It features a robust architecture with fault - tolerance capabilities, reducing the risk of downtime and minimizing maintenance requirements. Additionally, its compatibility with multiple Windows operating systems and databases ensures flexibility in different industrial setups. The server also offers configuration flexibility, allowing users to customize data mapping, alarms, and other settings to meet specific process requirements.
Application Scenarios
TheFOXBORO H90 H90C9AA0117Sis widely used in various industrial scenarios. In power plants, it can be used to integrate the distributed control system (DCS) with the plant's management information system (MIS). It enables real - time monitoring of power generation processes, such as boiler operation, turbine control, and power distribution, ensuring the stable operation of the power plant.
In oil & gas refineries, the server plays a crucial role in connecting the refinery's control systems with enterprise resource planning (ERP) systems. It helps in monitoring the refining process, managing inventory, and optimizing production schedules. For example, it can collect data from various sensors in the refinery, such as temperature, pressure, and flow rate, and transmit it to the ERP system for comprehensive analysis.
In discrete manufacturing lines, the H90 server can integrate the production control system with the manufacturing execution system (MES). This allows for real - time tracking of production progress, quality control, and equipment maintenance, improving production efficiency and product quality. It can also be applied in smart infrastructure projects, such as intelligent buildings, where it can connect the building automation system with the property management system, enabling efficient energy management and facility operation.
Related Models
H92: A more advanced version, often with enhanced processing power and more network interfaces, suitable for larger - scale and more complex industrial automation systems.
H90C9AA0116S: A related model, possibly with slight differences in configuration, such as memory size or storage capacity.
H90C9AA0118S: May have different software - license features or additional security enhancements compared toH90 H90C9AA0117S.
FOXBORO I/A Series S10: This is a related system, and the H90 server can serve as an application platform for the I/A Series, enabling seamless integration and operation.
FOXBORO FCS: The H90 server is designed to work with Foxboro FCS, providing data access and integration functions for this control system.
H90 - 2U: A rack - mounted variant, likely with a different form - factor or power - consumption design, while maintaining the core functionality of the H90 series.
H90 with I/A Series Software License: This model comes with a specific software license for the I/A Series, enabling more comprehensive control and monitoring functions.
H90 with Redundant Power Supply: Focuses on enhanced reliability, equipped with redundant power supplies to ensure continuous operation in case of a power - supply failure.
H90 with Enhanced Security Package: Incorporates more advanced security features, such as additional antivirus and intrusion - prevention functions, suitable for security - sensitive industrial environments.
Installation and Maintenance
Installation preparation for theFOXBORO H90 H90C9AA0117Srequires a suitable physical space. It is usually rack - mounted, so a standard 19 - inch rack with appropriate ventilation is needed. Ensure proper grounding to prevent electrical interference and ensure safety. The installation environment should be kept clean, with a stable temperature and humidity level, typically within the range suitable for Windows - based industrial servers. Before installation, check the compatibility of the operating system and ensure that all necessary software licenses are available.
For maintenance, regular system updates are recommended to keep the server secure and ensure optimal performance. Periodically check the server's hardware, including the hard - drives, memory, and power supplies, for any signs of failure. Monitor the server's temperature and fan operation to prevent overheating. The server's data should be backed up regularly to avoid data loss. Depending on the usage frequency and environment, the hard - drives may need to be replaced every 3 - 5 years, and the memory and other components should be checked for degradation annually.
Product Warranty
We, Xiamen Xiongba E - commerce Co., Ltd. Branch, offer a one - year warranty for theFOXBORO H90 H90C9AA0117S. During the warranty period, if the product fails due to non - human - caused reasons, we provide free replacement service. Our company specializes in the field of industrial automation, with over a decade of industry experience. We are committed to providing high - quality products and excellent after - sales service. With a global supply network, we can ensure the availability of spare parts and technical support, no matter where the customer is located. We have full confidence in the quality of the FOXBORO products we sell, and our warranty and support terms are designed to give customers peace of mind, ensuring the stable operation of their industrial automation systems.
