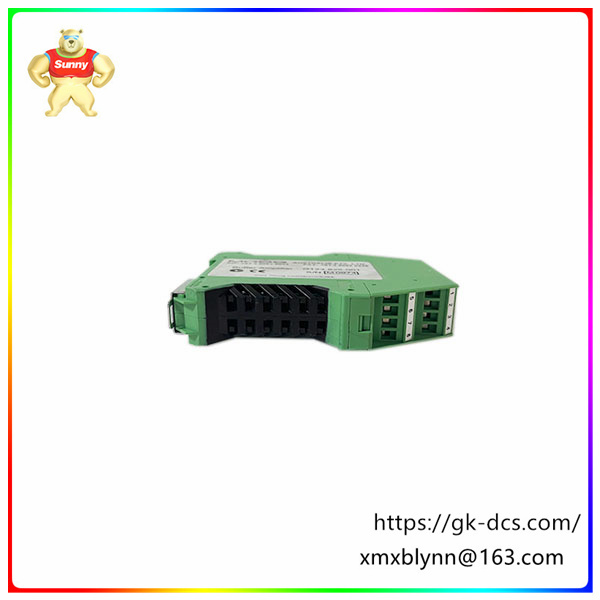

Brand: Moog
Model: G123-815V001
Product type: Servo amplifier
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
G123-815V001 servo amplifier is an electronic device used to control servo motors.
Its main function is to receive control signals (such as instructions from the control system) and amplify and convert them into current or voltage signals capable of driving the servo motor. Through the precise control of these signals, the G123-815V001 can achieve accurate adjustment of the speed, torque and position of the servo motor.
G123-815V001 servo amplifier has the following features:
High precision control: Very fine motion control can be achieved.
Fast response: It can react quickly to the input signal to ensure timely motor action.
Good stability: G123-815V001 ensures the stability and reliability of the system during operation.
It is widely used in many fields such as automation equipment, robots, CNC machine tools, etc. It is one of the key components to achieve accurate and efficient motion control..

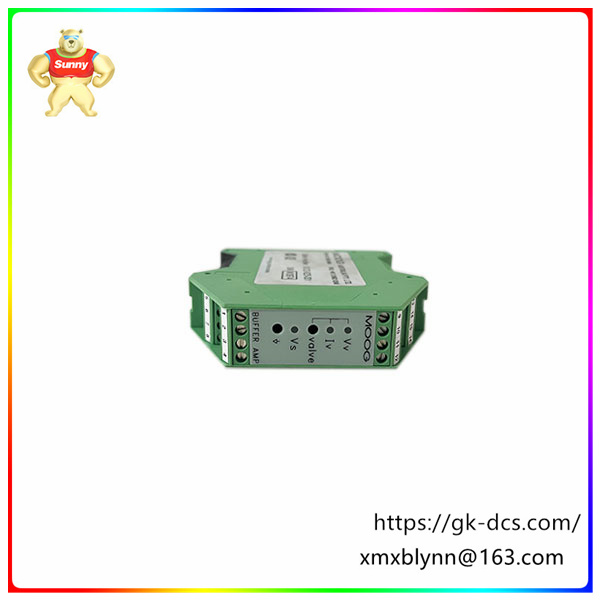

G123-815V001 Setup and Control:The front panel controls and test points are designed to allow the user to adjust the luminosity by diode indicating polarity and zeroing.
Provides parallel calibration using known resistors.
An onboard shunt or an external user-supplied shunt can be selected.
G123-815V001 Independent amplifier Features:Can be used as a standalone amplifier for static and dynamic measurements.
Output calibrated ±DC voltage or current.
G123-815V001 Application Requirements:
Different servo systems have different requirements for G123-815V001, such as calibration links, gain ranges, etc.
The amplifier needs to have a limited current function to ensure that the output current does not damage the coil or cause other failures.
The servo valve should be able to withstand the load of 2 times the rated current.
