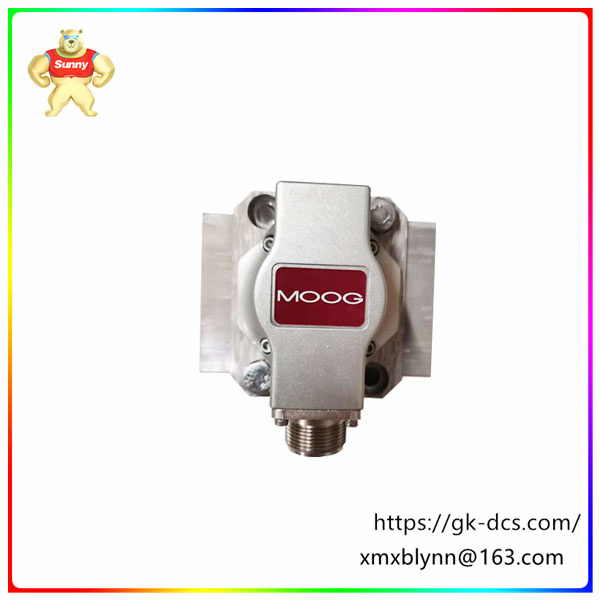

Brand: MOOG
Model: G761-3033B
Product type: electro-hydraulic servo valve
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
How G761-3033B works:Input a current command signal to the coil of the torque motor to generate electromagnetic force for both ends of the armature, so that the armature drives the baffle deflection.
The deflection of the baffle reduces the flow of the nozzle and changes the pressure on the spool side connected to the nozzle, causing the spool to move to one side.
G761-3033B When the electrical signal is input to the servo amplifier, the armature coil of the torque motor will flow current, generate a magnetic field, and generate rotational torque under the action of magnets on both sides, rotate the armature, and move the connected baffle.
When the distance between the two sides of the baffle and the nozzle is the same, the drainage area of the side nozzle is the same, and the oil pressure on both sides of the nozzle is the same.
The displacement of the spool opens the passage between the oil supply port (P) and the control oil port, and passes back to the oil circuit between the oil port (T) and other control oil ports.
G761-3033B Features:High performance: As a high performance anode electro-hydraulic servo valve, with excellent control performance and dynamic response.
Strong structure: G761-3033B adopts dry torque motor and two-stage hydraulic amplifier structure, all-round friction-free dual nozzle baffle valve, large spool driving force, strong structure.
High reliability: The spool position is mechanically fed back by the cantilever spring rod, which is simple in structure, robust and reliable, and has a long service life.
Multiple options: The G761-3033B offers internal or external pilot control options for different application requirements.Environmental adaptability: Suitable for high pressure, high temperature and other complex environment, with good sealing and corrosion resistance.
