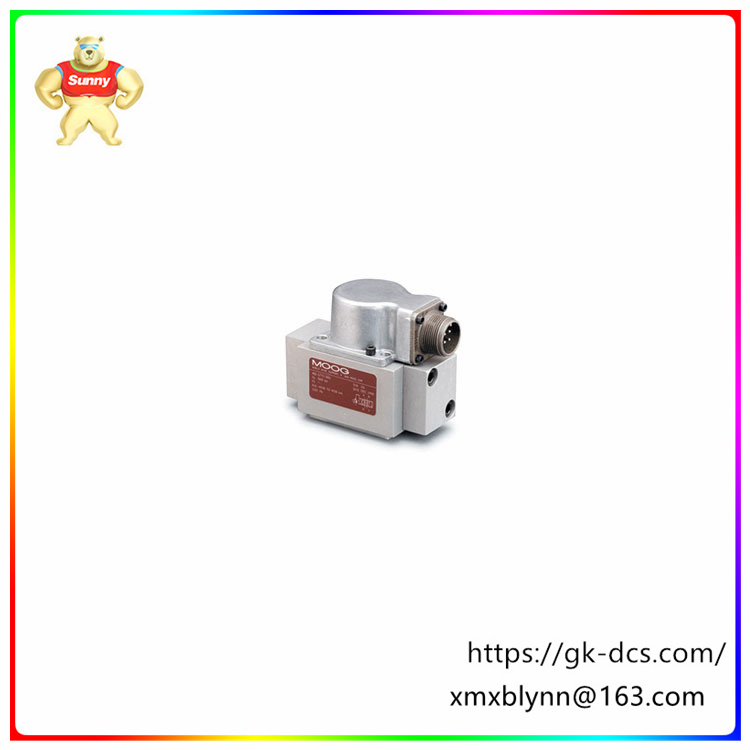

Brand: MOOG
Model: G772K240A
Product type: Servo valve
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
Product Overview:The G772K240A is a key component in MOOG's electro-hydraulic servo control, which is widely used in a variety of systems requiring high precision flow and pressure control.
Main features:Scope of application: aerospace, metallurgy, electric power, automobile, steel, paper, petrochemical and other fields.
Material: Stainless steel, with excellent corrosion resistance and durability.
Applicable media: Oil, can handle a variety of hydraulic media.
Applicable temperature: -20 ~ +60℃ (Celsius), to ensure stable operation in a wide temperature range.
Nominal pressure: 21MPa (mpa), with high pressure capacity.
Installation form: base plate installation, easy to integrate into various hydraulic systems.
Rated current: 37.20mA (MA), the basic current required to drive the servo valve.
Working temperature and pressure environment: normal temperature, normal pressure, suitable for most industrial environments.
How it works:The G772K240A servo valve receives an analog electrical signal and outputs modulated flow and pressure for hydraulic control. The working principle involves inputting a current command signal to the coil of the torque motor, generating an electromagnetic force for both ends of the armature, thereby driving the baffle inside the spring tube to deflect. The deflection of the baffle will change the flow rate of a certain nozzle, which in turn changes the pressure on one side of the spool, pushing the spool to move. Through the displacement of the spool, the flow rate and pressure are controlled.
