369-LO-0-M-F-E-0 20-60 VDC 20-48 VAC includes optional metering package
Fiber end [and optional Modbus TCP over Ethernet interface.

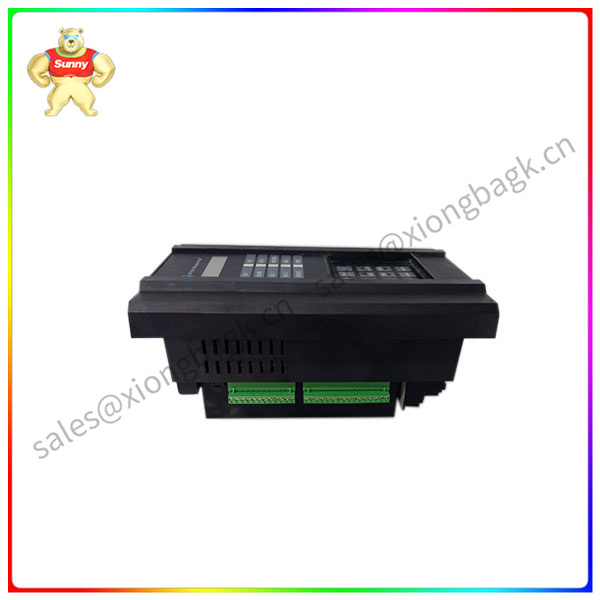

The 369-L0-0-M-F-E-0 is a version of the General Electric Company's 369 motor management relay
Ben. This is a digital relay for the protection and monitoring of mechanical systems and three-phase motors
Control. These systems are designed to "learn" motor parameters and adapt to the effects in use
Yes.
The 369-L0-0-M-F-E-0 is rated for 20-60 VDC (20-48 VAC).
The device has an optional meter, - an optional fiber port and an optional M
odbus/TCP interface. The optional metering package provides VT input to support voltage and
Power element. This can also be used to measure megawatt-hours, Hertz, kilovolt-amperes, kilowatts, and volts
PF.
The unit also has one RS232 front panel port and three RS485 rear ports. All ports have Modbus RTU protocol, standard. The front keyboard (located on the front panel) can be used to enter Settings. Can also
Enter this information using the EnerVista 369 software connection on your computer.
The 369-L0-0-M-F-E-0 provides many other options, including enhanced motor learning data, motor start data logging, enhanced event logging, household defined polling input data, and communication loss tripping
And under voltage automatically restart.
The upper computer mainly provides the user with a good man-machine interface, which can process the data information collected by the power module, generate reports and data curves, and facilitate the user to view. The design of the upper computer is adopted
With the group too Software easy Control, easy control (INSPEC) BEIJING Wan Siyi Automation Software Co., LTD. (BEIJING Control Ease Automation Software) first launched in the country
NET Framework for the next generation of automated process monitoring, control and management platform software. It uses the open C# high-level language as its programming language. The program can be compiled and executed, run
Programming techniques such as fast, powerful, visual programming and intellisense simplify the difficulty of writing user programs.
The interface of the upper computer is shown as follows: it is mainly composed of two parts: water well source and farmland. The water well source part can display the working state of the pump, green indicates that it is working, red indicates that it is stopped.
The administrator can make the pump work manually or automatically. The data collected by each sensor is shown above on the left. The administrator can more directly understand the humidity of each farm
The corresponding switch can be opened automatically or manually according to the humidity.
