Product description

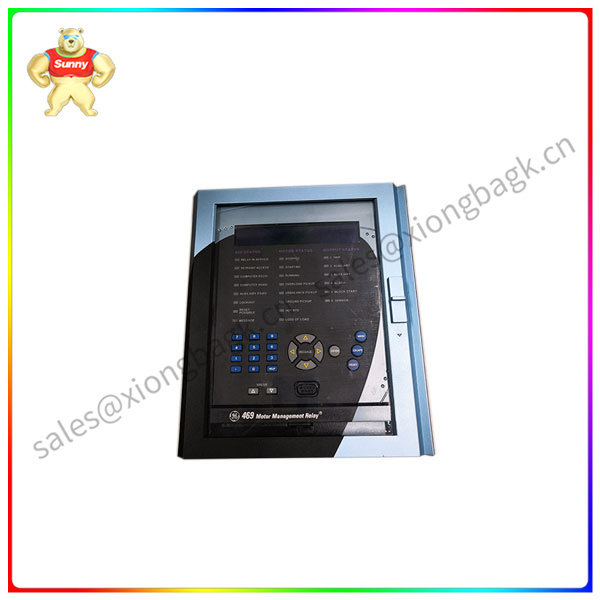

469-P5-HI-A20-E-H is a motor management relay for GE Multilin. The device is a microprocessor-based relay used to protect and manage large and medium voltage motors and equipment.
The 469-P5-HI-A20-E-H has six output relays. These are used to start blocks, alarm, or trip. The unit can also handle fault diagnosis, power metering, motor protection and RTU functions. Through event
Recording, statistical data, tracking memory and pre-trip data for diagnosis.
469-P5-HI-A20-E-H is a basic relay unit with a 5A phase CT secondary. The unit is rated for 90-300 volts DC or 70-265 volts AC @ 48-62 Hz. Output as
4-20 mA analog signal.
The 469-P5-HI-A20-E-H features a standard GE power management design, using a fixed housing and a drawout unit. The housing provides mechanical protection. The device does not require any special ventilation during installation
Clean with a damp cloth. The device can be used for single or two shear panels.
The 469-P5-HI-A20-E-H has a 40-character display on the front panel with three sets of LED indicators. These indicators are divided into 469 status indicators, motor status indicators and output relays
The indicator. Underneath these, the device has a programming port, a numeric keypad, and eight additional buttons.
For more details about the 469-P5-HI-A20-E-H Motor management relay, please refer to the original GE documentation. This includes data sheets specifically for the device and 469 motor management relays
The manual of the machine series. The GE relay manual will provide installation and operation instructions, which should be read and understood before unpacking. This is for your safety and to protect the life of the products you buy.
