Model D1063S
Brand GE
Type: current transformer

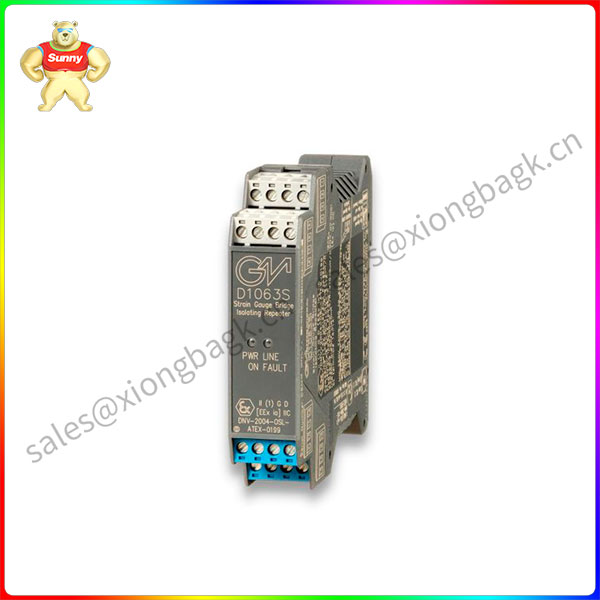

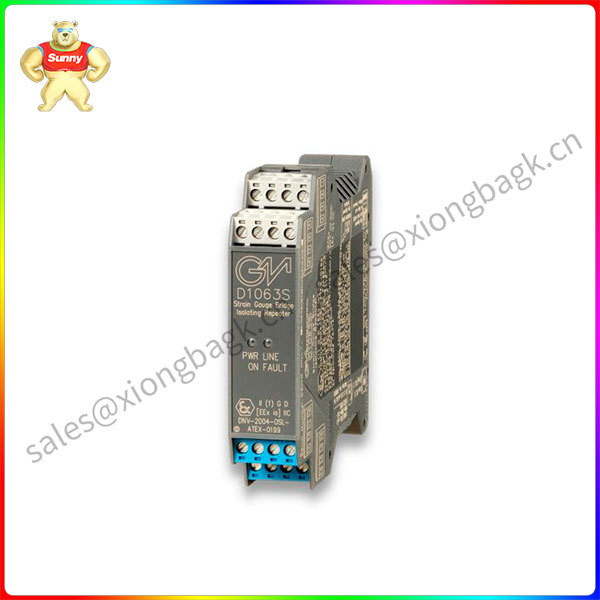

D1063S GE Single channel DIN track load cell/Strain gauge Bridge isolation repeater
The single-channel DIN track load cell/strain gauge Bridge isolation repeater D1063S acts as a transparent electrical isolation interface between the load cell indicator in the safe zone and the load cell (or group of load cells) in the hazardous zone; It appears at the end of the indicator as a single load cell as in the field. A fully floating power supply voltage with remote sensing capability is provided to the load cell located in the hazardous area, and the mV signal is repeatedly output according to the reference voltage of the host system to drive the load in the safe area while isolated.
The D1063S acts as a transparent and very precise electrical isolation interface between the load indicator/system in a safe area and the load sensor (or group of load sensors) in a hazardous location. The output of the indicator/system is a transparent reflection of a single load cell, equivalent to a load cell in the field. The device located in a hazardous location isolates the repetitive mV signal output to drive the load tage in a safe area according to the reference voltage of the host system. Up to four 350 ohm load cells, or six 400 ohm load cells, or twelve 1.000 ohm load cells can be connected in parallel. In addition, the field wiring failure LED indicates any broken leads on the hazardous site side. Approved for Div.2 installation.
Dangerous areas:
Up to six 350-wire parallel load cells with a total capacity of 5 ohms, 80 V,<> mA.
Safe area:
mV corresponds to the input bridge voltage. System calibration accuracy :0.003%.
Features:
The 1-channel I.S. input from the strain gauge signal provides 3-port isolation (input/output/power) and repeatedly Bridges the signal output as a transparent unit.
· Input from zone 0(Zone 20), zone 1, installed in zone 2, zone 2. · Strain gauge bridge transparent repeater.
Up to 350 450Q load cells in parallel or up to 1000 61000Q load cells in parallel, or up to 6 2Q load cells in parallel. · Line break fault detection.
· High precision.
· Three-port isolation, input/output/power supply.
. ·EMC compatible with EN61000-6-4, EN250-<>-<>. · Field programmability through DIP switches.
· High reliability, SMD components.
· Simplified installation with standard DIN rails and plug-in terminals.
The maximum voltage of Vrms (Um) is allowed for instruments associated with isolation gates.
