Model DS200ADMAH1A
Brand GE
Type: Analog output board

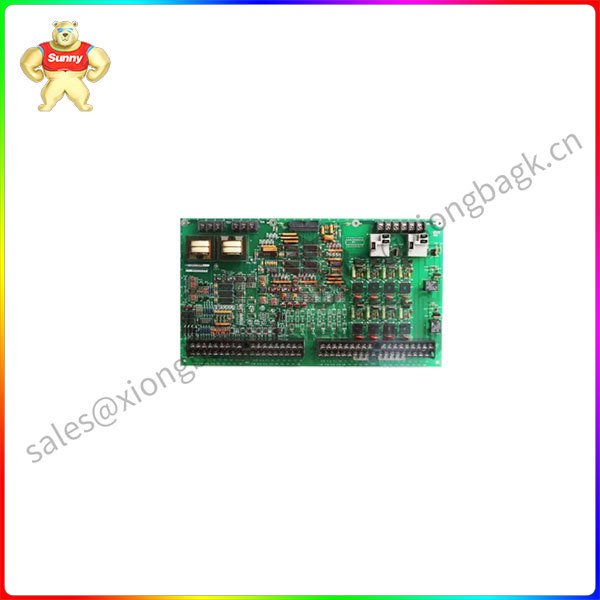

The DS200ADMAH1A is a simplex servo I/O terminal board manufactured and designed by General Electric as part of the Mark VI series used in GE Speedtronic control systems 1.
The DS200ADMAH1A module has two servo outputs for six LVDT position sensors. It is an isolated 12-bit analog output board used in a wide variety of industrial and commercial applications.
Product description
The DS20OADMAH1A is a modular module (ADMA) subroutine for the LS2100 series manufactured by General Electric. The module is used with DS20ODSPC digital signal processor control board and DS200SNPA SNP protocol interface subboard. The module is installed in the VMEbus rack and can be used to help bridge control. The ADMA board is connected to the DDTB input/output board via density cables and connectors.
The DS200ADMAH1A model will usually be installed on a DSPC board, please note that the DSPC board is considered a motherboard. When installed together, the ADMA and DSPC boards will be equipped with filters and buffers
They will also convert numeric sums
Analog input/output signal. This model can be easily found on the market and can be found in several manuals. The best manuals for use with the ADMA board are the included GEH-6373 manual and GEl-100218 manual.
The DS200ADMAH1A model comes with a panel with two leds, the green IMOKLED for indicating if the board is working properly and the red FAL LED for indicating and driving the software on the connected DSPC board, which will indicate if there is a fault within the ADMA board.
The DS200ADMAH1A is a general purpose electronic digital module that is part of GE's VME bus system. The module is highly programmable and scalable and can be used for a variety of applications, including data acquisition, motion control and process control.
Processor: 32-bit RISC processor
Memory: 16 MB flash, 32 MB SDRAM
Communication interface: RS-232, RS-485, Ethernet
Power supply: +5VDC, -5VDC, +12VDC, -12VDC
