Model DS200FCSAG1A
Brand GE
Type current sensor

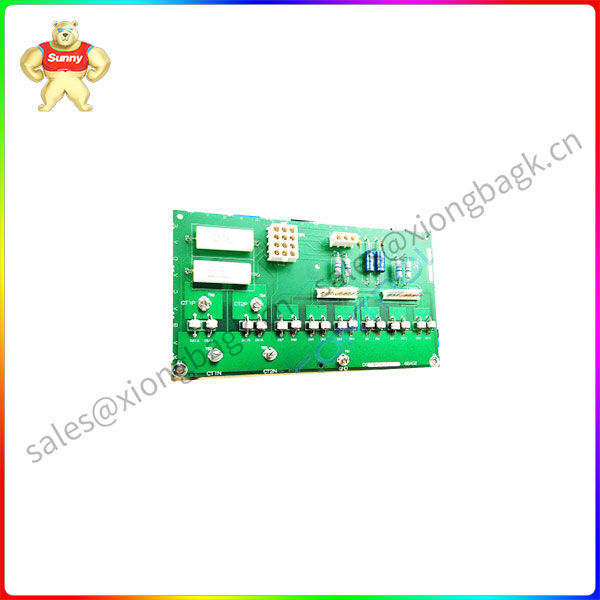

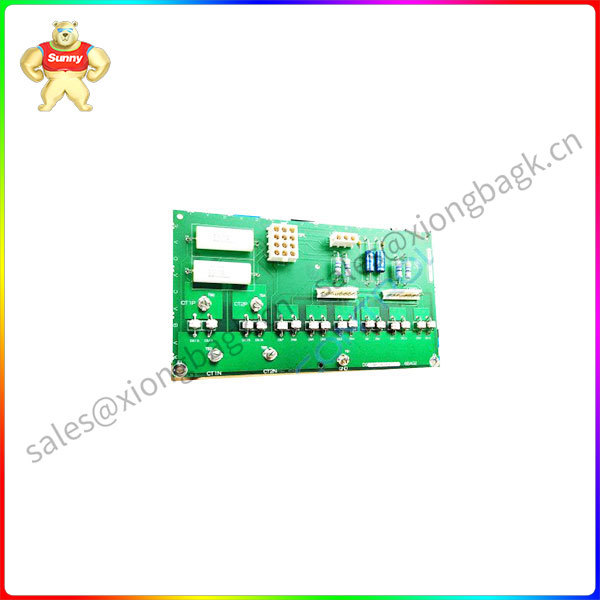

The DS200FCSAG1A, part of the LS2100 series produced by General Electric, is a reliable, high-precision current sensing feedback board.
The device has strong versatility, can be adapted to a variety of current sensors, and has low power consumption and long life. In the power, communication and other industries, DS200FCSAG1A can be used to detect changes in the current in the system and feedback the changes to the monitoring center.
Current sensor is a device used to detect current, which is often used in power systems, automobiles, industrial automation and other fields.
There are many types of current sensors, such as Hall sensors, magnetoresistance sensors, inductive sensors and so on. These sensors can detect AC or DC current and convert the detected signal into an electrical output.
The advantages of the current sensor include: small size, light weight, high precision, good stability, good linearity, etc. In industrial automation control and power system, current sensor is one of the key components to realize current detection, which can be used to monitor and control the operating state of the power system to ensure the stability and safety of the power system.
The DS200DDTBG Model 1A is the LCI auxiliary I/O terminal board of the LS2100 series produced by General Electric. This model is connected to IS200ADMAH1A. There are 17 DS200DDTBG1A models. LED, one LED indicates the status, while the other leds are driven by software and hardware.
The DS200DDTBG 1A model is called the Auxiliary input/Output terminal Board, and information about it can be found on page 20 of the GEH-6373 series manual. This model is suitable for use as a patch board for all auxiliary inputs and outputs. There is a part manual labeled GEH-100219, which details functions, general features, application data, and warranty and replacement information.
In the DS200DDTBG1A model, there is an additional electronic ID memory feature that contains all board identification and hardware version information. To access this memory, you go through a 1-wire LAN, which allows the connected DSPC board to identify the board present in the system.
The DS200DDTBG1A model is equipped with a 4-20 mA current loop input that allows LEM or CT input channels to be reassigned within the model. To perform this function, reset certain jumpers. The model is also equipped with thirty-three test points for signal measurement. The model has A total of 17 leds, one LED on this board is used to indicate the state of the DS200DDTBG1 A board, while the other fifteen are driven by software and hardware.
Application field
The DS200DDTBG1A GE I/O terminal board can be used in a variety of industrial control systems, including automated production lines, factory control systems, robotics and machine control.
