Brand GE
Category, input/output terminal board

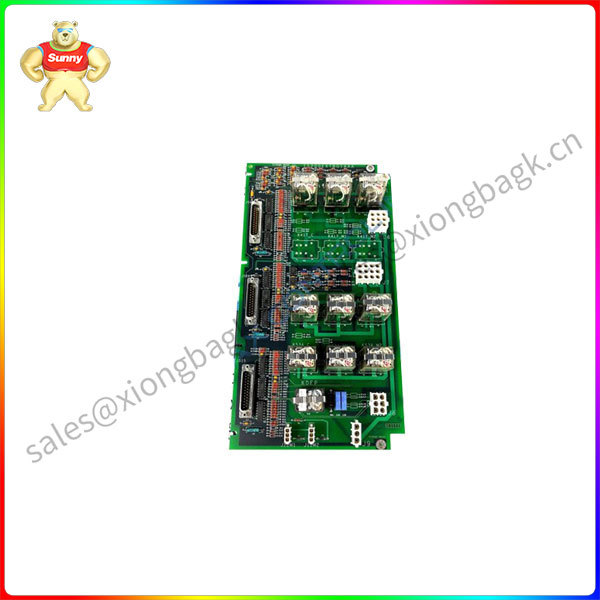

Model IS200EXTBG1A
Dimensions: 93.5 mm (H) x 35 mm (W) x 139 mm (D)
Weight: 0.67 kg
Protection level: IP20
Product application
The IS200EXTBG1A can be used in a wide range of control applications, including industrial automation, robotics and process control. It can be used with GE series PLC products to improve the performance and reliability of the control system.
The IS200EXTBG1A is GE Digital's universal digital input/output peripheral. The device expands the digital input and output options of the GE family of PLC products, increasing the flexibility of the control system. The IS200EXTBG1A is designed to be easy to install and use, with high reliability and long life.
The IS200EXTBG1A model is an exciter terminal board that is part of the input/output terminal board model. The main function of the board is to support contact input, signal conditioning circuit and pilot relay contact output. The model is the first of its kind in the board set, and the IS200EXTBG1A model is redundant control for the contactor mode. The board is commonly used to handle protection functions as well as field flashes. Three sub-d pin connectors allow additional connections on the board.
The IS200EXTBG1A board is used with the EDEX board to trigger the EXTB model-controlled SCR deexcitation, and the EMIO board to initiate the deexcitation function. The EXTB model must be connected to the EPDM module because it will supply power to the EXTB model.
The IS200EXTBG1A board is no longer manufactured by General Electric, but can still be found on the market. It is best to use two manuals when installing the model, one of which is the GEH-6632 EX2100 Excitation Control User Guide is a series manual, while the GEI-100458 manual is a product-specific manual.
