GE IS220PDIAH1A | I/O Packet Module

Desciption

Product Overview

The GE IS220PDIAH1A is a high-performance I/O packet module designed for critical control applications in GE’s Mark VIe Speedtronic turbine control systems. Serving as a bridge between field devices and the central control system, this module excels in acquiring and transmitting digital signals, making it indispensable for power generation, oil & gas, and industrial automation.

As part of GE’s IS220 Series, the GE IS220PDIAH1A features dual Ethernet ports and a local processor to enable real-time data exchange with distributed control systems (DCS) and programmable logic controllers (PLCs). It supports both simplex and redundant configurations, ensuring seamless operation in environments where downtime is costly. With a nominal operating voltage of 27.4VDC and compatibility with terminal boards like IS200TDBSH2A and IS200TDBTH2A, this module is engineered to handle the rigors of industrial settings, including hazardous zones certified for use in explosive atmospheres. Its modular design allows for easy integration into existing systems, reducing installation complexity and enhancing scalability.

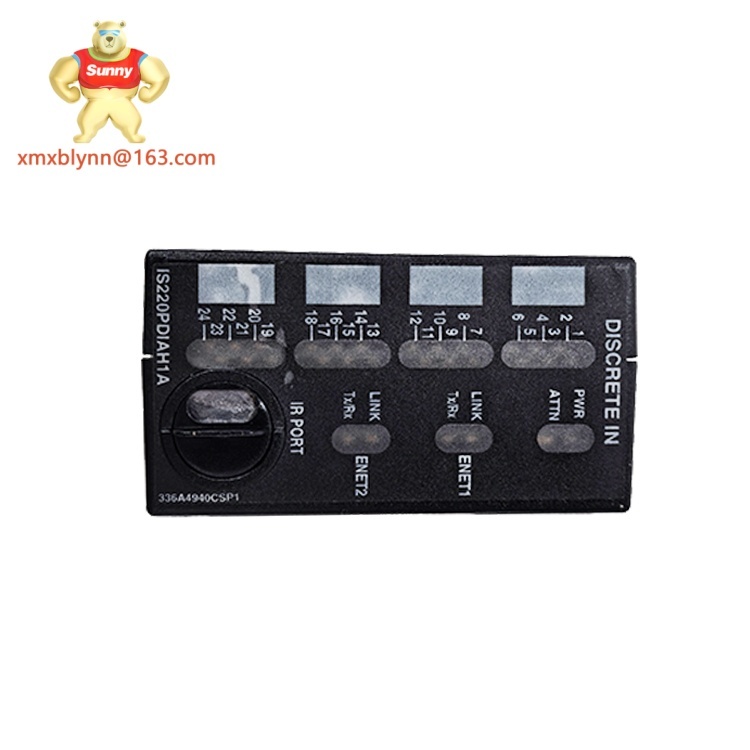

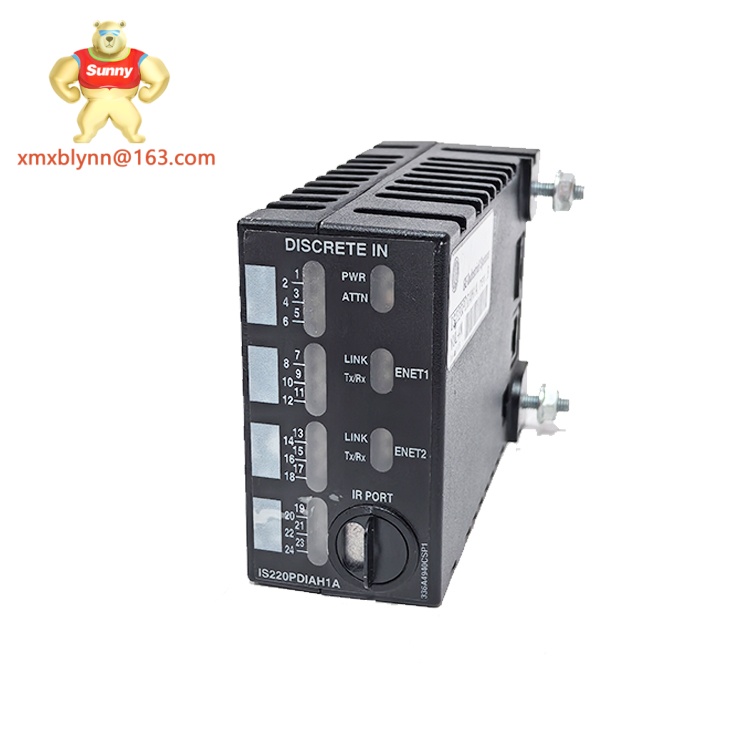

Key to its value is the GE IS220PDIAH1A’s ability to interface with a wide range of field devices, from sensors and switches to actuators and valves. By converting analog signals into digital data and vice versa, it ensures precise control over turbine speed, temperature, and pressure—critical parameters in power plants and refineries. Its LED diagnostics provide real-time status updates, while hot-swappable functionality minimizes maintenance downtime, making it a reliable choice for mission-critical operations.

Technical Specifications

Parameter	Value
Product Model	GE IS220PDIAH1A
Manufacturer	GE
Product Type	I/O Packet Module (Digital I/O)
Input Voltage	27.4VDC (nominal 28.0VDC)

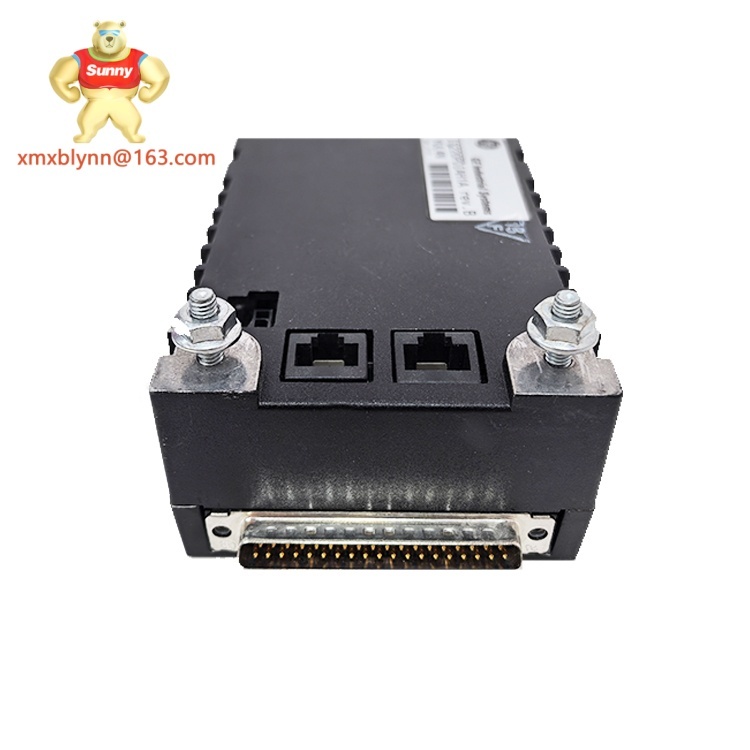

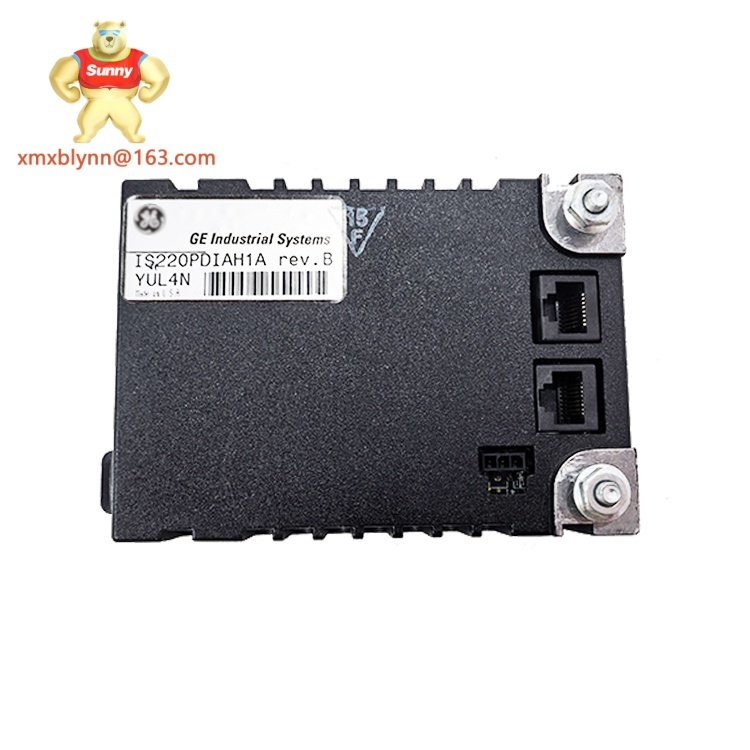

Communication Ports	2x Ethernet (RJ45)
Processor	Local microprocessor for data handling
Signal Type	Digital input/output
Operating Temperature	-30°C to 65°C (-22°F to 149°F)
Compatibility	GE Mark VIe Speedtronic systems
Terminal Board Support	IS200TDBSH2A, IS200TDBTH2A
Redundancy	Dual Ethernet ports for failover
Protection Level	IP20 (indoor use)
Dimensions	178mm (W) x 127mm (H) x 254mm (D)

Key Features and Benefits

The GE IS220PDIAH1A stands out for its rugged reliability and flexible configuration. Its dual Ethernet ports support redundant communication pathways, ensuring continuous data flow even if one network link fails. This redundancy is critical in applications like gas turbine control, where uninterrupted operation is essential for safety and efficiency.

Another core strength is its high-speed data processing. With a local processor, the module can handle real-time input/output tasks with minimal latency, making it suitable for fast-acting control loops in industrial processes. Its wide temperature range (-30°C to 65°C) and IP20 rating allow deployment in harsh environments, from outdoor substations to high-temperature turbine rooms.

The GE IS220PDIAH1A also simplifies system integration through modular design. It works seamlessly with GE’s IS200/IS220 Series I/O modules, enabling scalable expansions as system requirements grow. For example, it can pair with IS220PDIOH1A (analog I/O module) to create a comprehensive control solution for complex processes. Additionally, its hot-swappable components allow for component replacement without shutting down the entire system, reducing maintenance downtime by up to 50% compared to non-swappable modules.

Application Scenarios

The GE IS220PDIAH1A is widely used in industries where precise control and reliability are paramount:

Power Generation: In gas and steam turbine plants, it monitors turbine speed, pressure, and valve positions, ensuring optimal energy output. For instance, in a combined-cycle power plant, the module might control fuel valves based on real-time temperature data from sensors, maximizing efficiency while preventing overheating.
Oil & Gas: On offshore platforms, the GE IS220PDIAH1A interfaces with solenoid valves and pressure switches to manage wellhead operations. Its redundancy features are critical here, as any interruption could lead to costly production delays or safety risks.
Industrial Automation: In manufacturing facilities, it controls conveyor belts, robotic arms, and packaging machinery by integrating with PLCs. For example, in a bottling plant, the module might coordinate the speed of filling stations with conveyor movement to ensure smooth, error-free production.
Water Treatment: It monitors pump status and chemical dosing systems in wastewater treatment plants, ensuring compliance with environmental standards. Its diagnostic LEDs help technicians quickly identify faulty components, reducing maintenance response time.

Related Models

GE IS220PDIOH1A – Analog I/O module that complements the GE IS220PDIAH1A for mixed-signal control applications, supporting temperature and pressure sensors.
GE IS220PDIOH1B – Upgraded version of IS220PDIOH1A with enhanced processing power, ideal for high-speed data acquisition in turbine control.
GE IS420UCSBH4A – Control module that works alongside the GE IS220PDIAH1A in Mark VIe systems, providing advanced logic processing for complex operations.
GE IS220PTURH1A – Turbine trip module that integrates with the GE IS220PDIAH1A to manage emergency shutdowns in high-risk environments like refineries.
GE IS220PAICH1A – Analog input module for temperature and flow control, often used alongside the GE IS220PDIAH1A in process automation systems.

Installation and Maintenance

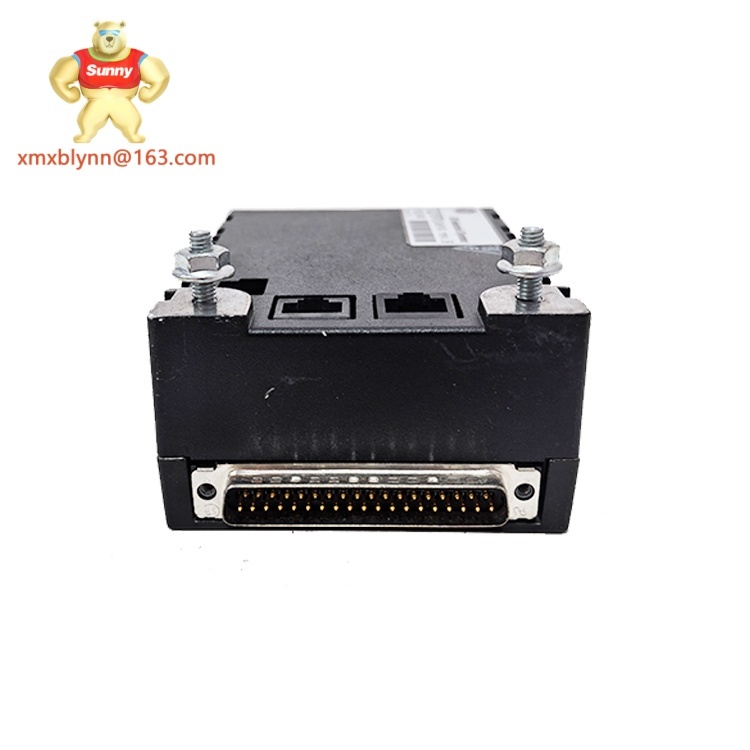

Installing the GE IS220PDIAH1A requires a DIN rail-mounted enclosure with sufficient space for airflow. The module should be securely connected to compatible terminal boards (e.g., IS200TDBSH2A) using the provided DC-37 connectors, ensuring proper torque (0.5–0.7 N·m) to avoid loose connections. Dual Ethernet cables should be routed separately to maintain redundancy, and power inputs must adhere to the 27.4VDC specification.

For maintenance, quarterly checks should verify Ethernet link status and LED diagnostics. Annually, recalibrate the module using GE’s Proficy Machine Edition software to ensure signal accuracy. In humid environments, inspect terminal connections every six months for corrosion, and clean dust from the enclosure vents to prevent overheating. The GE IS220PDIAH1A’s hot-swappable design allows replacing faulty components in under 10 minutes, minimizing downtime during routine maintenance.

Product Warranty

The GE IS220PDIAH1A is backed by a one-year warranty and free replacement service from Xiamen Xiongba E-commerce Co., Ltd., a global leader in industrial automation solutions. With over a decade of experience, Xiamen Xiongba specializes in distributing DCS systems, robot modules, and servo control components, including GE’s IS200/IS220 Series products. The company sources directly from overseas manufacturers, ensuring genuine parts at competitive prices while offering technical support for seamless integration. This warranty covers defects in materials and workmanship, with replacements delivered within 48 hours of claim approval. For critical applications, Xiamen Xiongba also offers extended warranties and 24/7 technical assistance, ensuring the GE IS220PDIAH1A performs reliably in even the most demanding environments.
