The GE IS220PTURH1A is a high-performance Primary Turbine Trip Pack designed for GE’s Mark VIe control systems, serving as a critical interface between turbine sensors and the central control unit in power generation and heavy industrial applications. As part of GE’s IS220 series, this module digitizes turbine speed signals, manages overspeed protection, and facilitates real-time communication with the control system, ensuring precise turbine operation and safety.

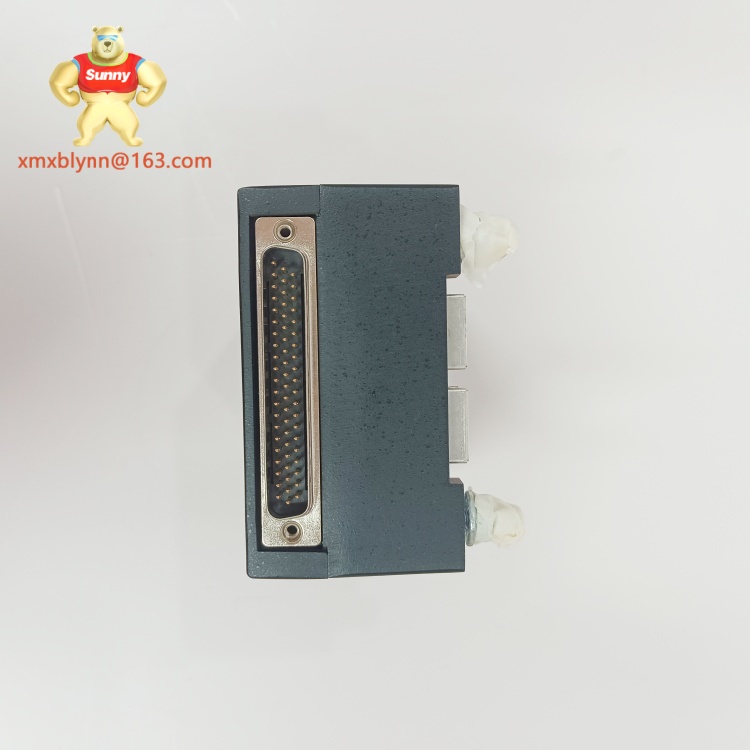

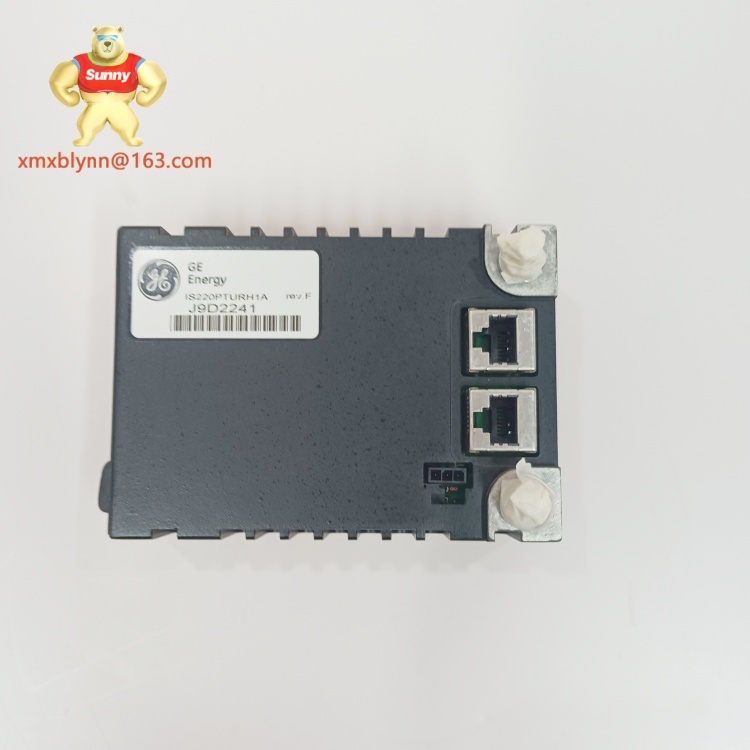

In gas and steam turbine setups, the GE IS220PTURH1A plays a pivotal role in monitoring rotational speed, detecting 异常工况，and triggering emergency trips to prevent equipment damage. It features four passive magnetic speed inputs that accurately capture turbine speed data, even at low rotational speeds (down to 2 RPM) . The module’s dual 100Mbps Ethernet ports enable seamless integration with GE’s Mark VIe platform, supporting both simplex and triple-redundant control architectures. With a DC-62 pin connector for field wiring and built-in LED indicators for network status, power, and diagnostics, the GE IS220PTURH1A delivers robust performance in harsh environments, including power plants, oil refineries, and industrial manufacturing facilities.
The GE IS220PTURH1A is engineered for reliability in mission-critical turbine control applications. Its rugged design withstands extreme temperatures (-40°C to 85°C) and high vibration levels, making it suitable for harsh industrial environments . The module’s auto-reconfiguration capability simplifies maintenance by automatically downloading firmware and parameter updates from the controller, reducing downtime during component replacement .
A standout feature is its overspeed protection logic, which uses the median speed signal from its four inputs to trigger trips with precision. This design minimizes false positives caused by sensor noise or single-point failures. The module also includes an internal temperature sensor to monitor operational conditions and prevent thermal overload .
For connectivity, the dual Ethernet ports support redundant network paths, ensuring continuous data flow to the Mark VIe controller. LED indicators for network status, power, and attention provide real-time diagnostics, allowing technicians to quickly identify issues without system shutdowns . The
GE IS220PTURH1A is also static-sensitive and requires proper ESD handling, ensuring long-term stability in high-electromagnetic environments .
The GE IS220PTURH1A is widely deployed in power generation and industrial turbine systems:
- Power Plants: Integrates with gas and steam turbines to monitor rotational speed, execute overspeed trips, and ensure compliance with safety standards. Its high-speed data processing enables millisecond-level response to 异常工况，protecting turbines from catastrophic failure.
- Oil & Gas: Used in compressor and pump systems to maintain optimal operating speeds and prevent equipment damage in offshore platforms and refineries.
- Heavy Manufacturing: Supports large industrial turbines in steel mills and chemical plants, providing real-time speed monitoring and control to enhance process efficiency.
In each scenario, the GE IS220PTURH1A acts as a critical link between field sensors and the control system, enabling data-driven decisions and proactive maintenance. For example, in a gas turbine power plant, the module’s overspeed protection logic can prevent turbine 飞车 incidents, saving millions in repair costs and downtime .
- GE IS220PTURH1B – Enhanced variant with advanced auto-reconfiguration and expanded diagnostic capabilities, ideal for complex redundant systems .
- GE IS220PPROH1A – Turbine-specific I/O module for emergency trip applications, often paired with the GE IS220PTURH1A in triple-redundant setups .
- GE IS220PVIBH1A – Vibration monitoring module that complements the GE IS220PTURH1A by providing real-time equipment health data .
- GE IS220PDOAH1AJ – Discrete output module for actuator control, used alongside the GE IS220PTURH1A in mixed-signal turbine control systems .
- GE IS220PCNOH1B – Analog input module for temperature and pressure sensors, supporting comprehensive turbine condition monitoring .
Installing the GE IS220PTURH1A requires mounting it in a Mark VIe chassis within a climate-controlled cabinet. Ensure proper ESD precautions are taken, as the module is static-sensitive. Use shielded Ethernet cables to connect the dual ports to the control system and verify the 24 VDC power supply meets ±10% tolerance .
For maintenance, regularly inspect the module’s LED indicators to confirm network connectivity and power status. Clean the surface with a dry cloth to prevent dust buildup, and check terminal connections for looseness. If replaced, the module’s auto-reconfiguration feature will synchronize settings with the controller automatically . Functional testing in an OEM system setup is recommended to validate sensor input accuracy and trip logic .
The GE IS220PTURH1A is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and performance issues. Xiamen Xiongba specializes in industrial automation spare parts, offering global sourcing and competitive pricing for GE, ABB, and Emerson systems . Their decade-long industry experience ensures reliable support for mission-critical components like the GE IS220PTURH1A, including free replacement service and technical assistance.
With its robust design, advanced diagnostics, and seamless integration with GE’s Mark VIe platform, the GE IS220PTURH1A delivers unmatched reliability for turbine control applications, supported by Xiamen Xiongba’s commitment to quality and customer satisfaction.
