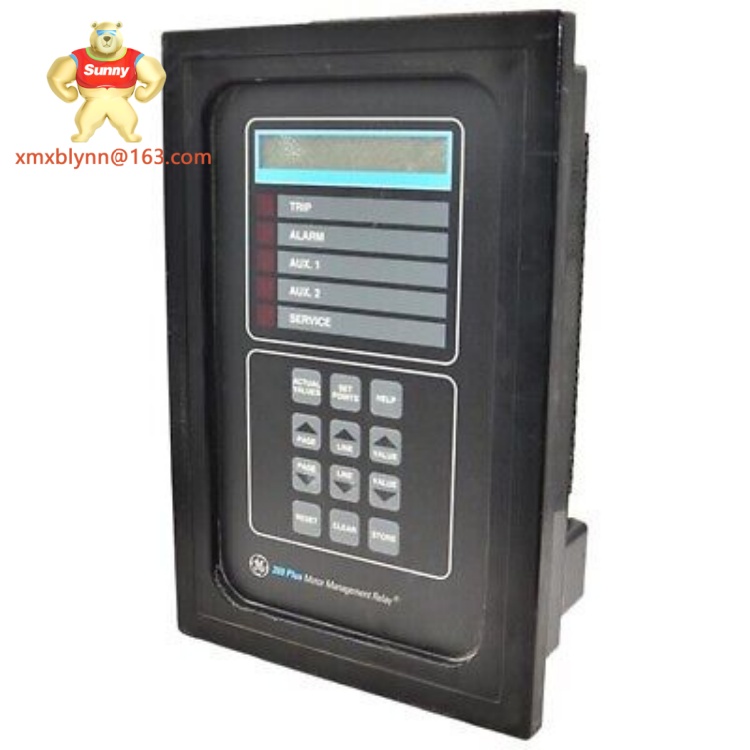

The GE 269PLUS-100P-HI is a robust, panel-mounted protection relay engineered to safeguard feeders and medium-to-large motors while delivering precise metering and actionable diagnostics. Designed for rapid fault clearing and clear coordination with upstream breakers, the GE 269PLUS-100P-HI integrates overcurrent, ground-fault, and thermal protection with event logging and waveform capture to support root-cause analysis. In mixed-vendor control rooms, this relay is often used as an edge device that feeds alarm states and analog trends to PLCs, DCS, and historians.
Engineers typically mount the GE 269PLUS-100P-HI in MCC doors, control cabinets, or substation panels where space is at a premium and reliability is mandatory. The relay’s configurable trip curves and programmable I/O make it ideal for brownfield retrofits: technicians can replace legacy electromechanical devices with GE 269PLUS-100P-HI and retain existing wiring wherever possible. This practicality reduces commissioning time and helps plants modernize incrementally. For procurement and spares planning, the relay sits naturally among distributed control system parts and industrial automation spare parts—coexisting with devices such as ABB I/O modules or ABB AC 800M controllers in hybrid systems.
| Parameter | Value |
|---|---|
| Product Model | GE 269PLUS-100P-HI |
| Manufacturer | GE |
| Product Type | Feeder & Motor Protection Relay |
| Power | 85–265 VAC or 90–300 VDC (control power) |
| Communication / Protocol | Modbus RTU (optional Modbus TCP / Ethernet module) |
| Operating Temperature | −20°C to +60°C |
| Mounting | Panel-mounted (standard cutout) |
| Protection / Ingress | IP20 (panel environment) |
| Dimensions (HxWxD) | ~210 × 140 × 65 mm (approx.) |
| Weight | ~1.2 kg (approx.) |
| Typical Interfaces | CT inputs (5 A), discrete inputs, relay outputs, analog outputs (option) |
| Compliance | CE, RoHS |
The GE 269PLUS-100P-HI focuses on dependable fault discrimination and clear integration. Its multi-stage protection engine supports inverse and definite-time curves as well as instantaneous trip settings, which enable selective coordination across feeder and motor protection layers. This selectivity minimizes collateral outages and keeps critical processes running longer while isolating true faults quickly. The unit’s waveform capture and timestamped event logs allow engineers to perform meaningful post-trip analysis without having to recreate incidents on the plant floor.
Communications are straightforward. With Modbus RTU as standard and Ethernet options available, the GE 269PLUS-100P-HI maps alarm states, contact outputs, and analog trends directly into PLC registers and DCS blocks. That compatibility simplifies integration with common automation building blocks—so you can read key signals into systems that include ABB DO810 or ABB I/O modules without extensive gateway work. This directness reduces engineering hours during commissioning and lowers long-term maintenance complexity.
Durability and serviceability are engineered into the product. The PCB and connectors are industrial-grade, chosen to resist vibration and electrical noise in heavy-industrial settings. Local status LEDs and a clear front panel accelerate troubleshooting, while modular relay outputs and replaceable CT terminals enable fast field swaps. Operationally, these advantages translate into lower lifecycle costs and fewer unplanned outages—an important consideration for facilities managing large fleets of distributed control system parts. Finally, the GE 269PLUS-100P-HI offers flexible analog outputs for energy monitoring, supporting plant-level efficiency programs and predictive maintenance routines.
In a power generation facility, the GE 269PLUS-100P-HI protects auxiliary feeders and cooling-motor circuits, isolating faults rapidly while logging events for engineering review. Operators use the relay’s metering to balance loads across redundant supplies and to feed consumption curves into their energy-management systems. In the oil & gas sector, the relay secures pump and compressor trains: when sudden overcurrent or ground-faults appear, the GE 269PLUS-100P-HI trips decisively and records the waveform needed for incident analysis.
Municipal water and wastewater plants benefit from the relay’s trend outputs and alarms. For example, in one brownfield upgrade, technicians swapped out aging relays for the GE 269PLUS-100P-HI, restoring continuous monitoring and event capture in under a day—allowing predictive maintenance to detect bearing wear before catastrophic failure. In discrete manufacturing, the relay interfaces with line PLCs to provide fast discrete trip signals that protect motors during mechanical jams, enabling safer maintenance and faster line restarts. In smart infrastructure and campus power distribution, the GE 269PLUS-100P-HI acts as a compact telemetry node, forwarding critical feeder information to SCADA and DCS systems; this makes it a natural fit alongside distributed control system parts and industrial automation spare parts inventories.
269PLUS-100P-LI – Lower-instrumentation variant for cost-sensitive feeder applications.
269PLUS-200P-HI – Expanded I/O version with additional analog channels for energy monitoring.
SR469-series – Companion motor management relays used when advanced motor protection and fleet coordination are required.
MIFIIPI55E10H100 – Feeder-relay family member with alternative communications and I/O options.
IS210-series – Panel-mount protection modules with complementary protection and metering features.
269PLUS-100P-T – Ethernet-enabled variant designed for direct Modbus TCP integration.
Install the GE 269PLUS-100P-HI in a ventilated control cabinet with adequate space for wiring and service access. Ensure robust cabinet earthing and maintain clearance around the relay to prevent heat accumulation. During commissioning, verify CT polarity and short CT secondaries as recommended by site procedures; also set control power within the specified range before applying configuration. Mount the relay in a standard panel cutout; confirm connector seating and apply manufacturer-specified torque to all terminals.
For maintenance, rely on both hands-on checks and data-driven signals. Periodically inspect terminations and the front-panel seal for dust or corrosion. Use event logs and analog-trend histories to spot creeping current increases or repeated thermal warnings—these trends often precede mechanical wear such as bearing degradation. Keep a configuration backup and firmware image off-line; test firmware updates on a spare unit when possible. Maintain at least one pre-configured spare relay to minimize mean time to repair. Regular preventive checks, timely firmware control, and a practiced spare-parts plan will keep the GE 269PLUS-100P-HI performing reliably over the long term.
The GE 269PLUS-100P-HI units supplied by Xiamen Xiongba E-commerce Co., Ltd. Branch are covered by a one-year warranty and a free replacement service for manufacturing defects discovered during normal use. This commercial warranty is provided by Xiamen Xiongba (not the OEM) and includes technical support for installation, guidance for return logistics, and coordination of pre-shipment testing when required. To initiate a claim, customers should contact Xiamen Xiongba’s service desk with proof of purchase and the unit serial number; our global procurement network supports rapid verification and replacement to reduce downtime.
