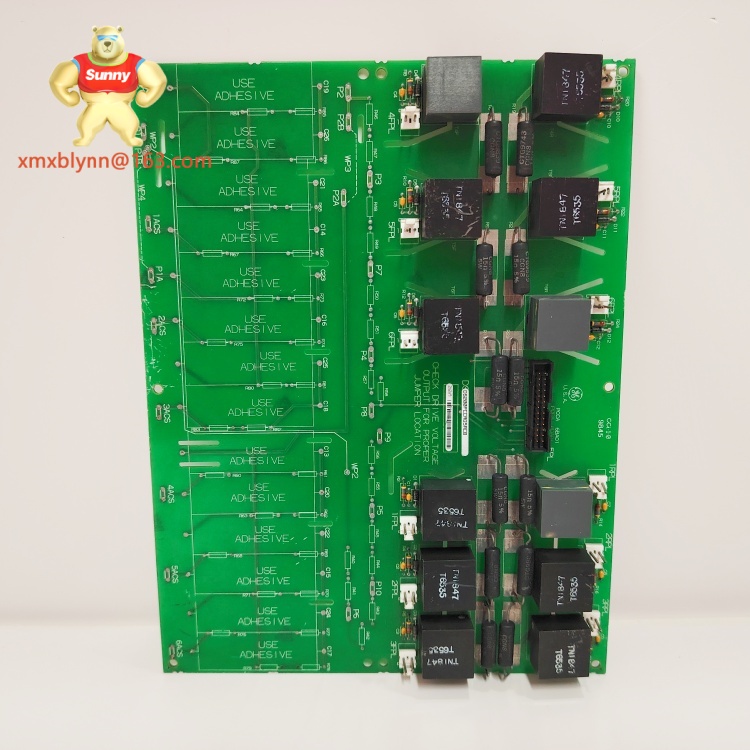

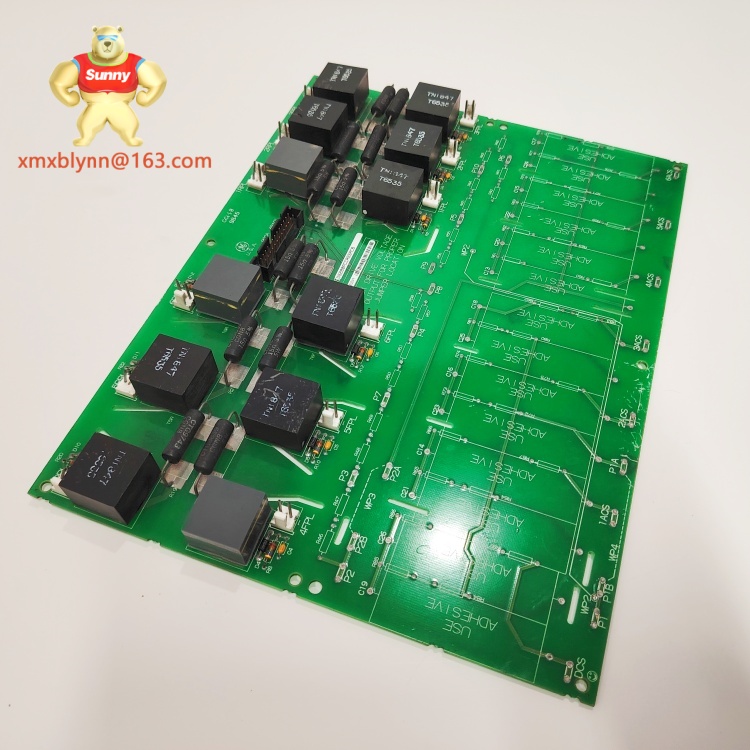

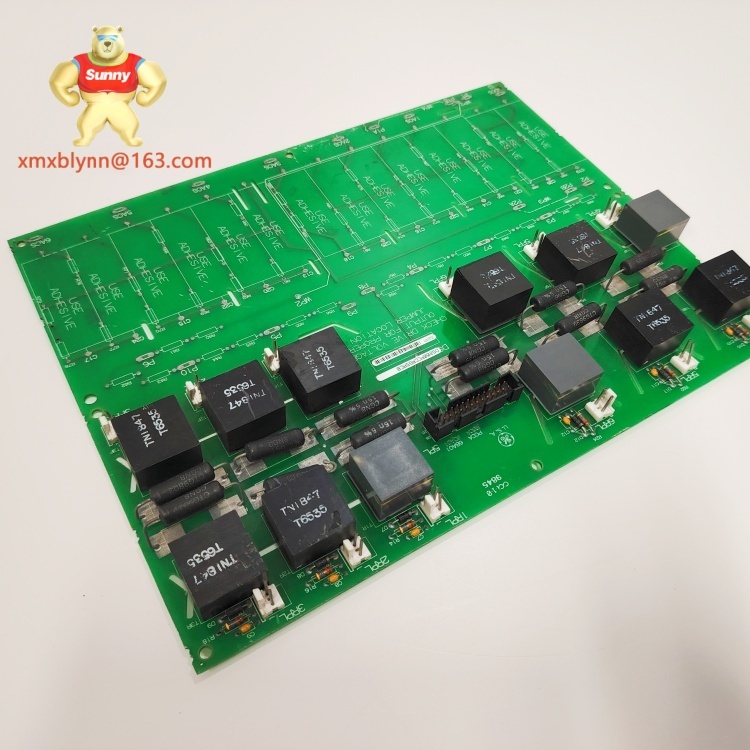

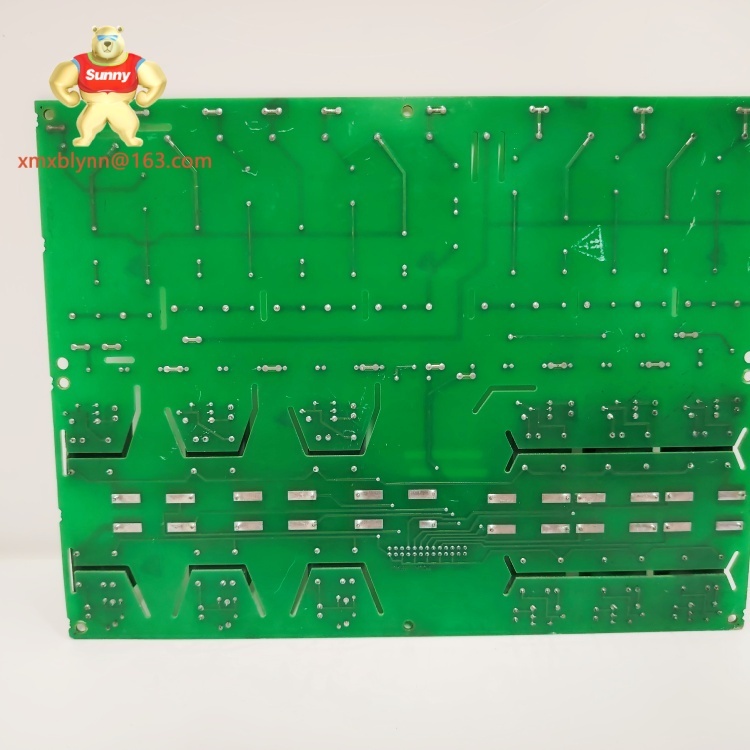

GE DS200PCCAG5ACB Power Connect Card (PCCA) Product Description
The GE DS200PCCAG5ACB is a high-performance Power Connect Card (PCCA) engineered for critical industrial automation applications, specifically within GE’s Mark V turbine control system series. As a core component of GE’s industrial control portfolio, this module serves as a vital interface between the SCR (Silicon-Controlled Rectifier) power bridge and the drive control circuitry, ensuring seamless power distribution and real-time control in high-horsepower (HP) systems. Designed for reliability and precision, the GE DS200PCCAG5ACB is widely adopted in demanding environments such as power generation, oil and gas, and heavy manufacturing.

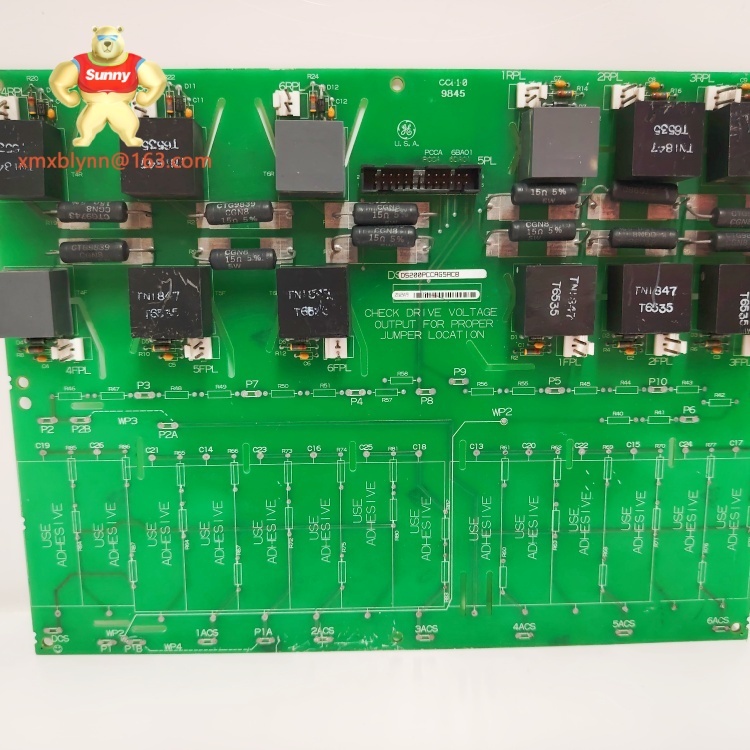

At its core, the GE DS200PCCAG5ACB features pulse transformers that deliver gate drive signals to the SCR bridge, enabling efficient regulation of power flow. Unlike standard PCCA modules, this model is categorized as a high-HP variant due to its elimination of snubbers and attenuation strings, which are relocated to external systems for enhanced thermal management. This design choice not only reduces internal complexity but also optimizes performance in applications requiring continuous high-power output. The module’s wire jumpers (WP4, WP3, JP2, JP1) allow configurable voltage settings, making it adaptable to diverse system requirements.
Integrated into GE’s Mark V series, the DS200PCCAG5ACB leverages decades of GE’s industrial control expertise to provide robust, fail-safe operation. Its dual 100 Mbps Ethernet ports enable seamless communication with higher-level controllers and redundant network configurations, ensuring uninterrupted data exchange even in mission-critical scenarios. With a wide operating temperature range (-30°C to +65°C) and Class I, Division 2 hazardous location certification, this module excels in harsh industrial environments where reliability is non-negotiable. By combining advanced hardware design with GE’s patented Speedtronic technology, the GE DS200PCCAG5ACB redefines performance in turbine control systems, offering unmatched stability and longevity.
- DS200SDCCG5A: A Drive Control Card in the Mark V series, complementary to the DS200PCCAG5ACB for complete SCR power bridge management.
- IS220PDIOH1B: A Discrete I/O Module from GE’s Mark VIe series, used alongside the DS200PCCAG5ACB for sensor signal digitization and real-time data acquisition.
- DS200PCCAG9A: A Power Connect Card with similar functionality but optimized for lower voltage applications (e.g., 5V DC input).
- DS200TCQBG1BCB: An Analog I/O Board designed for precision signal conditioning in turbine control systems.
- DS200PCCAG7ACB: A High-Voltage PCCA variant supporting up to 48V DC, ideal for industrial automation systems requiring extended voltage ranges.
The GE DS200PCCAG5ACB stands out for its reliability, adaptability, and advanced control capabilities:
- High-Power Performance: Engineered for high-HP applications, this module eliminates internal snubbers to reduce heat dissipation, ensuring stable operation in continuous-duty scenarios.
- Redundant Communication: Dual Ethernet ports enable redundant network connections, minimizing downtime and enhancing system resilience.
- Real-Time Diagnostics: Built-in temperature sensors (±2°C accuracy) monitor internal conditions, triggering alarms and diagnostic alerts to prevent catastrophic failures.
- Flexible Configuration: Configurable wire jumpers allow field-adjustable voltage settings, accommodating diverse system requirements without hardware modifications.
- Hazardous Environment Compliance: Certified for Class I, Division 2 environments, it safely operates in explosive or corrosive industrial settings.
- Longevity: GE’s ruggedized design and high-quality materials ensure extended service life, even in extreme temperatures and vibration-prone environments.
By integrating the
DS200PCCAG5ACB, industrial operators can achieve
optimized power distribution,
reduced maintenance costs, and
improved system efficiency, making it a cornerstone of modern turbine control architectures.
Pre-installation Preparations:
Before installing the GE DS200PCCAG5ACB, verify the following:
- Voltage Compatibility: Ensure the system’s power supply matches the module’s 28V DC input requirement.
- Physical Fit: Confirm the module’s dimensions (15.9 cm × 17.8 cm) align with the Mark V series rack specifications.
- Connector Integrity: Inspect all ports and jumpers for damage, ensuring secure connections to the SCR bridge and drive control boards.
- Grounding: Properly ground the module to prevent electrostatic discharge (ESD) and electromagnetic interference (EMI).
Maintenance Suggestions:
To maintain peak performance:
- Regular Inspections: Schedule quarterly visual checks to identify loose connections, corrosion, or signs of overheating.
- Cleaning: Use compressed air to remove dust and debris from the module’s vents, preventing thermal buildup.
- Firmware Updates: Periodically update the module’s firmware via GE’s ToolboxST software to access the latest features and bug fixes.
- Spare Parts Availability: Keep a replacement DS200PCCAG5ACB in stock to minimize downtime during unexpected failures.
- Professional Servicing: For complex issues, consult GE-certified technicians to ensure compliance with safety standards.
The GE DS200PCCAG5ACB is a versatile solution across industries:
- Power Generation:
- Integral to gas and steam turbine control systems, regulating power output in power plants.
- Enables precise synchronization of generators with the grid, ensuring stable energy supply.
- Oil and Gas:
- Controls high-pressure compressors and pumps in upstream and downstream operations.
- Reliable performance in offshore platforms and refineries, where equipment must withstand saltwater exposure and extreme temperatures.
- Industrial Manufacturing:
- Manages large-scale motors and drives in steel mills, cement plants, and chemical processing facilities.
- Supports real-time monitoring and adjustment of production lines to optimize throughput.
- Marine Propulsion:
- Used in shipboard turbine systems for propulsion and auxiliary power, ensuring smooth operation in harsh marine environments.
By addressing critical challenges like
power instability,
thermal management, and
system redundancy, the
DS200PCCAG5ACB empowers industries to achieve
higher productivity and
lower operational risks.
Our company, a leading industrial control distributor since 2007, offers a 12-month quality warranty for the GE DS200PCCAG5ACB. This warranty covers hardware malfunctions arising from material or manufacturing defects, excluding damage caused by misuse or improper installation. During the warranty period, we provide prompt replacement services for faulty modules to minimize downtime.
For discontinued or hard-to-find models like the DS200PCCAG5ACB, our global supply chain network ensures rapid procurement and delivery, even for urgent orders. We also offer 24/7 technical support to assist with installation, troubleshooting, and firmware updates. With our extensive inventory of industrial control spare parts—including obsolete and rare models—we are committed to supporting the continuous operation of your systems.
