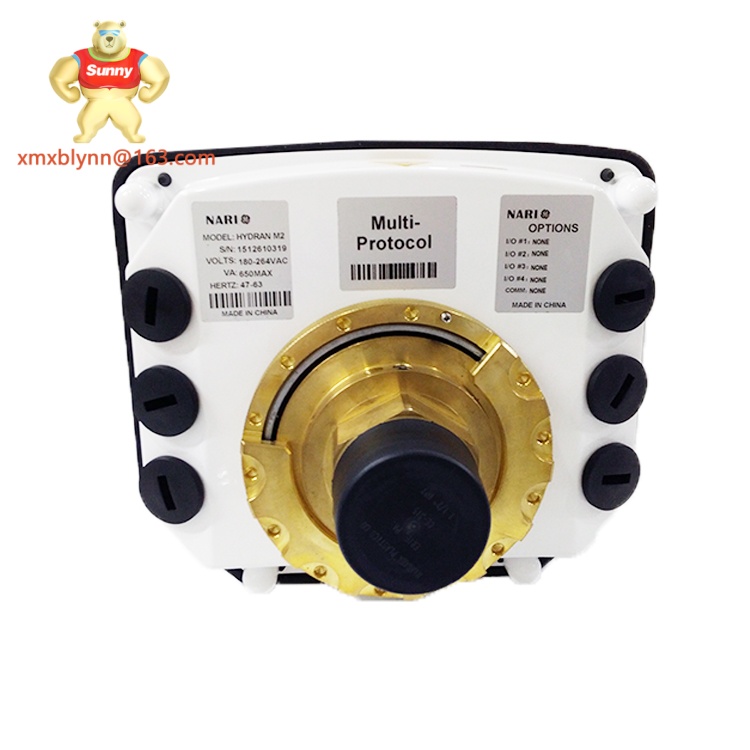

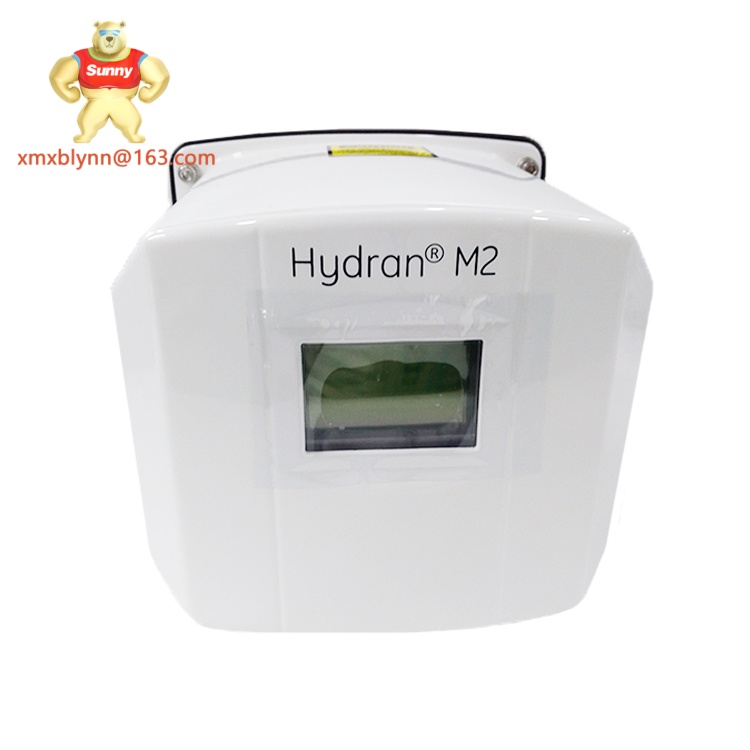

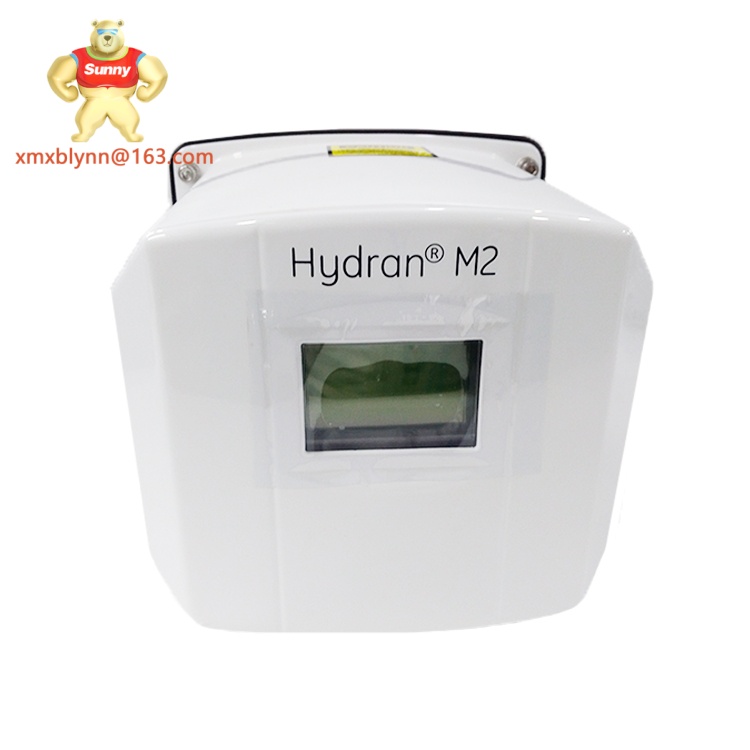

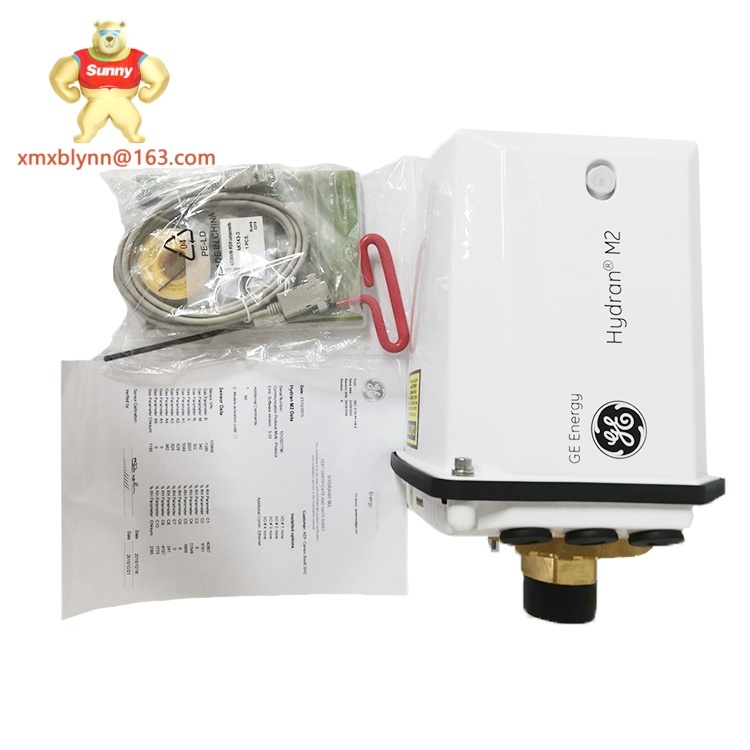

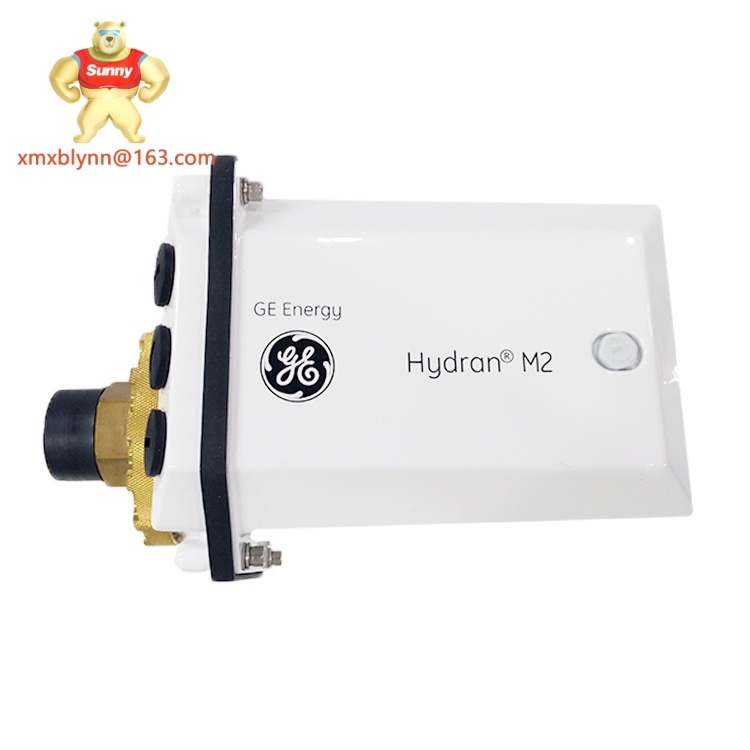

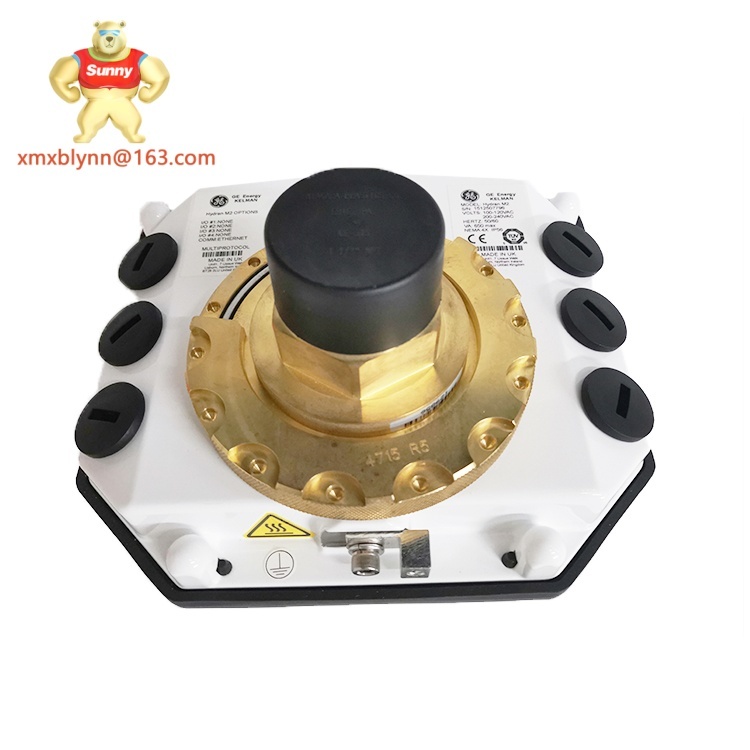

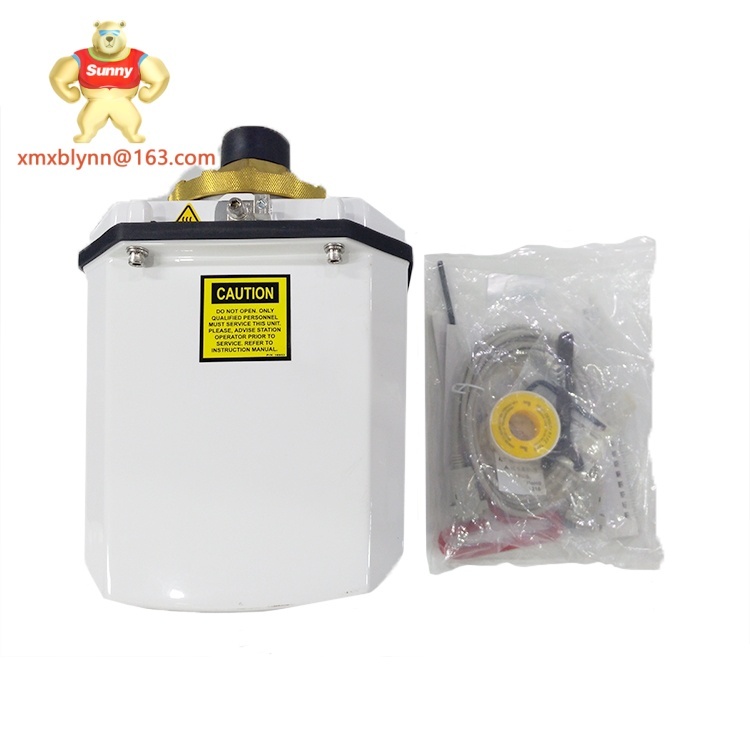

The GE HYDRAN M2 is an advanced on-line dissolved gas analysis (DGA) monitor designed for continuous condition assessment of power transformers. As part of GE’s trusted transformer monitoring portfolio, this intelligent device combines multi-gas sensing with advanced data analytics to deliver accurate, real-time insights into transformer health. In modern electrical grids, transformer reliability is critical to operational stability, and the GE HYDRAN M2 offers the early warning capability needed to prevent costly unplanned outages.
Engineered for demanding utility and industrial environments, the GE HYDRAN M2 is ideally suited for integration into Distributed Control Systems (DCS) or SCADA networks, offering compatibility with industry-standard communication protocols. Its robust design ensures long-term performance in challenging field conditions, while its advanced sensing technology detects key fault gases such as hydrogen, carbon monoxide, and others, enabling proactive maintenance strategies.
Whether deployed in high-voltage substations, power generation plants, or large industrial facilities, the GE HYDRAN M2 supports asset managers in making informed, data-driven decisions. This combination of reliability, accuracy, and communication flexibility makes it a valuable component in modern industrial automation and asset management strategies.
| Parameter | Value |
|---|---|
| Product Model | GE HYDRAN M2 |
| Manufacturer | GE |
| Product Type | Multi-gas DGA Monitor |
| Measured Gases | Hydrogen (H₂), Carbon Monoxide (CO), Acetylene (C₂H₂), Methane (CH₄) |
| Measurement Method | Electrochemical and Infrared Sensing |
| Communication | Modbus RTU/TCP, DNP3, IEC 61850 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temp | -40°C to +55°C |
| Protection Rating | IP66/NEMA 4X |
| Mounting | Transformer Tank or Panel Mount |
| Data Logging | Onboard memory with trend recording |
| Calibration | Factory calibrated, field-serviceable |
The GE HYDRAN M2 stands out in the DGA market for its combination of multi-gas monitoring, robust build quality, and integration-ready design. By tracking four critical fault gases, it provides a more comprehensive picture of transformer health compared to single-gas solutions. This deeper insight enables asset managers to detect both early-stage faults and more severe events with precision.
One of the major strengths of the GE HYDRAN M2 is its flexible communication interface. Supporting Modbus, DNP3, and IEC 61850, it easily integrates with ABB AC 800M controllers, SCADA systems, or other distributed control system parts, streamlining data acquisition and analysis. This makes it an ideal choice for utilities standardizing their monitoring equipment across diverse platforms.
Durability is another hallmark of the GE HYDRAN M2. Its IP66-rated enclosure offers excellent resistance against dust, moisture, and extreme weather, ensuring continuous operation even in remote or outdoor installations. The unit’s low-maintenance design and long calibration intervals reduce the total cost of ownership while maximizing uptime.
In terms of diagnostics, the onboard data logging and trending capabilities allow operators to identify gradual deterioration before it becomes critical. Combined with alarm thresholds and configurable outputs, the device offers both proactive and reactive asset management support. For facilities prioritizing reliability, the GE HYDRAN M2 is more than just a sensor—it’s a key tool for extending transformer service life and safeguarding operational continuity.
The GE HYDRAN M2 is widely applied in sectors where transformer reliability is paramount. In high-voltage substations, it enables utilities to detect early warning signs of insulation breakdown or overheating, minimizing the risk of catastrophic failures. Power generation facilities—whether fossil-fuel, hydroelectric, or renewable—leverage its capabilities to protect critical step-up transformers that feed energy into the grid.
In oil and gas refineries, the GE HYDRAN M2 plays an important role in monitoring large power transformers that supply process-critical loads, ensuring uninterrupted operations in environments where downtime is extremely costly. Heavy manufacturing plants also benefit from its continuous gas analysis, particularly in operations involving large motors, furnaces, or rolling mills that rely on stable transformer performance.
With its ability to integrate into industrial automation systems and DCS networks, the GE HYDRAN M2 also fits smart grid applications, where predictive maintenance and real-time asset visibility are becoming standard practice. Its versatility across industries underscores its value as part of a modern, data-driven approach to transformer asset management.
GE HYDRAN 201R – Compact single-gas monitor for basic hydrogen tracking
GE HYDRAN M2-X – Extended gas range model with additional sensing capability
GE Kelman TRANSFIX – Multi-gas DGA with advanced fault diagnosis algorithms
GE Kelman MINITRANS – Compact multi-gas monitor for smaller transformers
GE HYDRAN 201i – Integrated sensor with simplified installation for smaller sites
GE Kelman DGA 900 – High-end multi-gas monitor for large utility transformers
GE HYDRAN M2 Plus – Enhanced variant with expanded communication protocols
Installing the GE HYDRAN M2 requires careful planning to ensure optimal performance. The device should be mounted securely on the transformer tank or designated panel location with access to power and communication cabling. Proper grounding is essential to protect the sensor electronics from electrical surges, and the surrounding environment should be within the specified operating temperature range. For outdoor installations, its IP66 enclosure offers weather resistance, but adequate clearance for servicing is recommended.
For ongoing maintenance, periodic inspection of cable connections, communication links, and enclosure seals helps ensure reliability. The GE HYDRAN M2’s calibration stability reduces the need for frequent servicing, but scheduled performance verification is advised, particularly in critical installations. Firmware updates and alarm threshold reviews should be part of the maintenance cycle to keep the system aligned with operational requirements.
The GE HYDRAN M2 supplied by Xiamen Xiongba E-commerce Co., Ltd. Branch comes with a comprehensive one-year warranty covering manufacturing defects and functional performance under normal operating conditions. This warranty is provided by Xiongba, not GE, and includes free replacement service should any covered issue arise within the warranty period.
Our commitment extends beyond product delivery—we offer global customer support, ensuring rapid response to technical inquiries and efficient service coordination. With over a decade of industry expertise, Xiongba sources products directly from overseas manufacturers, guaranteeing authenticity and competitive pricing. This warranty reflects our confidence in the GE HYDRAN M2 and our dedication to providing customers with reliable industrial automation spare parts, whether for ABB I/O modules, distributed control system parts, or specialized monitoring equipment.
