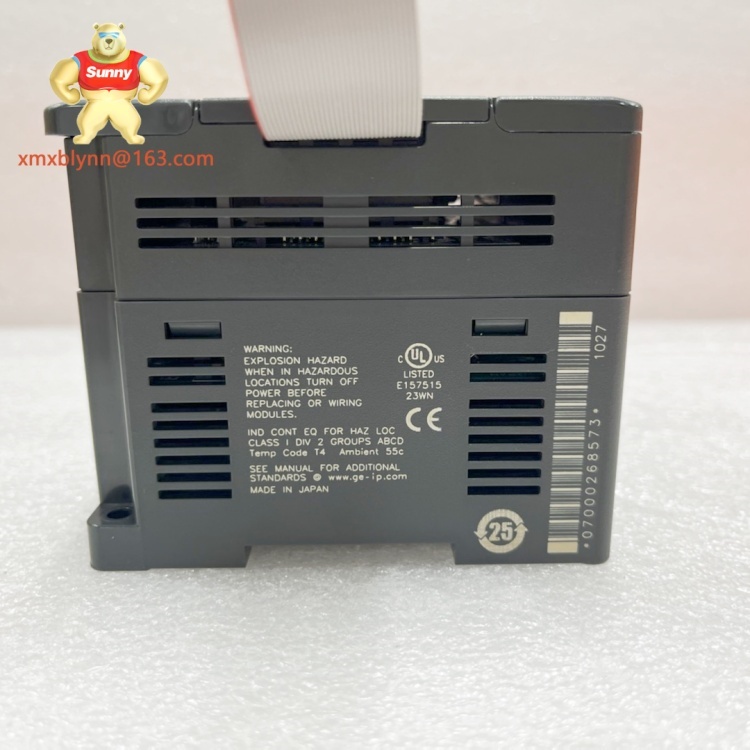

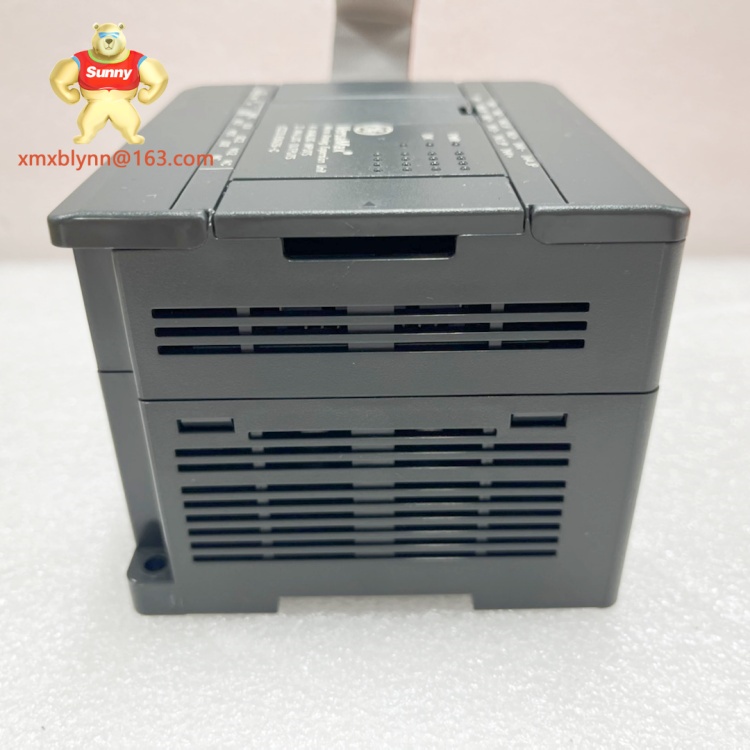

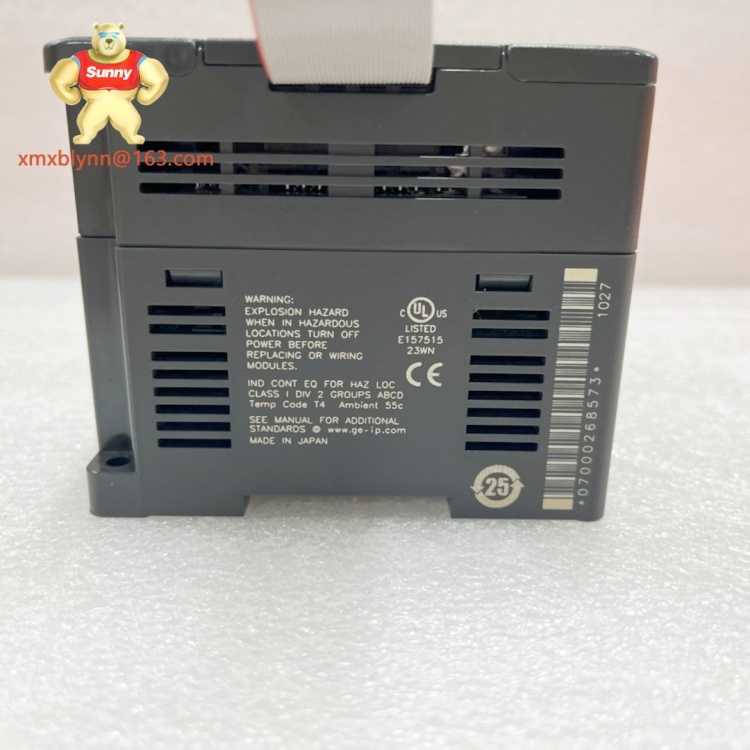

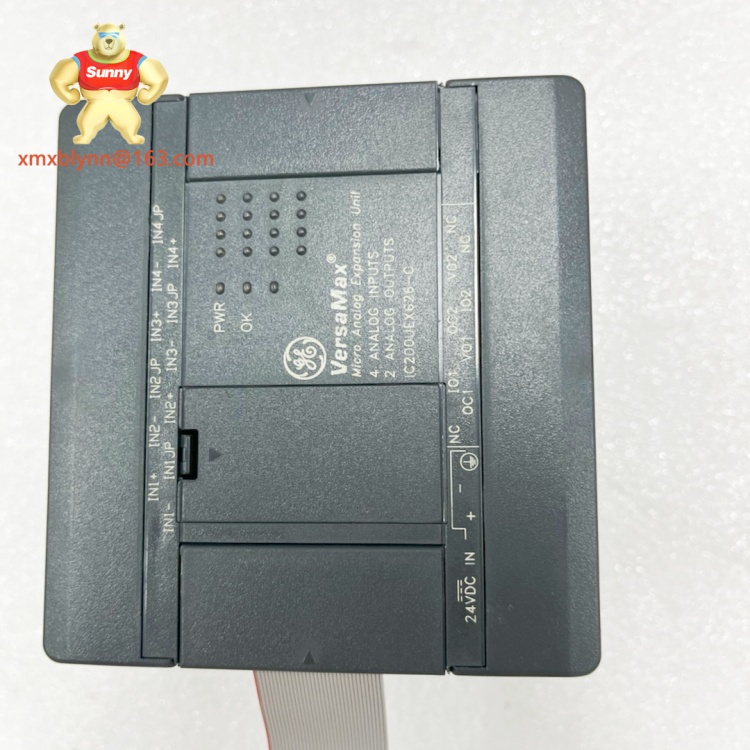

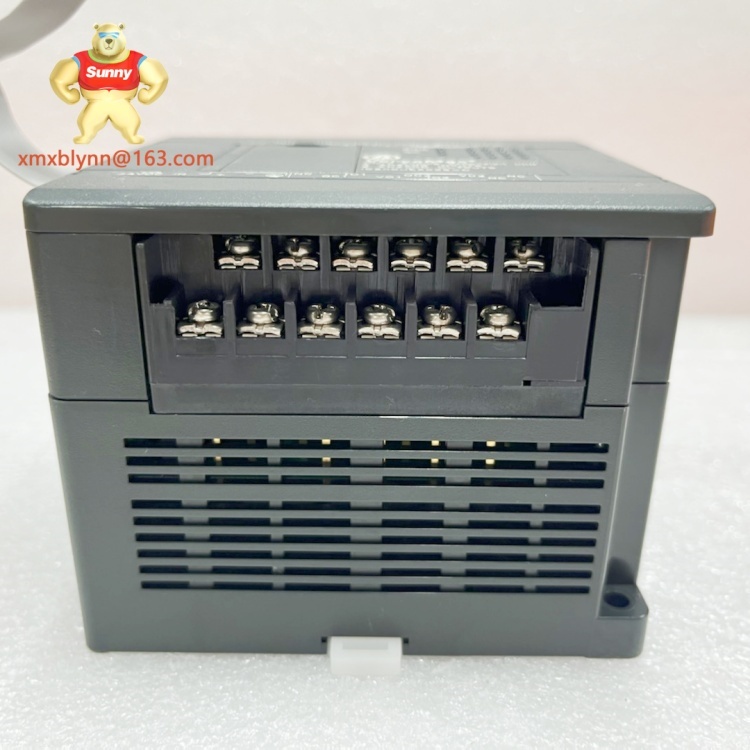

roduct Overview
The GE IC200UEX626 is a compact 6-point analog expansion module in the VersaMax Micro family, offering four isolated analog inputs and two configurable analog outputs in a single option-module footprint. Designed for OEM machines, skid-mounted process packages and small control panels, the GE IC200UEX626 brings the analog I/O capability you need without the footprint or complexity of a full analog rack. As a VersaMax Micro option module, the GE IC200UEX626 draws logic power from the rack’s 24 VDC supply and conforms to the platform’s addressing and diagnostic conventions, which simplifies commissioning and spare-parts handling for maintenance teams.
Engineers choose the GE IC200UEX626 when a limited but flexible set of analog channels is required for PID loops, transmitter acquisition, or actuator control on mid-sized systems. The module’s isolated channels, multiple supported signal ranges and built-in diagnostics make it well suited to environments where predictable behavior, straightforward wiring and clear fault reporting reduce engineering hours and operational risk.
Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation procurement and global distribution of DCS and PLC spare parts. With over a decade of experience sourcing genuine modules—ranging from GE VersaMax components to ABB I/O modules—Xiongba offers competitive pricing, verified supply chains and logistics support. We provide a one-year warranty and free replacement service to ensure customers minimize downtime and procurement headaches.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IC200UEX626 |
| Manufacturer | GE / GE Fanuc (VersaMax Micro) |
| Product Type | 6-point Analog Expansion Module (4 in / 2 out) |
| Analog Inputs | 4 isolated analog inputs (voltage & current) |
| Analog Outputs | 2 configurable analog outputs (voltage/current) |
| Power Supply | Nominal 24 VDC (typical acceptance range 19–30 V) |
| Resolution | 12-bit typical |
| Supported Ranges | 0–10 V, ±10 V, 0–20 mA, 4–20 mA |
| Mounting / Interface | VersaMax Micro option slot / DIN-style mount |
| Power Consumption | ~3 W (module) |
| Operating Temperature | –20 °C to +60 °C |
| Protection Class | IP20 (panel / control cabinet) |
Key Features and Benefits
The GE IC200UEX626 excels where simplicity, isolation and mixed-signal flexibility matter. Its four isolated inputs accept common transmitter signals while two outputs can be configured to drive actuators or indicators in voltage or current modes. Isolation between channels and the backplane reduces ground-loop risks and improves noise immunity—important in skid-mounted or electrically noisy plant environments. By supporting standard industrial ranges (0–10 V, ±10 V, 0–20 mA, 4–20 mA) the GE IC200UEX626 reduces the need for signal converters and simplifies spare-part inventories.
Diagnostics are practical rather than theoretical: the module reports channel faults, open loops and out-of-range conditions to the host VersaMax controller using native platform conventions. That allows operations staff to locate wiring issues or failed transmitters from the PLC/HMI without invasive field tests, speeding mean-time-to-repair. The module’s low power draw and compact footprint make it ideal for battery-backed or space-constrained control cabinets where efficiency and predictable thermal performance are required.
Integration with VersaMax Micro systems is straightforward. Because the GE IC200UEX626 follows the platform’s addressing and mapping model, adding analog channels typically requires only I/O mapping and small HMI updates rather than wholesale control logic changes. For OEMs and integrators this translates to faster commissioning, fewer engineering-change orders and lower lifecycle costs. Overall, the module balances function and economy—delivering trustworthy analog I/O for small to mid-sized applications.
Application Scenarios
The GE IC200UEX626 finds natural use on skid-mounted process packages where a compact set of analog channels is sufficient. For example, in a chemical dosing skid it can capture level, pressure and flow transmitter signals while providing outputs to metering pumps or proportional valves. Its diagnostics and isolation simplify wiring and commissioning on mobile or modular skids destined for remote sites.
In water and wastewater plants the GE IC200UEX626 is an economical choice for pH/ORP, turbidity and chlorine monitoring combined with dosing-control outputs. On small influent-treatment panels it allows local closed-loop control without requiring a larger analog I/O rack, keeping panel size and cost down while preserving data integrity.
OEM machinery benefits as well: packaging and material-handling machines often need a handful of analog channels (temperature feedback, torque sensing, proportional valve control). The GE IC200UEX626 supplies those channels with minimal cabinet redesign. In retrofit and balance-of-plant use—lube oil skids, auxiliary heat exchangers and secondary metering—the module provides a cost-effective route to add analog capability to existing VersaMax Micro installations with consistent documentation and spares management.
Related Models
IC200UEX636 – Similar 6-point analog expansion designed for 100–240 VAC module power variants.
IC200UEX616 – Variant with alternate supply options for lower-voltage systems.
IC200UEX626-D – Revision code variant sometimes found in used-equipment listings; same channel mix with different factory IDs.
IC200UEX824 – Thermocouple-/RTD-focused module for temperature-heavy applications within the VersaMax family.
IC200UEX726 – Hybrid analog/RTD expansion suited to mixed-sensor arrays.
IC200UEO116 – Companion 16-point digital output expansion commonly paired when additional actuator outputs are required.
Installation and Maintenance
Installation of the GE IC200UEX626 follows VersaMax Micro practices: insert the module into an approved option slot or rack, provide a stable nominal 24 VDC supply and follow the manufacturer’s channel wiring tables. Keep analog wiring as twisted pair with shields terminated at a single ground reference, route power and signal cabling separately to reduce EMI, and avoid mounting the module directly beside high-temperature components. Ensure the control cabinet is ventilated and rated for the ambient range the module will see.
For maintenance, rely on the VersaMax controller diagnostics to locate channel faults and open loops. Periodically verify terminal torque, inspect connector contacts and cable shields for corrosion, and confirm loop supply voltages. Maintain firmware and configuration backups and keep at least one spare module of the same part revision available—hardware/firmware revisions can affect behavior. Hot-swap capability depends on rack configuration; consult system procedures before attempting live replacement to avoid unintended controller states.
Product Warranty
Xiamen Xiongba E-commerce Co., Ltd. Branch provides a one-year warranty and free replacement service for the IC200UEX626 purchased through our channel. This warranty is issued by Xiongba and covers manufacturing defects under normal operating conditions; it is not an ABB/GE manufacturer warranty. To expedite service, retain purchase documentation and product serial numbers; Xiongba’s after-sales team will handle troubleshooting, RMA processing and replacement logistics. With over a decade of experience sourcing industrial automation spare parts—including VersaMax Micro modules—Xiongba aims to minimize customer downtime through verified sourcing, regional logistics support and responsive warranty service.
