Product Overview

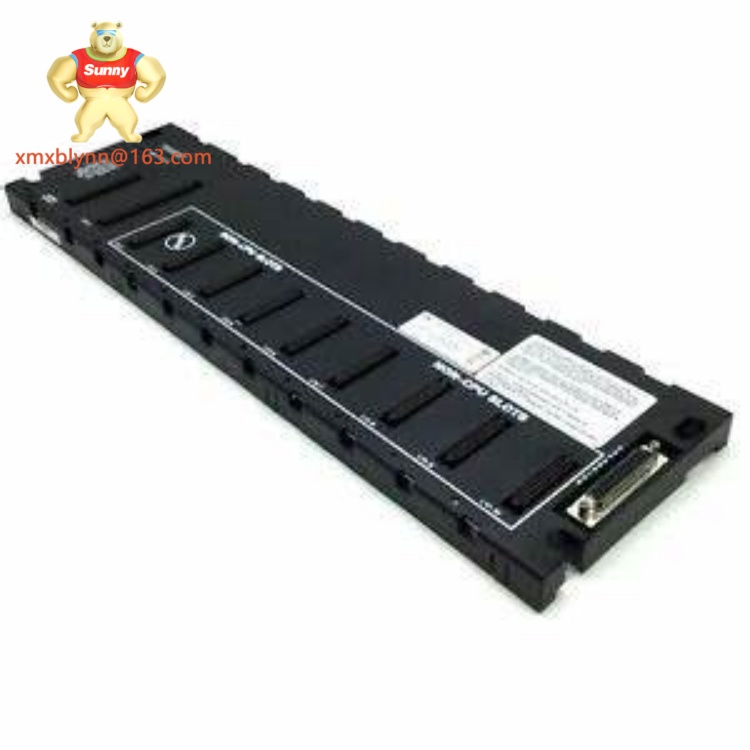

The GE IC693CHS391 is a modular Series 90-30 chassis engineered to host CPU, power, and I/O modules in a compact, serviceable frame suitable for control cabinets, MCCs, and substation enclosures. It provides a robust backplane with keyed slots, secure module retention, and routed wiring channels that reduce installation errors and speed commissioning. Many sites rely on the GE IC693CHS391 when they need a repeatable rack for replacing distributed control system parts quickly during planned outages or emergency swaps.
In operation, the GE IC693CHS391 supports a mix of digital, analog, and specialty cards and is commonly mounted on a backpanel inside a control cabinet or on a slide-rail in an MCC. Technicians appreciate its predictable slot mapping—install the GE IC693CHS391 first, then populate with power supplies like the IC693PWR330 and CPUs to restore a control lane. Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | GE IC693CHS391 |
| Manufacturer | GE (Series 90-30 family) |
| Product Type | PLC chassis / module carrier |
| Power | Backplane power distribution; accepts Series 90-30 power modules |
| Communication / Protocol | Rack-level backplane; supports CPU communications per module |
| Operating Temperature | −20°C to +60°C (typical industrial range) |
| Mounting | Panel-mounted / cabinet-mounted with rack screws or slide rails |
| Protection / Ingress | IP20 (intended for enclosure installation) |
| Dimensions (HxWxD) | ~300 × 200 × 150 mm (approximate; verify SKU) |
| Weight | ~3.5 kg (empty chassis, typical) |
| Typical Interfaces | 12–18 module slots, edge-card backplane connectors, terminal wiring channels |
| Compliance | CE, RoHS (verify per serial and revision) |
Key Features and Benefits
Built for repeatable maintenance, the GE IC693CHS391 centers on secure module retention and clear slot addressing so technicians can replace cards without guesswork. Each slot on the GE IC693CHS391 uses keyed backplane connectors that prevent mis-insertion, and retention clips reduce vibration-related contact issues. Reliability is enhanced further by dedicated wiring channels and terminal zones that keep field terminations neat and minimize accidental disconnection during service.
Serviceability is another differentiator. The GE IC693CHS391 supports hot-swappable wiring practices for non-liveable modules and simplifies spares management because teams can standardize on a single chassis type across multiple lines. Diagnostics improve because a structured chassis makes it easier to locate and isolate module-level LED indicators and test points. Integration with common DCS/PLC architectures is straightforward; for instance, the chassis fits Series 90-30 CPUs and works alongside ABB I/O modules during hybrid migrations, so pairing with ABB AC 800M controllers at the systems level is practicable with clear rack segregation.
Mechanical robustness matters in heavy industry. The GE IC693CHS391 is designed to withstand typical control-cabinet vibration and thermal cycles; in practice, its solid mounting points and metalwork reduce the frequency of connector rework. For procurement and maintenance planners, standardizing on the GE IC693CHS391 lowers lifecycle cost by minimizing custom racks and speeding both commissioning and emergency part swaps. In short, the chassis offers organized wiring, predictable servicing, and a platform that makes brownfield upgrades less disruptive.
Application Scenarios
In a thermal power station the GE IC693CHS391 often becomes the core carrier for generator control and boiler oversight racks—housing the CPU, power supply, and mixed I/O needed for excitation and alarm logic. There, its neat terminal channels and slot labeling shorten outage turnaround during scheduled maintenance. In oil & gas facilities, the chassis works well on skid-mounted control panels where mechanical security and clear wiring reduce hydrocarbon-exposure rework and speed fault isolation.
Municipal utilities benefit too: in a municipal water pump station, technicians replaced a damaged rack with a preassembled GE IC693CHS391 panel within hours and restored remote telemetry without complex rewiring. Mining operations use the chassis in rugged control huts where dust and vibration are routine; the retention clips and keyed slots cut down intermittent contact issues that otherwise cause nuisance alarms. For manufacturing brownfield upgrades, the GE IC693CHS391 supports phased migration—facilities can bring in ABB I/O modules or interface them to ABB AC 800M at higher control levels while retaining existing GE Series 90-30 cards at the rack level. These concrete examples show how the chassis reduces downtime, eases retrofits, and supports mixed-vendor architectures with minimal disruption.
Related Models
IC693CHS390 — Previous chassis revision with slightly different slot count and mounting features.
IC693CHS392 — Enhanced chassis variant offering additional EMC shielding for noisy environments.
IC693PWR330 — Companion high-capacity power supply commonly installed in this chassis.
IC693CPU — Series 90-30 CPU family modules that reside in the chassis for control logic.
IC693ALG — Analog signal-conditioning module often paired in the same rack for expansion.
IC693CHS-EX — Higher-temperature option for installations requiring extended ambient tolerance.
IC200CHS — Cross-compatible chassis used in mixed-vendor retrofit scenarios.
Installation and Maintenance
Begin installation by ensuring cabinet space, ventilation, and mounting hardware match the GE IC693CHS391 footprint; plan for front access and at least 50 mm clearance behind the chassis for cabling bends. Grounding is essential—bond the chassis to the plant single-point earth to avoid circulating currents in measurement circuits and to maintain EMC performance. When mounting, use the recommended rack screws or slide rails and verify that the chassis is square and secure before inserting modules; this prevents backplane misalignment and reduces insertion force on edge connectors.
For maintenance, adopt a practical inspection schedule. Check connector seating and retention clips during quarterly rounds, clean terminal zones if dust accumulates, and log any recurring LED fault patterns in the CMMS. Back up wiring diagrams, slot assignments, and firmware revision notes for CPUs that will occupy the chassis; retaining clear documentation allows a replacement GE IC693CHS391 to be re-populated quickly. If intermittent faults appear, trend supply voltages and contact resistance at connectors—rising resistance often precedes outright failure and gives you time to replace a chassis or modules before production impact occurs.
Product Warranty
Xiamen Xiongba E-commerce Co., Ltd. Branch provides a one-year warranty and free replacement service for the GE IC693CHS391 units sold through our channels. This warranty covers manufacturing and functional defects under normal operating conditions, and it includes pre-shipment testing, datasheet verification, and serial-number traceability to simplify claims. Customers initiate warranty service by contacting Xiongba with purchase and serial-number details; our support team will validate the issue, provide RMA instructions, and coordinate replacement logistics. Please note this warranty is issued by Xiamen Xiongba E-commerce Co., Ltd. Branch and is independent of any OEM factory warranty.
Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing.
