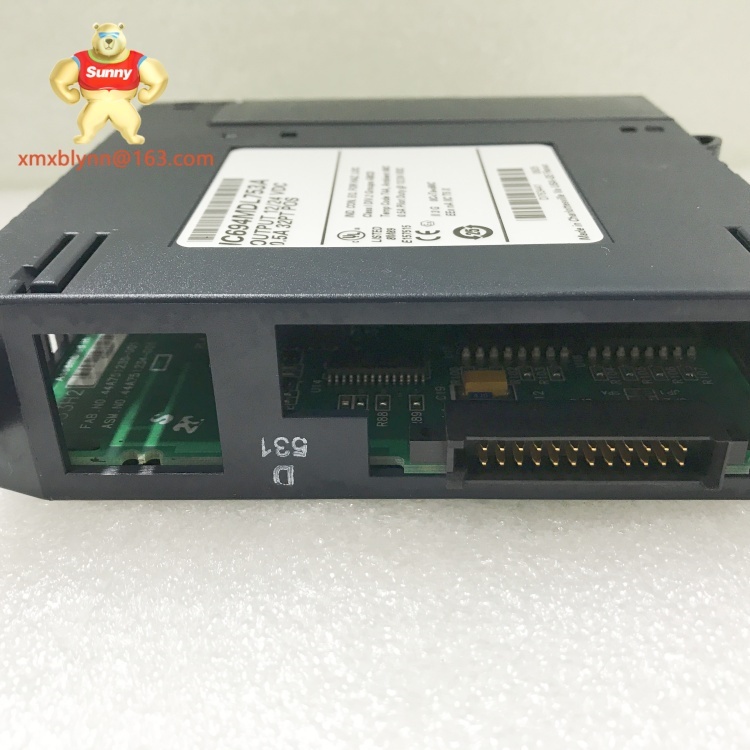

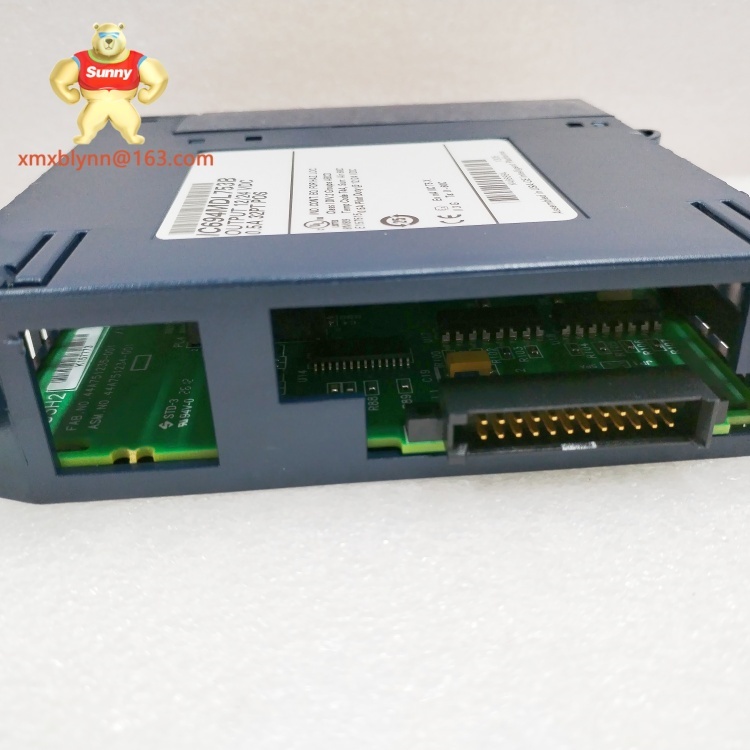

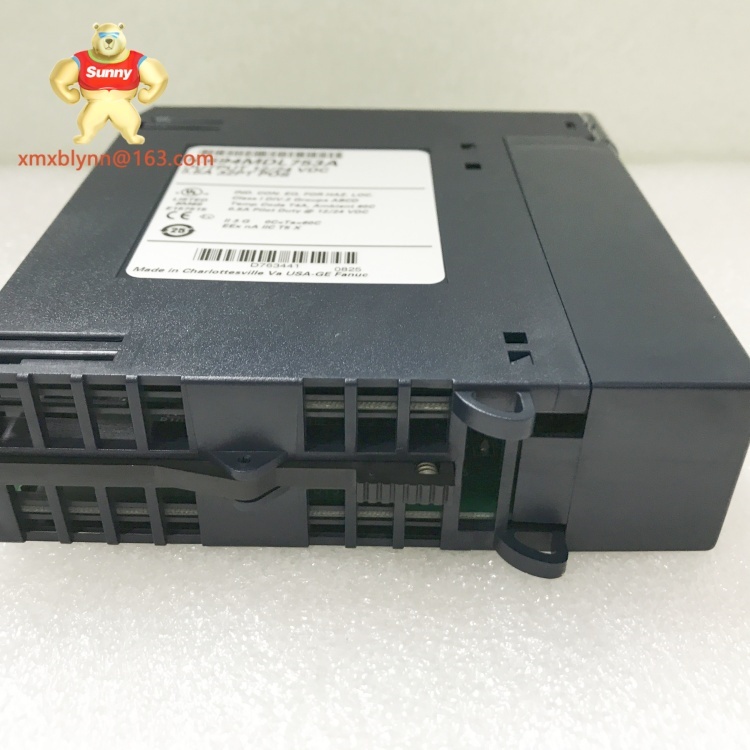

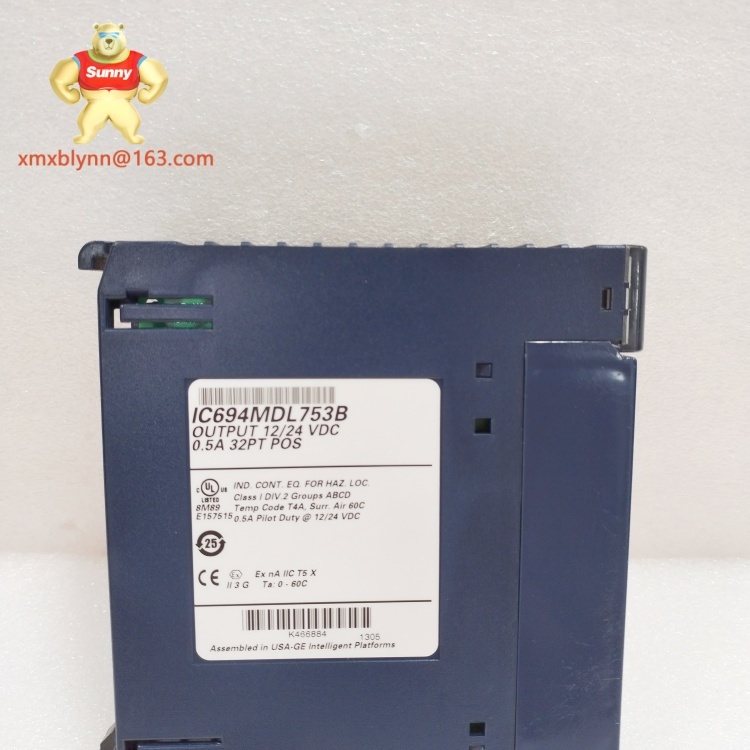

Product Overview
The GE IC694MDL753B is a high-performance digital output module engineered for GE’s RX3i series programmable logic controllers (PLCs), designed to deliver reliable control of low-voltage DC devices in demanding industrial environments. As a 16-channel PNP transistor output module, its primary function is to convert digital commands from the RX3i processor into switched outputs, enabling precise operation of solenoids, relays, small motors, and indicator systems.
Integral to the RX3i ecosystem, the GE IC694MDL753B distinguishes itself with its PNP configuration, making it ideal for systems using positive common load circuits—common in many European and Asian industrial setups. Its robust design supports higher continuous current per channel than standard modules, allowing it to drive heavier loads without sacrificing switching speed. What sets the GE IC694MDL753B apart is its combination of rugged isolation, advanced protection features, and seamless integration with RX3i racks, ensuring consistent performance in noisy environments where electrical interference is prevalent. This makes it a trusted choice for automation systems requiring both power and precision.
Technical Specifications
| Parameter |
Value |
| Product Model |
IC694MDL753B |
| Manufacturer |
GE |
| Product Type |
Digital Output Module (PNP Transistor) |
| Output Channels |
16 (independent) |
| Output Configuration |
PNP (sourcing) |
| Output Voltage Range |
10-30V DC |
| Maximum Continuous Current |
1A per channel; 8A total per module |
| Response Time |
<15µs (ON); <60µs (OFF) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Dimensions (HxWxD) |
127mm x 36mm x 165mm |
| Mounting Type |
RX3i PLC rack-mounted (1-slot width) |
| Isolation |
500V AC channel-to-channel; 250V AC channel-to-backplane |
| Protection Features |
Overcurrent protection (per channel); short-circuit protection with auto-recovery |
| Status Indicators |
Green LED per channel (active when output is ON) |
| Compliance |
UL 508, CE, RoHS |
Key Features and Benefits
The GE IC694MDL753B offers a robust PNP (sourcing) configuration, making it compatible with industrial systems using positive common load circuits—common in automotive and electronics manufacturing across Europe and Asia. This eliminates the need for external signal converters, simplifying wiring and reducing integration costs.
With a maximum current rating of 1A per channel (8A total), the GE IC694MDL753B can drive heavier loads than standard low-current modules, such as mid-sized solenoids, DC motor starters, and high-power indicator lights. Its fast switching speeds (<15µs ON, <60µs OFF) ensure rapid response to PLC commands, critical for high-throughput applications like automated assembly lines where timing precision directly impacts productivity.
Channel-to-channel isolation (500V AC) protects against electrical noise and ground loops, a common issue in factories with heavy machinery. Integrated overcurrent and short-circuit protection safeguards both the module and connected devices, with auto-recovery after fault clearance to minimize downtime in non-critical scenarios.
Each channel features a dedicated LED indicator, providing instant visual confirmation of output status during setup or troubleshooting. The module’s seamless integration with RX3i backplanes ensures plug-and-play functionality, reducing configuration time and lowering the risk of installation errors.
Application Scenarios
The GE IC694MDL753B is widely used in automotive assembly plants, where RX3i PLCs rely on it to control pneumatic actuators for door panel installation, DC motor-driven conveyor diverters, and high-intensity work area lights. Its PNP configuration aligns with the positive common systems common in European automotive facilities, ensuring compatibility and reliable performance.
In electronics manufacturing, the GE IC694MDL753B controls PCB handling robots, solder paste dispenser valves, and component placement machine actuators. Its 1A current capacity and fast switching allow the RX3i PLC to coordinate precise movements, ensuring PCBs are processed accurately even at high production volumes.
Packaging lines for consumer goods utilize the GE IC694MDL753B to activate carton forming mechanisms, shrink-wrap tunnel heaters, and label applicator motors. By synchronizing these devices with input signals from product sensors, the module helps maintain consistent packaging quality, even during rapid line speed changes.
In solar panel manufacturing, the module controls wafer handling robots and cleaning station valves, where its robust isolation protects against electrical noise from high-voltage equipment, ensuring reliable operation of delicate positioning systems.
Related Models
GE IC694MDL753A – Previous generation of the GE IC694MDL753B with a lower total current rating (6A), offering basic PNP output functionality.
GE IC694MDL743B – NPN (sinking) counterpart to the GE IC694MDL753B, designed for systems using negative common load circuits.
GE IC694MDL754B – 32-channel PNP output module, doubling the channel count of the GE IC694MDL753B for large-scale control systems.
GE IC694MDL755B – High-current variant (2A per channel) of the GE IC694MDL753B, suitable for driving heavier loads like industrial fans or large solenoids.
GE IC694MDL231 – 16-channel relay output module, complementary to the GE IC694MDL753B for AC load control in mixed-signal systems.
GE IC694MDL752B – Compact 8-channel PNP module, a space-saving alternative to the 16-channel GE IC694MDL753B for smaller setups.
Installation and Maintenance
Installation of the GE IC694MDL753B requires an available 1-slot position in the RX3i rack, with the system powered down during insertion to prevent electrical damage. Use 18-22 AWG twisted-pair cables for field connections, ensuring conductors are rated for at least 1A to handle the module’s current output. Route cables away from high-voltage lines to minimize interference, and ground the RX3i rack per GE specifications to maintain isolation integrity. Verify that connected devices operate within the 10-30V DC range before powering on.
For maintenance, inspect the GE IC694MDL753B quarterly for loose terminal connections or corrosion, especially in humid or dusty environments. Clean dust from vents using compressed air to prevent overheating. Periodically test output responsiveness by activating channels via the PLC and checking for corresponding LED activity—unresponsive channels may indicate transistor degradation. As a preventive measure, replace the module every 6-8 years in high-cycle applications to avoid unexpected failures.
