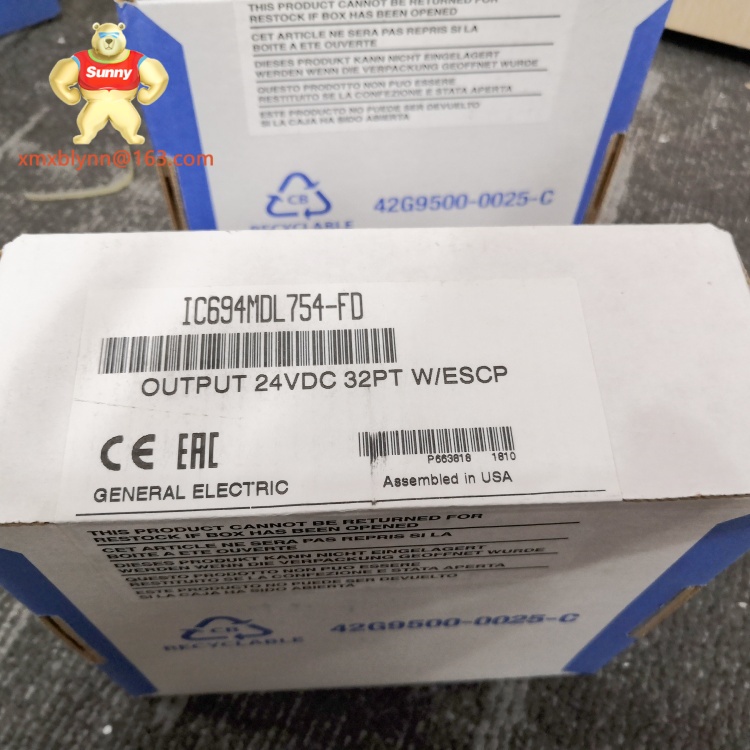

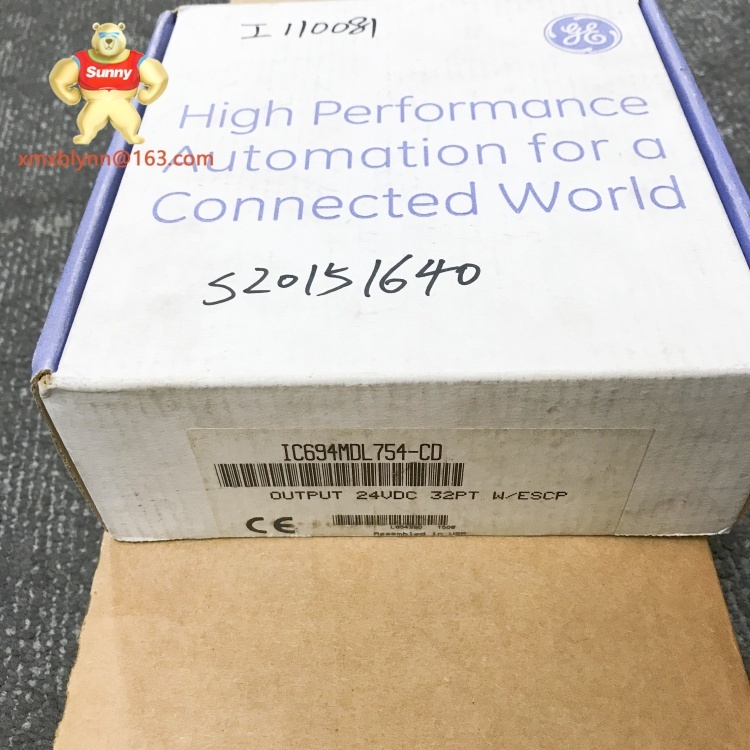

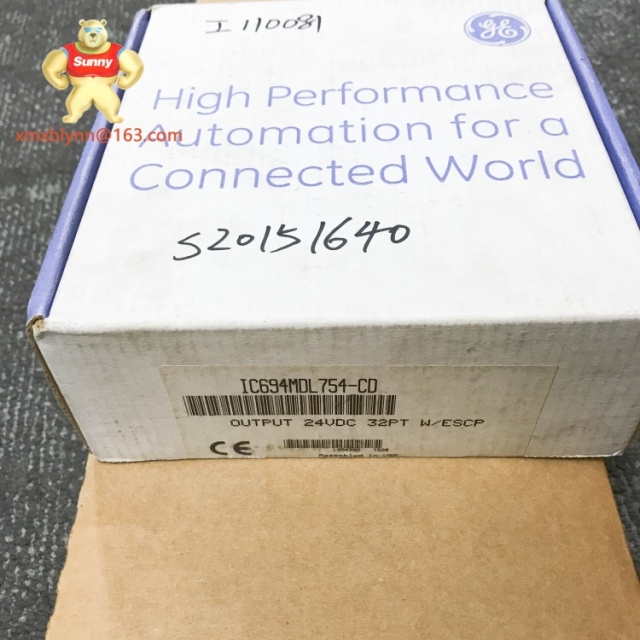

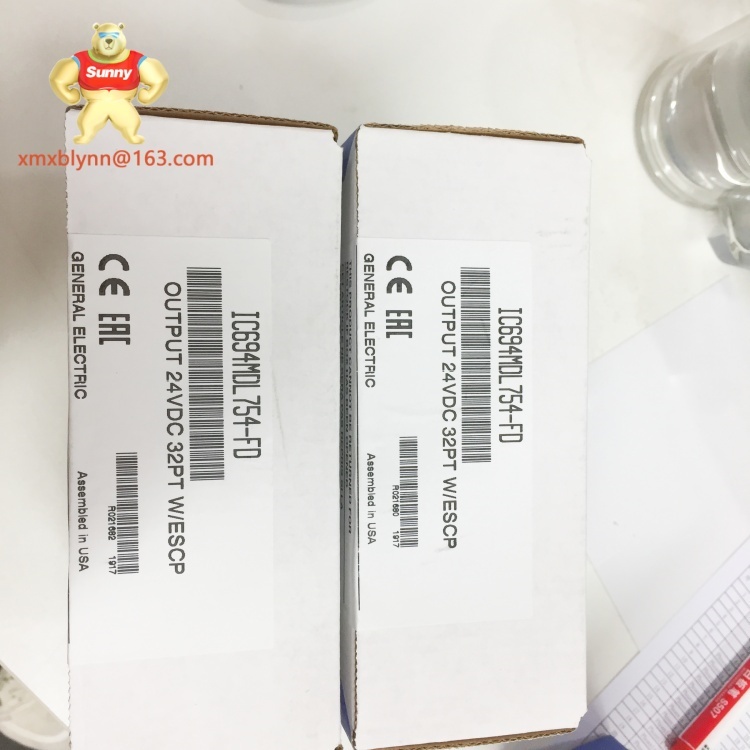

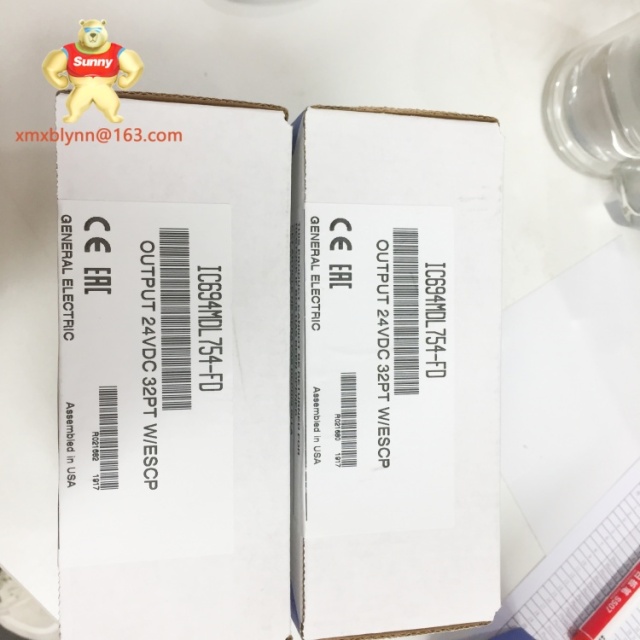

Product Overview
The GE IC694MDL754 is a high-power discrete output module engineered to enhance the control capabilities of GE’s Series 90-30 programmable logic controller (PLC) systems, a cornerstone of industrial automation. Its primary function is to convert digital commands from the PLC into robust analog outputs, enabling precise control of high-current devices such as large solenoid valves, motor starters, and heating elements. This makes it a critical component in setups where standard low-current modules cannot meet the power demands of field equipment.
In industrial environments, the GE IC694MDL754 bridges the gap between the PLC’s digital logic and heavy-duty machinery, ensuring that commands translate into reliable, consistent actions. What sets the GE IC694MDL754 apart is its combination of high current handling and advanced protection features, making it ideal for applications where controlling larger devices without external relays is essential. Whether integrated into new production lines or retrofitted into existing systems, the GE IC694MDL754 enhances the Series 90-30’s versatility, ensuring it can manage both light and heavy loads within a single control architecture.
Technical Specifications
| Parameter |
Value |
| Product Model |
GE IC694MDL754 |
| Manufacturer |
GE (Fanuc) |
| Product Type |
High-Power Discrete Output Module (Series 90-30 PLC) |
| Number of Channels |
8 isolated channels |
| Output Voltage |
24V DC |
| Maximum Current per Channel |
2A |
| Output Configuration |
Sourcing (PNP) |
| Channel Isolation |
250V AC channel-to-channel and channel-to-backplane |
| Protection Features |
Short-circuit, overcurrent, and thermal overload protection |
| Power Requirements |
5V DC from Series 90-30 backplane |
| Mounting Type |
Series 90-30 PLC rack (backplane compatible) |
| Operating Temperature Range |
0°C to 60°C (32°F to 140°F) |
| Certifications |
UL, CE, RoHS compliant |
Key Features and Benefits
The GE IC694MDL754 distinguishes itself with its high current capacity, delivering 2A per channel—double the output of standard discrete modules. This allows it to control larger devices directly, eliminating the need for external relays or contactors, which reduces wiring complexity and potential failure points in the system. For example, it can operate heavy-duty pneumatic actuators in material handling systems or industrial heaters in packaging lines without additional hardware.
Robust protection mechanisms are another standout feature. The GE IC694MDL754 includes short-circuit, overcurrent, and thermal overload safeguards that prevent damage to both the module and connected equipment. This is critical in environments where electrical faults—such as a jammed motor drawing excess current—are common, minimizing downtime and repair costs.
Channel isolation (250V AC) ensures that electrical noise from high-power devices does not interfere with the PLC’s signal integrity, a key advantage in factories with multiple heavy machinery. The module integrates seamlessly into Series 90-30 racks without specialized tools, simplifying upgrades or retrofits. For operations requiring high-power control, the GE IC694MDL754 balances strength, safety, and ease of use.
Application Scenarios
The GE IC694MDL754 is widely deployed in industries where controlling high-current devices is central to operations. In automotive manufacturing, it activates large hydraulic valves that position vehicle frames during welding processes. These valves require more power than standard solenoids, and the GE IC694MDL754’s 2A capacity allows direct control, ensuring precise alignment without delays.
In food processing plants, the module regulates industrial heating elements in ovens used for baking or sterilization. By controlling these elements directly, it maintains consistent temperatures across production batches, with its thermal overload protection preventing overheating if a sensor malfunctions. This reliability is critical for compliance with food safety standards.
Material handling facilities use the GE IC694MDL754 to operate heavy-duty pneumatic conveyors that transport bulk materials like grain or pellets. The module’s ability to handle the conveyors’ motor starters eliminates the need for external relays, streamlining control cabinet design and reducing points of failure. Its robust protection features also guard against current spikes from conveyor jams, ensuring uninterrupted operation.
Related Models
IC694MDL753 – Lower-current variant (1A per channel) for lighter devices, offering similar features to GE IC694MDL754 but with reduced power.
IC694MDL755 – 4-channel high-power module, ideal for setups requiring fewer high-current outputs than GE IC694MDL754.
IC693MDL754 – Previous generation model with basic protection, lacking the enhanced thermal safeguards of GE IC694MDL754.
IC694MDL741 – 16-channel standard-power module (1A), complementary to GE IC694MDL754 for mixed low- and high-power control.
IC694BEM331A – Backplane expansion module that supports additional GE IC694MDL754 units in large-scale systems with multiple high-power devices.
Installation and Maintenance
Installation preparation for the GE IC694MDL754 requires verifying compatibility with the Series 90-30 rack, ensuring firmware supports high-power modules. Proper grounding is critical—use 10-gauge wire to connect the rack to facility earth ground, as high-current devices generate more electrical noise. Wiring should use 16-gauge conductors to handle 2A loads, with shielding to minimize interference. The module fits securely into standard Series 90-30 slots, requiring no specialized tools.
For maintenance, inspect terminal connections monthly (more frequently in humid environments) to ensure tightness, as high currents can loosen connections over time. Clean dust from the module’s surface to maintain heat dissipation, critical for thermal protection. Monitor PLC fault logs for overcurrent alerts, which may indicate a failing device rather than the module. Under normal conditions, the GE IC694MDL754 has a service life of 6-8 years, with replacement recommended if consistent overcurrent trips occur despite functional devices.
Product Warranty
The GE IC694MDL754 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering defects in materials and workmanship. This warranty includes free replacement for any unit that fails under normal operating conditions within the coverage period. Sourced directly from trusted overseas suppliers, the GE IC694MDL754 meets strict quality standards, ensuring reliability in high-power industrial applications. Our technical support team is available to assist with installation guidance, warranty claims, and troubleshooting, leveraging over a decade of experience to minimize downtime. We stand behind the module’s performance, committed to ensuring it delivers consistent high-power control for your Series 90-30 PLC system.
