Product Overview

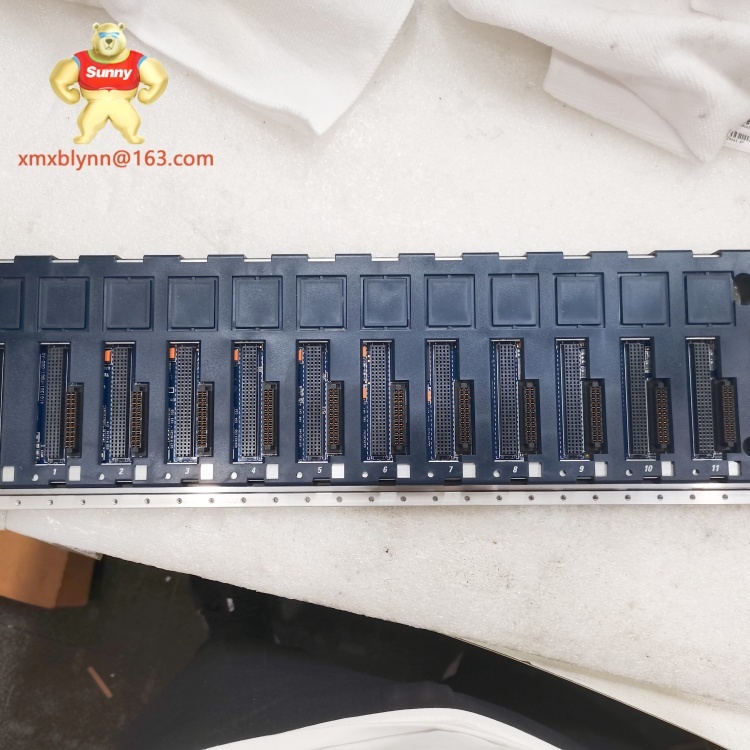

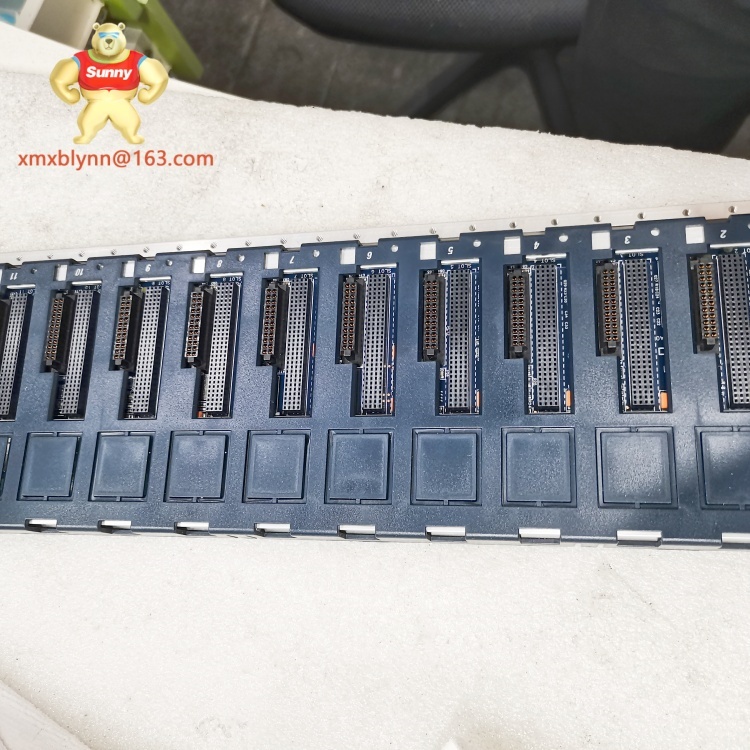

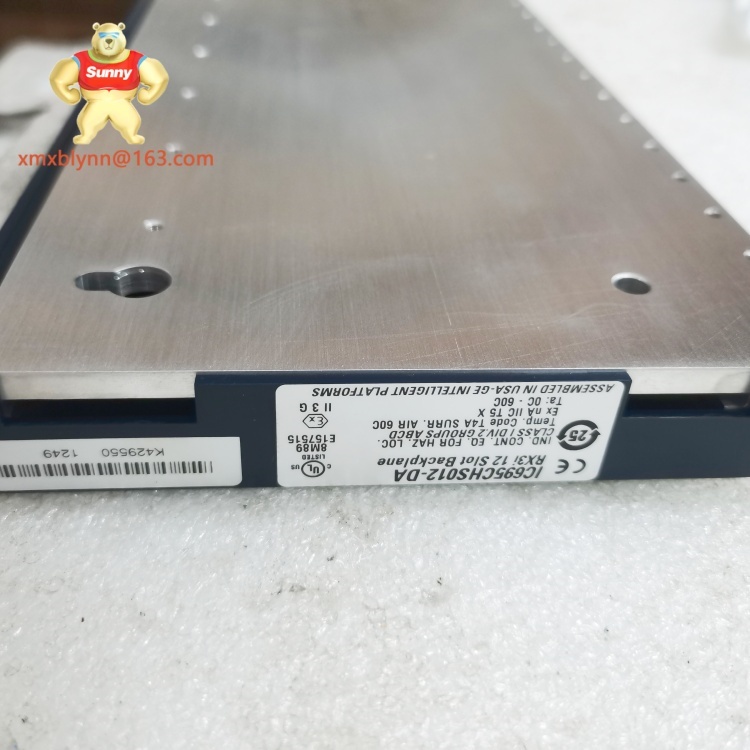

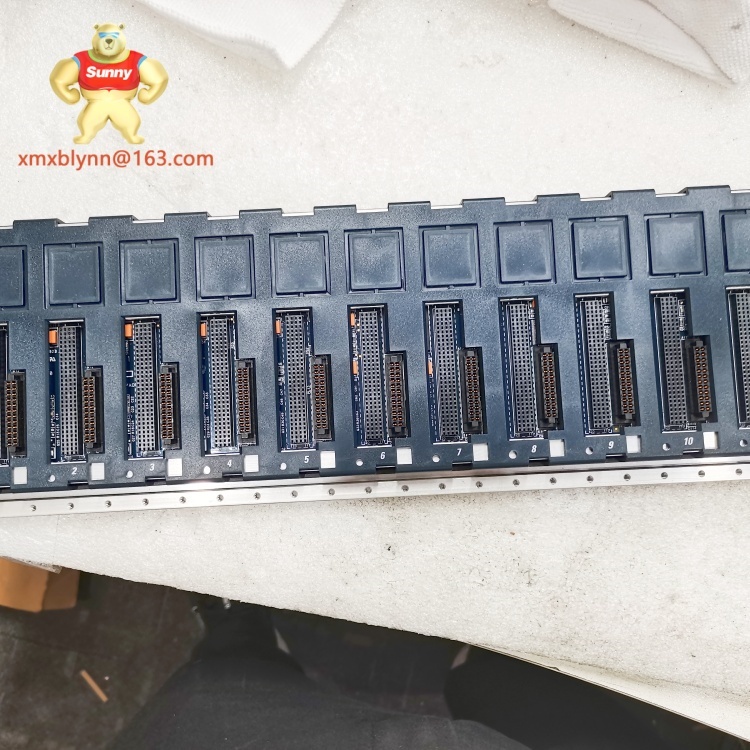

The IC695CHS012 is a 12-slot chassis from GE, serving as the foundational housing for components in the RX3i series Programmable Logic Controllers (PLCs). This rugged enclosure provides a structured framework for integrating critical modules—including processors, power supplies, analog/digital I/O, and communication modules—into a cohesive automation system.
As the backbone of RX3i setups, IC695CHS012 ensures secure mechanical mounting and reliable electrical connectivity between modules via its internal backplane, which facilitates high-speed data transfer for real-time control. Its design balances scalability with durability, making it suitable for both compact and expanded systems. What distinguishes IC695CHS012 is its compatibility with a wide range of RX3i modules, enabling engineers to customize control systems to specific application needs without sacrificing performance. This versatility, combined with GE’s reputation for industrial-grade reliability, positions it as a trusted choice in demanding automation environments.
Technical Specifications
| Parameter |
Value |
| Product Model |
IC695CHS012 |
| Manufacturer |
GE |
| Product Type |
12-Slot PLC Chassis |
| Slot Count |
12 slots (supports RX3i modules) |
| Backplane Data Rate |
Up to 100 Mbps |
| Material |
Cold-rolled steel (painted) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Mounting Type |
35mm DIN rail or panel mount |
| Dimensions |
350mm (L) x 150mm (W) x 110mm (H) |
| Weight |
2.8 kg (6.2 lbs) |
| Compatibility |
GE RX3i series modules (IC695, IC694) |
| Protection Rating |
IP20 (against solid objects >12mm) |
| Power Input |
Requires external RX3i power supply |
Key Features and Benefits
The IC695CHS012 offers 12 slots, providing ample space to accommodate a full suite of RX3i modules—from high-performance processors like the IC695CPU310 to specialized I/O modules such as the IC695ALG728. This flexibility allows system designers to scale configurations, adding or replacing modules as process requirements evolve, without needing a new chassis.
Its robust steel construction ensures structural integrity in harsh industrial environments, resisting vibration and mechanical stress common in manufacturing plants or refineries. The internal backplane supports data transfer speeds up to 100 Mbps, minimizing latency between modules for responsive control. IC695CHS012 also features tool-less module insertion, simplifying installation and reducing downtime during maintenance or upgrades.
Compatibility with both DIN rail and panel mounting gives installers flexibility in placement, adapting to varying cabinet layouts. By centralizing module connections, IC695CHS012 streamlines wiring and troubleshooting, lowering overall system complexity. These features make it an essential component for building reliable, adaptable RX3i-based automation systems.
Application Scenarios
The IC695CHS012 is widely deployed in industries requiring modular, scalable control systems. In automotive manufacturing, it houses processors and I/O modules that manage assembly line robots, coordinating welding, painting, and material handling processes. Its 12-slot capacity allows integration of safety modules, ensuring compliance with machinery safety standards.
In water and wastewater treatment plants, IC695CHS012 supports PLC configurations with analog I/O modules for monitoring pump pressure and flow meters, alongside communication modules for remote data transmission to SCADA systems. This setup enables centralized control of filtration and chemical dosing processes.
In food and beverage production, the chassis integrates temperature control modules and digital I/O for conveyor systems, maintaining precise processing conditions while accommodating future expansions—such as adding vision inspection modules. For power distribution facilities,
IC695CHS012 houses protective relay interfaces and HMI communication modules, ensuring stable oversight of electrical grids. Across these applications, its durability and scalability make it a cornerstone of reliable automation.
Related Models
IC695CHS004 – 4-slot compact chassis, ideal for small-scale RX3i systems with limited space.
IC695CHS008 – 8-slot mid-size variant, balancing capacity and footprint for medium applications.
IC695CHS016 – 16-slot expanded chassis, designed for large-scale systems requiring extensive I/O.
IC695CHS012R – Ruggedized version with extended temperature range (-25°C to 70°C) for extreme environments.
IC693CHS392 – Legacy 90-30 series 10-slot chassis, compatible with RX3i modules via adapter kits.
IC695CHS006 – 6-slot lightweight chassis, optimized for mobile or space-constrained setups like offshore platforms.
Installation and Maintenance
Installation of IC695CHS012 requires a 35mm DIN rail or panel mount with sufficient clearance (minimum 100mm) on all sides for cooling and wiring access. Ensure the mounting surface is level and grounded to reduce electrical noise. Before installing modules, verify compatibility with RX3i series components and check that the external power supply (e.g., IC695PWR330) matches the chassis requirements. Insert modules firmly into slots until they lock, ensuring secure backplane connections.
For maintenance, inspect IC695CHS012 quarterly for dust accumulation, using compressed air to clean vents and prevent overheating. Check module connections annually for tightness, as vibration can loosen fittings over time. If modules fail to communicate, verify the backplane integrity using GE’s diagnostic software. The chassis itself typically has a service life of 10+ years, but replace it if structural damage or backplane faults persist despite troubleshooting.
Product Warranty
The IC695CHS012 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and performance issues under normal operating conditions. During this period, customers receive free replacement of faulty units to minimize downtime. Xiamen Xiongba’s technical support team provides guidance on installation and troubleshooting, leveraging their expertise in industrial automation. This warranty reflects confidence in the IC695CHS012’s quality and ensures customers have reliable access to support, reinforcing its value as a long-term investment in automation infrastructure.
