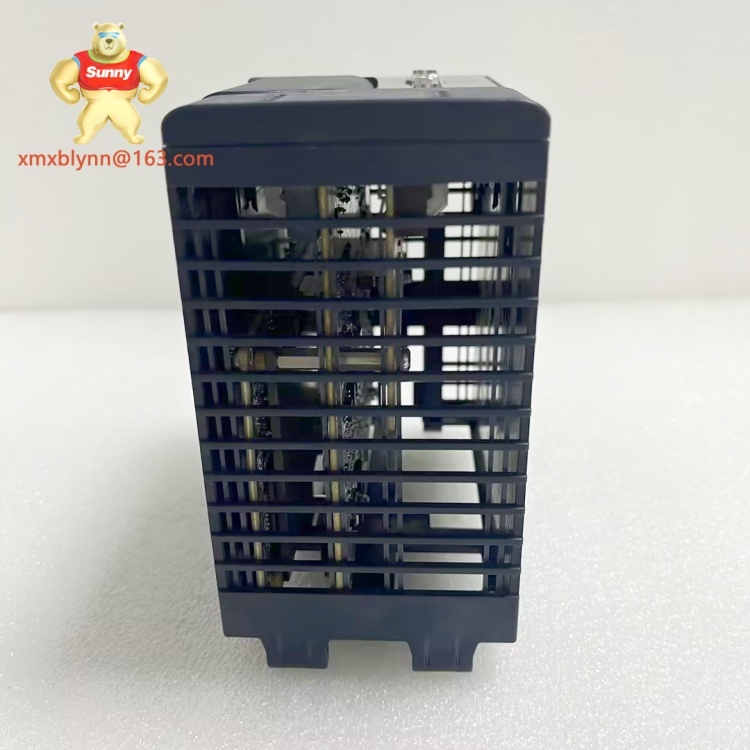

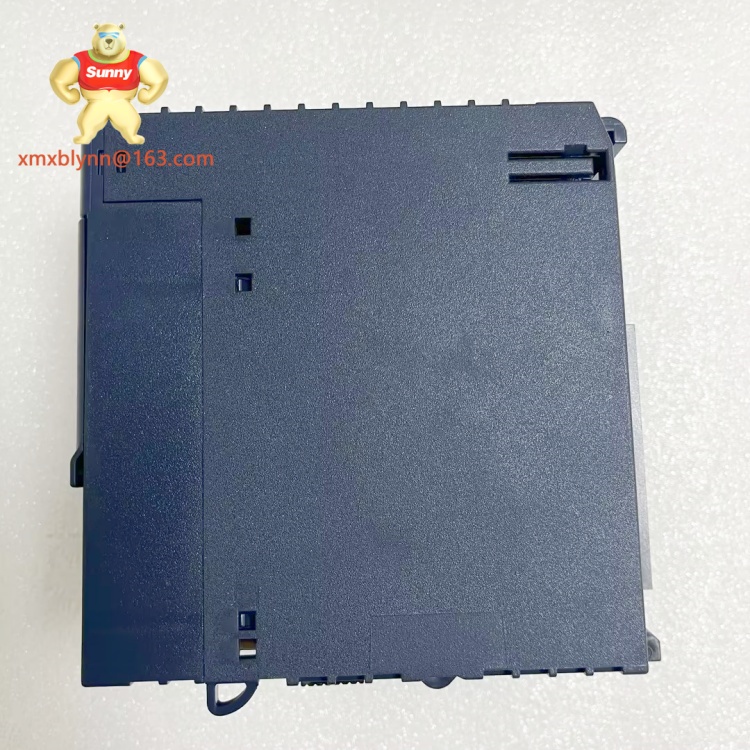

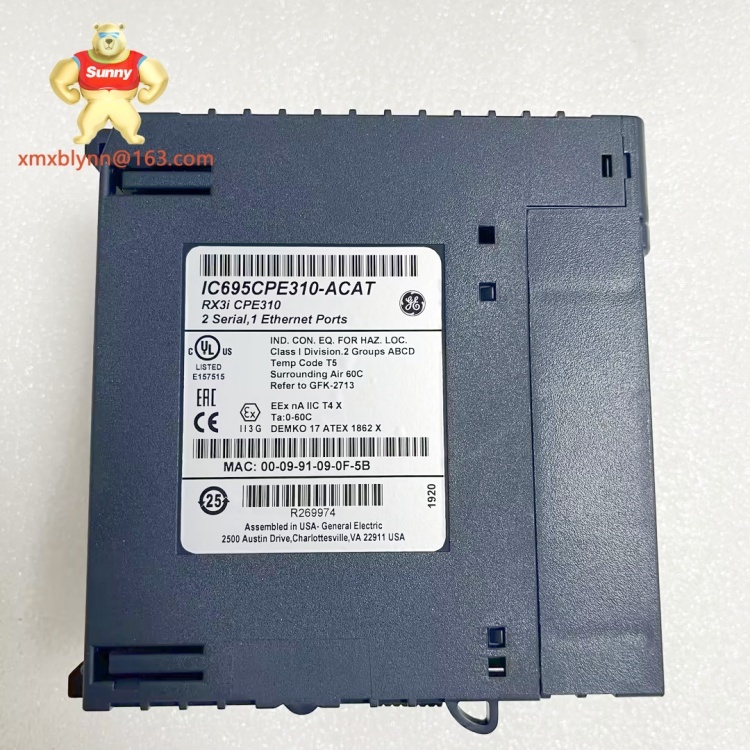

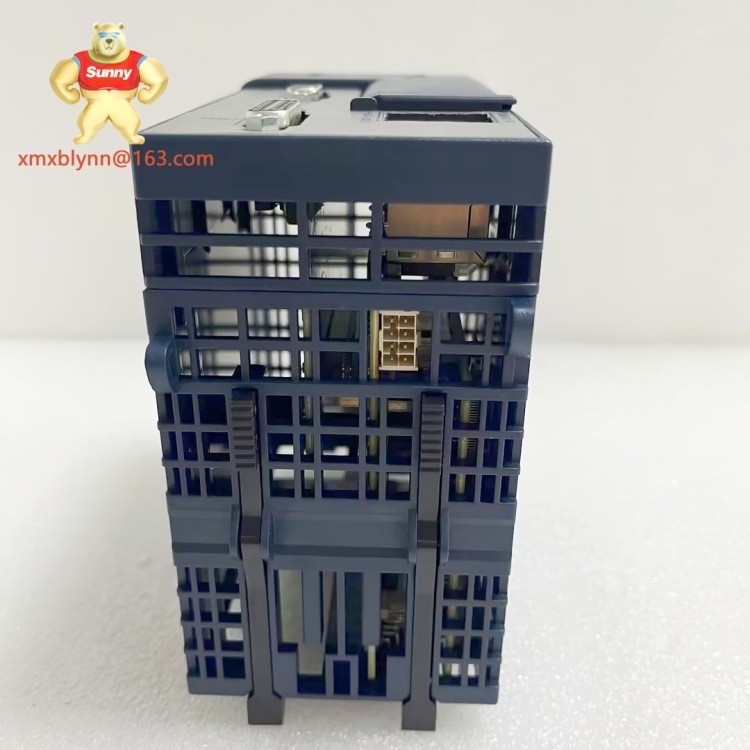

Product Overview
The IC695CPE310-ACAT is a compact, high-performance CPU module designed as a key component of GE’s RX3i series programmable logic controllers (PLCs), functioning as the central processing unit that drives industrial automation systems. This module integrates robust processing capabilities with streamlined connectivity, making it ideal for mid-sized applications where space efficiency and versatile communication are priorities.
As a core element of RX3i systems, IC695CPE310-ACAT executes control logic, processes real-time data from connected I/O modules, and manages communication with external devices such as HMIs, SCADA systems, and other controllers. Its design balances processing power with a compact form factor, allowing it to fit into smaller RX3i chassis without sacrificing performance. What distinguishes IC695CPE310-ACAT is its enhanced integration features, which simplify setup and reduce the need for additional communication modules in many configurations. Whether deployed in new installations or upgrading existing RX3i setups, IC695CPE310-ACAT delivers reliable, responsive control for a wide range of industrial processes.
Technical Specifications
| Parameter |
Value |
| Product Model |
IC695CPE310-ACAT |
| Manufacturer |
GE |
| Product Type |
Compact CPU Module (RX3i Series PLC) |
| Processing Speed |
120 ns per boolean instruction |
| Memory |
192 MB RAM; 128 MB flash (user program) |
| Supported Protocols |
Ethernet/IP, Modbus TCP (integrated) |
| Power Consumption |
4.8 W (typical) |
| Operating Temperature |
0°C to 60°C (ambient) |
| Dimensions |
110 mm (H) x 30 mm (W) x 155 mm (D) |
| Compatibility |
GE RX3i chassis (IC695CHS004CA, IC695CHS008CA, etc.) |
| Expansion Support |
Up to 16 I/O modules via backplane |
| Certifications |
CE, UL 508, CSA C22.2 No. 14 |
| Firmware Update |
Field-upgradable via Proficy Machine Edition |

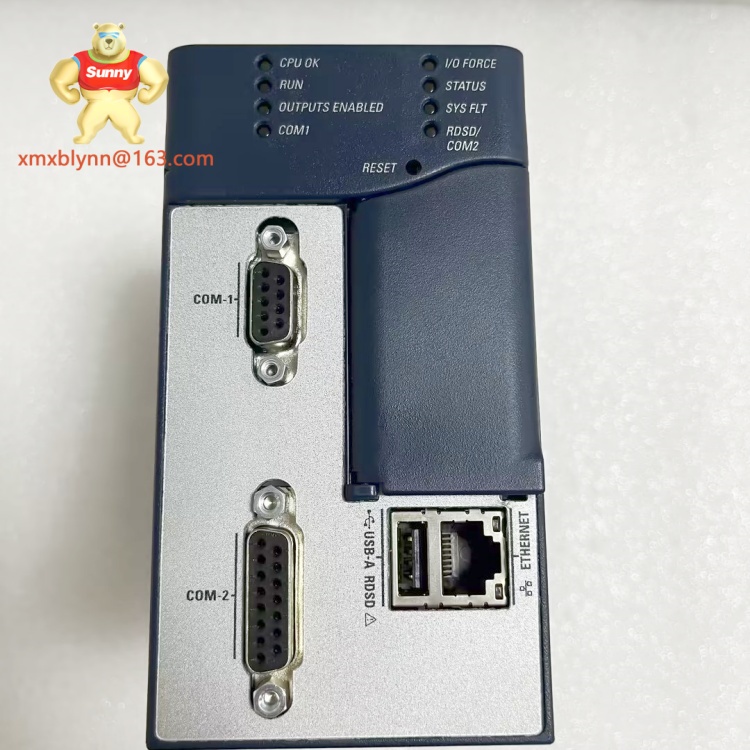

| Integrated Interfaces |
1 x RJ45 Ethernet port |
Key Features and Benefits
The IC695CPE310-ACAT stands out for its compact design, which occupies minimal space in RX3i chassis—an advantage for applications where cabinet space is limited, such as mobile machinery or small-scale production lines. Despite its size, it maintains strong processing performance, with a 120 ns instruction cycle that ensures rapid response to input signals, critical for time-sensitive tasks like conveyor synchronization or batch processing.
Integrated Ethernet/IP and Modbus TCP support eliminates the need for external communication modules in many setups, reducing system complexity and cost. This built-in connectivity simplifies integration with HMIs, SCADA systems, and other PLCs, enabling seamless data exchange across the automation network. The module’s 192 MB RAM and 128 MB flash memory provide ample space for large control programs and data logging, supporting both real-time operations and historical analysis.
Reliability is enhanced through built-in watchdog timers and error-detection mechanisms, which automatically recover from minor software anomalies to minimize downtime. The IC695CPE310-ACAT also supports firmware updates in the field via GE’s Proficy Machine Edition software, allowing users to access new features and security improvements without replacing hardware. Its rugged construction ensures stable performance in harsh industrial environments, with resistance to vibration and electrical noise.
Application Scenarios
The IC695CPE310-ACAT is well-suited for industries requiring efficient, space-conscious automation control. In packaging machinery, it manages sealing, labeling, and sorting systems, processing input from photoelectric sensors to adjust conveyor speeds and ensure precise product alignment. Its compact size fits easily into the tight enclosures of packaging equipment, while integrated Ethernet allows operators to monitor production rates via connected HMIs.
In food and beverage processing, IC695CPE310-ACAT controls mixing tanks, pasteurizers, and filling lines, regulating temperature, flow, and ingredient dosing through connected analog I/O modules. Its Modbus TCP support enables communication with legacy equipment like rotary encoders and level sensors, preserving existing investments while adding smart monitoring capabilities. The module’s data logging feature also simplifies compliance with food safety regulations by storing historical process data.
Renewable energy facilities, such as solar farms, utilize IC695CPE310-ACAT to manage inverter systems and track energy output. Its integrated Ethernet connects to SCADA platforms, allowing remote monitoring of panel performance and rapid adjustments to maximize efficiency. In these applications, the module’s balance of size, processing power, and connectivity makes it a versatile solution for decentralized control.
Related Models
IC695CPE310 – Base model of
IC695CPE310-ACAT with identical core features, often sold without bundled accessories.
IC695CPE305 – Higher-performance RX3i CPU with faster processing (100 ns) and larger memory, suitable for more complex applications than
IC695CPE310-ACAT.
IC695CPE300 – Entry-level RX3i CPU with reduced memory (128 MB RAM) and slower processing, a cost-effective alternative to
IC695CPE310-ACAT for simpler tasks.
IC695CPE410 – Premium RX3i CPU with 50 ns instruction cycle and expanded protocol support, serving as an upgrade path for systems outgrowing
IC695CPE310-ACAT.
IC693CPU374 – Legacy CPU from GE’s 90-30 series, offering basic functionality but limited compatibility with RX3i modules compared to
IC695CPE310-ACAT.
IC695CPE210 – Low-power variant with similar size to
IC695CPE310-ACAT but optimized for energy-efficient applications like battery-powered systems.
IC695CPE310-R – Redundancy-ready version of
IC695CPE310-ACAT with enhanced failover capabilities for mission-critical setups.
Installation and Maintenance
Installation of IC695CPE310-ACAT requires a compatible slot in an RX3i chassis (such as IC695CHS008CA), with the module secured using the chassis’s locking lever to prevent movement during operation. Ensure the chassis is powered off before insertion, and verify that backplane connectors are clean and undamaged to avoid communication issues. Proper grounding of the chassis is essential to minimize electrical interference, which can disrupt processing. The installation environment should be free from excessive dust, moisture, or extreme temperatures, as these can degrade performance over time.
For maintenance, update IC695CPE310-ACAT firmware semi-annually using Proficy Machine Edition to access the latest features and security patches. Inspect the module quarterly for signs of dust accumulation, which can impede cooling; use compressed air to clean vents if necessary. Check that the locking lever remains fully engaged to prevent loose connections, and monitor CPU utilization via diagnostic tools—sustained high usage may indicate the need for logic optimization. If consistent errors occur, verify compatibility with connected modules, as mismatched components can affect the performance of IC695CPE310-ACAT.
Product Warranty
The IC695CPE310-ACAT is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering defects in materials and workmanship under normal operating conditions. During the warranty period, we provide free replacement for any module that fails to meet performance standards, ensuring minimal disruption to your operations. Our technical support team offers assistance with installation, configuration, and troubleshooting, leveraging expertise in GE RX3i systems. We stand behind the reliability of IC695CPE310-ACAT, confident in its ability to deliver consistent performance in industrial environments, and are committed to customer satisfaction through responsive service and quality assurance.
