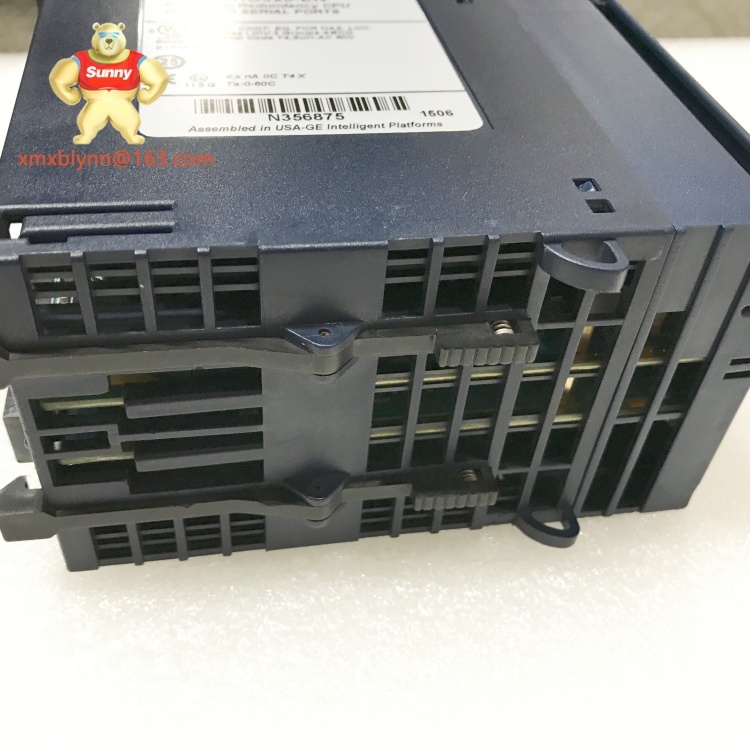

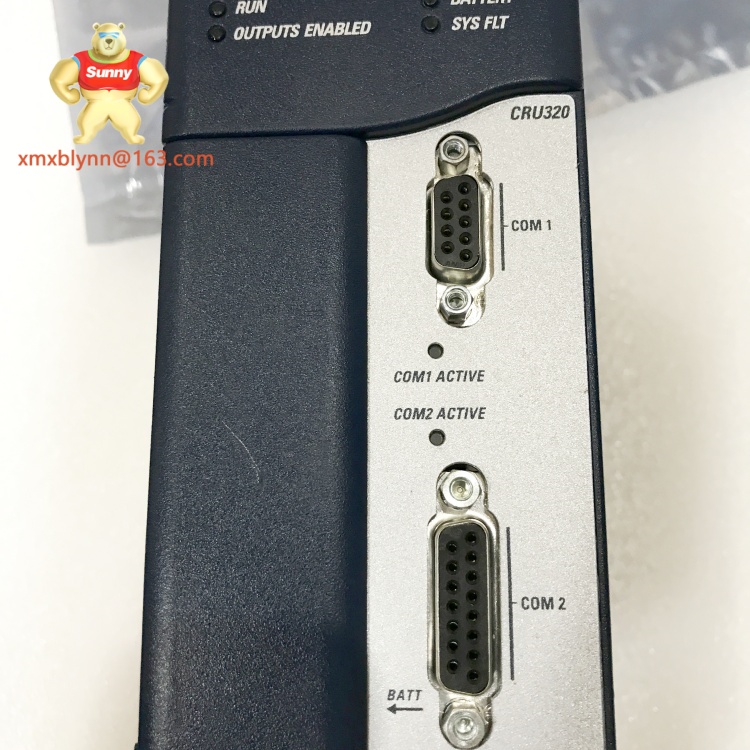

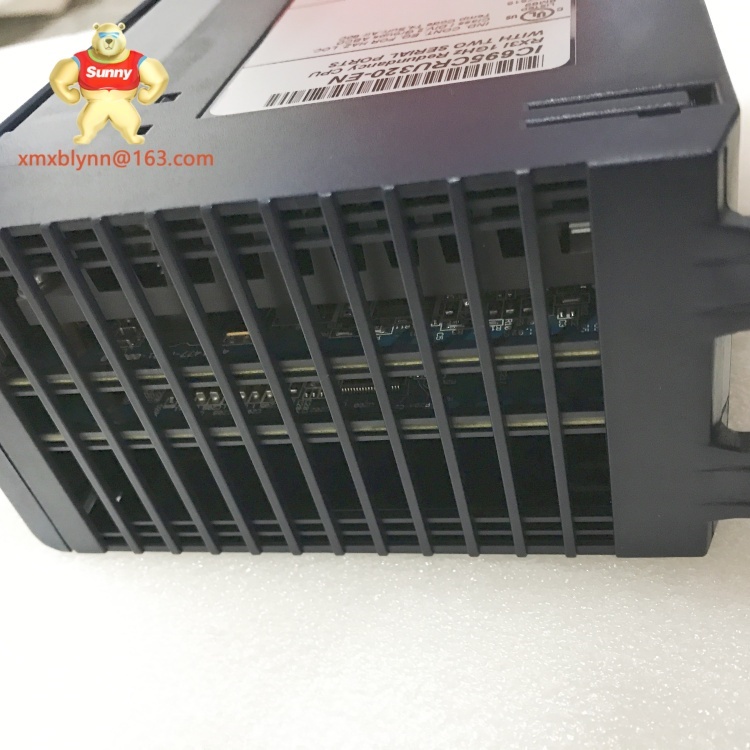

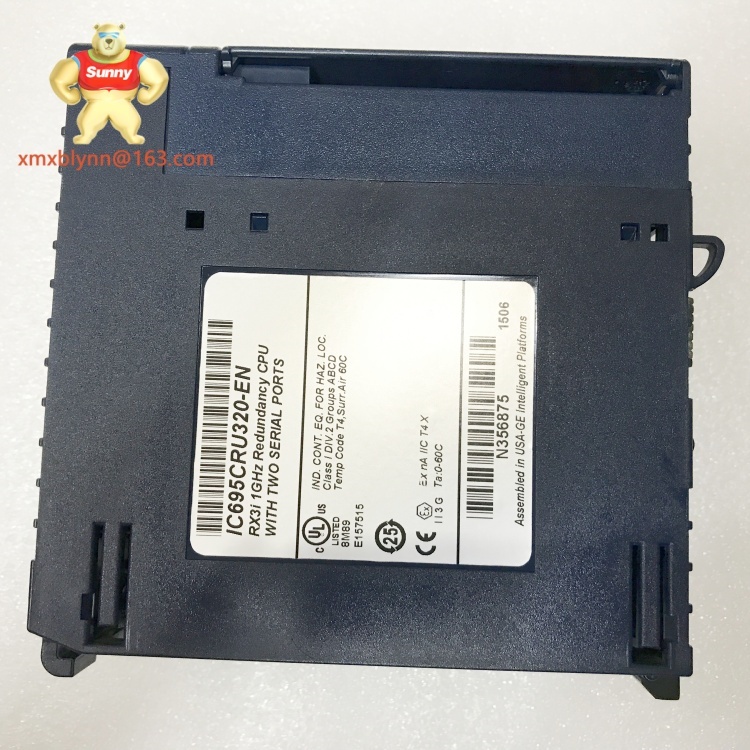

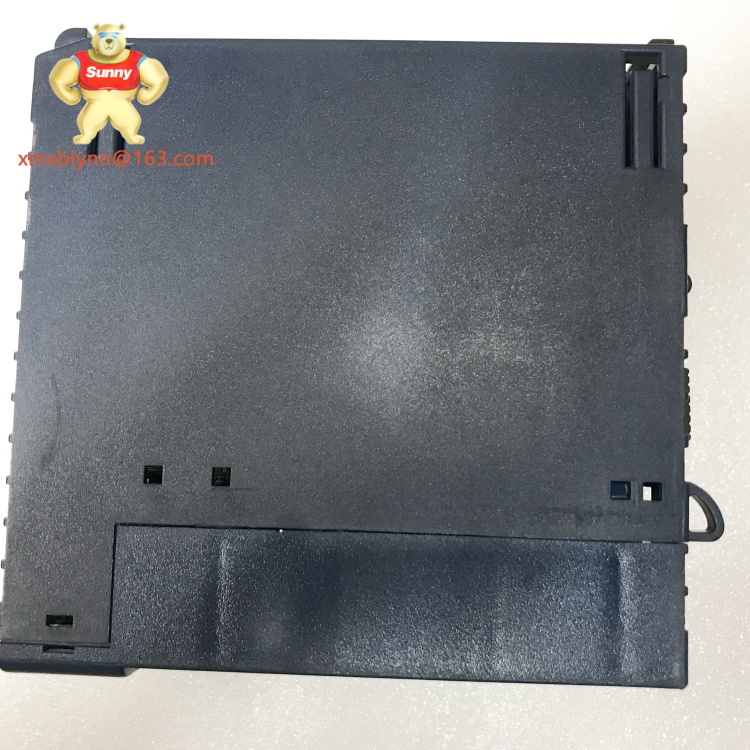

The IC695CRU320-EN is a critical component of GE’s RX3i series, a modular programmable logic controller (PLC) system designed for flexible and scalable industrial automation. As a control rack unit, its primary role is to house and interconnect key system components—such as processors, I/O modules, and communication interfaces—providing a stable mechanical and electrical framework for seamless operation.
Engineered for reliability, the IC695CRU320-EN supports up to 16 slots, enabling users to configure custom automation solutions tailored to their specific needs, from small-scale machines to complex production lines. Its design emphasizes modularity, allowing easy expansion or reconfiguration as operational demands evolve. What sets the IC695CRU320-EN apart is its robust construction, which ensures consistent performance in harsh industrial environments, making it a trusted choice for applications where downtime is costly. Whether integrating with existing GE RX3i systems or building new setups, the IC695CRU320-EN serves as the backbone, ensuring all connected components communicate efficiently and reliably.
| Parameter |
Value |
| Product Model |
IC695CRU320-EN |
| Manufacturer |
GE |
| Product Type |
Control Rack Unit (PLC Chassis) |
| Slot Capacity |
16 slots |
| Compatibility |
GE RX3i series PLC modules |
| Power Input |
24V DC |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Mounting Type |
DIN rail or panel mount |
| Dimensions (HxWxD) |
132mm x 330mm x 220mm (5.2" x 13.0" x 8.7") |
| Weight |
Approx. 2.8 kg (6.2 lbs) |
| Certifications |
CE, UL, CSA |
| Cooling Method |
Passive convection |
The IC695CRU320-EN stands out for its modular flexibility, a hallmark of GE’s RX3i series. With 16 slots, it accommodates a wide range of RX3i modules—from digital/analog I/O to high-speed communication cards—allowing users to build systems that precisely match their automation requirements without overengineering. This scalability reduces upfront costs while future-proofing setups for expansion.
Durability is another strength. The IC695CRU320-EN is built to withstand industrial rigors, including temperature fluctuations, vibration, and electromagnetic interference, ensuring uninterrupted operation in demanding settings like factories or processing plants. Its passive cooling design eliminates fans, reducing maintenance needs and failure points—a critical advantage in dusty or humid environments.
Installation and maintenance are streamlined thanks to tool-less module insertion and clear labeling, which simplify setup and reduce downtime during upgrades. The rack also includes built-in diagnostic support, enabling quick identification of faulty modules through LED indicators, which speeds up troubleshooting. For system integrators, the
IC695CRU320-EN offers seamless compatibility with GE’s Proficy Machine Edition software, facilitating easy configuration and monitoring of connected components.
The IC695CRU320-EN excels in industries where reliable, scalable automation is essential. In automotive manufacturing, it serves as the central chassis for controlling assembly line robots, coordinating tasks like welding, painting, and material handling. Its 16-slot capacity allows integration of I/O modules for sensor data (e.g., part positioning) and communication modules for linking to factory-wide MES systems, ensuring smooth production flow.
In water and wastewater treatment plants, the IC695CRU320-EN houses modules that monitor and control pumps, valves, and chemical dosing systems. Its rugged design withstands the 潮湿 (moist) environments common in these facilities, while its scalability adapts to expanding treatment capacities.
Food and beverage producers rely on the IC695CRU320-EN to manage packaging lines, where precise timing of fillers, sealers, and labelers is critical. The rack’s compatibility with RX3i safety modules also makes it suitable for applications requiring compliance with ISO safety standards, such as pharmaceutical manufacturing.
Across all these scenarios, the IC695CRU320-EN ensures that diverse automation components work in harmony, minimizing disruptions and maximizing productivity.
IC695CRU310-EN – Compact variant with 10 slots, ideal for smaller RX3i systems where space is limited.
IC695CRU330-EN – High-capacity model with 20 slots, designed for large-scale automation setups requiring more modules.
IC695CRU320-ES – Region-specific version with modified certifications for the European market, functionally identical to
IC695CRU320-EN.
IC694CRU320 – Predecessor model from GE’s 90-30 series, offering basic compatibility with older systems but fewer slots.
IC695CRU320-AA – North American variant with UL-specific wiring configurations, compatible with
IC695CRU320-EN modules.
IC695CRU120-EN – Entry-level 8-slot rack, a cost-effective alternative for simple automation tasks.
IC695CRU320-LX – Extended-temperature model (-20°C to 70°C) for extreme environments, such as outdoor industrial enclosures.
Installation preparation for the IC695CRU320-EN requires a clean, dry environment with adequate ventilation to support passive cooling. Ensure the mounting surface (DIN rail or panel) can bear the rack’s weight plus connected modules (up to 10 kg total). Proper grounding is critical—connect the rack’s ground terminal to a system ground to prevent electrical interference. Allow at least 50mm of clearance on all sides to avoid overheating.
For maintenance, inspect the IC695CRU320-EN quarterly. Check for loose module connections and clean dust from vents using compressed air to maintain cooling efficiency. LED indicators should be monitored regularly—steady green indicates normal operation, while red or flashing lights signal issues (refer to the RX3i manual for specifics). Replace any damaged mounting hardware promptly to prevent vibration-related wear. Modules can be hot-swapped, but powering down the rack during major upgrades is recommended to avoid data loss.
The IC695CRU320-EN is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd. Branch, covering manufacturing defects and performance issues under normal operating conditions. This includes free replacement of faulty units, ensuring minimal downtime for customers. Our global support network provides technical assistance, including installation guidance and troubleshooting, via phone or email. We stand behind the quality of the IC695CRU320-EN, leveraging our direct sourcing from GE to guarantee authenticity. Should any issues arise, our team is committed to resolving them quickly, reflecting our dedication to customer satisfaction and reliable industrial automation solutions.
