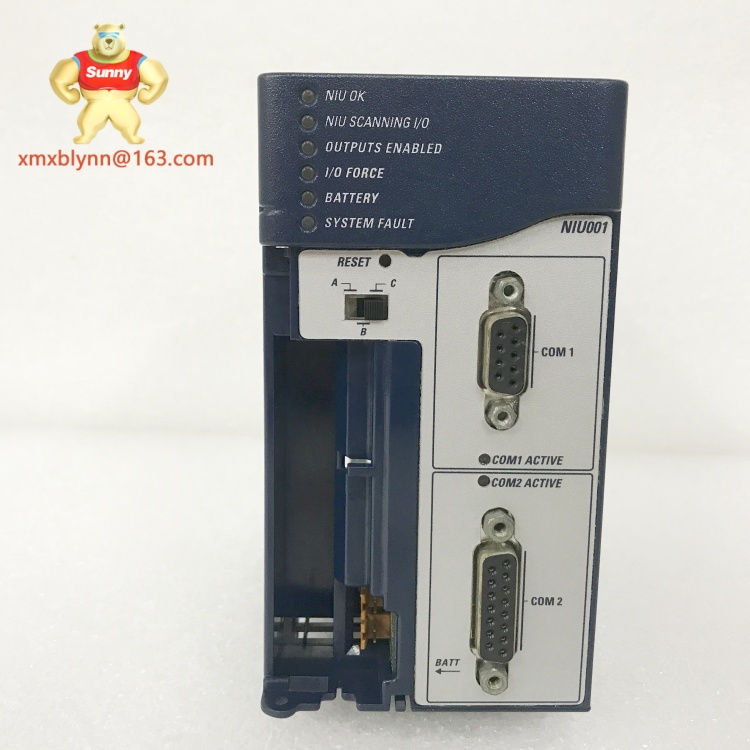

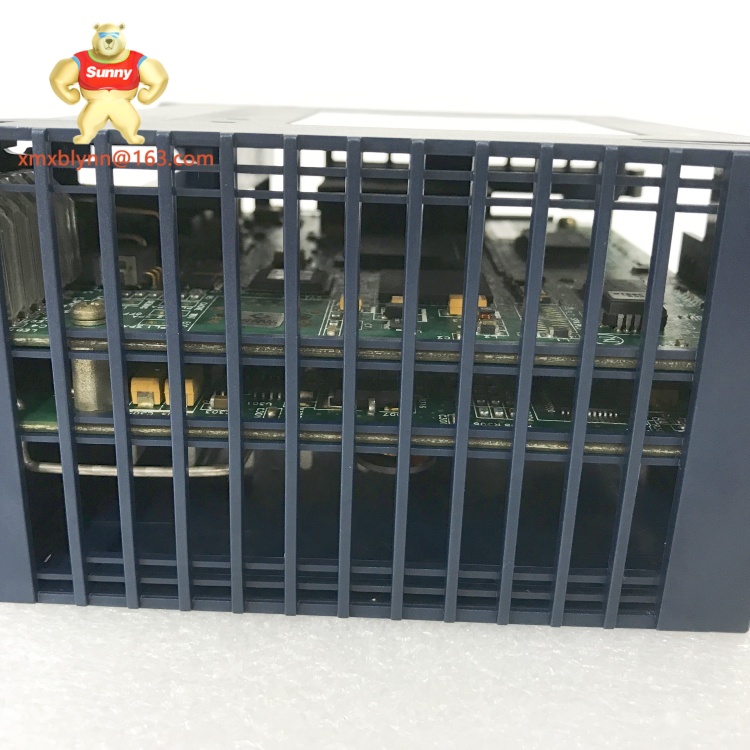

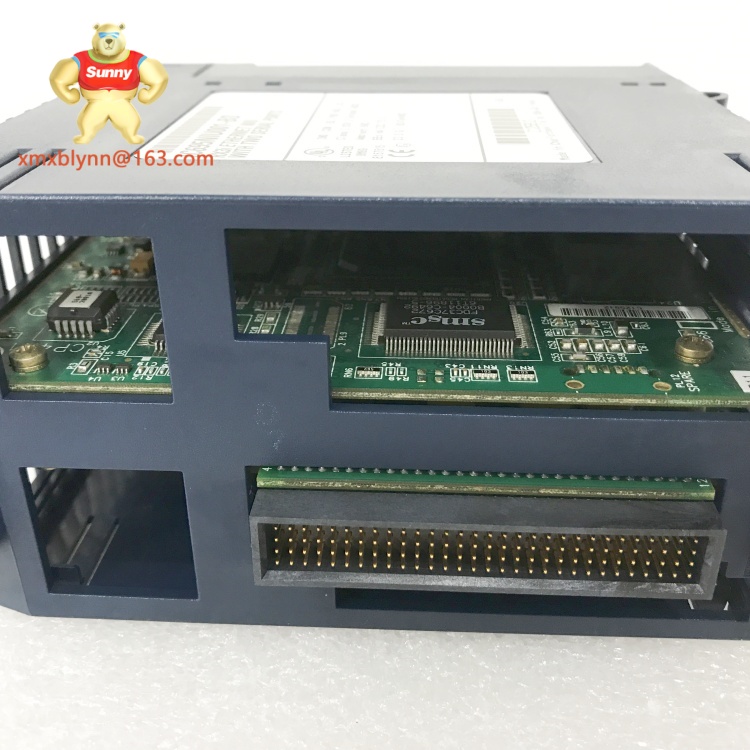

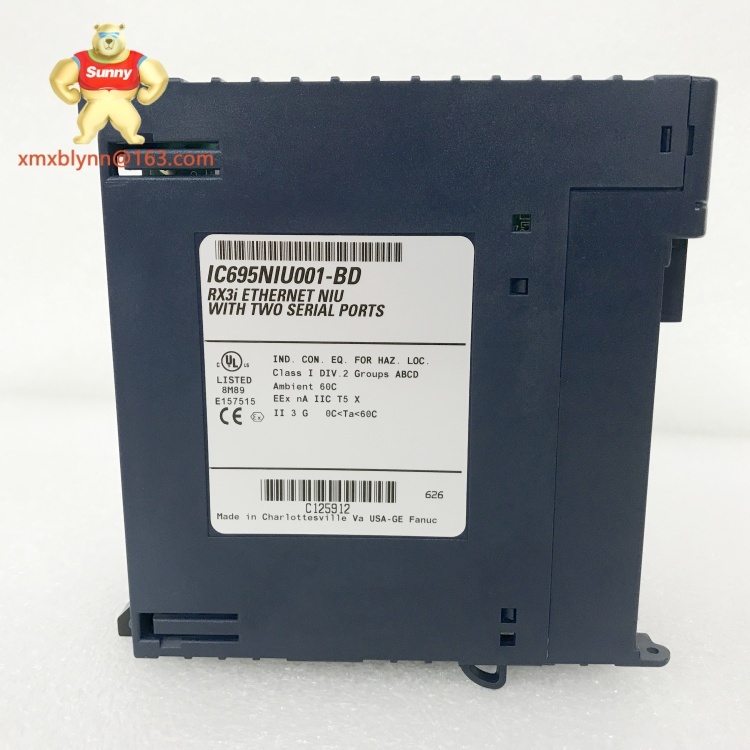

Product Overview
The IC695NIU001 PLUS is an advanced network interface unit (NIU) designed for GE’s PACSystems RX3i, serving as a critical communication bridge between the automation controller and industrial networks. As an enhanced variant of the standard IC695NIU001, IC695NIU001 PLUS expands connectivity options while maintaining the reliability required for mission-critical systems. Its core function is to facilitate seamless data exchange between the RX3i CPU (such as the IC695CPU320) and external devices, including SCADA systems, HMI panels, cloud platforms, and remote monitoring tools.
What sets IC695NIU001 PLUS apart is its support for multiple industrial protocols and faster data throughput, enabling real-time information flow across complex automation ecosystems. This makes it invaluable for facilities transitioning to smart manufacturing or requiring integrated data analytics. Whether deployed in small-scale production lines or large industrial plants, IC695NIU001 PLUS ensures the RX3i system remains connected, responsive, and adaptable to evolving network demands, reducing communication bottlenecks and enhancing operational visibility.
Technical Specifications
| Parameter |
Value |
| Product Model |
IC695NIU001 PLUS |
| Manufacturer |
GE |
| Product Type |
Enhanced Network Interface Unit (NIU) |
| Supported Protocols |
EtherNet/IP, Modbus TCP/IP, Profinet, DNP3 |
| Data Transfer Rate |
Up to 1 Gbps |
| System Compatibility |
GE PACSystems RX3i (all CPU models) |
| Power Requirements |
5V DC ±5% (from RX3i backplane) |
| Operating Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Dimensions |
115 mm x 82 mm x 28 mm (W x H x D) |
| Mounting Type |
RX3i 3-slot, 7-slot, and 10-slot backplanes |
| Certifications |
UL, CE, IEC 61010, ATEX Zone 2 |
| Redundancy Support |
Dual-port Ethernet for network redundancy |
| LED Indicators |
Power, link status, data activity |
Key Features and Benefits
The IC695NIU001 PLUS stands out for its expanded protocol support, including EtherNet/IP, Modbus TCP/IP, Profinet, and DNP3, which eliminates the need for additional gateways when connecting to diverse industrial systems. This multi-protocol capability reduces hardware costs and simplifies network architecture, making it easier to integrate legacy equipment with modern smart devices.
With a data transfer rate of up to 1 Gbps, IC695NIU001 PLUS handles large volumes of real-time data—such as sensor readings, production metrics, and alarm logs—without latency, critical for industries relying on data-driven decision-making. Its dual Ethernet ports support network redundancy, ensuring uninterrupted communication even if one network path fails, a feature vital for continuous processes in energy or chemical plants.
Durability is a hallmark of
IC695NIU001 PLUS, with an operating temperature range of -20°C to 70°C allowing deployment in harsh environments, from cold storage facilities to high-temperature manufacturing floors. The unit also includes intuitive LED indicators for quick status checks, and compatibility with GE’s Proficy Machine Edition software for easy configuration and diagnostics, reducing setup time and troubleshooting efforts.
Application Scenarios
The IC695NIU001 PLUS is widely utilized in industries where seamless network integration drives efficiency and uptime. In automotive manufacturing, it connects RX3i controllers on assembly lines to SCADA systems, enabling real-time tracking of robotic arm performance, conveyor speeds, and quality inspection data. This connectivity allows plant managers to adjust production schedules dynamically, minimizing downtime from equipment bottlenecks.
In renewable energy facilities, such as wind farms, IC695NIU001 PLUS links RX3i-based turbine control systems to cloud platforms, transmitting data on wind speed, power output, and component health. This enables remote monitoring and predictive maintenance, reducing the need for on-site inspections in remote locations. Its rugged design withstands outdoor conditions, ensuring reliable operation in varying weather.
Water and wastewater treatment plants rely on IC695NIU001 PLUS to connect RX3i controllers to supervisory systems, facilitating monitoring of pump operations, chemical dosing levels, and water quality metrics. The unit’s support for DNP3 protocol ensures compliance with utility industry standards, enabling secure data transmission to municipal management systems and regulatory reporting platforms.
Related Models
IC695NIU001 – Base model of IC695NIU001 PLUS with limited protocol support (EtherNet/IP and Modbus TCP only).
IC695ETM002 – Ethernet terminal module that complements IC695NIU001 PLUS by adding fiber-optic connectivity for long-distance network links.
IC695CMM320 – Communication coprocessor that works with IC695NIU001 PLUS to offload data processing, enhancing overall system performance.
IC695NIU003 – Higher-capacity variant of IC695NIU001 PLUS with support for additional protocols, including OPC UA, for cloud integration.
IC695PWR330 – Redundant power supply module ensuring stable power to IC695NIU001 PLUS and other RX3i components.
IC695LRE001 – Redundancy module that pairs with IC695NIU001 PLUS to enable failover for critical network paths in high-reliability setups.
IC695NIU002 – Legacy model of IC695NIU001 PLUS with lower data transfer rates, suitable for small-scale applications with basic networking needs.
Installation and Maintenance
Installing IC695NIU001 PLUS requires a compatible RX3i backplane (3-slot, 7-slot, or 10-slot) with available slots adjacent to the CPU module for optimal data flow. Proper grounding is essential to prevent electromagnetic interference, which can corrupt data transmission; a dedicated ground connection to the backplane is recommended. The installation environment should avoid excessive dust or moisture, with ventilation to maintain temperatures within the -20°C to 70°C range. Mounting the backplane in a sealed enclosure further protects IC695NIU001 PLUS from environmental stressors.
For maintenance, IC695NIU001 PLUS benefits from monthly checks of Ethernet cable connections to ensure tightness and prevent signal loss. Firmware updates, available via GE’s support portal, should be applied quarterly to address security patches and enhance protocol compatibility. The unit’s exterior can be cleaned with a dry cloth to remove dust, avoiding liquid cleaners that may damage internal components. Annual diagnostics using Proficy Machine Edition help verify protocol functionality and identify potential issues before they affect network performance.
Product Warranty
The IC695NIU001 PLUS is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and performance issues under normal operating conditions. During this period, customers receive free replacement of faulty units, ensuring minimal disruption to their network infrastructure. Our global technical support team provides assistance with installation, protocol configuration, and troubleshooting, with priority response for critical applications. This warranty reflects our confidence in the quality and reliability of IC695NIU001 PLUS, underscoring our commitment to supporting seamless industrial communication and long-term customer success.
