Product Overview

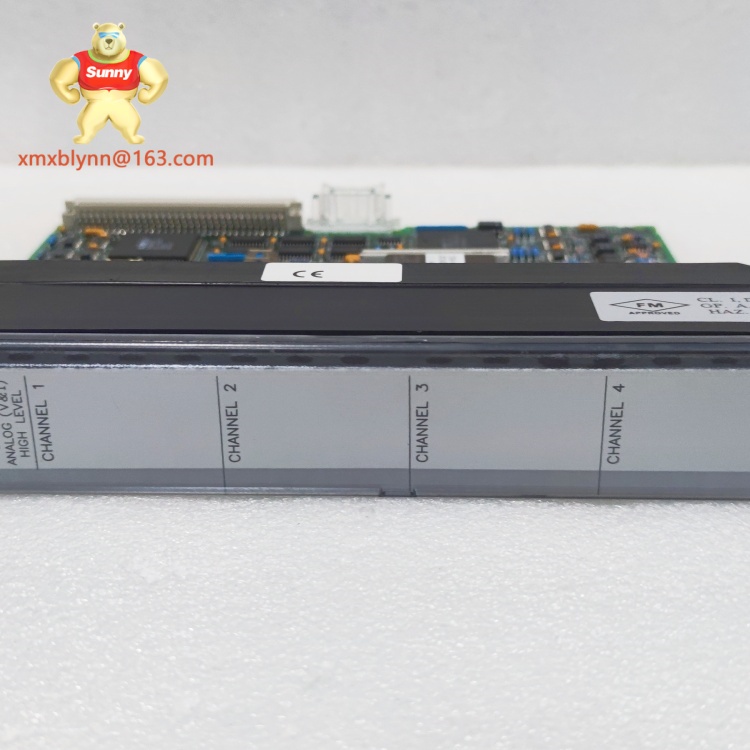

The GE IC697ALG320D is a high-performance analog input module, a key component of GE’s 90-70 series programmable logic controllers (PLCs), designed to convert analog signals from industrial sensors into digital data for processing by the PLC’s central processor. As a critical interface between field devices and control systems, GE IC697ALG320D enables precise monitoring of continuous variables such as temperature, pressure, flow, and level—essential for maintaining optimal performance in complex automation processes.
This module is engineered to meet the demands of industrial environments, where accurate signal conversion and reliable data transmission are paramount. GE IC697ALG320D integrates seamlessly with 90-70 PLC racks, supporting system scalability by accommodating multiple analog sensors without compromising response time. Its robust design ensures stable operation even in noisy electrical environments, making it a trusted choice for applications where measurement precision directly impacts process efficiency and safety. Whether in manufacturing lines, power plants, or chemical facilities, GE IC697ALG320D provides the critical link between physical processes and digital control logic.
Technical Specifications
| Parameter |
Value |
| Product Model |
GE IC697ALG320D |
| Manufacturer |
GE |
| Product Type |
Analog Input Module (PLC I/O Module) |
| Input Type |
Voltage (0-10 VDC, ±5 VDC) and Current (4-20 mA) |
| Number of Channels |
8 differential channels |
| Resolution |
16-bit |
| Accuracy |
±0.1% of full scale (at 25°C) |
| Isolation |
Channel-to-channel and channel-to-backplane isolation (250 VAC) |
| Power Requirements |
5 VDC (from 90-70 rack backplane) |
| Operating Temperature Range |
0°C to 60°C (32°F to 140°F) |
| Dimensions (W x H x D) |
36 mm x 113 mm x 152 mm |
| Mounting Type |
90-70 PLC rack mounting (compatible with IC697 racks) |
| Certifications |
CE, UL, CSA |
| Response Time |
<100 ms per channel |
Key Features and Benefits
GE IC697ALG320D offers 8 differential channels, providing flexibility to connect multiple analog sensors—such as thermocouples, pressure transducers, and flow meters—without the need for additional modules. This reduces rack space usage and simplifies system design, particularly in applications requiring monitoring of diverse process variables.
The module’s 16-bit resolution and ±0.1% accuracy ensure precise signal conversion, critical for processes where small variations in parameters (e.g., chemical reaction temperatures) can affect product quality or safety. GE IC697ALG320D maintains this accuracy across its operating temperature range, eliminating the need for frequent recalibration in fluctuating environments.
Channel-to-channel isolation is a standout feature, preventing signal interference between sensors—common in industrial settings with high electrical noise. This isolation enhances data integrity, ensuring the PLC receives reliable readings even when multiple sensors operate in close proximity.
GE IC697ALG320D integrates seamlessly with 90-70 PLC systems, requiring minimal configuration for setup. Built-in diagnostic capabilities, including open-circuit detection and overrange alerts, simplify troubleshooting by quickly identifying faulty sensors or wiring issues. Its rugged construction withstands vibration and temperature extremes, ensuring long-term reliability in demanding facilities like refineries and manufacturing plants.
Application Scenarios
GE IC697ALG320D is widely used in industries relying on precise analog signal monitoring. In chemical processing plants, it connects to pH sensors, pressure transmitters, and level detectors in reactor vessels, converting their analog outputs into digital data for the 90-70 PLC. This enables the controller to adjust valve positions or heating elements in real time, maintaining optimal reaction conditions and preventing costly deviations.
In power generation facilities, GE IC697ALG320D monitors steam pressure, turbine temperature, and coolant flow rates. By converting these analog signals, it provides the PLC with critical data to regulate generator output and ensure equipment operates within safe limits, reducing the risk of downtime or damage.
Water and wastewater treatment plants utilize GE IC697ALG320D to process signals from turbidity sensors, chemical dosage meters, and pump pressure gauges. The module’s accuracy ensures precise control of filtration and disinfection processes, supporting compliance with environmental regulations and efficient resource usage.
In manufacturing, GE IC697ALG320D monitors temperature in industrial ovens and pressure in hydraulic systems, enabling the 90-70 PLC to adjust settings for consistent product quality—whether in plastic molding or metal processing.
Related Models
IC697ALG310 – 4-channel analog input module, ideal for smaller systems requiring fewer sensor connections.
IC697ALG330 – 8-channel module with higher resolution (24-bit) for ultra-precision applications like laboratory automation.
IC697ALG320 – Previous generation of GE IC697ALG320D with similar functionality but lower accuracy (±0.2% vs. ±0.1%).
IC697ALG440 – Analog output module, complementary to GE IC697ALG320D, for converting digital PLC signals to analog control outputs.
IC697BEM331 – 90-70 rack backplane module, essential for housing GE IC697ALG320D and other I/O modules.
IC697ALG220 – 8-channel module specializing in thermocouple inputs, suitable for high-temperature monitoring applications.
IC697ALG320E – Enhanced variant of GE IC697ALG320D with extended operating temperature range (-20°C to 70°C).
Installation and Maintenance

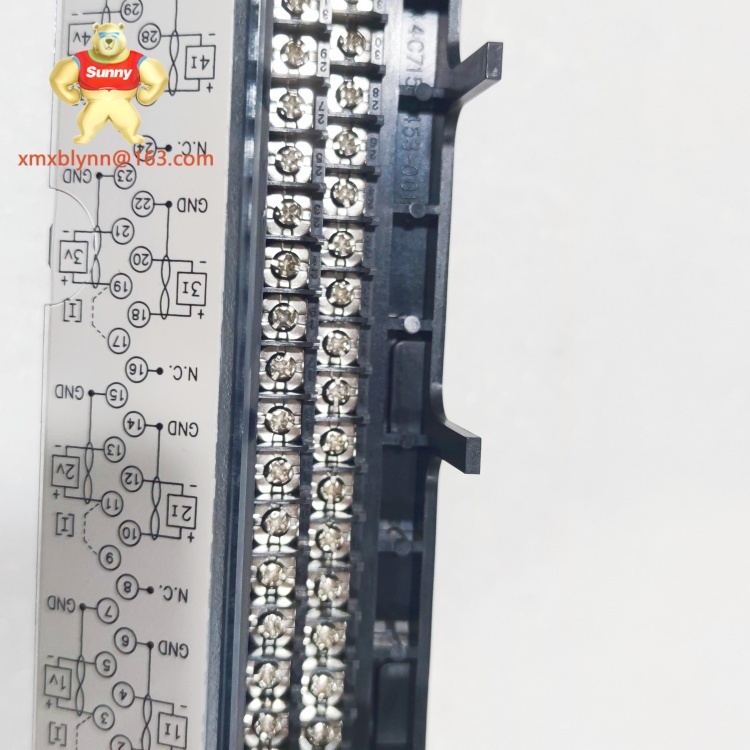

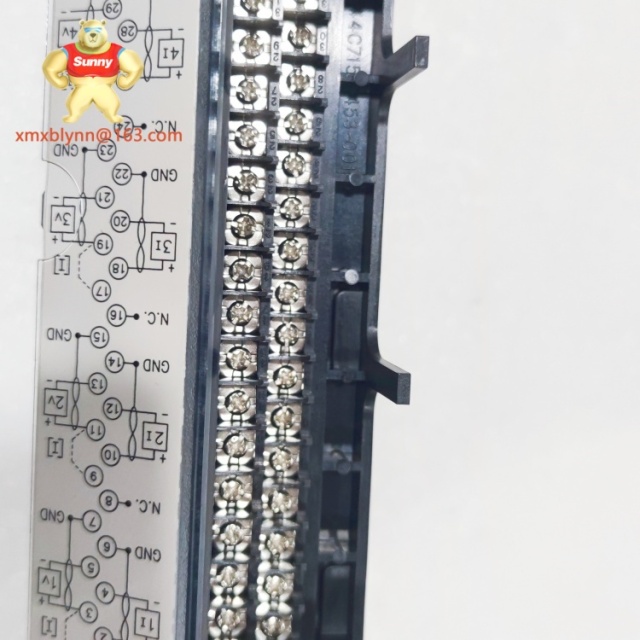

Installation of GE IC697ALG320D requires mounting it in a compatible 90-70 PLC rack (e.g., IC697BEM331), ensuring the module is fully seated and secured with the locking lever. Wiring should use shielded twisted-pair cables for sensor connections, with shields grounded at the module end to minimize noise interference. Verify that the rack backplane provides stable 5 VDC power before powering on the system. The installation location should be free from direct moisture and excessive dust to maintain optimal performance.
For maintenance, inspect
GE IC697ALG320D quarterly to check for loose wiring or corrosion on terminal blocks, tightening connections as needed. Calibration is recommended annually, particularly in applications with strict accuracy requirements, using a calibrated signal generator to verify output accuracy. Monitor PLC diagnostic logs for overrange or open-circuit alerts, which may indicate sensor faults or module degradation. If persistent inaccuracies or communication issues occur despite proper wiring, replace the module to ensure reliable data collection.
Product Warranty
GE IC697ALG320D is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., which includes free replacement for any defects in materials or workmanship. This coverage reflects our confidence in the module’s quality, supported by our direct sourcing from overseas manufacturers to guarantee authenticity. Our technical support team provides assistance with installation, calibration, and troubleshooting, with global response capabilities to address operational needs promptly. Should GE IC697ALG320D encounter issues within the warranty period, our free replacement service minimizes downtime, underscoring our commitment to reliable industrial automation solutions and customer satisfaction.
