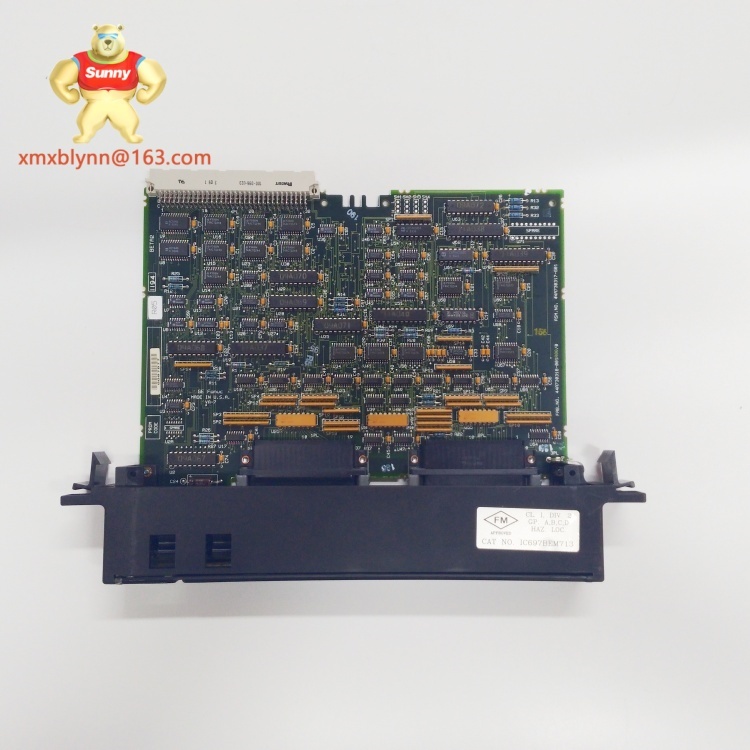

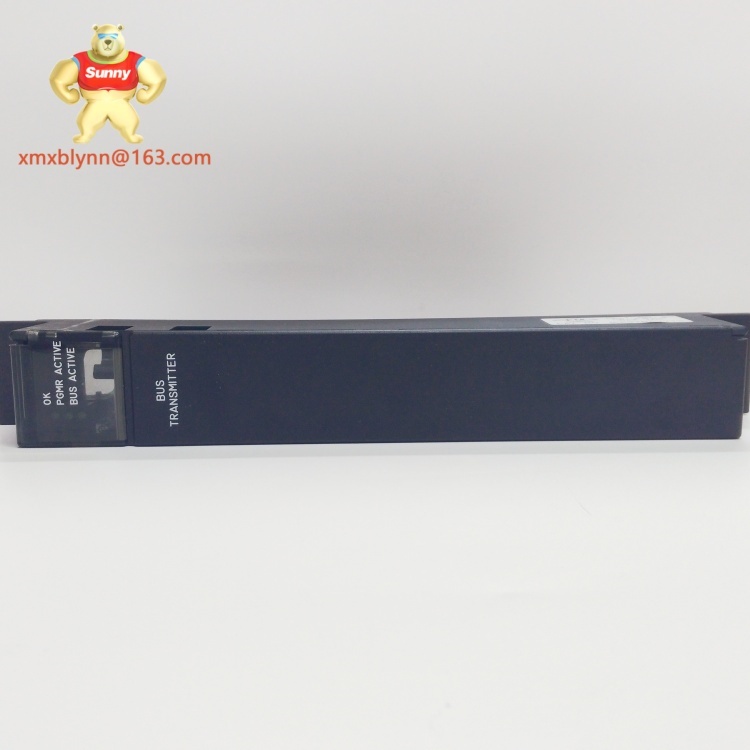

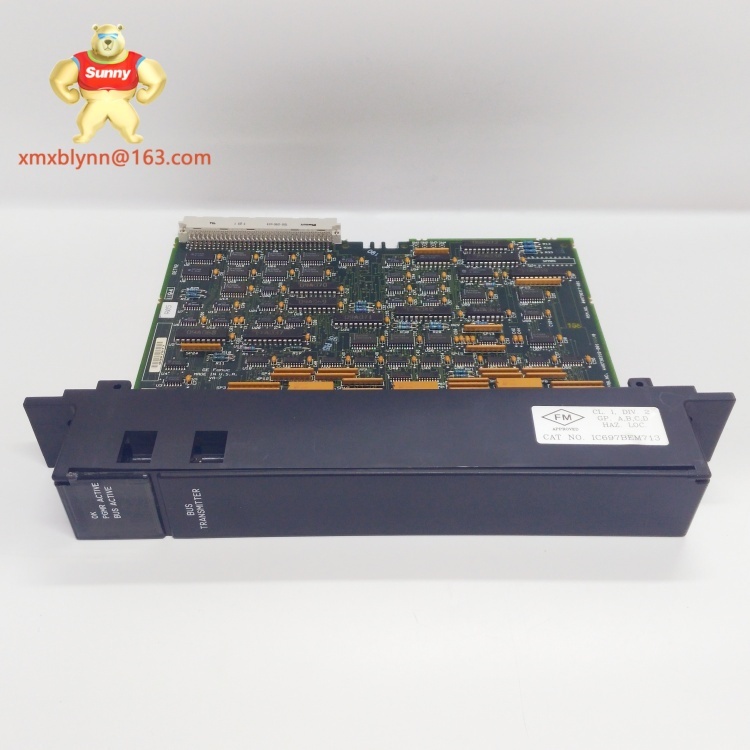

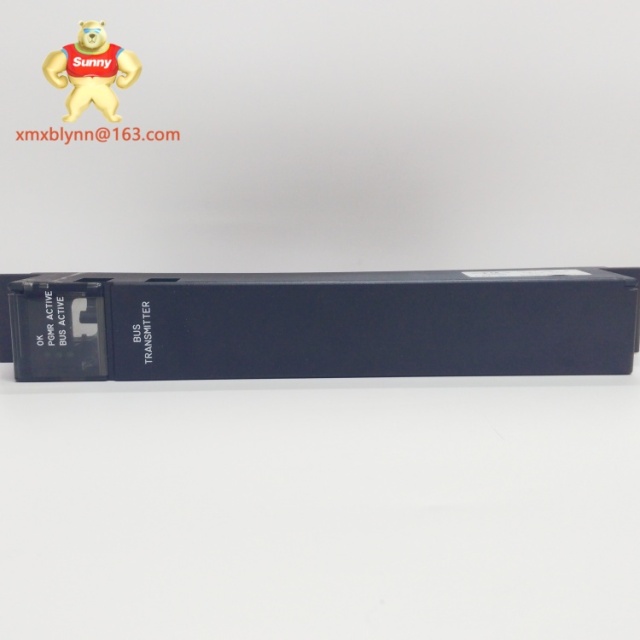

Product Overview
The IC697BEM713 is a critical backplane expansion module designed for GE’s Series 90-70 programmable logic controller (PLC) system, a staple in industrial automation for its robustness and scalability. As a key component in expanding control system capabilities, IC697BEM713 enables seamless communication between multiple backplane chassis, allowing users to extend I/O capacity without compromising data integrity or processing speed.
In automation setups, the ability to scale is often essential as operations grow or processes evolve. The IC697BEM713 addresses this need by acting as a bridge between Series 90-70 backplanes, ensuring synchronized data transfer between the main CPU and expanded I/O modules. Its design prioritizes reliability, with built-in safeguards against electrical noise and signal interference, making it a trusted choice for mission-critical applications. What sets IC697BEM713 apart is its balance of performance and ease of integration—engineers can quickly configure expansions without extensive reworking of existing systems, reducing downtime and simplifying upgrades.
Technical Specifications
| Parameter |
Value |
| Product Model |
IC697BEM713 |
| Manufacturer |
GE |
| Product Type |
Backplane Expansion Module |
| Compatibility |
GE Series 90-70 PLC Systems |
| Backplane Data Transfer Rate |
Up to 10 Mbps |
| Power Requirements |
5V DC, 0.3A (from backplane) |
| Operating Temperature Range |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range |
-40°C to 85°C (-40°F to 185°F) |
| Dimensions (H x W x D) |
127mm x 38mm x 165mm (5.0" x 1.5" x 6.5") |
| Mounting Type |
Rack-mounted (Series 90-70 chassis) |
| Weight |
Approximately 250g (0.55 lbs) |
| Protection Rating |
IP20 (indoor, dust-protected) |
| Connector Type |
64-pin backplane interface |
| Maximum Expansion Capacity |
Supports up to 4 cascaded backplanes |
Key Features and Benefits
The IC697BEM713 delivers high-speed data synchronization between connected backplanes, ensuring real-time communication that is vital for time-sensitive industrial processes. This speed minimizes latency between the CPU and distributed I/O modules, a critical advantage in applications where split-second decisions impact operational efficiency.
Another standout feature is its hot-swappable design, which allows for module replacement or maintenance without powering down the entire system. This capability significantly reduces unplanned downtime, a key benefit in industries like manufacturing and energy where continuous operation is paramount.
Durability is embedded in the IC697BEM713’s construction, with components rated to withstand harsh industrial environments, including temperature fluctuations and electrical noise. This ruggedness ensures long-term reliability, even in facilities with high vibration or dust levels.
Integration is streamlined thanks to compatibility with GE’s Proficy Machine Edition software, enabling quick configuration and diagnostics. Engineers can easily monitor backplane communication status, troubleshoot issues remotely, and optimize performance—all without specialized tools.
Application Scenarios
The IC697BEM713 finds its place in industries where scalable control systems are essential. In automotive manufacturing plants, for example, production lines often require expanded I/O to manage robotic arms, conveyor belts, and quality inspection sensors. The IC697BEM713 allows these facilities to add more modules to their Series 90-70 systems as production lines expand, ensuring all components communicate seamlessly.
Water and wastewater treatment plants also benefit from the IC697BEM713. These facilities rely on distributed control to manage pumps, valves, and monitoring equipment across large sites. By enabling backplane expansion, the module supports the integration of additional sensors and actuators, enhancing the plant’s ability to regulate flow, chemical dosing, and filtration processes.
In food and beverage processing, where hygiene and precision are critical, the IC697BEM713 facilitates the addition of temperature control and packaging line modules to existing PLC systems. This scalability helps processors adapt to changing production demands, such as seasonal shifts in product volume, without overhauling their entire automation infrastructure.
Related Models
IC697BEM711 – Entry-level backplane expansion module with limited capacity, suitable for small-scale Series 90-70 systems.
IC697BEM714 – High-capacity variant of IC697BEM713 supporting up to 8 cascaded backplanes for large industrial setups.
IC697CHS791 – 10-slot backplane chassis designed to work with IC697BEM713 for base system configuration.
IC697CPU780 – High-performance CPU module compatible with IC697BEM713, ideal for complex control tasks requiring expanded I/O.
IC697PWR711 – Power supply module that pairs with IC697BEM713 to ensure stable power distribution across expanded backplanes.
IC697MDL740 – Digital output module commonly used with IC697BEM713 in expanded I/O configurations for controlling actuators.
IC697ALG220 – Analog input module that integrates seamlessly with IC697BEM713 to monitor process variables like pressure and flow.
Installation and Maintenance
Installation of IC697BEM713 requires a compatible Series 90-70 rack chassis with available slots, ensuring there is sufficient space for the module and proper airflow to prevent overheating. Prior to installation, verify that the backplane is properly grounded to minimize electrical interference, a critical step for maintaining data integrity. The module mounts directly into the chassis via a 64-pin connector, with securing clips to ensure a firm fit during operation. Environmental conditions should be checked to confirm they fall within the 0°C to 60°C operating range, with relative humidity below 95% (non-condensing).
For maintenance, regular visual inspections of
IC697BEM713 are recommended to check for loose connections or dust buildup, which can impair performance. Using GE’s diagnostic software, engineers should monitor backplane communication status quarterly to identify potential issues early. The module’s connectors should be cleaned gently with compressed air annually to prevent corrosion. While the
IC697BEM713 is designed for long service life, replacement is advisable if communication errors persist despite troubleshooting, typically after 8–10 years of operation in heavy-use environments.
Product Warranty
The IC697BEM713 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., which includes free replacement service for any defects in materials or workmanship. As a specialist in industrial automation, Xiamen Xiongba ensures that all products, including the IC697BEM713, meet rigorous quality standards, sourced directly from trusted manufacturers to guarantee authenticity.
Customers benefit from global support, with a team of technical experts available to assist with installation guidance, troubleshooting, and warranty claims. This commitment to service reflects Xiamen Xiongba’s decade-long experience in the industry, ensuring that users of the IC697BEM713 can operate with confidence, knowing that reliable support and replacement options are readily available should the need arise.
