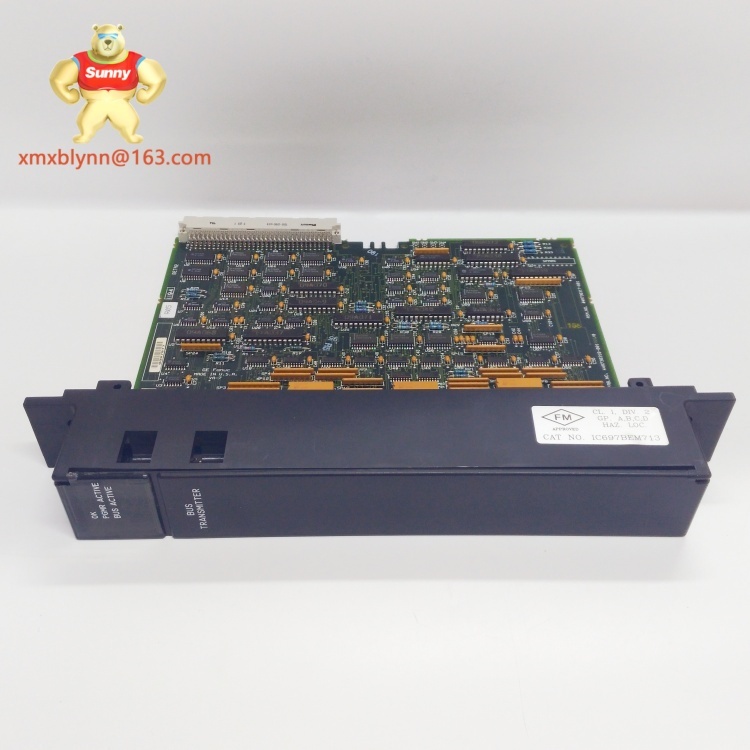

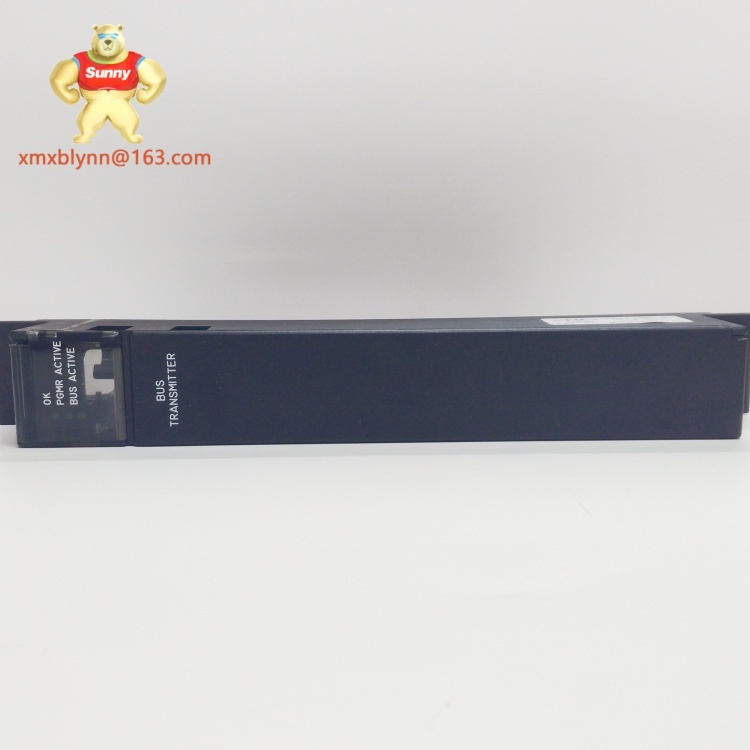

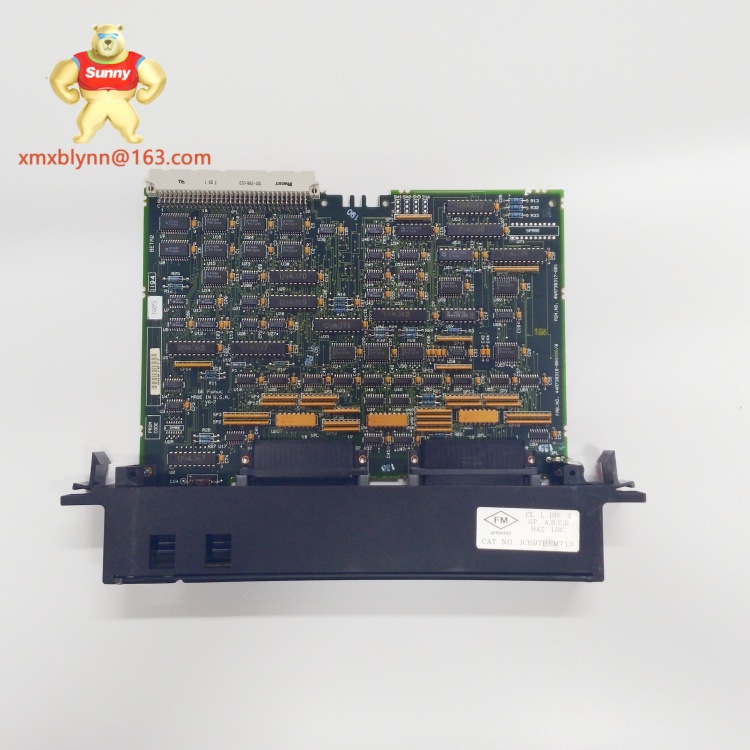

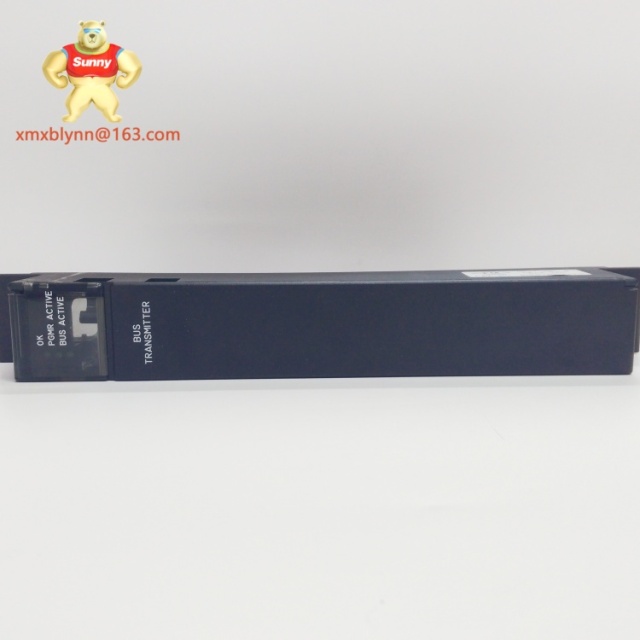

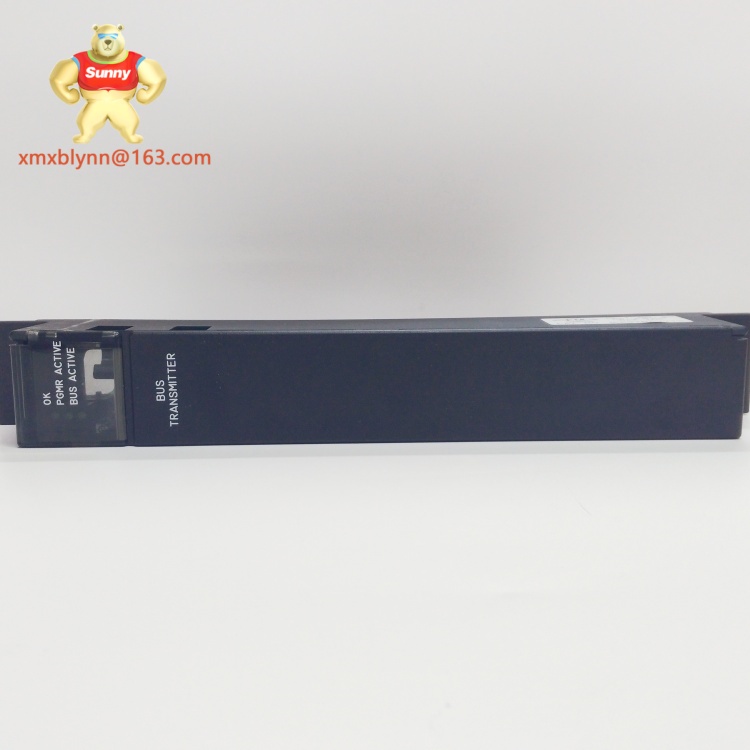

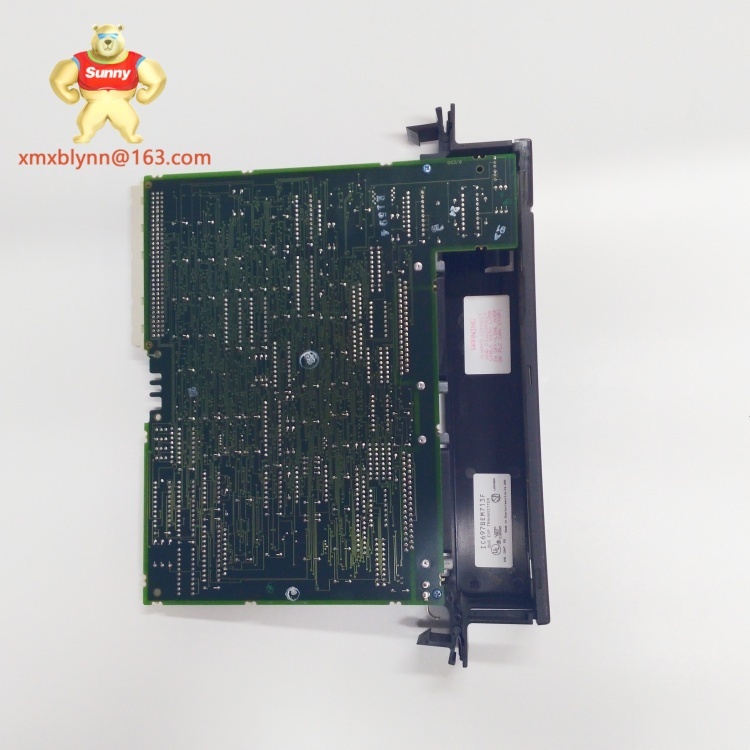

Product Overview
The IC697BEM763 is a high-performance backplane expansion module designed for GE’s Series 90-70 programmable logic controller (PLC) system, a cornerstone of industrial automation known for its reliability and scalability. As a critical component in expanding control system capabilities, IC697BEM763 facilitates seamless communication between multiple backplane chassis, enabling users to scale I/O capacity while maintaining high-speed data integrity—essential for complex industrial processes.
In automation setups, the ability to integrate additional modules without sacrificing performance is key to adapting to evolving operational needs. The IC697BEM763 excels here by acting as a robust bridge between Series 90-70 backplanes, ensuring synchronized data transfer between the main CPU and expanded I/O modules. Its design prioritizes both speed and durability, with enhanced noise immunity and signal stability, making IC697BEM763 a trusted choice for mission-critical applications where downtime is costly. What distinguishes it is its balance of advanced functionality and ease of integration, allowing engineers to expand systems quickly with minimal reconfiguration.
Technical Specifications
| Parameter |
Value |
| Product Model |
IC697BEM763 |
| Manufacturer |
GE |
| Product Type |
High-Speed Backplane Expansion Module |
| Compatibility |
GE Series 90-70 PLC Systems |
| Backplane Data Transfer Rate |
Up to 100 Mbps |
| Power Requirements |
5V DC, 0.4A (supplied via backplane) |
| Operating Temperature Range |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range |
-40°C to 85°C (-40°F to 185°F) |
| Dimensions (H x W x D) |
127mm x 38mm x 170mm (5.0" x 1.5" x 6.7") |
| Mounting Type |
Rack-mounted (Series 90-70 chassis slots) |
| Protection Rating |
IP20 (dust-tight, indoor use) |
| Connector Type |
64-pin high-density backplane interface |
| Maximum Expansion Capacity |
Supports up to 6 cascaded backplane chassis |
| EMC Compliance |
EN 61000-6-2 (industrial immunity) |
Key Features and Benefits
The IC697BEM763 stands out with its high-speed data transfer capability of up to 100 Mbps, significantly reducing latency between connected backplanes—a critical advantage in time-sensitive processes like precision manufacturing or power grid regulation. This speed ensures that real-time data from sensors and actuators reaches the CPU without delay, enhancing overall system responsiveness.
Another defining feature is its expanded scalability, supporting up to 6 cascaded backplane chassis—more than many comparable modules. This makes IC697BEM763 ideal for large-scale installations where extensive I/O expansion is required, such as multi-line production facilities or sprawling industrial complexes.
Durability is engineered into the module, with robust components and enhanced electromagnetic compatibility (EMC) to resist interference from nearby machinery or power systems. This ruggedness ensures reliable operation in harsh industrial environments, from high-vibration manufacturing floors to dusty processing plants.
Integration is streamlined through compatibility with GE’s Proficy Machine Edition software, allowing for easy configuration, real-time diagnostics, and remote monitoring. Engineers can quickly troubleshoot communication issues or optimize backplane performance, reducing the need for on-site interventions and minimizing downtime.
Application Scenarios
The IC697BEM763 is well-suited for industries requiring large-scale, high-performance automation systems. In power generation facilities, for example, coal or natural gas plants rely on distributed control to manage turbines, boilers, and grid synchronization equipment. The module’s ability to support 6 cascaded backplanes allows these plants to integrate additional I/O modules for monitoring steam pressure, fuel flow, and emissions—critical for maintaining efficiency and compliance with environmental regulations.
In oil and gas refineries, where processes span vast sites with numerous pumps, valves, and separators, the IC697BEM763 enables seamless expansion of control systems. Refineries often need to add new sensors or actuators during upgrades, and the module’s high-speed data transfer ensures that these additions communicate smoothly with the central PLC, preventing bottlenecks in process control.
Large automotive assembly plants also benefit from
IC697BEM763. These facilities operate multiple production lines with robotic welding, painting, and assembly stations. By supporting expanded backplanes, the module allows plant managers to integrate additional robotics and quality control modules, adapting to increased production volumes or new vehicle models without overhauling the existing automation infrastructure.
Related Models
IC697BEM761 – Previous generation backplane expansion module with a 50 Mbps data rate, compatible with smaller Series 90-70 setups.
IC697BEM764 – Enhanced variant of IC697BEM763 supporting up to 8 cascaded chassis, designed for ultra-large industrial systems.
IC697CHS792 – 16-slot backplane chassis optimized for use with IC697BEM763 in base system configurations.
IC697CPU789 – High-performance CPU module that pairs with IC697BEM763 to maximize data processing in large-scale applications.
IC697PWR728 – Heavy-duty power supply module engineered to support IC697BEM763 and expanded backplane setups.
IC697MDL660 – Digital I/O module commonly integrated with IC697BEM763 for high-density control of actuators and sensors.
IC697CMM743 – Communication interface module that works alongside IC697BEM763 to enable Ethernet connectivity in Series 90-70 systems.
IC697BEM713 – Lower-capacity sibling of IC697BEM763 with support for 4 cascaded chassis, suitable for medium-scale applications.
Installation and Maintenance
Installation of IC697BEM763 requires a compatible GE Series 90-70 rack chassis with available slots, ensuring at least 50mm of clearance around the module for adequate airflow—critical for preventing overheating during high-speed operation. Prior to mounting, verify that the chassis is properly grounded to minimize electromagnetic interference, as this can disrupt the module’s 100 Mbps data transfer. The module connects via a 64-pin interface, and securing clips should be firmly engaged to prevent disconnections in high-vibration environments. Ambient conditions should remain within 0°C to 60°C, with relative humidity below 95% (non-condensing) to maintain performance.
For maintenance, regular checks using GE’s Proficy software are recommended to monitor backplane communication status and identify potential errors early. Inspect the
IC697BEM763’s connectors quarterly for dust or corrosion, cleaning gently with compressed air if needed. While the module is designed for long service life, consider replacement after 10–12 years in heavy-use environments, or if consistent communication issues persist despite troubleshooting. This proactive approach ensures that the system remains reliable and minimizes the risk of unplanned downtime.
Product Warranty
The IC697BEM763 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., which includes free replacement service for any defects in materials or workmanship. As a leading supplier of industrial automation components with over a decade of experience, Xiamen Xiongba ensures that the IC697BEM763 meets strict quality standards, sourced directly from trusted manufacturers to guarantee authenticity. Customers benefit from global support, with a team of technical experts available to assist with installation guidance, diagnostic support, and warranty claims. This commitment to service reflects the company’s focus on customer satisfaction, ensuring that users of the IC697BEM763 can operate with confidence, knowing reliable support and replacement options are readily available.
