Product Overview
The GE IC697CHS782 is a high-performance backplane chassis designed specifically for GE’s 90-70 series Programmable Logic Controllers (PLCs), serving as the foundational connectivity hub for modular automation systems. As a critical component in industrial control architectures, GE IC697CHS782 facilitates seamless communication and power distribution between the PLC’s central processing unit (CPU), input/output (I/O) modules, communication cards, and other peripheral devices. Its robust design ensures reliable data transfer and power delivery across connected modules, making it essential for maintaining system integrity in dynamic industrial environments.
What distinguishes GE IC697CHS782 is its balance of flexibility and durability. With a multi-slot configuration, it allows users to customize their 90-70 systems by integrating various functional modules, adapting to specific process requirements without sacrificing performance. Whether deployed in small-scale machinery or large-scale industrial plants, GE IC697CHS782 provides the structural and electrical backbone needed to support real-time control operations, ensuring consistent performance even under heavy load conditions.
Technical Specifications
| Parameter |
Value |
| Product Model |
GE IC697CHS782 |
| Manufacturer |
GE |
| Product Type |
90-70 Series Backplane Chassis |
| Compatible Series |
GE 90-70 PLC Series |
| Slot Count |
8 slots for 90-70 modules |
| Power Distribution |
Distributes 5V DC and 24V DC to connected modules (via external power supply) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Dimensions |
305mm x 165mm x 102mm (12.0" x 6.5" x 4.0") |
| Weight |
Approx. 1.2kg (2.65 lbs) |
| Mounting Type |
DIN rail or panel mount |
| Protection Rating |
IP20 (suitable for indoor, panel-mounted enclosures) |
| Material |
Reinforced thermoplastic with metal mounting brackets |
| EMI Resistance |
Compliant with IEC 61000-6-2 industrial immunity standards |
| Maximum Current Handling |
10A total (distributed across 8 slots) |
Key Features and Benefits

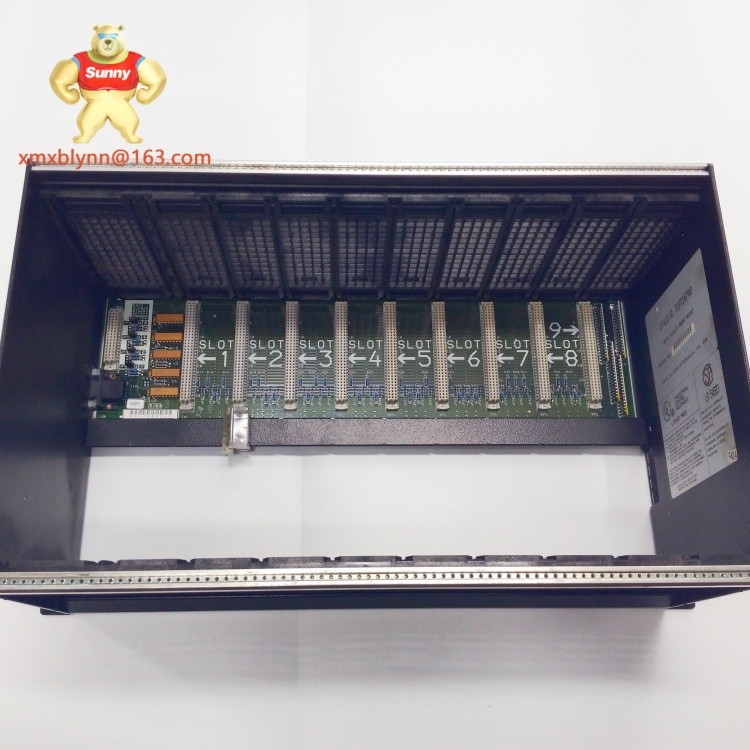

GE IC697CHS782 excels in modular flexibility, offering 8 slots to accommodate a mix of 90-70 modules—including CPUs, analog/digital I/O, communication interfaces, and specialty modules—allowing users to tailor their control system to exact operational needs. This adaptability is particularly valuable in industries where process requirements evolve, as it eliminates the need for full system replacements when adding functionality.
Reliability is another core strength of GE IC697CHS782. Its design incorporates isolated power distribution to prevent voltage fluctuations from affecting connected modules, reducing the risk of system downtime. The reinforced thermoplastic housing with metal brackets provides mechanical stability, withstanding vibration and shock common in factory and industrial settings. Additionally, the backplane’s low-latency data bus ensures fast communication between modules, critical for real-time control applications where timing precision is essential.
Installation is simplified by the backplane’s standardized slot configuration, which aligns with 90-70 module dimensions, ensuring secure, error-free connections. This design minimizes setup time and reduces the potential for wiring errors, making GE IC697CHS782 a user-friendly choice for both new installations and system upgrades.
Application Scenarios
GE IC697CHS782 is widely utilized in industries requiring modular, scalable control systems. In automotive manufacturing, it serves as the backbone for assembly line control, connecting CPU modules with I/O modules that monitor conveyor speeds, robotic arm positions, and quality inspection sensors. Its 8-slot design allows for easy integration of additional modules when production lines are reconfigured for new vehicle models.
In municipal water treatment plants, GE IC697CHS782 supports control systems managing pump operations, chemical dosing, and water quality sensors. The backplane’s reliable power distribution ensures consistent performance of critical modules, even in environments with occasional electrical noise.
Power generation facilities also rely on GE IC697CHS782 to connect control modules for auxiliary systems, such as boiler feed pumps, cooling towers, and emissions monitoring equipment. Its ability to handle multiple module types makes it ideal for integrating diverse control functions into a unified system, simplifying operation and maintenance.
Related Models
GE IC697CHS781 – 5-slot variant of GE IC697CHS782, designed for smaller-scale 90-70 systems with fewer modules.
GE IC697CHS783 – 12-slot version offering expanded capacity for larger control systems compared to GE IC697CHS782.
GE IC697CPU771 – High-performance 90-70 CPU module fully compatible with GE IC697CHS782 as the system’s processing core.
GE IC697BEM713-J – Backplane expansion module that works with GE IC697CHS782 to extend I/O capabilities beyond 8 slots.
GE IC697ALG220 – Analog input module commonly paired with GE IC697CHS782 for monitoring temperature and pressure in industrial processes.
GE IC697DIA320 – Digital input module designed to connect to GE IC697CHS782, used for detecting switch states and sensor signals.
GE IC697CHS791 – 10-slot backplane with enhanced EMI shielding, serving as a higher-protection alternative to GE IC697CHS782.
GE IC697PWR711 – Power supply module specifically engineered to provide stable 5V/24V power to GE IC697CHS782 and its connected modules.
Installation and Maintenance
Installing GE IC697CHS782 requires a sturdy mounting surface—either a DIN rail (35mm standard) or a flat panel—with adequate ventilation to maintain operating temperatures within 0°C to 60°C. Ensure the mounting location is free from excessive dust, moisture, and vibration, as these can degrade performance over time. Proper grounding is critical; connect the backplane’s ground terminal to a dedicated earth ground (≤4Ω resistance) to minimize electromagnetic interference. Allow at least 100mm of clearance above and below GE IC697CHS782 for wiring and heat dissipation.
For maintenance, inspect GE IC697CHS782 quarterly to ensure module connections are secure and free from corrosion—tighten any loose screws and clean contacts with a dry, lint-free cloth if needed. Use the 90-70 PLC’s diagnostic tools to check for backplane communication errors, addressing issues promptly to prevent cascading failures. The backplane has a typical service life of 10–15 years, but in high-vibration environments, consider replacing it every 8 years to maintain optimal reliability.
Product Warranty
GE IC697CHS782 is covered by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., which includes free replacement for any units found to have manufacturing defects or performance issues under normal operating conditions. Our technical support team is available globally to assist with installation guidance, compatibility checks, and troubleshooting, leveraging our decade-long expertise in industrial automation. We stand behind the quality of GE IC697CHS782, ensuring it meets the rigorous demands of industrial environments and providing peace of mind to our customers through reliable service and support.
