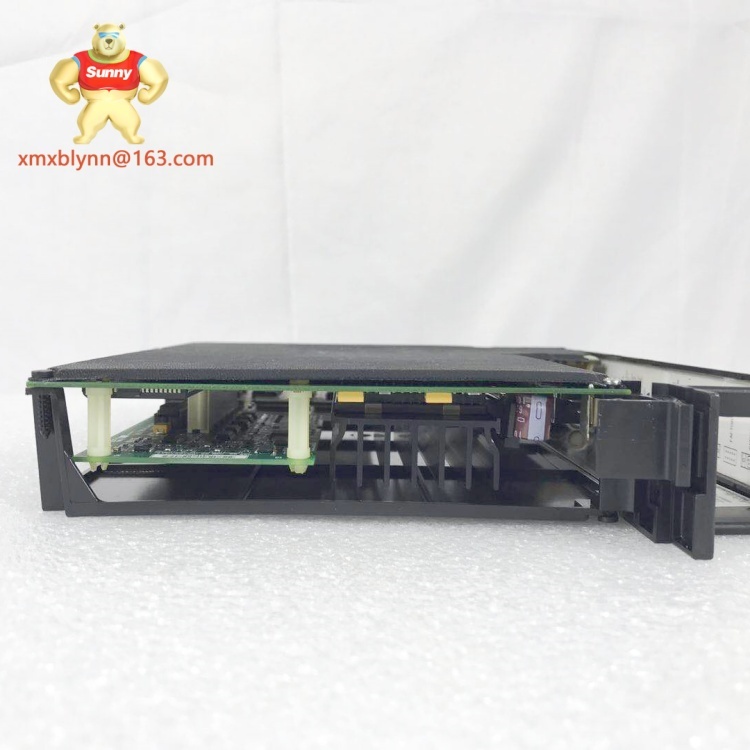

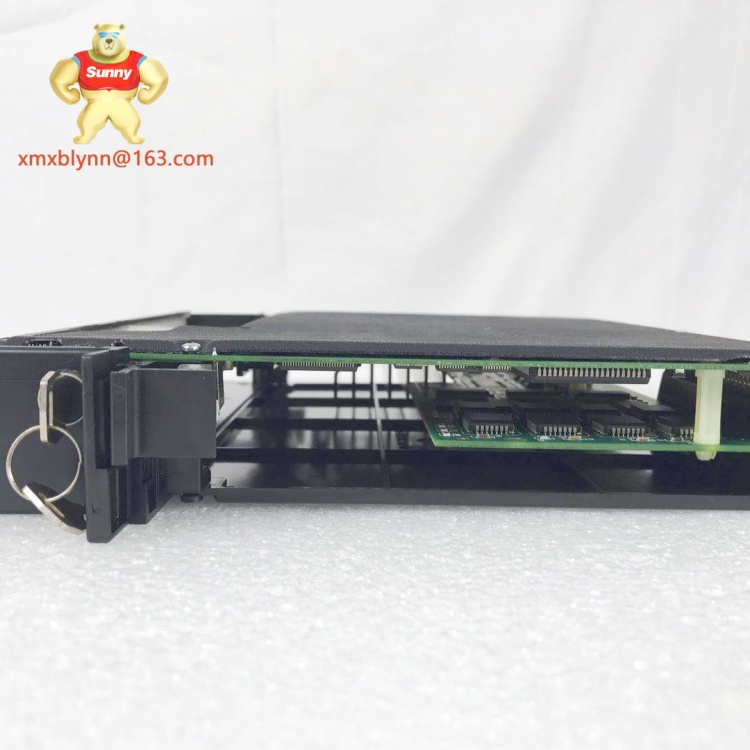

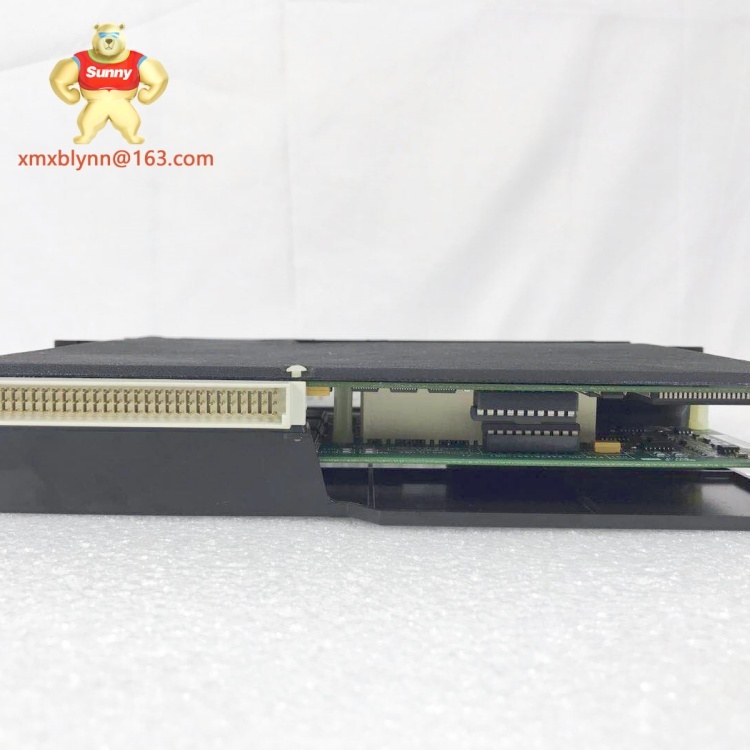

Product Overview
The IC697CPX782 is a high-performance processor module designed as the central computing unit for GE’s 90-70 Programmable Logic Controller (PLC) system, a cornerstone of industrial automation in demanding environments. As the "brain" of the 90-70 system, IC697CPX782 executes control logic, processes real-time data from connected I/O modules, and manages communication with other system components, ensuring seamless coordination of industrial processes.
This processor stands out for its balance of processing power and reliability, making it suitable for both complex continuous processes and discrete manufacturing applications. IC697CPX782 integrates advanced features like expanded memory and multi-protocol support, enabling it to handle intricate control algorithms while maintaining fast response times—critical for applications where precision and timing are paramount. Its compatibility with the full range of 90-70 modules ensures flexibility, allowing users to build tailored control systems that adapt to evolving operational needs without sacrificing performance. Whether deployed in retrofits or new installations, IC697CPX782 delivers the stability and processing capability required to keep industrial operations running efficiently.
Technical Specifications
| Parameter |
Value |
| Product Model |
IC697CPX782 |
| Manufacturer |
GE |
| Product Type |
PLC Processor Module (90-70 Series) |
| Processing Speed |
40 MHz 32-bit RISC processor |
| Memory |
8 MB RAM, 4 MB EEPROM (user program storage) |
| Communication Ports |
1 x RS-232, 1 x Ethernet (10/100 Mbps) |
| Supported Protocols |
Modbus RTU, Ethernet/IP, GE SRTP |
| Power Requirements |
5V DC ±5% (from 90-70 backplane) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Dimensions |
100mm (L) x 80mm (W) x 25mm (H) |
| Weight |
Approx. 180g |
| Compatibility |
GE 90-70 backplanes (IC697CHS7906, IC697CHS791) |
| Certifications |
UL 508, CE, RoHS compliant |
Key Features and Benefits
The IC697CPX782 excels in processing capability, with its 40 MHz 32-bit RISC processor enabling fast execution of complex control logic—up to 10,000 instructions per millisecond. This speed is critical for applications like synchronized conveyor systems or precision batch mixing, where delays can disrupt production timelines or product quality.
Expanded memory is another standout feature. With 8 MB RAM and 4 MB EEPROM, IC697CPX782 accommodates large user programs, historical data logging, and advanced diagnostic routines. This eliminates the need for external memory modules in most applications, simplifying system design and reducing potential points of failure.
Communication versatility sets IC697CPX782 apart. It supports Modbus RTU for legacy device integration, Ethernet/IP for networked control systems, and GE’s proprietary SRTP protocol for seamless communication with other 90-70 components. This multi-protocol support allows it to act as a bridge between older equipment and modern industrial networks, easing the transition to smart manufacturing.
Built for industrial durability, IC697CPX782 withstands vibration, voltage fluctuations, and extreme temperatures, ensuring reliable operation in harsh environments like refineries or steel mills. Its plug-and-play design with the 90-70 backplane simplifies installation and upgrades, reducing downtime during system modifications.
Application Scenarios
The IC697CPX782 is widely used in industries requiring robust, high-performance control. In power generation facilities, it serves as the core processor for turbine control systems, executing logic that regulates fuel flow, pressure, and rotational speed. Its fast processing ensures rapid adjustments to load changes, maintaining grid stability and preventing equipment damage.
In oil and gas refineries, IC697CPX782 manages distillation column operations, processing data from temperature and pressure sensors to optimize separation efficiency. Its multi-protocol support allows integration with SCADA systems for remote monitoring, while its rugged design withstands the corrosive atmospheres common in these environments.
Automotive assembly plants rely on IC697CPX782 to coordinate robotic welding stations, material handling systems, and quality control checks. Its ability to process large programs ensures synchronization of multiple robots, reducing cycle times and improving production throughput.
Water and wastewater treatment facilities also benefit from
IC697CPX782, using it to control pump stations, chemical dosing systems, and filtration processes. Its data logging capability helps track compliance with environmental regulations, while its reliability minimizes unplanned shutdowns of critical infrastructure.
Related Models
IC697CPX780 – Previous generation processor with 20 MHz speed, suitable for basic control applications.
IC697CPX785 – High-performance variant with 60 MHz processor and 16 MB memory, designed for complex processes.
IC697MEM713 – Memory expansion module compatible with IC697CPX782 for large-scale data logging.
IC697CMM742 – Ethernet communication module that enhances IC697CPX782’s network connectivity.
IC697BEM731V – Backplane expansion module allowing IC697CPX782 to control additional I/O modules.
IC697PWR711 – Power supply module that provides stable 5V DC to IC697CPX782 in 90-70 systems.
IC697CPU771 – Entry-level 90-70 processor, a cost-effective alternative to IC697CPX782 for simple logic tasks.
IC697I/O740 – Digital I/O module commonly paired with IC697CPX782 for discrete control applications.
Installation and Maintenance
Installation of IC697CPX782 requires a compatible 90-70 backplane (such as IC697CHS7906) with an available processor slot. Ensure the backplane is properly grounded and powered off before insertion to prevent electrostatic damage. The module slides into the slot until it clicks into place, with guide rails ensuring correct alignment. Allow 30mm of clearance above and below for cooling, as the processor generates moderate heat during operation.
For maintenance, inspect IC697CPX782 quarterly to ensure secure backplane connections—loose contacts can cause communication errors. Clean the module’s surface with a dry cloth to remove dust, which can insulate heat. Check firmware versions annually and update via Ethernet if newer releases are available, as updates often include performance improvements and bug fixes. Replace the processor every 10–12 years, or sooner if it exhibits frequent faults, to maintain system reliability.
Product Warranty
The IC697CPX782 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects and performance issues under normal operating conditions. During the warranty period, we provide free replacement of faulty units to minimize operational downtime. Our global technical support team offers assistance with installation, configuration, and troubleshooting, leveraging decades of experience with GE 90-70 systems. We stand behind the quality of IC697CPX782, ensuring customers receive a reliable processor that meets the demands of their industrial applications. This warranty reflects our commitment to customer satisfaction and confidence in the product’s durability.
