Product Overview

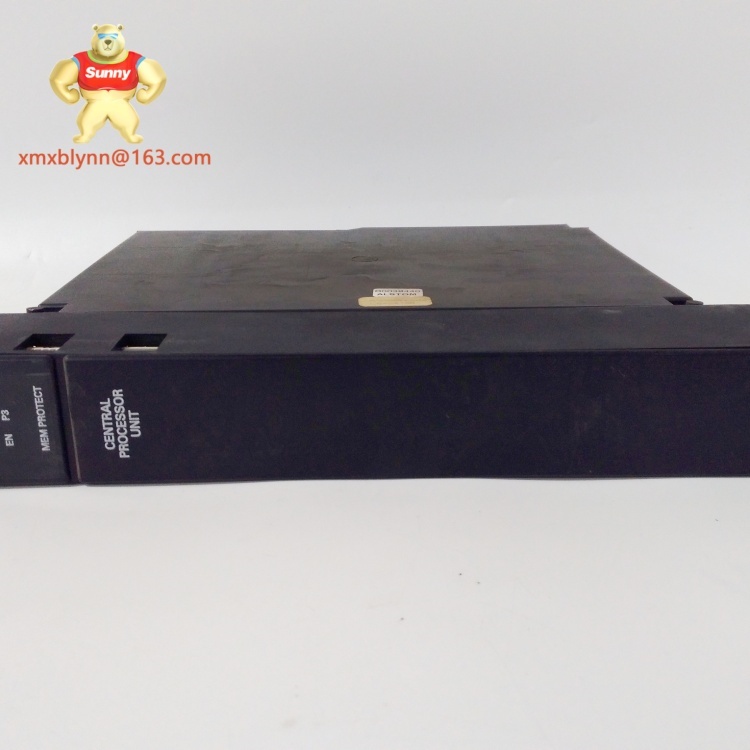

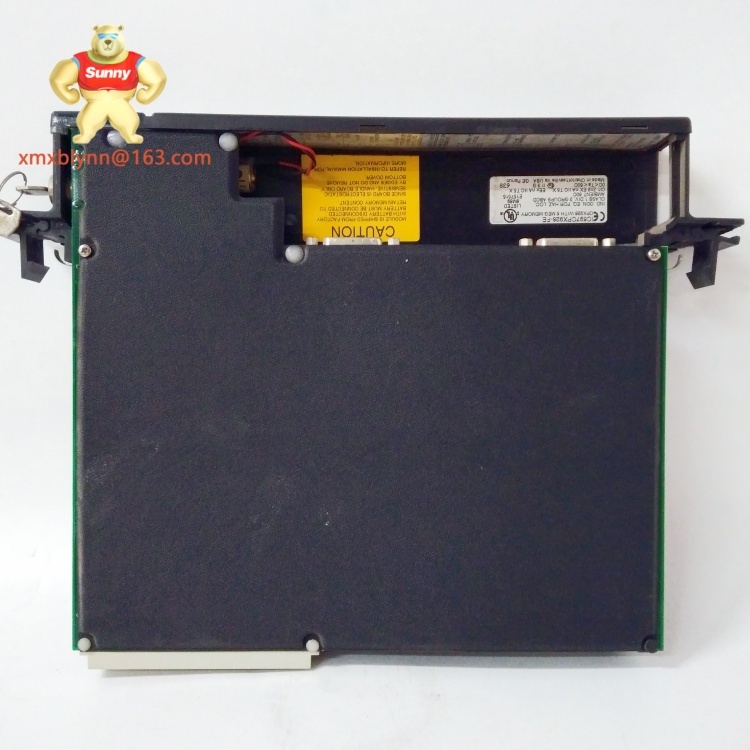

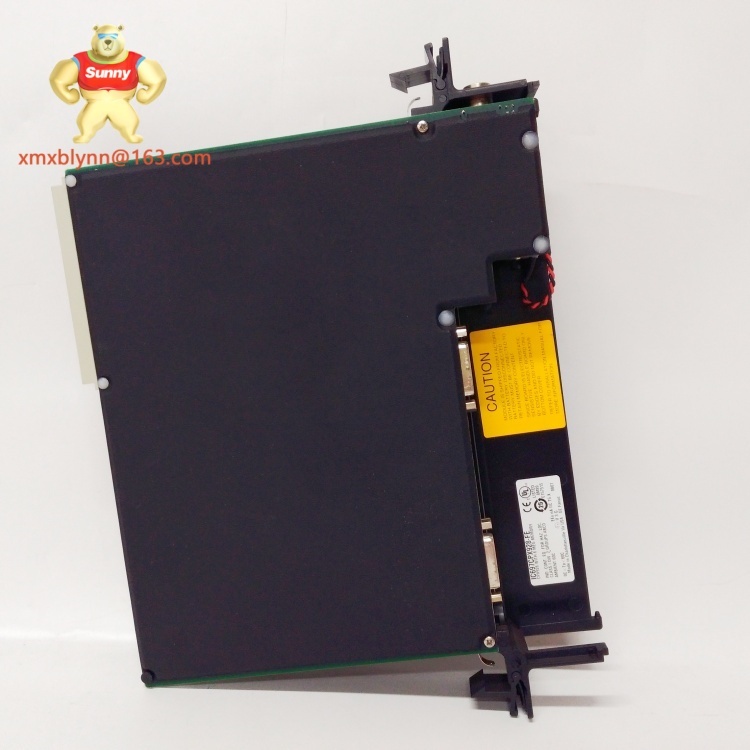

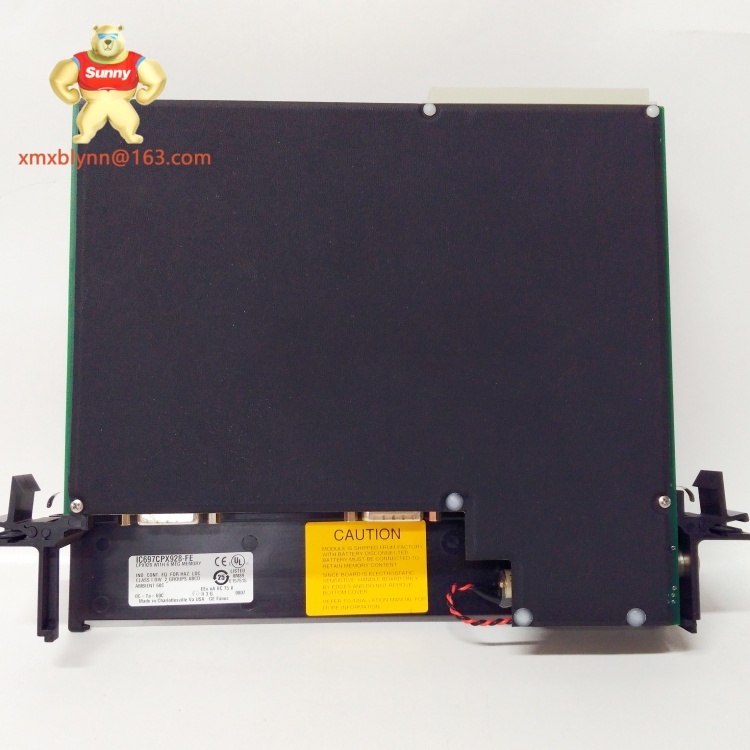

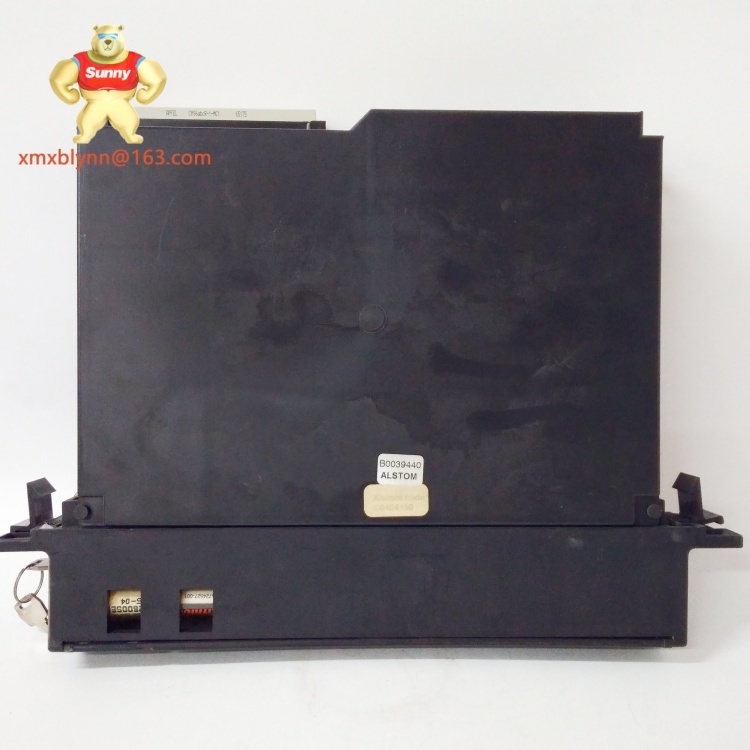

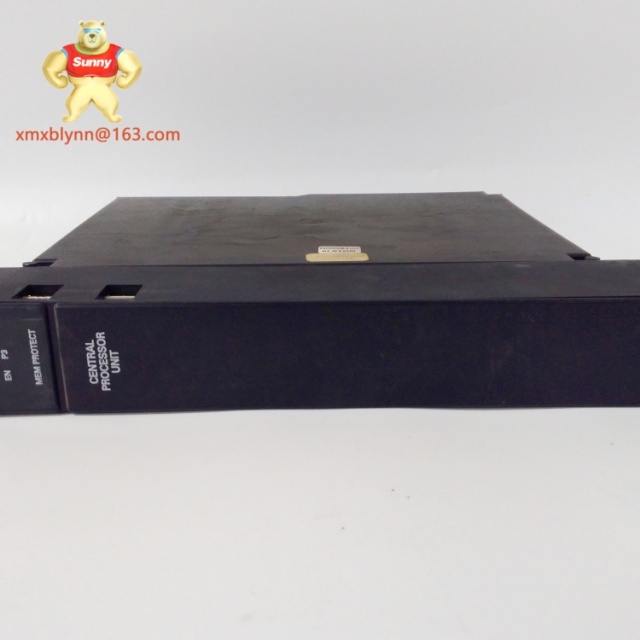

The IC697CPX935-TE is a high-performance processor module designed as the central computing hub for GE’s 90-70 Programmable Logic Controller (PLC) system, engineered to handle complex industrial control tasks with precision and reliability. As a flagship component in the 90-70 series, IC697CPX935-TE serves as the decision-making core, executing advanced control logic, processing real-time data from I/O modules, and facilitating seamless communication across interconnected systems.
What distinguishes IC697CPX935-TE is its enhanced processing capabilities and rugged design, tailored for demanding environments where operational continuity is critical. It supports large-scale program execution and integrates specialized features—likely indicated by the "TE" suffix—such as extended timing functions or enhanced environmental resilience, making it ideal for applications requiring both speed and durability. Compatible with the full range of 90-70 modules, IC697CPX935-TE enables flexible system design, allowing users to scale operations or upgrade existing setups without compromising performance. Its ability to bridge legacy and modern automation architectures further solidifies its role as a versatile solution for evolving industrial needs.
Technical Specifications
| Parameter |
Value |
| Product Model |
IC697CPX935-TE |
| Manufacturer |
GE |
| Product Type |
Advanced PLC Processor Module (90-70 Series) |
| Processing Speed |
66 MHz 32-bit RISC processor |
| Memory |
16 MB RAM, 8 MB EEPROM (user program storage) |
| Communication Ports |
2 x Ethernet (10/100 Mbps), 1 x RS-232 |
| Supported Protocols |
Modbus RTU/IP, Ethernet/IP, GE SRTP, Profibus DP |
| Power Requirements |
5V DC ±5% (via 90-70 backplane) |
| Operating Temperature |
-20°C to 70°C (-4°F to 158°F) [extended range] |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Dimensions |
110mm (L) x 85mm (W) x 28mm (H) |
| Weight |
Approx. 220g |
| Compatibility |
GE 90-70 backplanes (IC697CHS791, IC697CHS792) |
| Certifications |
UL 508, ATEX, IECEx, RoHS compliant |
Key Features and Benefits
The IC697CPX935-TE stands out for its exceptional processing power, driven by a 66 MHz 32-bit RISC processor that executes up to 20,000 instructions per millisecond. This speed enables it to handle complex control logic—such as multi-axis synchronization in manufacturing lines or dynamic load balancing in power systems—with minimal latency, ensuring precise, real-time responsiveness.
Its expanded memory (16 MB RAM, 8 MB EEPROM) supports large user programs, historical data logging, and advanced diagnostic routines, eliminating the need for external memory modules in most applications. This simplifies system architecture and reduces potential failure points, enhancing overall reliability.
Communication versatility is a defining strength of IC697CPX935-TE. It supports a broad range of protocols, including Modbus, Ethernet/IP, and Profibus DP, allowing seamless integration with legacy equipment, SCADA systems, and modern industrial networks. This makes it an ideal bridge for facilities transitioning to smart manufacturing, enabling data flow between older machinery and cloud-based analytics platforms.
The "TE" designation highlights its enhanced environmental resilience: it operates in temperatures ranging from -20°C to 70°C, withstands high vibration, and resists electrical noise—critical for harsh environments like mining sites or outdoor industrial installations. Its plug-and-play compatibility with 90-70 backplanes simplifies installation and upgrades, reducing downtime during system modifications.
Application Scenarios
The IC697CPX935-TE is widely deployed in industries requiring robust, high-performance control in challenging conditions. In mining operations, it serves as the core processor for conveyor belt systems, executing logic that regulates speed, monitors for jams, and coordinates with material loading equipment. Its extended temperature range ensures reliable operation in unheated underground or outdoor facilities, where ambient conditions fluctuate drastically.
In renewable energy plants—such as wind farms—IC697CPX935-TE manages turbine control systems, processing real-time data from anemometers and vibration sensors to optimize blade angles and rotational speed. Its fast processing enables rapid adjustments to wind speed changes, maximizing energy output while protecting equipment from overstress.
Heavy manufacturing facilities, including steel mills, rely on IC697CPX935-TE to control rolling mills. It processes data from pressure and temperature sensors to adjust roller gaps, ensuring consistent material thickness. Its multi-protocol support allows integration with quality control systems, enabling real-time defect detection and automatic process corrections.
Oil and gas pipeline stations also benefit from
IC697CPX935-TE, using it to regulate pump speeds and valve positions. Its rugged design withstands the remote, harsh environments of pipeline routes, while its diagnostic capabilities minimize unplanned shutdowns by alerting operators to potential issues before they escalate.
Related Models
IC697CPX935 – Base model without extended temperature range, suitable for indoor, climate-controlled environments.
IC697CPX930 – Previous generation processor with 40 MHz speed, ideal for medium-complexity control tasks.
IC697CPX940 – Higher-performance variant with 100 MHz processor and 32 MB memory, designed for large-scale systems.
IC697MEM714 – 16 MB memory expansion module compatible with IC697CPX935-TE for ultra-large program storage.
IC697CMM743 – Profibus communication module that enhances IC697CPX935-TE’s connectivity with field devices.
IC697BEM732V – Backplane expansion module allowing IC697CPX935-TE to control additional I/O modules in extended systems.
IC697PWR712 – Heavy-duty power supply optimized for IC697CPX935-TE in high-vibration environments.
IC697CPU788 – Entry-level 90-70 processor, a cost-effective alternative to IC697CPX935-TE for simple logic applications.
Installation and Maintenance
Installing IC697CPX935-TE requires a compatible 90-70 backplane (such as IC697CHS791) with an available processor slot. Ensure the backplane is powered down before insertion to prevent electrostatic damage, and align the module with the guide rails for a secure fit. Proper grounding is critical—connect the backplane’s grounding terminal to the facility’s main ground to minimize electrical interference. The module’s extended temperature rating allows installation in non-climate-controlled areas, but ensure adequate ventilation to avoid heat buildup around adjacent modules.
For maintenance, inspect
IC697CPX935-TE quarterly to verify secure backplane connections; loose contacts can cause communication drops or erratic performance. Clean the module’s surface with a dry, lint-free cloth to remove dust, which can trap heat. Check firmware versions annually via Ethernet and update to the latest release to access performance improvements and security patches. Replace the module every 12–15 years, or sooner if exposed to extreme vibration or voltage spikes, to maintain optimal reliability.
