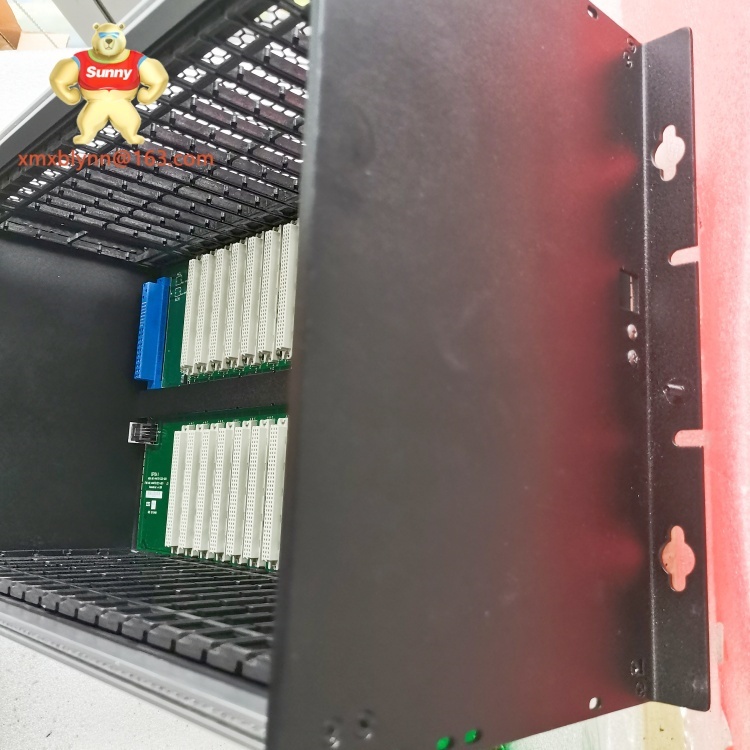

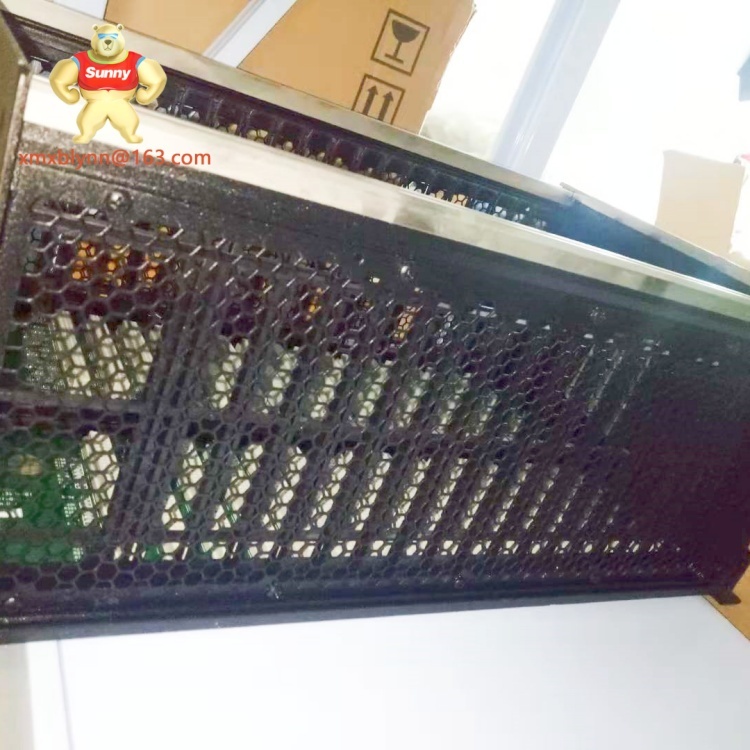

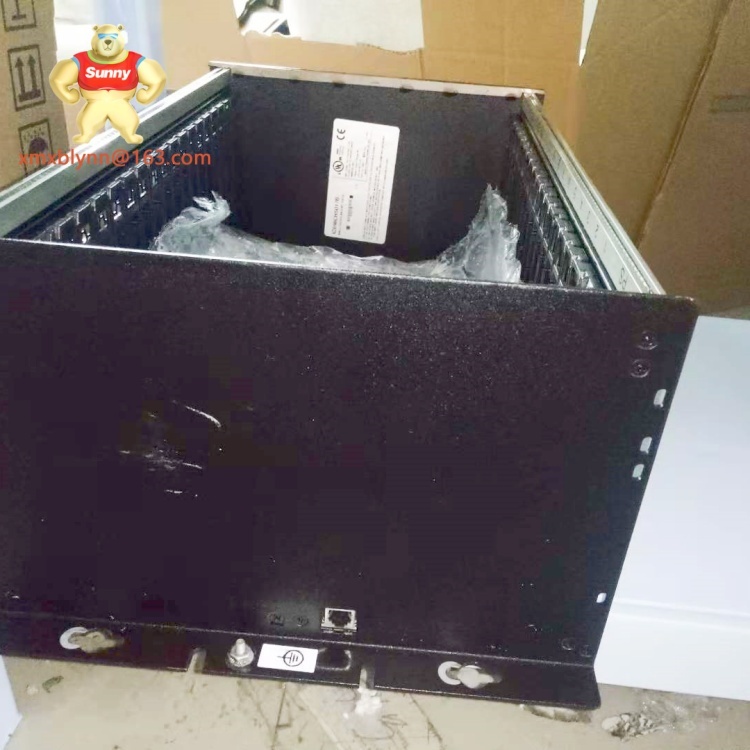

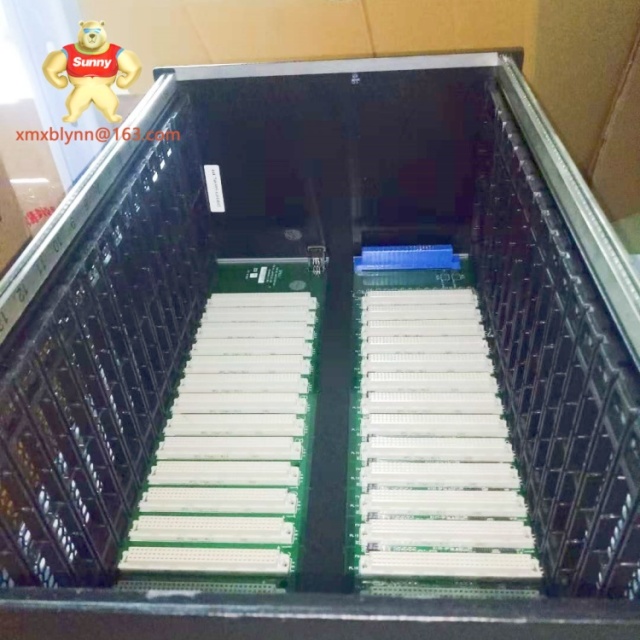

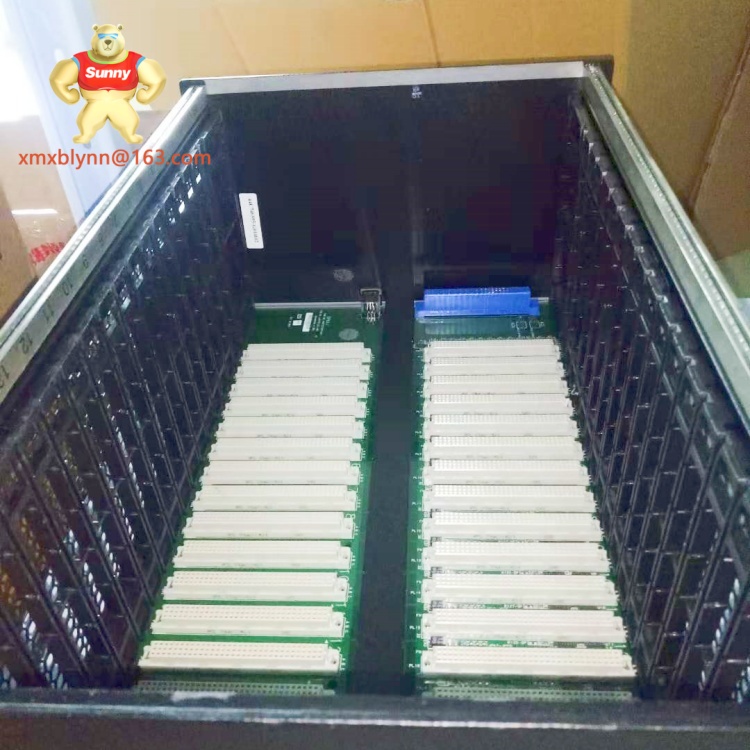

Product Overview
The IC698CHS017 is a robust backplane chassis designed as a foundational component of GE’s 90-80 Programmable Logic Controller (PLC) system, a compact yet powerful automation solution widely used in industrial environments. As a critical structural and connectivity hub, IC698CHS017 provides a standardized platform for housing and interconnecting 90-80 series modules, including processors, I/O modules, communication interfaces, and power supplies.
This chassis is engineered to streamline system integration, with a design that ensures seamless data transfer and power distribution across all installed modules. What distinguishes IC698CHS017 is its balance of compact size and expanded slot capacity, making it suitable for medium-scale automation setups where space is constrained but modular flexibility is essential. Compatible with the full range of 90-80 components, IC698CHS017 allows users to customize control systems to specific operational needs—whether adding I/O points for new sensors or integrating communication modules for network connectivity. Its rugged construction ensures reliable performance in harsh industrial conditions, solidifying its role as a durable backbone for critical control architectures.
Technical Specifications
| Parameter |
Value |
| Product Model |
IC698CHS017 |
| Manufacturer |
GE |
| Product Type |
Backplane Chassis (90-80 PLC Series) |
| Slot Capacity |
17 slots for 90-80 series modules |
| Compatibility |
GE 90-80 PLC modules (processors, I/O, communication, power supplies) |
| Power Distribution |
Supports 5V DC and 24V DC module requirements via integrated bus |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Dimensions |
380mm (L) x 160mm (W) x 100mm (H) |
| Weight |
Approx. 2.1kg |
| Mounting Type |
DIN rail or panel mount (with included hardware) |
| Protection Rating |
IP20 (dust-resistant, indoor use) |
| EMI/RFI Immunity |
Compliant with IEC 61000-6-2 industrial standards |
| Certifications |
UL, CE, RoHS compliant |
Key Features and Benefits
The IC698CHS017 stands out for its optimal slot capacity, offering 17 slots to accommodate a diverse range of 90-80 modules without excessive bulk. This makes it ideal for medium-scale applications—such as packaging lines or material handling systems—where multiple I/O points, a processor, and communication modules are needed, but control cabinet space is limited.
Durability is a defining trait of IC698CHS017. Its reinforced metal frame and precision-machined internal connectors are designed to withstand the vibrations, temperature fluctuations, and electrical noise common in factory floors and industrial facilities. This ruggedness ensures consistent performance over extended lifespans, reducing the need for frequent replacements and lowering long-term operational costs.
Compatibility is another key advantage. IC698CHS017 integrates seamlessly with all 90-80 series components, including the IC698CPU310 processor, IC698I/O201 digital modules, and IC698CMM311 Ethernet cards. This interoperability allows users to leverage existing 90-80 investments while upgrading or reconfiguring systems, avoiding the expense of complete overhauls.
Installation and maintenance are simplified by its intuitive design: modules slide into guide rails with secure locking mechanisms, minimizing connection errors during setup or upgrades. The chassis also features labeled slot indicators, making it easy to map module positions for troubleshooting.
Application Scenarios
The IC698CHS017 is widely utilized in industries requiring reliable, medium-scale control systems. In food and beverage packaging facilities, it serves as the backbone for line control, housing a processor, I/O modules for sensor data (e.g., fill levels, seal integrity), and communication modules linking to SCADA systems. Its 17-slot capacity provides enough room to integrate safety interlocks—critical for compliance with food safety standards—without requiring additional control cabinets.
In pharmaceutical manufacturing, IC698CHS017 supports batch processing systems, housing modules that regulate mixing times, temperature controls, and ingredient dosing. Its rugged design ensures reliability in cleanrooms, where strict environmental controls demand stable equipment performance.
Material handling operations, such as warehouse conveyor systems, rely on IC698CHS017 to coordinate motor drives, position sensors, and sorting mechanisms. Its compact size fits easily into control enclosures mounted near conveyors, reducing cable lengths and signal interference.
Water treatment plants also benefit from
IC698CHS017, using it to house modules controlling filtration units and chemical dosing pumps. Its compatibility with communication modules enables remote monitoring, helping operators adjust processes without on-site visits.
Related Models
IC698CHS008 – Compact 8-slot backplane chassis, ideal for small-scale 90-80 systems with minimal module requirements.
IC698CHS012 – 12-slot variant, balancing capacity and space efficiency for mid-sized applications between 8 and 17 slots.
IC698CHS020 – High-capacity 20-slot chassis, suitable for large-scale 90-80 configurations requiring extensive module integration.
IC698PWR330 – Power supply module specifically designed to pair with IC698CHS017, providing stable 5V/24V DC to connected modules.
IC698CPU310 – 90-80 processor module commonly housed in IC698CHS017 for executing control logic in medium-scale systems.
IC698I/O201 – Digital I/O module frequently integrated into IC698CHS017 to expand input/output capabilities.
IC698CMM311 – Ethernet communication module compatible with IC698CHS017, enabling network connectivity for remote monitoring.
Installation and Maintenance
Installing IC698CHS017 requires a clean, dry environment with adequate space for its 380mm length. It mounts on standard DIN rails or panels using included hardware; ensure the mounting surface can support its 2.1kg weight plus installed modules. Allow at least 75mm of clearance above and below for airflow, as modules generate heat during operation. Proper grounding is critical: connect the chassis’s ground terminal to the system’s main ground bus to minimize electrical noise and enhance surge protection.
For maintenance, inspect IC698CHS017 quarterly. Check that all modules are securely seated—loose connections can cause communication errors or voltage drops. Clean dust from the chassis’s vents with compressed air to maintain cooling efficiency. Verify that slot labels remain legible to simplify troubleshooting. Replace the chassis every 10–12 years, or sooner if exposed to extreme vibration, to ensure the integrity of internal connectors and structural components.
Product Warranty
The IC698CHS017 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., which includes free replacement for units with manufacturing defects or performance issues under normal operating conditions. Our global technical support team provides guidance on installation, compatibility checks, and troubleshooting, ensuring minimal disruption to your operations. We stand behind the quality of IC698CHS017, leveraging our decade of experience in industrial automation to deliver reliable components that meet the demands of your facility. This warranty reflects our commitment to customer satisfaction and confidence in the product’s durability.
