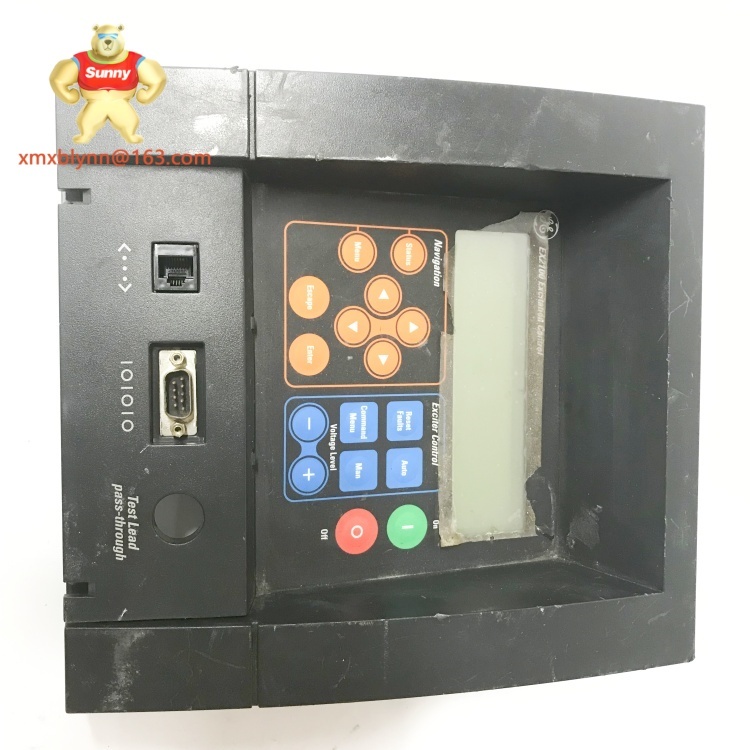

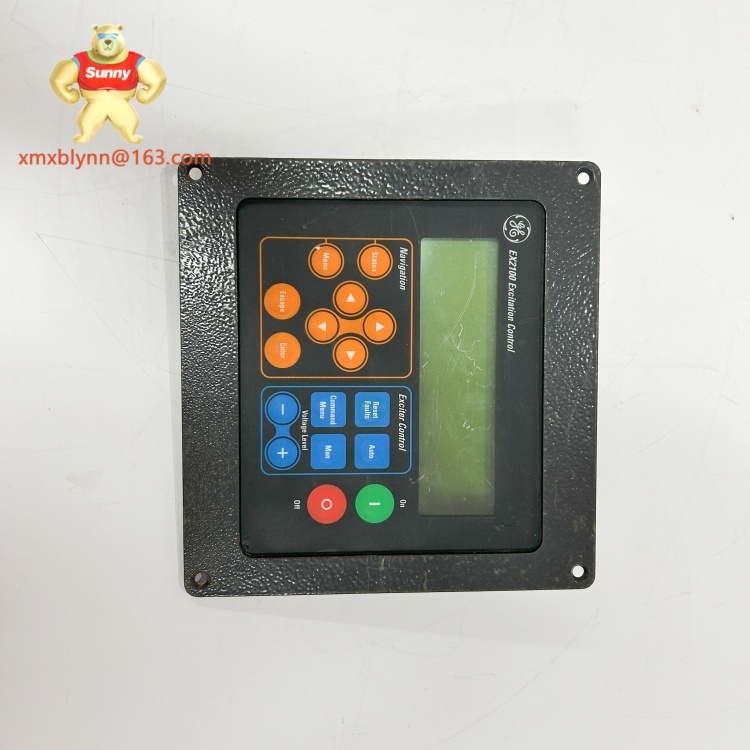

GE IC752SPL014 | HMI Operator Interface Module

Key Features and Technical Specifications

Parameter	Value
Product Model	IC752SPL014
Manufacturer	GE Fanuc
Product Type	HMI Operator Interface Module
Compatibility	GE Series 90-70 PLCs, PACSystems RX7i
Display	6-inch monochrome LCD with backlight, 320 x 240 pixel resolution
Input Method	Keypad and touchscreen (resistive touch technology)
Communication Ports	1 x RS-232/422/485 (programmable), 1 x Ethernet (10/100 Mbps)
Supported Protocols	Modbus RTU/TCP, Ethernet/IP, DF1, Profibus DP (via add-on modules)
Processor	32-bit RISC processor, 200 MHz
Memory	64 MB RAM, 128 MB flash (for application storage)
Power Requirements	24V DC (±10%), 0.5A
Operating Temperature	0°C to 50°C (32°F to 122°F)
Dimensions	190mm x 130mm x 50mm (7.5" x 5.1" x 2.0")
Mounting	Panel-mount or DIN-rail (with adapter kit)
Protection Rating	IP65 (front panel), NEMA 4X

Core Functionality

1. Process Monitoring:
   • Displays real-time data from PLCs, including sensor readings, alarm statuses, and production metrics.
   • Supports trend graphs and historical data logging for process analysis.
2. Control Interface:
   • Configurable touchscreen buttons and sliders for remote parameter adjustment (e.g., setpoints, motor speeds).
   • Built-in recipe management for batch processes (e.g., food processing, pharmaceuticals).
3. Communication Flexibility:
   • Dual communication ports enable simultaneous connection to PLCs, HMIs, and SCADA systems.
   • Ethernet port supports remote diagnostics and firmware updates via GE’s Proficy Machine Edition software.
4. Rugged Design:
   • IP65-rated front panel resists dust, moisture, and mild chemicals, suitable for harsh industrial environments.
   • Shock and vibration resistance (IEC 60068-2-6) ensures reliability in high-vibration settings like manufacturing floors.

Application Scenarios

• Manufacturing:
  • Monitoring conveyor systems, adjusting oven temperatures in food processing, or configuring robotic arms in automotive assembly.
  • Example: A plastics extrusion line uses the IC752SPL014 to visualize melt pressure and temperature data, allowing operators to optimize screw speed and cooling rates.
• Oil and Gas:
  • Supervising pump stations, controlling valve positions in pipelines, or monitoring wellhead pressures.
  • Example: In a refinery, the module displays real-time flow rates and alarms for a distillation column, enabling rapid response to deviations.
• Water/Wastewater Treatment:
  • Managing pump cycles, adjusting chemical dosing systems, or tracking filtration efficiency.
  • Example: A wastewater plant uses the IC752SPL014 to monitor pH levels and activate corrective measures in real time.
• Power Generation:
  • Monitoring turbine performance, managing generator load balancing, or visualizing power distribution grids.
  • Example: A solar farm uses the module to display energy production metrics and trigger maintenance alerts for underperforming inverters.

Related Models

• IC752WFC555-EC: Enhanced version with color touchscreen and extended memory for complex HMI applications.
• IC754VSI12CTD: 12-inch color HMI with multi-touch support, ideal for large-scale process visualization.
• IC752PBI100: Profibus DP communication module for seamless integration with European-standard industrial equipment.
• IC752SPL013: Keypad-only variant for applications requiring minimal operator interaction.

Installation and Maintenance

• Mounting:
  • Panel-mount using the included bezel (cutout dimensions: 172mm x 112mm) or DIN-rail with an optional adapter kit.
  • Ensure adequate ventilation (20mm clearance at the rear) to prevent overheating.
• Wiring:
  • Power connections: 24V DC (polarity-sensitive).
  • Communication cables: Shielded twisted pair for RS-485; Cat5e for Ethernet.
• Calibration:
  • Touchscreen calibration is performed via GE’s QuickPanel Configuration Tool to ensure accurate input response.
• Firmware Updates:
  • Regular updates (annually recommended) are applied via Ethernet using Proficy Machine Edition to address security patches and add new features.
• Maintenance Checks:
  • Inspect screen for scratches or delamination quarterly.
  • Clean the touchscreen with a non-abrasive cloth and isopropyl alcohol.
  • Replace the module after 8–10 years of heavy use to maintain performance.
