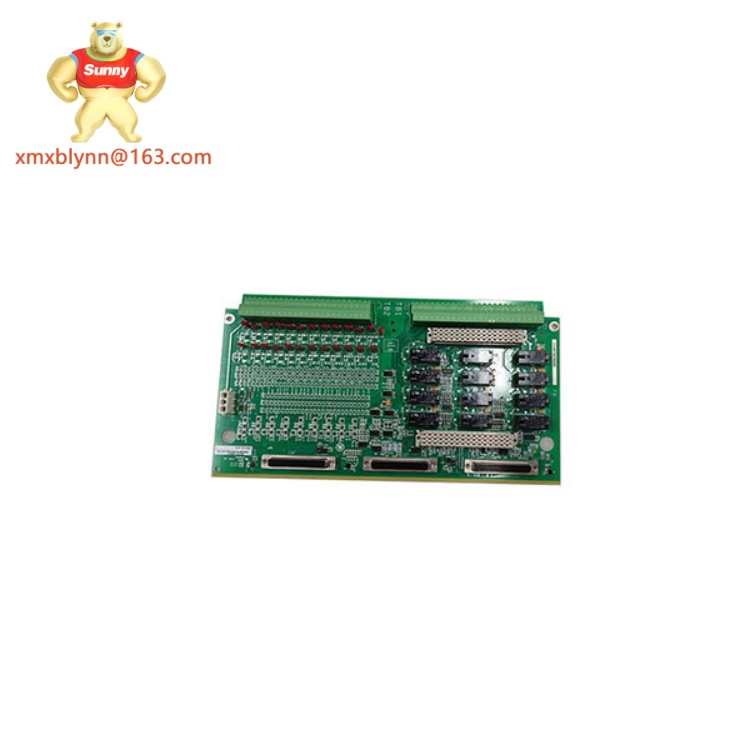

The GE IS200TDBTH6ACD is a dedicated temperature input interface module engineered for use in GE/IC200-class and compatible industrial control racks and skids. Designed to gather high-integrity temperature data from thermocouples and temperature transmitters, the GE IS200TDBTH6ACD converts raw sensor signals into conditioned, isolated process measurements suitable for closed-loop control, alarming and historian logging. Its compact, rugged design fits into distributed I/O bays or local control panels and is intended where reliable temperature acquisition — with straightforward wiring and clear diagnostics — directly improves process stability and safety.
Typical deployments position the GE IS200TDBTH6ACD at the instrumentation boundary: close to field sensors to shorten thermocouple runs, reduce noise, and preserve measurement fidelity. The module’s channel density and isolation strategy let engineers consolidate multiple temperature points without compromising common-mode rejection or safety separation, and its diagnostic outputs make it simpler to find failing sensors or broken thermocouple circuits before they affect a control loop. For retrofit projects and phased upgrades, the GE IS200TDBTH6ACD is often chosen because it brings modern temperature handling into existing GE racks with minimal mechanical or software changes.
Xiamen Xiongba E-commerce Co., Ltd. Branch supplies tested units of GE IS200TDBTH6ACD with comprehensive technical support and a one-year replacement warranty. As a specialist in distributed control system parts and industrial automation spare parts, Xiongba combines global sourcing for MVME/IC800/IC200 modules, Anybus converters and PLC/DCS interfaces — useful when integrating GE IS200TDBTH6ACD alongside ABB I/O modules or ABB AC 800M parts during staged system renewals.
| Parameter | Value |
|---|---|
| Product Model | GE IS200TDBTH6ACD |
| Manufacturer | GE / GE Automation |
| Product Type | Temperature Input Module (Thermocouple / RTD-capable) |
| Channels | 6 thermocouple or temperature-input channels |
| Supported Sensors | Thermocouples (types J, K, T, E, N), configurable RTDs |
| Isolation | Channel-to-channel galvanic isolation (safety-rated) |
| Conversion Resolution | Typically 16-bit equivalent processing (sensor dependent) |
| Sampling Rate | Up to several samples/sec per channel (typical) |
| Accuracy | Typical process-grade accuracy (refer to datasheet) |
| Input Protection | Surge and reverse-polarity protection on sensor inputs |
| Mounting | IC200/IS200 rack or DIN-rail compatible adapter |
| Operating Temperature | -20 °C to +70 °C (industrial range) |
(Values above summarize common SKU capabilities. For exact electrical limits, wiring pinouts and sensor tables for your specific GE IS200TDBTH6ACD unit, request the manufacturer datasheet or contact Xiamen Xiongba for the verified sheet.)
The GE IS200TDBTH6ACD focuses on trustworthy temperature acquisition and serviceability. Supporting common thermocouple types and RTD inputs, it minimizes field conversion work by providing flexible input configuration at the module level. The presence of per-channel isolation reduces the chance of ground loops and improves noise immunity — a tangible advantage in electrically noisy plants such as metalworking, pulp & paper, or chemical processing. By handling sensor linearization and cold-junction compensation onboard, the GE IS200TDBTH6ACD delivers ready-to-use process values to the host controller, shortening commissioning time and simplifying control logic.
Diagnostics are a practical differentiator. The module reports open-sensor conditions, out-of-range measurements and internal health faults, enabling fast fault isolation during daily rounds or remote monitoring. For operations teams, that means quicker response to sensor failures and fewer unscheduled stops. The aggregated channel density lowers panel footprint and reduces wiring bulk compared with single-point transmitters, which in turn cuts material and labor costs during builds or retrofits.
Integration is straightforward: the GE IS200TDBTH6ACD is designed to operate within established GE I/O ecosystems and is mechanically compatible with common IC200/IS200 racks. That compatibility helps integrators replace aging analog terminals with a modern, safer module without extensive rework. The module’s robust input protection and industrial temperature rating make it resilient in the field; combined with its diagnostic richness and channel consolidation, the GE IS200TDBTH6ACD reduces total cost of ownership while improving control accuracy — a measurable benefit for process engineers who need repeatable temperature control for quality and efficiency.
The GE IS200TDBTH6ACD is well suited to processes where accurate temperature monitoring across many points is mission-critical. In chemical reactors and polymer extruders, it reads multiple thermocouples along a reaction or barrel to drive cascaded PID loops; tight, reliable temperature feedback from GE IS200TDBTH6ACD helps maintain product consistency and prevents hotspot damage. In boiler and steam systems the module measures drum, economizer and superheat temperatures, enabling safe sequencing and efficient combustion control where false readings could cause trips or poor fuel economy.
In food & beverage and pharmaceutical lines, the GE IS200TDBTH6ACD provides the validated temperature inputs needed for regulatory process records and for controlling pasteurization or sterilization steps. OEM skid builders use the module on packaged process skids to centralize temperature inputs and simplify factory acceptance testing, while utilities and HVAC systems deploy it for accurate chilled-water and heat-exchanger monitoring. For retrofit projects on long-life DCS assets, pairing GE IS200TDBTH6ACD with modern host controllers gives precise temperature acquisition without dismantling existing racks, making it a pragmatic choice when budget or downtime constraints preclude full platform replacement.
IS200TDBTH6ACD-V2 — Revision with improved surge protection and updated firmware for enhanced diagnostics.
IS200RTD8ACD — RTD-focused variant offering 8 RTD channels for applications needing higher RTD channel counts.
IS200TC4ACD — Lower-density thermocouple card for smaller installations with 4 channels.
IS200AI8ACD — General analog input module often paired with temperature modules for mixed I/O cabinets.
IS200COMM — Communication gateway module to link IC200/IS200 racks to modern fieldbuses or Ethernet networks.
IS200PWR — Local power supply / distribution module recommended when multiple IS200 modules populate a cabinet.
IS200HDR — DIN-rail mounting adapter and terminal assembly packaged for easy field wiring and maintenance.
Install the GE IS200TDBTH6ACD into a clean, grounded control cabinet or into the native IS200/IC200 rack per the host platform’s mechanical and electrical guidelines. Verify that the backplane or local power supply meets the module’s current draw and that cabinet cooling keeps ambient temperatures within the module’s rated range. Route thermocouple and RTD leads using shielded, grounded cable where long runs or electrical noise sources are present; separate sensor runs from power cables and terminate shields at one end to reduce ground loop effects. Label each channel clearly and document cold-junction locations to make later troubleshooting straightforward.
For maintenance, rely on the module’s diagnostics to identify open sensors, out-of-range values or communication problems; perform a baseline verification after installation and again following any mechanical work that disturbs wiring. Periodically exercise channels during planned outages to confirm end-to-end integrity (sensor → wiring → module → host). Replace any thermocouples or RTDs that show intermittent readings rather than attempting repeated on-module adjustments. Keep a tested spare GE IS200TDBTH6ACD on site for critical loops to minimize mean time to repair, and record the unit’s firmware and part number so replacements match the installed configuration.
Xiamen Xiongba E-commerce Co., Ltd. Branch provides a one-year warranty and free replacement service for the GE IS200TDBTH6ACD units sold through our channel. This warranty covers defects in materials and workmanship under normal industrial use and includes technical guidance during fault diagnosis and replacement logistics. Please note that warranty coverage is provided by Xiamen Xiongba and is separate from any OEM (GE) factory warranty; customers requiring direct OEM service should arrange that through GE. To request support or initiate a warranty case for GE IS200TDBTH6ACD, supply the part number, serial number and a brief description of observed symptoms so our team can respond quickly and reduce downtime.
