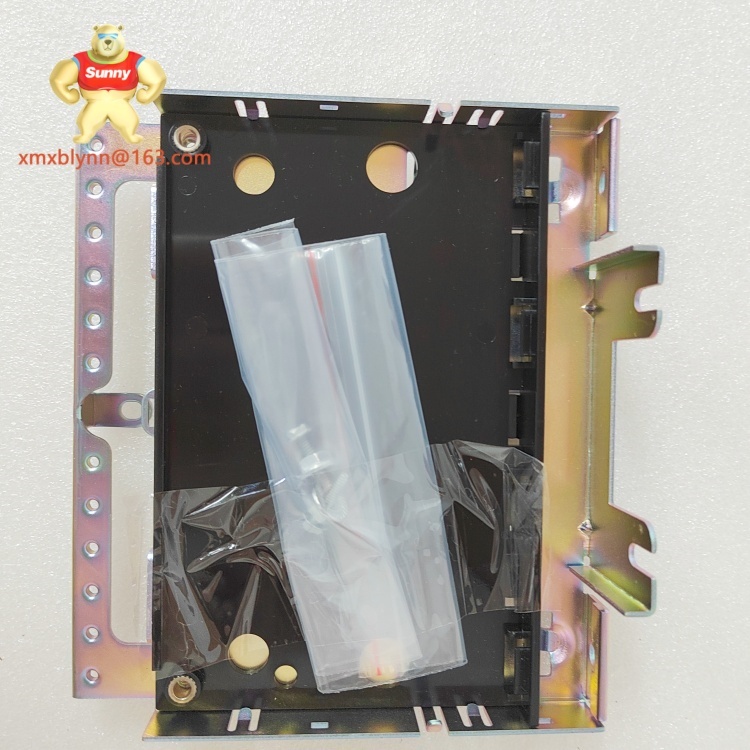

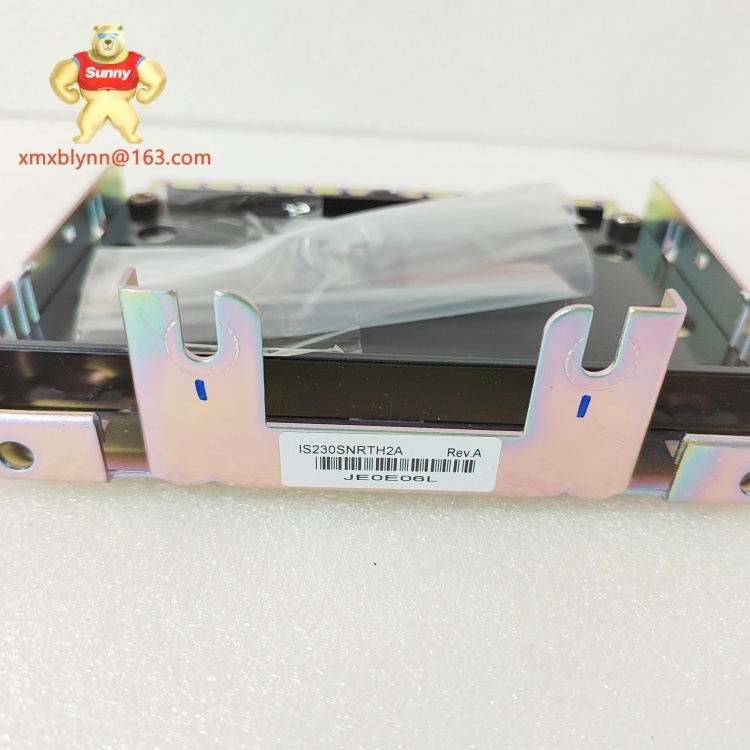

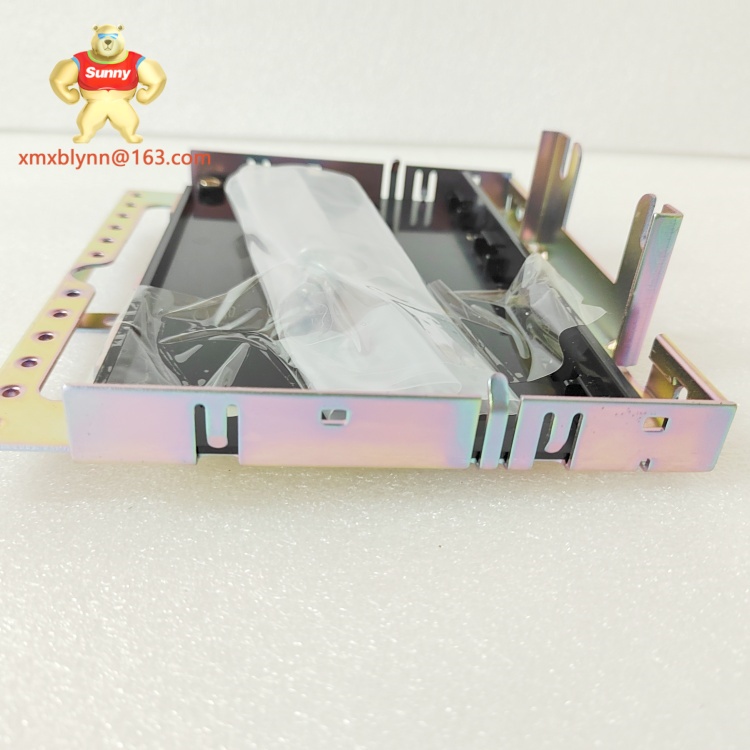

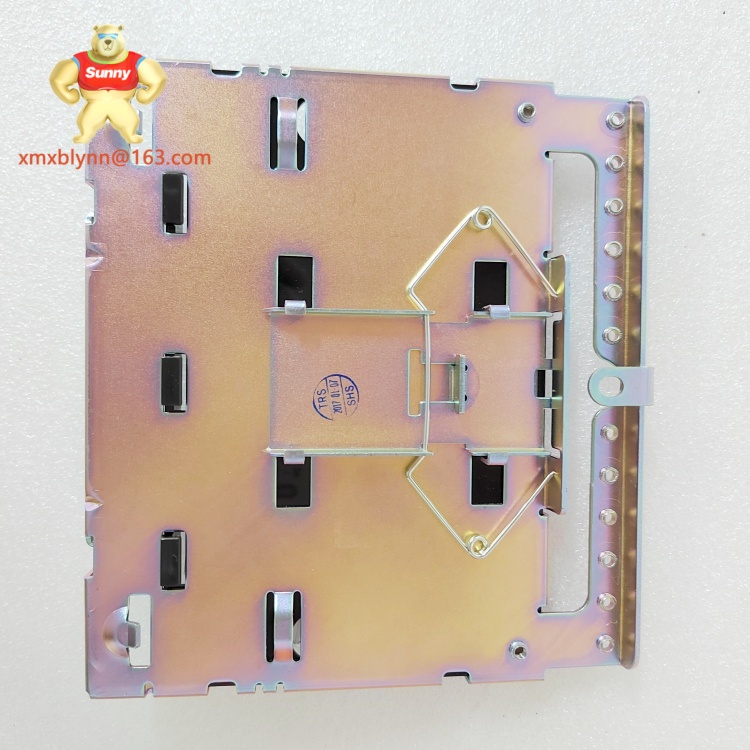

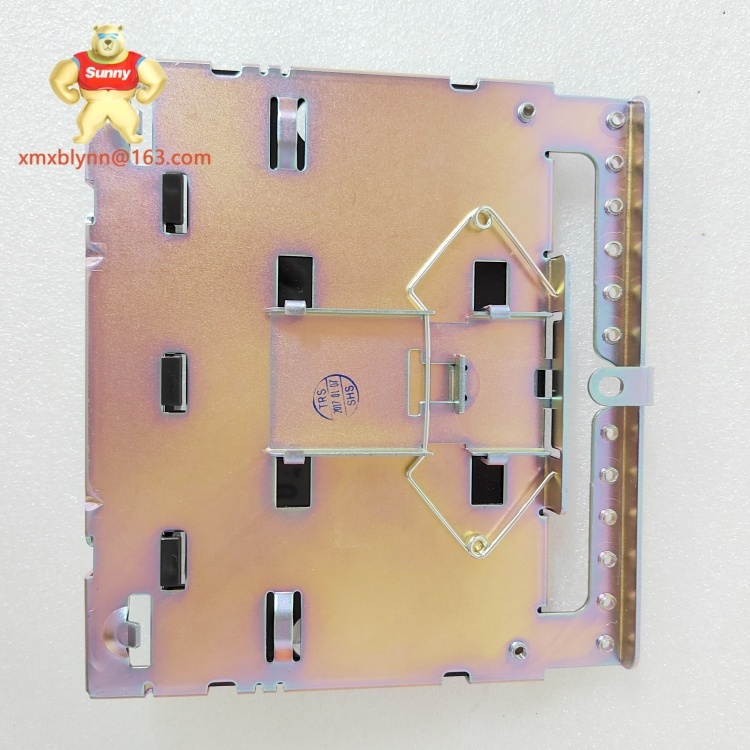

The GE IS230SNRTH2A is a high-precision RTD (Resistance Temperature Detector) input module designed for GE’s Mark VIe Distributed Control System (DCS), specializing in real-time temperature monitoring and data acquisition for critical industrial processes. As a core component in gas and steam turbine control systems, this module translates analog resistance signals from RTD sensors into digital values, enabling accurate temperature measurement of turbine bearings, lubrication systems, and exhaust manifolds. Its DIN rail-mount design and rugged construction make it ideal for harsh environments in power generation, oil & gas, and heavy manufacturing, where reliable temperature monitoring is essential for equipment safety and efficiency.
Within the Mark VIe ecosystem, the GE IS230SNRTH2A supports up to four independent RTD inputs, compatible with PT100, PT500, and other common RTD types, providing ±0.1°C accuracy across a wide temperature range . Its built-in signal conditioning filters out electromagnetic interference, ensuring stable readings even in proximity to high-voltage equipment. The module communicates seamlessly with Mark VIe controllers via dual redundant Ethernet ports, enabling real-time data transmission to the control room for predictive maintenance and process optimization. What sets this module apart is its ability to integrate with GE’s Bently Nevada 3500 series protection system, meeting API 670 standards for reciprocating compressor applications and offering SIL 3-rated safety features for mission-critical environments .
| Parameter |
Value |
|
| Product Model |
GE IS230SNRTH2A |
|
| Manufacturer |
GE (now part of Emerson Automation Solutions) |
|
| Product Type |
RTD Input Module (Mark VIe DCS) |
|
| Input Channels |
4 x RTD (PT100, PT500, etc.) |
|
| Accuracy |
±0.1°C (at 25°C) |
|
| Resolution |
16-bit |
|
| Communication Protocols |
Ethernet (Dual-port), RS-485 |
|
| Operating Voltage |
24V DC (±10%) from Mark VIe backplane |
|
| Power Consumption |
5W (max) |
|
| Operating Temperature |
-40°C to +70°C |
|
| Storage Temperature |
-40°C to +85°C |
|
| Mounting Method |
DIN rail (35 mm standard) |
|
| Dimensions (HxWxD) |
125 mm x 90 mm x 160 mm (4.9 in x 3.5 in x 6.3 in) |
|
| Weight |
0.6 kg (approx.) |
|
| Certifications |
CE, UL, CSA, API 670, SIL 3 (pending confirmation) |
|
The GE IS230SNRTH2A delivers unparalleled accuracy in temperature monitoring, supporting four RTD inputs with 16-bit resolution to detect even minor thermal fluctuations in turbine components. Its dual Ethernet ports ensure redundant communication with the DCS, maintaining data integrity during network outages—a critical feature for 24/7 power plants . The module’s wide operating temperature range (-40°C to +70°C) and conformal-coated PCB protect against moisture, dust, and vibration, making it suitable for offshore platforms and high-vibration industrial settings .
Advanced diagnostics continuously monitor sensor health, alerting operators via the Mark VIe HMI to issues like open circuits or signal drift. This proactive fault detection reduces troubleshooting time by up to 30%, while auto-calibration capabilities simplify maintenance and ensure long-term measurement reliability . The GE IS230SNRTH2A also supports hot-swapping, allowing replacement during operation without disrupting processes, which is vital for minimizing downtime in refineries or manufacturing lines.
In a combined-cycle power plant, the GE IS230SNRTH2A monitors temperatures of gas turbine bearings and steam turbine casings. By integrating with the Bently Nevada 3500 system, it triggers protective shutdowns if bearing temperatures exceed safe limits, preventing catastrophic mechanical failure . The module’s high accuracy ensures optimal turbine efficiency by adjusting fuel injection rates based on real-time exhaust temperature data.
Oil refineries employ the GE IS230SNRTH2A in crude distillation units to monitor heat exchanger temperatures. Its 4–20mA output signals adjust cooling water flow rates, maintaining process stability and reducing energy consumption by 15–20%. The module’s SIL 3-rated safety features also ensure compliance with rigorous industry standards for hazardous environments .
Manufacturing facilities use the
GE IS230SNRTH2A in extrusion lines to monitor barrel temperatures of plastic processing machines. By providing precise temperature feedback to the Mark VIe controller, it optimizes material viscosity, improving product quality and reducing scrap rates by 25% compared to legacy analog systems .
- GE IS220PRTDH1B – Earlier RTD input module with basic functionality, compatible with older Mark VI systems.
- GE IS230SNRLH2A – Discrete output relay module that pairs with the GE IS230SNRTH2A for temperature-based control actions.
- GE IS210SNRTH1A – Previous generation module with limited input channels and no Ethernet connectivity.
- GE Bently Nevada 3500/42M – Vibration monitoring system that integrates with the GE IS230SNRTH2A for comprehensive turbine health assessment.
- GE IS220PAICH1A – Redundant power supply module ensuring continuous operation of the GE IS230SNRTH2A.
Installing the GE IS230SNRTH2A involves mounting it on a 35 mm DIN rail within a Mark VIe control panel, ensuring secure connections to the backplane. Shielded twisted-pair cables should be used for RTD wiring to minimize noise, with proper grounding to reduce electromagnetic interference. Configure the module via GE’s Control System Toolbox, selecting the RTD type (e.g., PT100) and communication parameters (e.g., baud rate for RS-485).
For maintenance, monthly inspections should verify LED status indicators and check for loose terminal connections, particularly in high-vibration environments. Quarterly firmware updates ensure compatibility with the latest Mark VIe software releases, while annual calibration using a precision RTD simulator confirms measurement accuracy. The
GE IS230SNRTH2A has a typical service life of 10–12 years, with capacitors recommended for replacement every 8 years in corrosive or high-humidity settings.
The GE IS230SNRTH2A is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering manufacturing defects with a free replacement service. As a global supplier specializing in industrial automation, we source directly from certified partners to ensure genuine GE components that meet OEM standards. Our technical team provides 24/7 support for installation, RTD calibration, and diagnostic troubleshooting, helping customers maintain peak performance in mission-critical temperature monitoring applications. This warranty, combined with the module’s rugged design and API 670 compliance, ensures reliable turbine protection and process optimization across industries.
