Product Overview

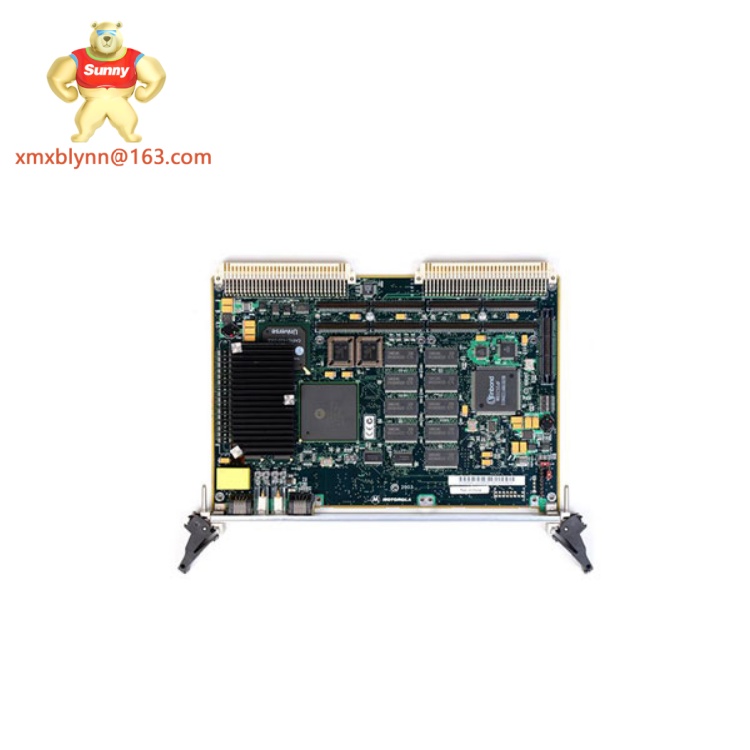

The GE MVME2400 is a high-performance VME processor module designed for embedded industrial computing and control applications where compactness, field-proven reliability and modular expansion matter. Based on the PowerPC architecture, the GE MVME2400 integrates a PowerPC 750-class CPU with on-board ECC memory, flash firmware storage, a realtime clock and dual PMC expansion slots, allowing engineers to add Ethernet, serial, analog and specialized I/O through industry-standard PMC cards. As a single-slot VME CPU card, the GE MVME2400 typically serves as the compute and communication backbone in small to mid-size VME systems used for process control, machine automation and instrumentation gateways.
In practice the GE MVME2400 is chosen for projects that require a rugged SBC (single-board computer) with native VMEbus support and flexible I/O expansion. Its blend of deterministic performance, onboard diagnostic support and familiar RISC toolchain makes the GE MVME2400 suitable for OEM machines, test racks, imaging systems and embedded SCADA front-ends. For spare-parts strategies and retrofit programs, the GE MVME2400 remains attractive because it preserves existing VME wiring and reduces the engineering effort needed to convert to other architectures.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | MVME2400 |
| Manufacturer | GE (Motorola / Emerson lineage) |
| Product Type | VME Processor Module / Single-Board Computer (SBC) |
| CPU | PowerPC 750 (MPC750 family) |
| Cache | 32 KB I-cache / 32 KB D-cache (L1); 1 MB L2 back-side |
| Memory | ECC SDRAM, typical 32 MB – 512 MB (model-dependent) |
| Flash / Firmware | On-board flash (firmware / boot storage, MB-class) |
| Expansion | 2 × PMC slots (front-panel + P2 I/O), PCI mezzanine options |
| Non-volatile RAM / RTC | NVRAM and battery-backed real-time clock |
| Backplane Interface | VME bus (single-slot VME form factor) |
| Operating Temperature | Typical industrial range, approximately –20 °C to +60 °C |
| Mounting / Power | VME chassis backplane power (standard VME rails) |
Key Features and Benefits
The GE MVME2400 blends a proven PowerPC processor core with VMEbus compatibility and PMC-based modularity to deliver a pragmatic embedded server for control-system tasks. Because it uses the PowerPC 750 family, the board offers predictable, single-threaded performance with a substantive L2 cache that smooths real-time workloads—valuable when deterministic loop timing and consistent interrupt behavior are required. The onboard ECC SDRAM and battery-backed NVRAM add resilience against transient memory errors and preserve configuration and timekeeping across power cycles, improving system reliability in 24/7 operations.
Flexibility is a standout advantage: two PMC slots provide a standardized route to add Ethernet, fieldbus, serial, analog I/O or solid-state storage without redesigning the chassis. That reduces both upfront engineering and long-term spares complexity, because integrators can select off-the-shelf PMCs to meet site-specific I/O needs. The GE MVME2400 also supports standard VME addressing and interrupt conventions, which eases integration into existing VME-based DCS, rack-mounted controllers and instrumentation systems.
From a maintenance perspective, the MVME2400 family typically includes onboard debug/monitor firmware and front-panel indicators to accelerate fault identification during commissioning and service. Its single-slot VME footprint helps conserve rack space while still offering expansion via mezzanine modules—an attractive balance for OEMs and end users who must maximize functionality within restricted panel volumes. Overall, the GE MVME2400 provides a robust, serviceable computing platform that minimizes control-logic changes when upgrading or replacing legacy VME nodes.
Application Scenarios
The GE MVME2400 is widely used where a compact yet expandable embedded controller is needed. In industrial process skids and local control panels it serves as a deterministic controller that collects transmitter data, executes control algorithms and communicates via Ethernet or fieldbus PMC cards to a central DCS. For OEM machinery—such as packaging systems, test equipment and medical imaging appliances—the GE MVME2400 provides onboard processing and modular I/O so vendors can iterate machine variants with minimal hardware redesign.
In retrofit and spare-part strategies for plants with existing VME infrastructure, the GE MVME2400 is a straightforward replacement that preserves backplane wiring and software investment, enabling rapid restoration of service for legacy racks. In lab and R&D environments the module is often used in data-acquisition racks where PMC-based ADC, DAC or high-speed serial cards are required. Its onboard firmware and non-volatile storage also make the GE MVME2400 suitable as an embedded HMI gateway or a secure logging node in SCADA topologies where reliable time-stamped records are important.
Related Models
MVME2431 – Variant in the MVME2400 family with alternate memory and firmware configurations for specific OEM builds.
MVME2432 – Higher-memory or higher-clock variant used where extra RAM or firmware space is required.
MVME2433 – Enhanced option often offered with different PMC routing or factory-loaded firmware.
MVME2402 – Earlier family sibling with comparable VME/PowerPC architecture for drop-in compatibility.
MVME2604 – Higher-performance PowerPC VME CPU for users needing more processing headroom.
MVME5500 – Modern VME SBC alternative when migrating from older PowerPC-based modules to newer architectures.
PMCspan / PMC mezzanine adapters – Companion mezzanine stacks commonly used with MVME2400 to expand PMC capacity.
Installation and Maintenance
When installing the GE MVME2400, ensure the host VME chassis provides proper backplane power and cooling for continuous operation. Mount the board into an appropriate single-slot position, confirm that any PMC cards are correctly seated and that P2 I/O wiring follows the selected PMC pinout conventions. Observe anti-static handling, connect the battery-backed NVRAM/RTC per manufacturer guidance, and verify firmware/boot settings before placing the unit into production. Proper chassis earthing and separation of analog cabling from high-frequency power runs will reduce noise and ensure consistent analog and serial performance.
For maintenance, use the onboard diagnostic monitor and status LEDs to isolate faults early. Maintain configuration backups of firmware images and keep a tested spare board (matching hardware/firmware revision) in stock for critical installations. Periodically check and, if applicable, replace the RTC battery per the recommended interval; inspect connectors and PMC modules for corrosion or loose seating during scheduled outages. When replacing modules, restore configuration from backups to minimize commissioning time and validate firmware revisions against site software standards.
Product Warranty
Xiamen Xiongba E-commerce Co., Ltd. Branch supplies the GE MVME2400 with a one-year seller warranty and free replacement service for units purchased through our channel. This warranty, provided by Xiongba, covers defects in material and workmanship under normal operating conditions and is intended to give customers confidence when sourcing new, surplus or refurbished MVME parts. For warranty service please retain purchase documentation and serial numbers; Xiongba’s after-sales team will support troubleshooting, RMA coordination and replacement logistics. With over a decade of experience sourcing industrial automation spare parts—including MVME modules, DCS components and PLC accessories—Xiongba focuses on verified provenance, rapid logistics and responsive support to minimize plant downtime.
