Product Overview

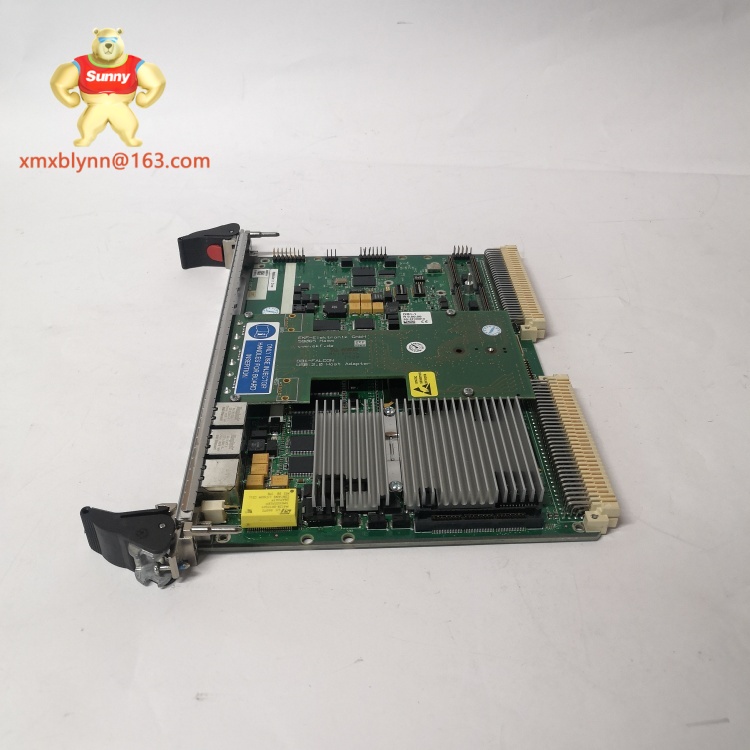

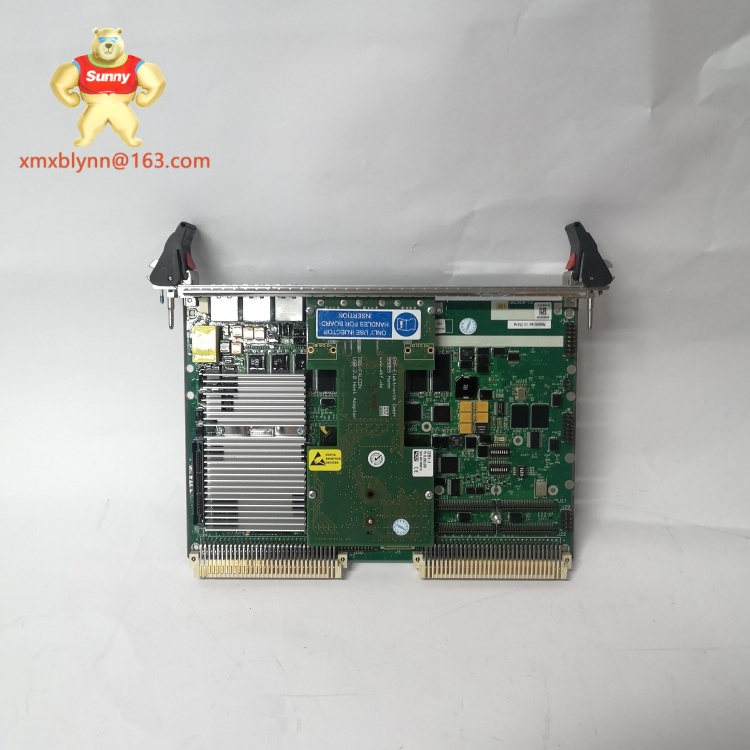

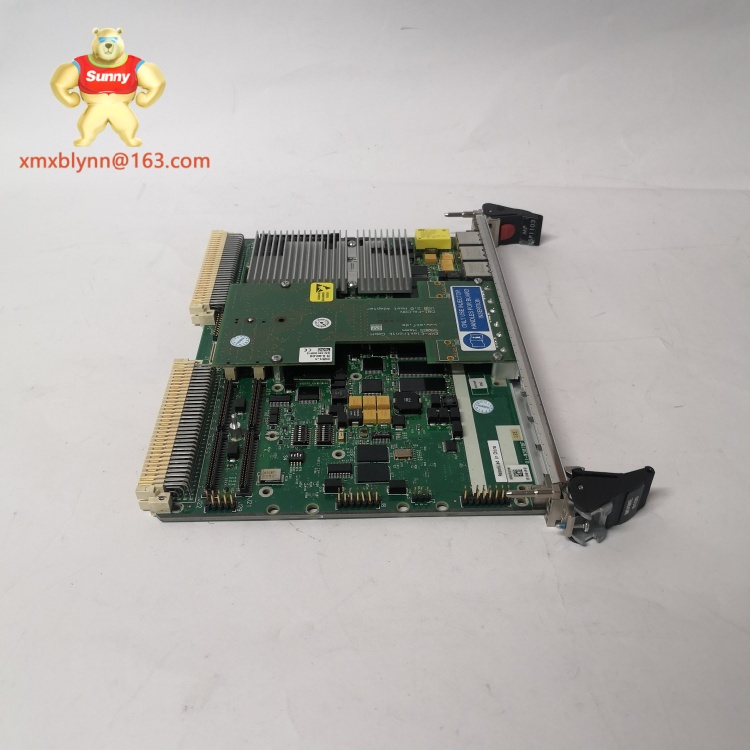

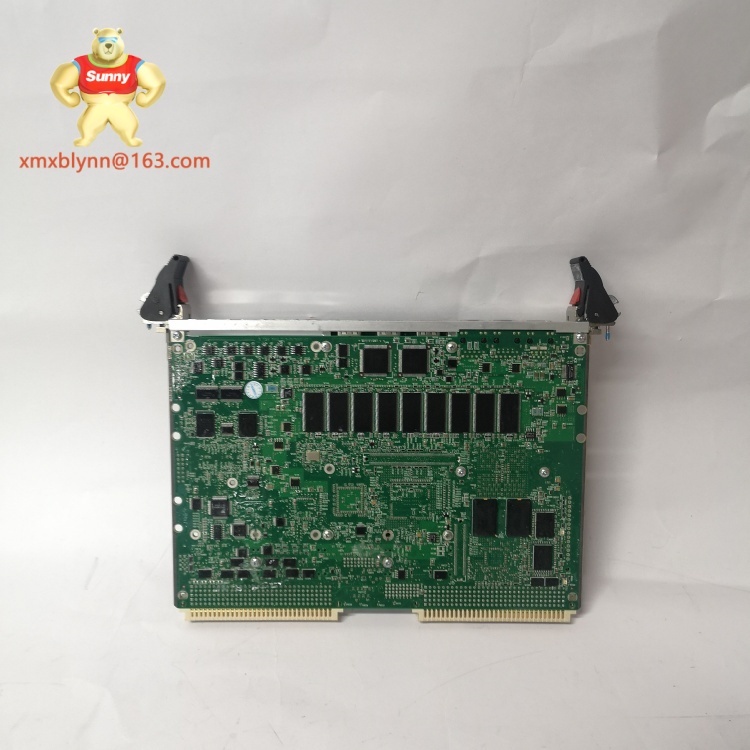

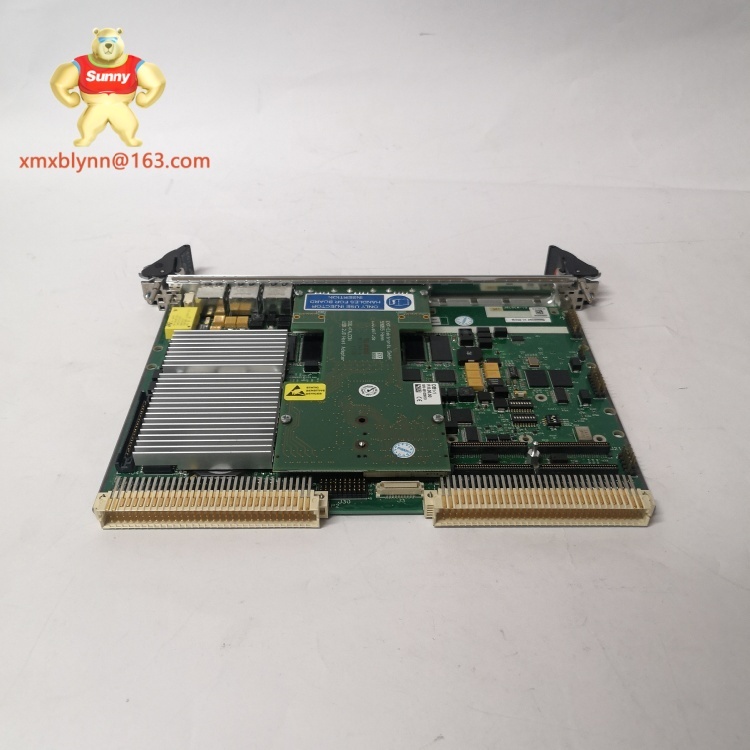

The GE MVME6100 is a high-performance VME single-board computer (SBC) that has been widely adopted as a drop-in processing node for industrial automation, defense, medical imaging and scientific systems. Although typically associated with Motorola/Emerson heritage (the MVME6100 family), many distributors and integrators list it under various vendors’ inventories; the model designation GE MVME6100 is commonly used in second-market and refurbishment channels. The board pairs a PowerPC-class processor with a modern VMEbus interface to deliver a noticeable uplift in I/O throughput, deterministic task scheduling, and field-ready endurance compared with earlier VME CPUs.
Architecturally, the GE MVME6100 centers on a high-speed PowerPC core (MPC7457 family in many variants) with AltiVec vector acceleration and a Tundra Tsi148 VMEbus bridge that implements the 2eSST protocol for practical VMEbus bandwidths approaching 320 MB/s. This combination makes the board a strong candidate where large block transfers, real-time data flow and PCI/PMC expansion are needed. Typical roles include real-time control, data acquisition, protocol bridging, or as a legacy system modernization target that preserves VME backplanes while adding contemporary processor performance and network connectivity. For system integrators who must balance long equipment lifecycles with incremental upgrades, the GE MVME6100 is valuable because it enables higher throughput and modern OS support without discarding existing rack infrastructure.
Beyond raw processing, the GE MVME6100 is designed for industrial deployment: it supports ECC memory options, multiple PMC/X expansion sites for special I/O or communications cards, dual gigabit Ethernet, significant onboard flash for images and boot code, and tested operating envelopes for forced-air cooled cabinets. These characteristics let engineers replace ageing CPU cards with minimal wiring changes while gaining headroom for larger control applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | GE MVME6100 |
| Manufacturer | Motorola / Emerson (commonly marketed and stocked by multiple distributors) |
| Product Type | VME single-board computer (6U form factor) |
| Processor | NXP / Freescale MPC7457 PowerPC with AltiVec (up to ~1.267 GHz in typical variants) |
| Memory | Up to 1 GB DDR ECC (model/option dependent) |
| Flash Storage | 128 MB NOR flash (typical configuration) |
| VME Interface | Tundra Tsi148 VME bridge supporting 2eSST (2-edge source synchronous transfer), practical 320 MB/s |
| Expansion | 2 × PMC-X sites (33/66/100 MHz) or PMC/XMC depending on variant |
| Networking | Dual Gigabit Ethernet (integrated MACs), serial console port(s) |
| Dimensions / Form Factor | 6U VME board, 4HP wide (approx. 233 × 160 × 20 mm) |
| Operating Temperature | 0 °C to +55 °C (forced-air cooling recommended for high loads) |
| Storage Temperature | −40 °C to +85 °C |
| Certifications & Compliance | MIL-STD / NEBS variants exist; commercial and extended temperature options available |
(Specifications vary by exact variant and OEM rebranding; verify the board label and revision before ordering.)
Key Features and Benefits
High bus throughput and modern processor architecture are the principal advantages of the GE MVME6100. With the Tsi148 bridge and 2eSST support, block transfer rates across the VMEbus rise to practical levels that previously required bespoke backplane designs. That means large datasets—such as waveform capture, image frames, or high-speed telemetry—can be moved with fewer CPU stalls and reduced software complexity. Paired with the MPC7457 core and its AltiVec unit, the board handles both scalar control code and vectorized signal processing kernels effectively.
Memory and I/O expansion are also strong points. The GE MVME6100 commonly ships with sizable DDR ECC memory and multiple PMC-X expansion sites. This lets engineers add deterministic I/O, high-precision ADC/DAC modules, or protocol-specific networking cards without changing the core board. The result is a compact, rack-mountable node that performs as both a controller and an intelligent data concentrator.
Network integration and modern OS support broaden use cases. Dual gigabit Ethernet enables reliable separation of control and supervisory networks, and many MVME6100 deployments run real-time kernels such as VxWorks or QNX, or embedded Linux—facilitating modern diagnostics, remote patching, and secure connectivity. For maintenance teams, the board’s on-board flash and serial console simplify image management and recovery, reducing mean time to repair.
Reliability and lifecycle costs matter on the factory floor and in fielded systems. The GE MVME6100 was engineered with industrial tolerances—ECC memory, tested thermal profiles, and vendor-supported rugged variants—so it reduces unscheduled outages. For integrators migrating legacy VME systems, the MVME6100 is a pragmatic investment: it preserves backplane assets while delivering a measurable performance step and longer supportability window.
Application Scenarios
The GE MVME6100 is frequently chosen where legacy VME infrastructures must be preserved but compute or I/O performance must be increased. In power and utility control rooms, the board handles telemetry aggregation, waveform recording, and control logic that must stay deterministic and tightly synchronized across racks. Its large DMA bandwidth makes it suitable for phasor data and fast event capture tasks that accompany modern grid monitoring strategies.
In manufacturing and motion control, the GE MVME6100 can host real-time control loops, offload signal processing tasks (for example, vibration analysis or image pre-processing), and manage multiple fieldbus gateways simultaneously. The PMC expansion capability lets engineers bolt on specialized I/O—encoder interfaces, high-resolution analog cards, or safety I/O—without redesigning the chassis.
Defense, aerospace and medical imaging systems benefit from the MVME6100’s mix of compute and throughput. Imaging arrays and radar front-ends produce streams of raw data that need rapid buffering and deterministic passage to processing nodes; the GE MVME6100 meets those requirements while fitting established VME mechanical and electrical standards.
For brownfield modernization in industries like oil & gas or pulp and paper, the board is a low-risk modernizer: it provides an incremental refresh path where backplane wiring, front-end I/O and certified enclosures remain, but processing, networking and diagnostics are significantly improved. In each scenario, the MVME6100 helps extend asset life and reduces the capital impact of full-system replacements.
Related Models
MVME5500 – Earlier PowerPC-based VME SBC often used as a migration predecessor to higher performance MVME platforms.
MVME5100 – A prior generation VME CPU with PowerPlus architecture that suits moderate compute tasks and simpler I/O needs.
MVME7100 – A later-generation SBC with SoC MPC864x family offering higher core counts and expanded I/O for advanced deployments.
MVME2600 – Compact VME CPU family commonly replaced by MVME5xxx/6xxx boards during refresh programs.
MVME7200 – High-performance successor in some product lines offering dual e600 cores and additional Ethernet ports.
PMC/XMC Carrier Modules – Companion carrier cards that provide rear-transition-module (RTM) routing and more flexible I/O placement for MVME6100 installations.
Tsi148-based VME Bridges – Functional companions when designing custom high-bandwidth backplane systems compatible with the MVME6100’s 2eSST capability.
Each related model or companion module maps to a stage in a migration strategy: older boards that teams replace, or newer boards and carriers that extend capabilities alongside the GE MVME6100.
Installation and Maintenance
Installation preparation requires planning for airflow and grounding. The GE MVME6100 is a 6U VME card that should be fitted into a properly rated, grounded VME chassis with forced-air cooling if operating near the upper temperature envelope. Confirm that the backplane supports 2eSST if you intend to use high-speed VME transfers, and check that any PMC-X modules you plan to add are mechanically compatible with the carrier and clearance in the rack. Provide stable 24 V DC auxiliary power to the chassis per vendor recommendations and segregate control network cabling from power runs to reduce EMI.
For maintenance, keep a validated firmware and boot image repository, and back up configuration files regularly. Inspect connectors and front-panel LEDs during routine checks and record error codes from console logs for trending. Replace batteries or volatile RTC modules on schedule and verify ECC memory health where supported. Store spare GE MVME6100 units in anti-static packaging in a climate controlled area so replacements can be executed quickly. If the system is redundant, practice failover procedures during planned windows to ensure hot-swap and recovery behavior matches expectations.
