The GE SR469-P5-HI-A20 is a compact, panel-mounted motor management relay engineered for comprehensive protection, metering and control of medium- to large-sized electric motors. Built on the proven GE Multilin heritage, the GE SR469-P5-HI-A20 combines thermal and electrical protection algorithms with on-board metering, event logging and multiple analog outputs so a single device can serve both protective and monitoring roles in modern automation systems. In practice this relay sits at the motor control center (MCC) or on a skid, supervising current, detecting unbalance/ground-fault conditions, and issuing fast trips to prevent mechanical damage while also delivering condition data to higher-level control systems.
What makes the GE SR469-P5-HI-A20 particularly valuable is its balance of selective protection, diagnostic clarity and communications flexibility. The unit’s thermal-model-based logic improves overload decisions versus simple time-delay relays, preserving motor life and reducing nuisance trips. At the same time, accessible 4–20 mA outputs and fieldbus-capable communication options allow engineers to integrate motor health signals directly into PLCs, DCS nodes or SCADA historians. That combination—reliable protection logic plus usable process signals—makes GE SR469-P5-HI-A20 a pragmatic choice for brownfield upgrades and new installations where minimizing rewiring and maximizing information are priorities. For procurement and spec sheets it frequently appears in distributed control system parts lists alongside I/O modules and control processors, and it functions well within heterogeneous automation environments that include ABB I/O modules and ABB AC 800M controllers.
| Parameter | Value |
|---|---|
| Product Model | GE SR469-P5-HI-A20 |
| Manufacturer | GE Multilin |
| Product Type | Motor Management / Protection Relay |
| Control Power | 90–300 VDC or 70–265 VAC, 48–62 Hz |
| Current Transformer Secondary | 5 A |
| Analog Outputs | Typically 4 × 4–20 mA |
| Mounting | Panel-mounted |

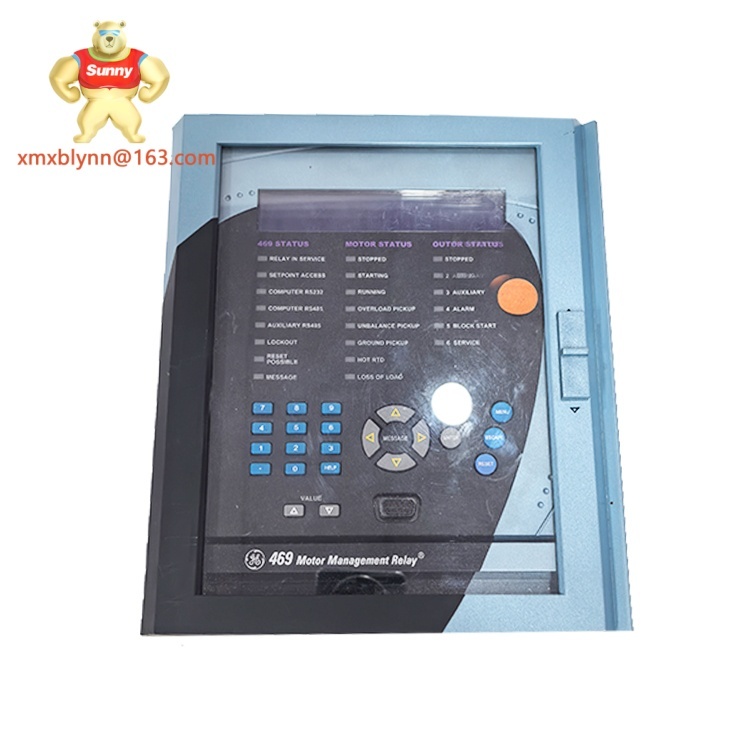

| Display / Interface | Front-panel LCD and keypad |
| Communications | Modbus RTU / Modbus TCP (option dependent) |
| Operating Temperature | −20 °C to +60 °C |
| Protection Rating | IP20 (panel environment) |
| Typical Dimensions (HxWxD) | Approx. 250 × 240 × 35 mm (varies by option) |
The GE SR469-P5-HI-A20 delivers motor protection features tuned for industrial environments while also supplying useful process data for energy management and predictive maintenance. Its protection suite includes instantaneous and definite-time elements, phase-fault and ground-fault detection, locked-rotor and thermal overload modeling. This layered approach provides selective tripping: fast action for catastrophic faults and graduated responses for overload conditions, which reduces unnecessary downtime and helps protect downstream mechanical assets.
Diagnostics are practical and actionable. The relay stores event records and timestamps, offers waveform capture for post-trip analysis, and exposes trending via 4–20 mA outputs so motor-load behavior can be archived in a historian or used by a PLC for alarm thresholds. For teams implementing condition-based maintenance, that visibility shortens troubleshooting time and prioritizes interventions where they matter most.
Integration flexibility is another advantage. With fieldbus and Ethernet options available, the GE SR469-P5-HI-A20 can be integrated directly into PLC and DCS networks without complicated protocol conversion, simplifying commissioning and ongoing monitoring. This means the relay can coexist with a plant’s existing ABB I/O modules or be listed alongside other distributed control system parts during procurement. Mechanical and electrical build quality reflects industrial expectations: terminal blocks sized for higher torque, vibration-resistant components, and thermal margins suitable for pump stations, compressors and other continuous-duty applications.
Finally, the model’s modular options—analog channel counts, communication modules and ingress variants—let specifiers match capability to need without overpaying for unused features. For buyers focused on industrial automation spare parts, the GE SR469-P5-HI-A20 offers a compact way to consolidate protection, metering and communications at the motor edge.
The GE SR469-P5-HI-A20 fits into a wide range of industrial applications where dependable motor protection and actionable status data are required. In municipal water and wastewater facilities, the relay protects large centrifugal pumps against phase loss and locked-rotor events while sending load and status signals to the plant PLC for flow control, enabling energy-optimized pump scheduling. In oil and gas pumping and compression stations, the GE SR469-P5-HI-A20 provides fast-trip logic to protect rotating equipment and logs events that are essential for root-cause analysis after abnormal occurrences.
In mineral processing and mining applications the relay helps manage motors that drive conveyors, crushers and mills—assets exposed to heavy mechanical stress and variable loading. Using the relay’s thermal model and trend outputs, operators can detect gradual increases in current that indicate bearing wear or material buildup and schedule maintenance before catastrophic failure. On manufacturing lines with servo or induction motors, the device integrates into a PLC-based control scheme to provide both protection and performance feedback, reducing the need for separate monitoring instrumentation.
The device also proves useful in HVAC central-plant applications where integration with building automation systems and building management systems (BMS) yields measurable energy savings. Because it supports standard communication stacks, the GE SR469-P5-HI-A20 can be specified as part of distributed control system parts lists or purchased as a standalone edge node to modernize legacy installations with limited wiring changes.
469-P5-HI-A20-T — Ethernet-enabled variant adding on-board Ethernet for remote monitoring and integration.
469-P5-HI-A20-E-H — Harsh-environment option with improved ingress and vibration tolerance for outdoor or heavy-industrial sites.
469-P1-HI-A1 — 1 A CT-secondary version for lower-current systems while retaining similar protection logic.
469-P5-LI-A20 — Lower-instrumentation variant offering the core protection features with fewer analog outputs for cost-sensitive projects.
469-P5-HI-A20-T-H — Combined Ethernet and harsh-environment model suited to aggressive ambient conditions and remote telemetry.
Before installing the GE SR469-P5-HI-A20, confirm that the control cabinet offers sufficient space, cooling and a stable, clean environment. The relay is intended for panel mounting; ensure proper ventilation so internal temperatures remain within the −20 °C to +60 °C operating range and that terminal access allows recommended torque values to be achieved during wiring. Establish a solid earth connection for the cabinet and follow proper CT wiring practices—verify CT polarity and secondary grounding per site standards to prevent measurement or protection errors. Validate control power prior to full commissioning and perform a bench checkout of the front panel and communication ports to confirm firmware and basic I/O behavior.
Maintenance for the GE SR469-P5-HI-A20 should emphasize preventive checks and data-driven interventions. Periodic visual inspections at scheduled outages are recommended to look for loose connections, corrosion, or dust accumulation that could impair cooling. Use the relay’s event logs and analog trends to watch for creeping increases in running current or repeated thermal warnings—these are often early indicators of mechanical wear or system imbalance. Maintain firmware and configuration backups and validate firmware updates in a test unit before applying them on production relays. For procurement, Xiamen Xiongba E-commerce Co., Ltd. Branch can provide pre-shipment testing, serial-number traceability and assistance with spare parts selection to streamline maintenance planning and reduce mean time to repair.
Xiamen Xiongba E-commerce Co., Ltd. Branch provides warranty and post-sale support for products supplied through our channels. For the GE SR469-P5-HI-A20 purchased from Xiongba, we offer a one-year warranty that covers manufacturing defects discovered during normal use and a free replacement service within the warranty period. Warranty handling includes technical assistance for installation and guidance through return or replacement logistics managed by Xiongba’s global supply and service network. Please retain proof of purchase and contact Xiongba’s sales or service desk to initiate any claim. Our objective is to deliver prompt, transparent support so your motor-protection equipment is returned to service with minimal disruption.
