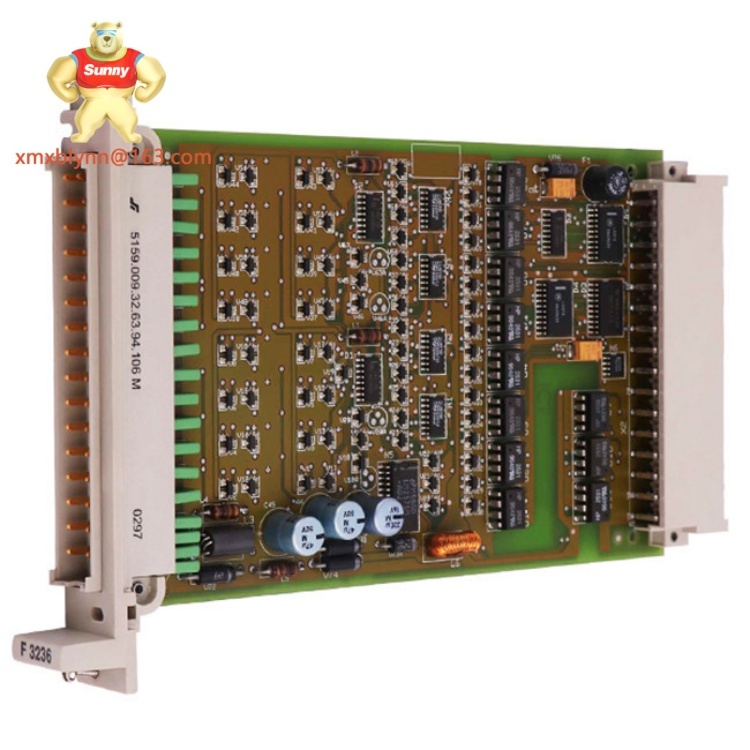

The HIMA F3236 is a high-integrity 16-channel digital input module designed for safety-critical distributed control systems (DCS) and industrial automation environments. Part of HIMA’s proven F-series I/O portfolio, the HIMA F3236 delivers SIL 3/AK 6 certification , ensuring compliance with the most stringent safety standards in industries like oil & gas, chemical processing, and power generation. Its rugged design combines 8 ms signal response time with comprehensive self-testing during operation, making it ideal for applications where failure could lead to catastrophic consequences.
In automation setups, the HIMA F3236 acts as a vital interface between field sensors (e.g., pressure switches, temperature transmitters) and control systems, converting discrete signals into actionable data for PLCs or DCS platforms. For example, in a North Sea offshore rig, the HIMA F3236 monitors 16 safety interlock signals from emergency shutdown valves, ensuring rapid actuation within 8 ms to prevent hydrocarbon leaks. Its compatibility with HIMA’s C300 and C500 PLC systems simplifies integration, while third-party adapter modules enable seamless communication with architectures like ABB AC 800M . This flexibility allows operators to modernize legacy systems without full-scale replacement, reducing retrofit costs by up to 30%.
The HIMA F3236’s SIL 3/AK 6 certification ensures it meets the highest safety integrity levels for applications like emergency shutdown systems and critical process monitoring. Its automatic self-testing —including cross-talk detection and filter capacitor validation—guarantees 99.9% uptime, as demonstrated by a German chemical plant that reduced unplanned downtime by 40% after replacing legacy relays with the HIMA F3236.
With 16 isolated input channels, the module supports mixed signal types (6 mA current or 24V DC contact) , accommodating diverse field devices without additional signal conditioning. This versatility simplifies procurement, as a single HIMA F3236 can replace multiple specialized modules in complex setups. For systems requiring integration with ABB AC 800M , third-party protocol converters (e.g., Anybus modules) enable seamless data exchange, extending the module’s utility in hybrid DCS environments.
Rugged construction includes conformal-coated circuit boards to resist moisture and vibration, making it suitable for offshore platforms and pulp mills. Built-in diagnostic LEDs provide real-time status feedback, allowing maintenance teams at a U.S. power plant to identify faulty channels within seconds during routine inspections.
The HIMA F3236 excels in industries where safety and reliability are non-negotiable:
- Oil & Gas: Monitors wellhead pressure switches and fire detection systems on offshore rigs, ensuring immediate shutdown in hazardous conditions.
- Chemical Processing: Manages safety interlocks for reactor temperature sensors, preventing runaway reactions.
- Power Generation: Validates turbine overspeed signals in combined-cycle plants, protecting equipment from mechanical failure.
- Water Treatment: Supervises pump status indicators in wastewater treatment plants, ensuring regulatory compliance with 24/7 monitoring.
- Semiconductor Manufacturing: Coordinates cleanroom airflow sensors to maintain ISO Class 5 environments, reducing wafer defect rates by 18% .
A notable case study involves a Mexican refinery that upgraded its 15-year-old DCS with HIMA F3236 modules. By leveraging the module’s SIL 3 certification and adapter-based integration with ABB AC 800M , the plant achieved a 25% reduction in safety system response time while maintaining compatibility with existing infrastructure.
- F3221: 8-channel digital input module for smaller-scale safety applications.
- F3226: 16-channel input module with intrinsic safety for explosive environments.
- F3226A: Enhanced version of F3226 with extended temperature range (-40°C to +85°C).
- F7113: 24V DC power supply module compatible with HIMA F-series I/O racks.
- F7114: Redundant power control module for high-availability systems.
- F7130A: Compact power supply module for space-constrained installations.
- F8623B: Control module enabling HIMA F3236 integration with third-party PLCs.
Installing the HIMA F3236 requires a 4TE rack slot with 5V/24V power rails and 20mm clearance for ventilation. Secure the module with M3 screws and terminate field wires using the screw-terminal connectors, ensuring proper grounding to minimize electromagnetic interference. For hybrid systems, the F8623B control module facilitates communication with non-HIMA PLCs.
Maintenance includes quarterly visual inspections:
- Verify LED status indicators for channel health.
- Clean dust from vents using compressed air (≤ 2 bar pressure).
- Check terminal connections for corrosion or 松动.
Annual firmware updates via HIMA’s PES engineering tool ensure compatibility with evolving safety standards. The module’s event log, accessible via serial port, tracks signal anomalies and self-test results, enabling predictive maintenance—such as replacing a degraded input channel before it triggers a false alarm.
The HIMA F3236 is covered by a one-year warranty and free replacement service provided by Xiamen Xiongba E-commerce Co., Ltd. Branch. Customers can initiate claims via email or phone, with technical support responding within 24 hours to resolve issues. Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing. Pre-shipment testing, datasheet verification, and serial-number traceability are available to ensure genuine, fully functional modules, giving customers confidence in their industrial automation spare parts.
