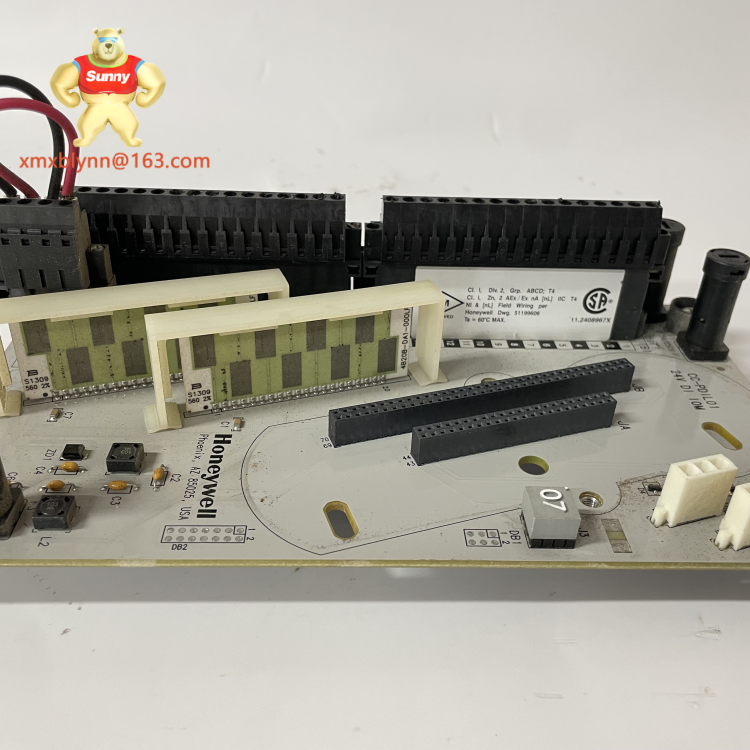

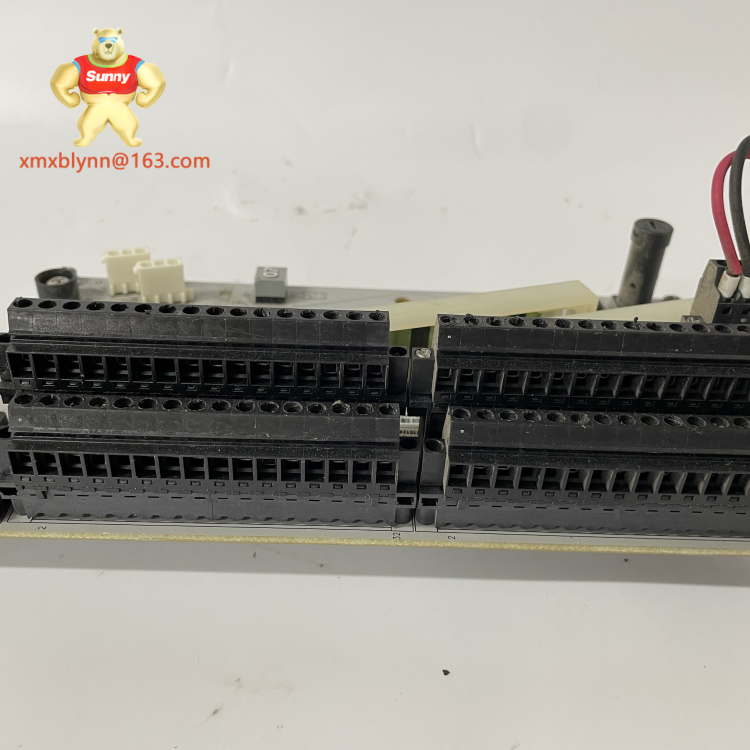

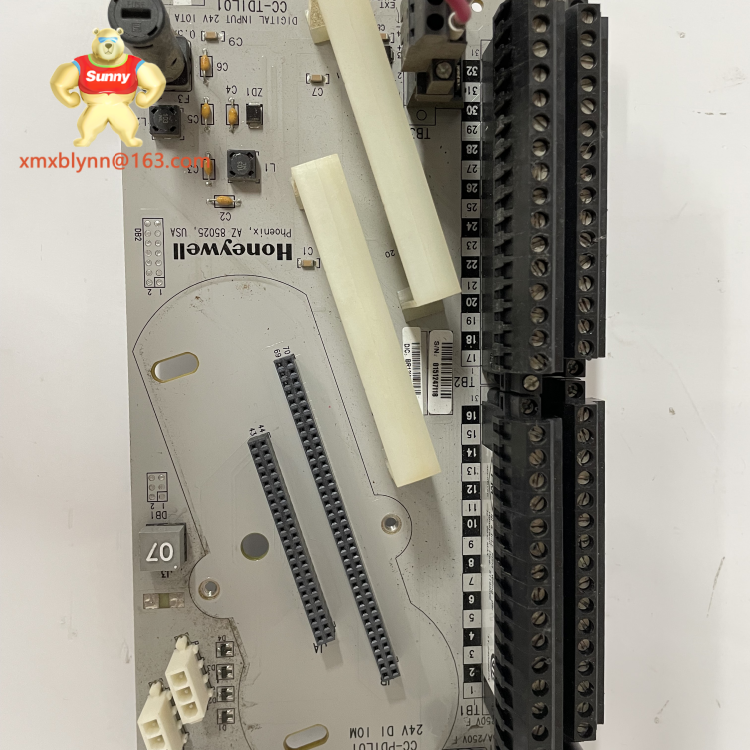

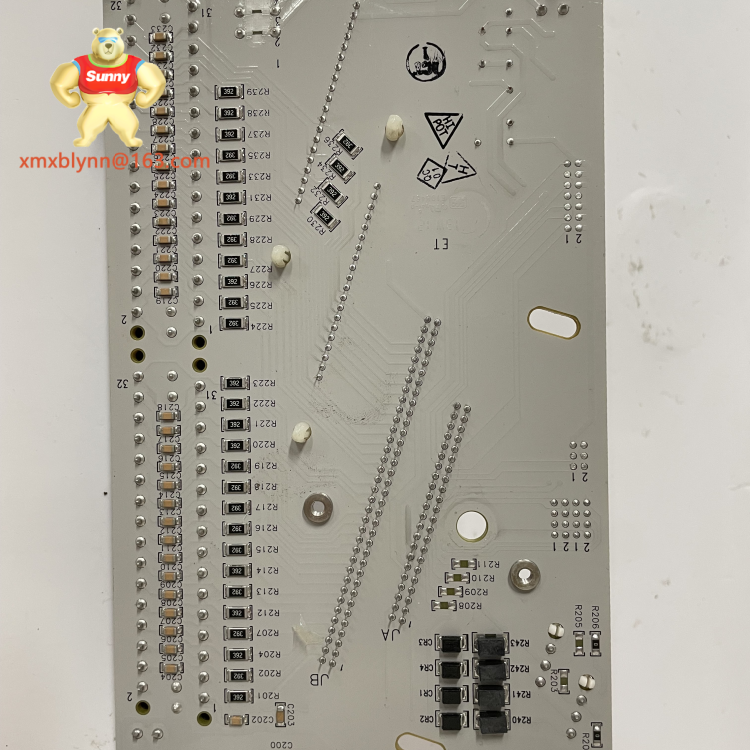

The CC-TDIL01 is a Honeywell slot-mounted thermocouple and differential-input linearizer engineered to deliver cold-junction compensation, galvanic isolation, and precise scaling for temperature loops inside control cabinets and detector racks. Designed for field serviceability, CC-TDIL01 converts low-level millivolt thermocouple signals and small differential voltages into stable, linear outputs that the host DCS can use for alarm logic, historian trending, and closed-loop control. In mixed-vendor plants where teams hold ABB DO810 spares or ABB I/O modules as part of their industrial automation spare parts strategy, CC-TDIL01 reduces integration friction and shortens commissioning windows.
Installed near termination blocks or junction boxes, the CC-TDIL01 minimizes extension-wire lengths and the associated thermoelectric errors that often plague long runs. For example, in a boiler-house retrofit a technician mounted a CC-TDIL01 next to the boiler junction box and restored reliable PLC temperature readings within hours, avoiding sensor replacement. e.g., in a municipal water pump station, technicians replaced legacy relays with CC-TDIL01 to recover 24/7 monitoring within a day. Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing.
| Parameter | Value |
|---|---|
| Product Model | CC-TDIL01 |
| Manufacturer | HONEYWELL |
| Product Type | Thermocouple / Differential Input Linearizer Module |
| Power | 18–32 VDC (panel-supplied typical) |
| Communication / Protocol | Analog conditioned outputs (mV, ±V or 4–20 mA depending on config) |
| Operating Temperature | -20 °C to +60 °C (panel-rated) |
| Mounting | Slot / rack mount inside Honeywell detector or control rack |
| Protection / Ingress | IP20 (module-level); enclosure provides final rating |
| Dimensions (HxWxD) | ~110 × 70 × 35 mm (module form factor) |
| Weight | ~0.12–0.28 kg |
| Typical Interfaces | Thermocouple inputs (J/K/T/S types), differential voltage inputs, status LEDs, logic outputs |
| Compliance | Panel-level safety and EMC standards (verify datasheet for approvals) |
(Representative values — confirm exact supported thermocouple types, output wiring options, and approvals with the official datasheet prior to installation.)
The CC-TDIL01 delivers precise cold-junction compensation across common thermocouple types, which directly reduces measurement error and eliminates many field-side workarounds. First, cold-junction compensation is integrated on-board so you don’t need separate transmitters at each junction; second, galvanic isolation prevents ground-loop noise from corrupting sensitive temperature signals. Engineers see the benefit immediately in cleaner trends and fewer nuisance alarms. The module’s linearization algorithms provide near-linear outputs to the host DCS, making mapping to control loops or historian tags straightforward.
Serviceability matters: CC-TDIL01 is slot-mounted with accessible terminations and indicator LEDs so technicians can identify faults and swap modules during a shift change, keeping MTTR low. Reliability is built in via industrial-grade components and conservative operating ranges; consequently, lifecycle costs fall because sensors and controllers stay in service longer without repeated replacements. In mixed-vendor brownfield projects, CC-TDIL01 integrates simply with distributed control system parts and complements ABB AC 800M and ABB I/O modules in spare kits; mapping conditioned outputs to those controllers requires standard analog mapping, not proprietary gateways. Finally, this module helps standardize temperature acquisition across skids and racks, which reduces spares complexity and speeds training for maintenance crews.
Power plants: place CC-TDIL01 in turbine and boiler cabinets to linearize thermocouple inputs for accurate cascade control and reliable trending; technicians often put the module close to the junction box to reduce lead errors.
Oil & gas / petrochemical: mount CC-TDIL01 on process skids to convert multiple thermocouple types into isolated analog channels that feed safety PLCs and the plant historian. This reduces nuisance trips where long extension runs previously introduced noise or drift.
Water & wastewater: use CC-TDIL01 to retrofit treatment process panels so existing thermocouples remain in service while providing clean signals to the DCS; this approach avoids costly field sensor replacements and shortens outage windows.
Metals and heat treatment: instrument furnaces and annealing lines with CC-TDIL01 to ensure repeatable temperature control and reduce scrap rates; high sample fidelity yields better closed-loop stability.
HVAC and infrastructure: consolidate rooftop and chiller thermocouple islands into rack-mounted linearizers such as CC-TDIL01 to simplify spare parts and streamline alarm aggregation. Across these examples, CC-TDIL01 solves real problems by lowering wiring complexity, improving signal fidelity, and enabling quick brownfield retrofits when teams must coordinate ABB DO810 or ABB I/O modules with other distributed control system parts.
CC-TDIL02 — higher-channel-count thermocouple linearizer (companion module).
CC-ISO-001 — isolated transmitter module for single-ended sensor signals.
CC-TC-TERM — thermocouple termination plate for rapid field wiring.
FS-ANLG-0044 — analog-to-digital companion useful for alarm panels and recorders.
CC-RACK-BASE — rack/backplane assembly for mixed module configurations.
CC-HART-GW — HART-to-analog gateway for mixed communication topologies.
CC-TDIL-RTD — RTD-specific linearizer for platinum sensors.
Before installation, verify cabinet slot compatibility, ensure the host rack provides a stable 18–32 VDC panel supply, and reserve clearance for termination access. Mount CC-TDIL01 as close as practical to thermocouple junctions to shorten extension-wire length and minimize thermoelectric offsets. Grounding is critical: bond cabinet earth at a single point, isolate shields properly, and separate signal and power conduits where possible to prevent EMI coupling. Label each channel and record the module serial number and revision in your CMMS for streamlined spares management.
For maintenance, perform visual LED checks and torque terminal connections during scheduled outages, and archive baseline readings immediately after commissioning so you can detect drift over time. Back up any mapping or configuration that lives in the host DCS before replacement. If persistent offset or intermittent noise remains after wiring verification, replace CC-TDIL01 from spares and bench-test the suspect unit to isolate the fault. Use event logs and trend data to identify slow degradation — these indicators often point to corroded junctions or aging thermocouples before they cause process interruptions. Keep at least one spare CC-TDIL01 for critical loops and track replacement intervals using historical failure patterns.
The CC-TDIL01 is covered by a one-year warranty and free replacement service provided by Xiamen Xiongba E-commerce Co., Ltd. Branch (not the OEM). For warranty claims involving CC-TDIL01, customers should contact Xiamen Xiongba with the purchase order and module serial number; Xiongba offers pre-shipment testing, datasheet verification, and serial-number traceability prior to dispatch to ensure correct configuration and reduce returns. Xiamen Xiongba will coordinate replacement logistics, advise on suitable refurbished or drop-in alternatives when originals are obsolete, and support customers during returns to minimize plant downtime.
