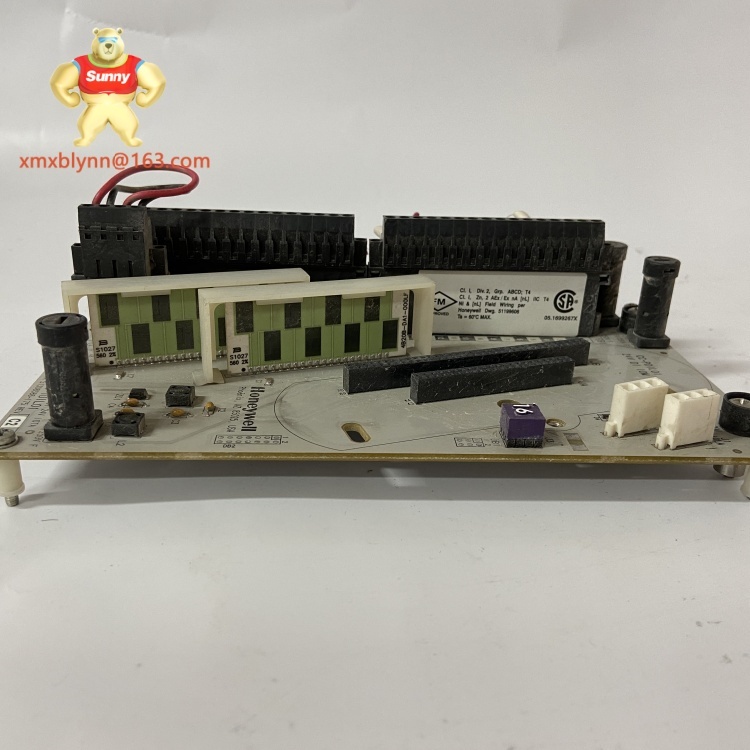

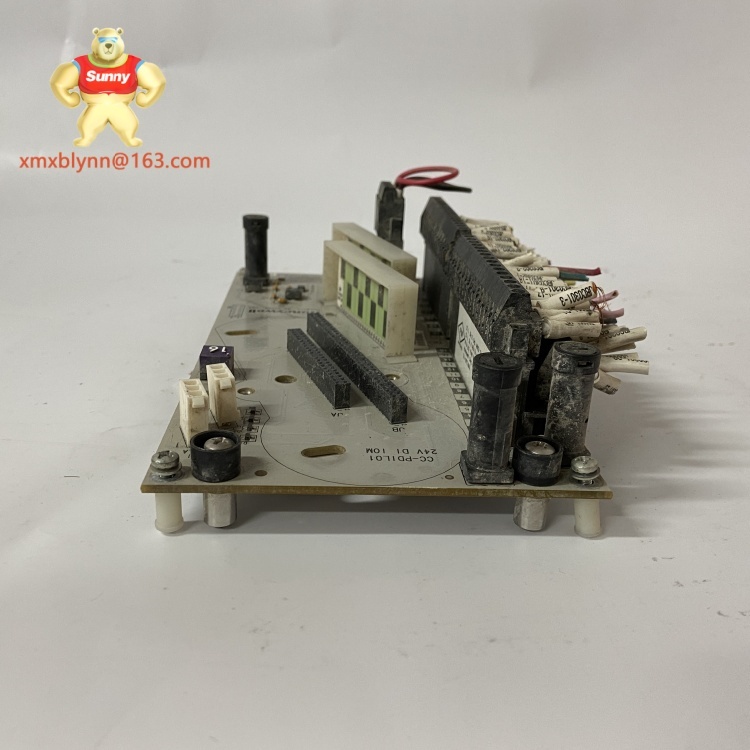

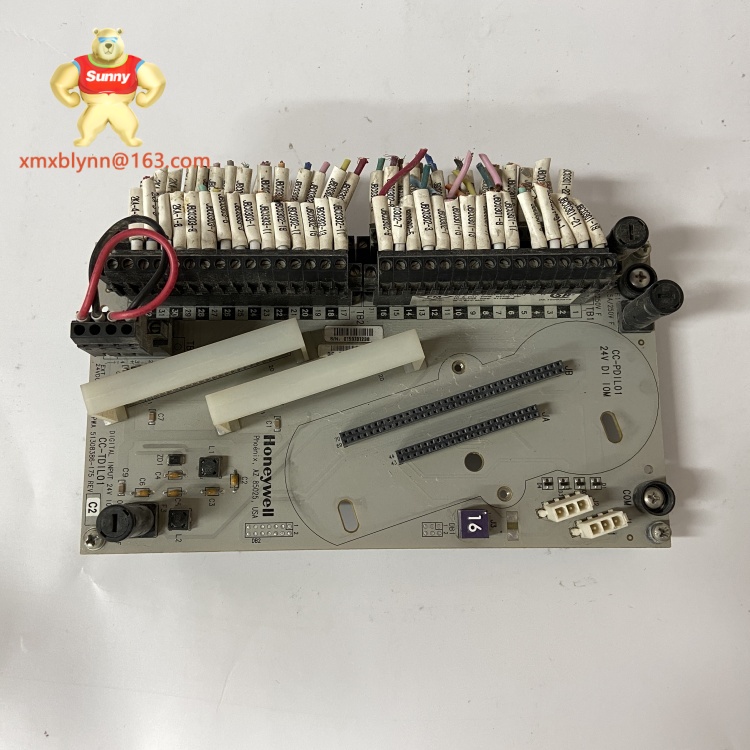

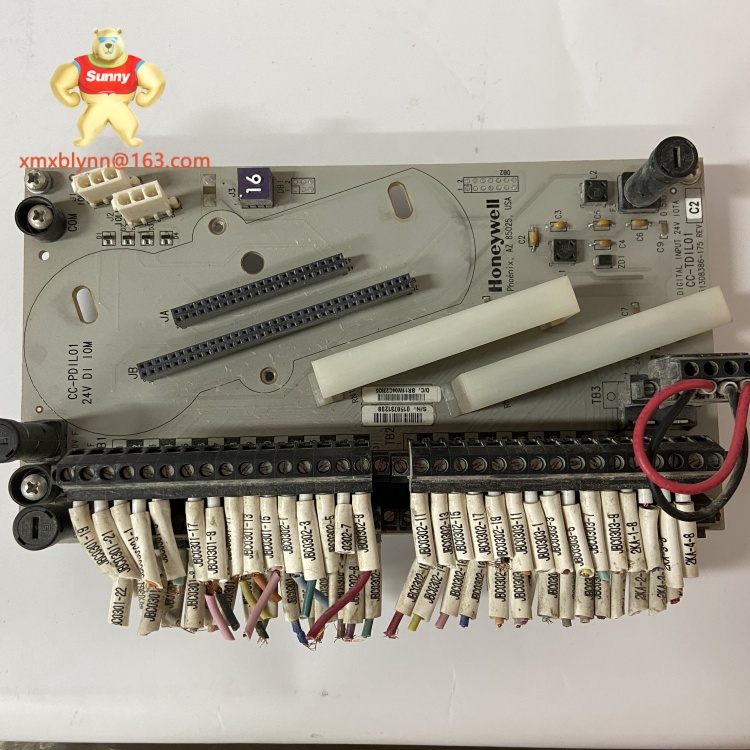

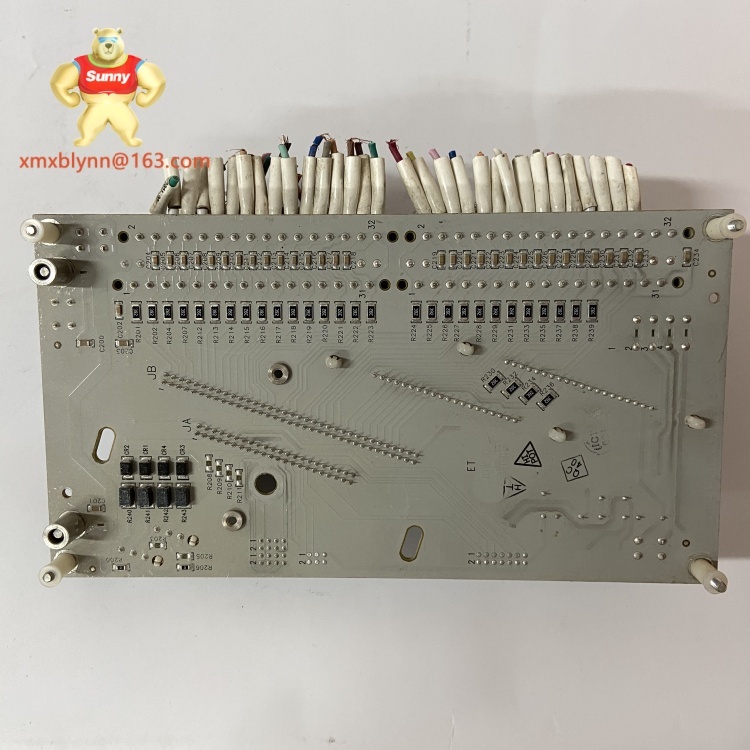

The CC-TDIL01 is a Honeywell slot-mounted thermocouple and differential-input linearizer engineered to deliver cold-junction compensation, galvanic isolation, and precision scaling for temperature loops inside control cabinets and detector racks. Designed for field serviceability, CC-TDIL01 converts thermocouple millivolt signals and small differential voltages into clean, linear outputs that the host DCS or safety panel can use for alarms, trending, and closed-loop control. Maintenance teams appreciate that CC-TDIL01 fits near termination blocks in a control cabinet or MCC, which shortens extension-wire runs and reduces common-mode noise.
Often procured alongside other distributed control system parts — for example ABB DO810, ABB I/O modules, or ABB AC 800M spares — CC-TDIL01 is a practical element in mixed-vendor spare kits for brownfield environments. In one boiler-house retrofit, a technician mounted CC-TDIL01 adjacent to the boiler junction box and restored accurate PLC temperature readings within hours, avoiding sensor replacement. Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing.
| Parameter | Value |
|---|---|
| Product Model | CC-TDIL01 |
| Manufacturer | HONEYWELL |
| Product Type | Thermocouple / Differential Input Linearizer Module |
| Power | 18–32 VDC (panel-supplied typical) |
| Communication / Protocol | Analog conditioned outputs (mV / 4–20 mA or voltage, module-dependent) |
| Operating Temperature | -20 °C to +60 °C (panel-rated) |
| Mounting | Slot/rack mount inside Honeywell detector or control rack |
| Protection / Ingress | IP20 (module-level); enclosure provides final rating |
| Dimensions (HxWxD) | ~110 × 70 × 35 mm (module form factor) |
| Weight | ~0.12–0.28 kg |
| Typical Interfaces | Thermocouple inputs (J/K/T/S types), differential voltage inputs, relay/logic outputs, status LEDs |
| Compliance | Panel-level safety and EMC standards (verify datasheet for exact approvals) |
(Values are representative—confirm exact supported thermocouple types, output wiring options, and approvals with the official datasheet prior to installation.)
CC-TDIL01 provides accurate cold-junction compensation and linearization for common thermocouple types, cutting measurement error and simplifying loop configuration. The module’s galvanic isolation reduces ground-loop noise on temperature channels, and accessible terminations plus LED status indicators speed troubleshooting for field technicians. Because CC-TDIL01 is slot-mounted, it saves cabinet real estate compared with individual transmitters and lowers overall lifecycle cost by avoiding full sensor replacements. Integration is straightforward in mixed-vendor environments; for instance, pairing outputs from CC-TDIL01 with ABB I/O modules or an ABB AC 800M controller requires only standard mapping—no proprietary gateways—so brownfield retrofits run faster and cleaner. Finally, stocking CC-TDIL01 as part of your industrial automation spare parts reduces emergency procurement lead times and keeps control loops stable during turnarounds.
Use CC-TDIL01 wherever precise temperature measurement must be centralized and isolated: turbine and boiler cabinets in power plants, heat-treatment zones in metals manufacturing, skid-mounted process lines in petrochemical and oil & gas facilities, and detector racks in fire or safety panels. In water treatment and HVAC, CC-TDIL01 helps replace noisy long thermocouple runs with conditioned signals to the DCS, reducing nuisance alarms and enabling reliable historian trending. For brownfield projects where teams maintain heterogeneous inventories, CC-TDIL01 works well alongside distributed control system parts and other industrial automation spare parts to streamline retrofits and minimize downtime. A short, practical example: during a plant weekend outage, technicians exchanged a single CC-TDIL01 and reclaimed consistent temperature control without interrupting production.
CC-TDIL02 — higher-channel-count thermocouple linearizer (companion module).
CC-ISO-001 — isolated transmitter module for single-ended sensor signals.
CC-TC-TERM — thermocouple termination plate for quick field wiring.
FS-ANLG-0044 — analog-to-digital companion for alarm panels and recorders.
CC-RACK-BASE — rack/backplane assembly for mixed module configurations.
CC-HART-GW — HART-to-analog gateway for mixed communication topologies.
CC-TDIL-RTD — RTD-specific module for platinum sensors.
Before installation, inspect the host cabinet and confirm the available slot, backplane compatibility, and a stable 18–32 VDC panel supply. Mount CC-TDIL01 in a slot close to thermocouple junctions when possible; this practice shortens extension leads and reduces introduction of thermoelectric errors. Grounding must be executed carefully: bond cabinet earth at a single point, keep thermocouple shields separate from power conduits, and route signal and power cables in separate trays to prevent EMI coupling. Label each channel clearly and record the module serial number and revision in your CMMS.
For routine maintenance, check LED status indicators and torque terminations during scheduled outages, and archive baseline readings immediately after commissioning to detect drift over time. Back up any module configuration and mapping prior to firmware updates or swaps. If you observe persistent offset, excessive noise, or intermittent readings after wiring verification, replace CC-TDIL01 from spares and bench-test the suspect unit. Use DCS event logs and trending to spot slow drifts—these trends often reveal corroded junctions or degrading thermocouples before they cause process upset. Keep at least one spare CC-TDIL01 on-site for critical loops and track replacement intervals based on historical failure patterns.
The CC-TDIL01 is covered by a one-year warranty and free replacement service provided by Xiamen Xiongba E-commerce Co., Ltd. Branch (not the OEM). For warranty claims on CC-TDIL01, customers should contact Xiamen Xiongba with their purchase order and module serial number; Xiongba performs pre-shipment testing, datasheet verification, and serial-number traceability to confirm correct configuration before dispatch. Xiamen Xiongba will coordinate replacements, advise on refurbished or drop-in alternatives when originals are obsolete, and provide guidance to minimize plant downtime during returns and exchanges.
