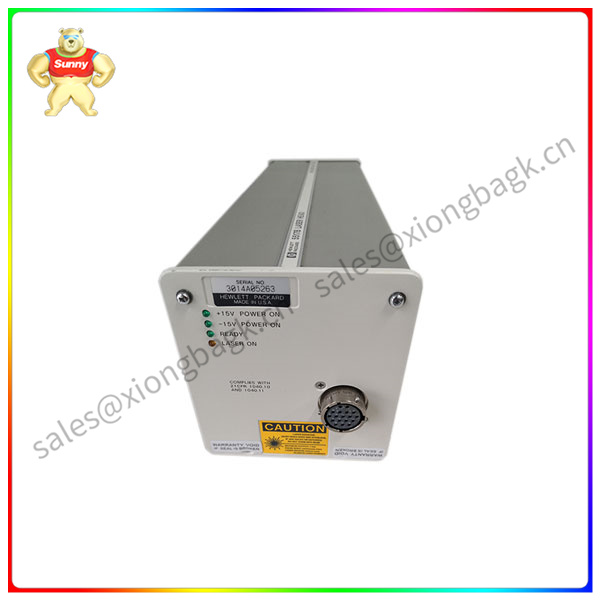

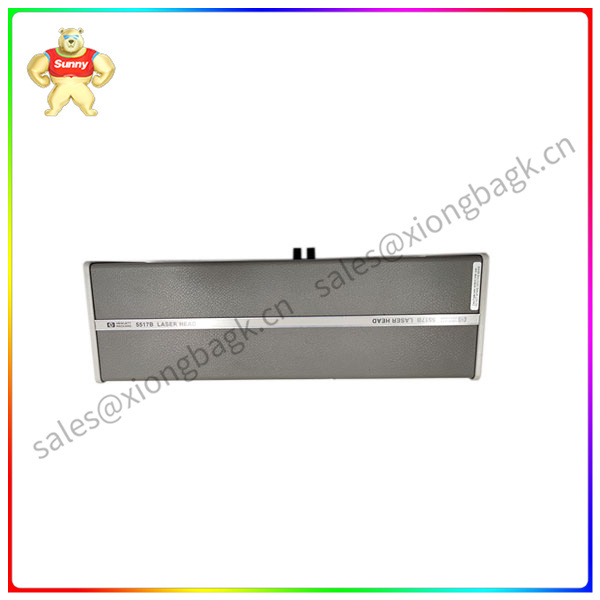

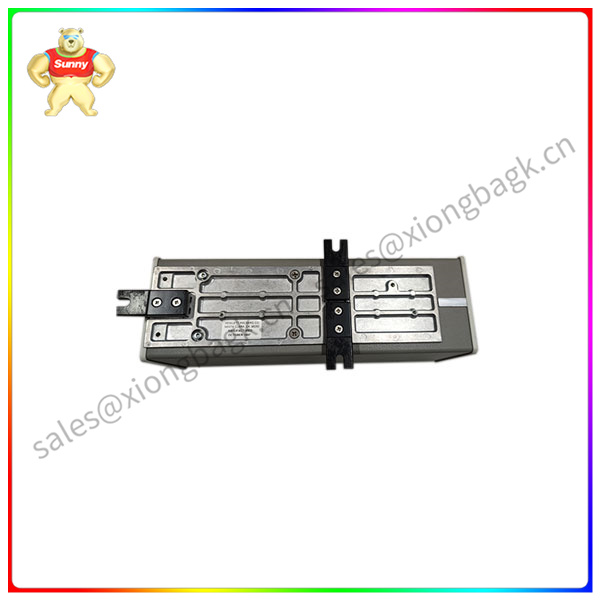

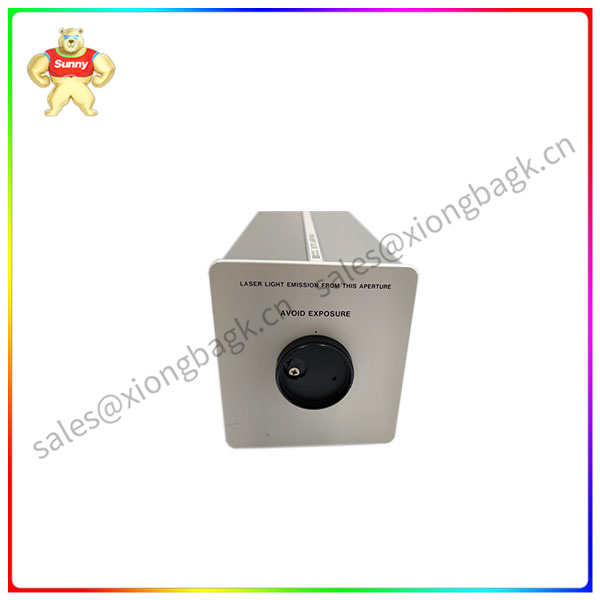

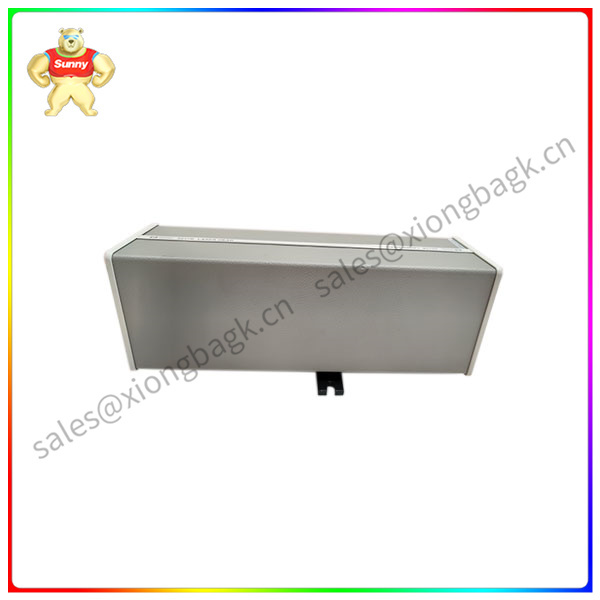

The HP-5517B Keysight laser head is used for precision dual-frequency interferometry
● Warm-up time :45 minutes if the fan and exhaust are connected to the vent cover
Description: The HP-5517B Keysight laser head is used for precision dual-frequency interferometry
normal
Maximum speed of linear optical system :1.2 m/s
Reference frequency :%3E= 4.4 MHZ; Option 300: 5 MHz available
Weight :3.2 kg (7 lb)
Warm-up time :45 minutes if the fan and exhaust are connected to the vent cover
Laser beam
Diameter :6 mm; Option 009:9 mm available
Minimum output power :180 W(120 W after 3 years); Option 300: 80 watt-hours (50 watt-hours after 3 years)
Maximum output power :1mw; Option 300: 220 uW
Beam height :80.8+ 1.0mm
Input power requirement
Max. 3.0 amp hours + 15 volts +0.3 volts
-15 volts +0.3 volts with a maximum of 0.3 amps
The HP-5517B is a laser interferometer with high accuracy and reliability. It is commonly used for optical measurement and calibration in industrial automation and control systems.
HP-5517B laser interferometer has a variety of advanced functions and technologies, such as high-precision interferometry, fast data acquisition and real-time processing, optical fiber transmission and so on. It also has a variety of output frequencies and data transfer rates, which can be configured and selected according to different application requirements.
The HP-5517B laser interferometer usually has a modular design, which is easy for users to upgrade and maintain. It also has high stability and reliability, and can operate stably for a long time in harsh industrial environments.
In summary, the HP-5517B laser interferometer is a high-precision, high-reliability optical measurement device suitable for optical measurement and calibration applications in a variety of industrial automation and control systems.
