IC693CPU372 is a TCP I/P Ethernet communication interface. The module is mainly used to enable communication on Ethernet networks, support Modbus TCP server/client and industrial Ethernet systems
Agreement. The module can be used to perform regular data exchange via Ethernet Global Data (EGD), SRTP, and SRTP clients.
The IC693CPU372 supports full PLC programming and configuration services. It has dual Ethernet ports that share the same IP address and serves as an internal Ethernet switch that allows Daisy chain connectivity.
Network and implement the device level ring (DLR) topology. Each port supports automatic network sensing, eliminating the need to assign modules based on the speed of the existing network.
The IC693CPU372 is equipped with a dedicated processor with a clock speed of 133 MHz. For configuration, the built-in network server allows remote connection to a configuration station that can be used to introduce simple configurations to the module
And module monitoring. For programming programmable Logic controller (PLC) functions, the IC693CPU372 is configured using the machine edition of PLC Logic Developer of Proficy Machine Edition software package.
The IC693CPU372 supports 2048 discrete inputs, 2048 discrete outputs, 128-32, 640 analog input words, and 128-32640 analog output words (maximum) for a total user memory of 240
Kilobytes. This internal memory is of the random access memory (RAM) type and is battery powered. Optional non-volatile memory or flash memory can be added to provide storage that does not require battery power
The memory that holds the contents.
The IC693CPU372 module was designed and manufactured by GE Fanuc. The industrial communication module is used to communicate over industrial Ethernet running over the TCP/IP protocol. The device works with either the 90-30 series or VersaMax
The GE PLC equipment provided in the column is compatible with, or is compatible with, PLC equipment that is part of PACSystems-. The IC693CPU372 module has an integrated interface for Ethernet communication and can be used for installation
Host of all necessary software tools. The Ethernet interface supports up to 3 different 90-30 series modules that can provide additional functionality. The baseboards of the 90-30 series programmable logic controllers can be used in groups
Combine modules to improve the performance of the entire system.
The IC693CPU372 communication module has 2048 input/output points and provides 240 kilobytes of storage capacity. Like most similar components in the series, this module has an 80386EX type
Processor, which is meant to be used on 32-bit systems. The device supports communication over popular networks such as 100BaseTX IEEE 802.3 and 10BaseT networks. For these purposes, the device comprises 2

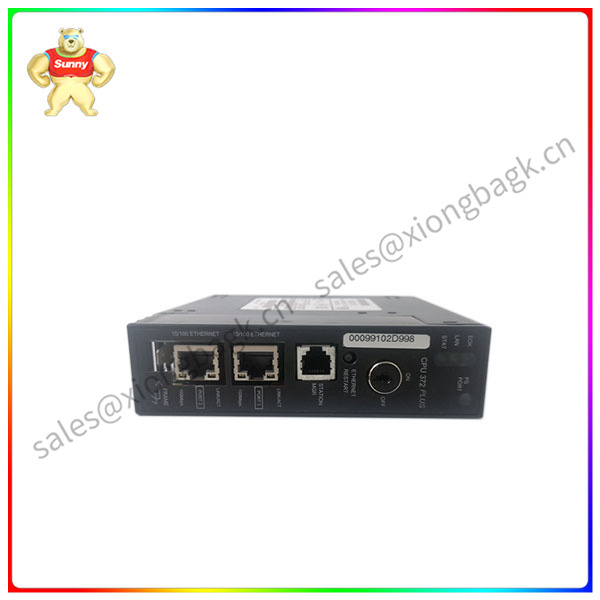

A shielded Ethernet port with automatic sensing. The device has a pair of Ethernet connectors, a station manager function connector, an LED status indicator, a switch and a restart button.
IC693CPU372 module supports floating point math, duplex mode, simple
The benefits of the IC693CPU372 control processor include:
High speed and long distance transmission: Support Profibus DP bus communication, can achieve high speed and long distance transmission, suitable for industrial automation control systems that need high-speed and long distance transmission of data.
A variety of communication interfaces: with a variety of communication interfaces, can adapt to different communication protocols and data formats, and facilitate communication with various devices and systems.
Bus arbitration function: The bus arbitration function can avoid bus conflicts and ensure the stability and reliability of communication.
Industrial grade design and protection level: With industrial grade design and protection level, it can adapt to various harsh working environments and ensure long-term stable operation.
However, the IC693CPU372 control processor also has some disadvantages:
Peer-to-peer transmission: Only peer-to-peer transmission can be performed. If higher-level control and management functions are required, they may need to be used with other controllers or systems.
Higher cost: Compared with some general controller or single chip microcomputer, the cost of IC693CPU372 control processor is higher, which may increase the cost of the entire control system.
In summary, the IC693CPU372 control processor is suitable for industrial automation control systems that require high-speed, long-distance data transmission and strong anti-interference ability, but it should be noted that it can only carry out peer-to-peer transmission and high cost
